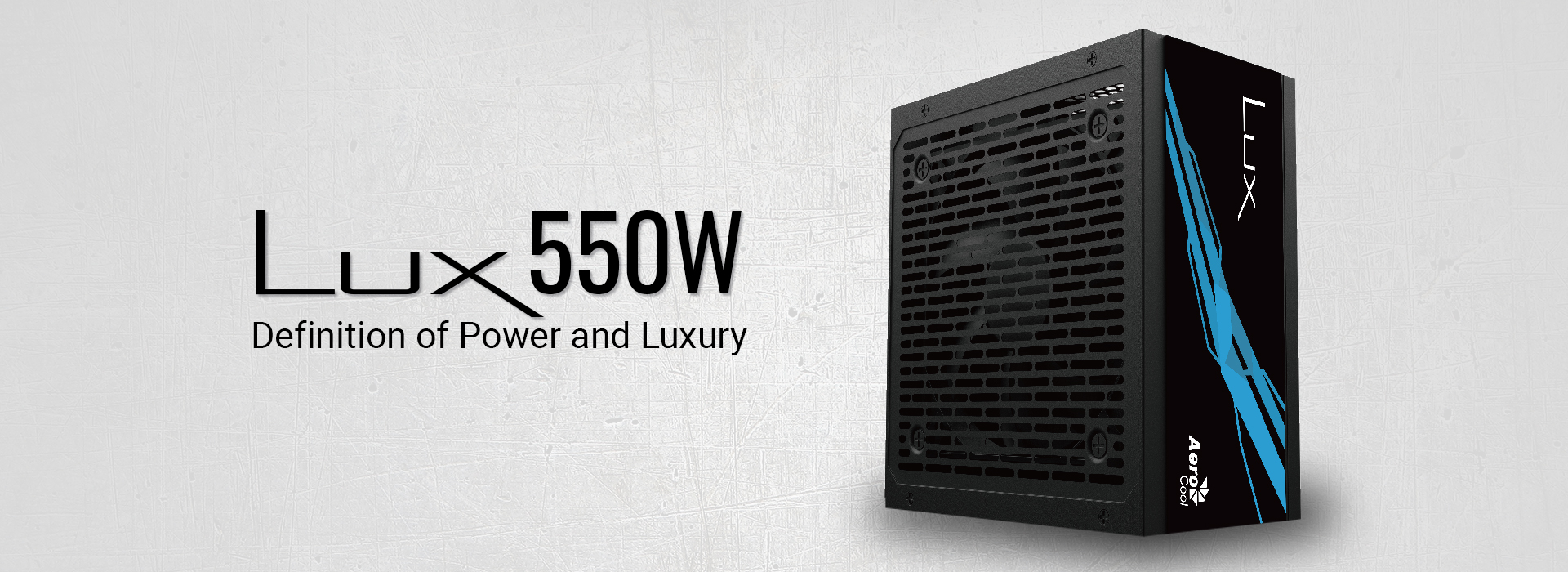

LUX 550W

POWER SUPPLY UNIT

Featuring a stylish and elegant design, the LUX PSU delivers the perfect balance between power and luxury. This premium quality power supply efficiently powers your system while elevating the look and feel of your setup.

80Plus 230V EU Bronze Certified, the LUX delivers up to 88%+ efficiency for top-notch performance. 30% Increased ventilation area in the body of the PSU allows for increased air flow and circulation

80Plus 230V EU Bronze Certified for up to 88%+ efficiency
Built-in APFC (Active Power Factor Correction) rates > 0.9
OPP/OVP/UVP/SCP electrical protection included
30% Increased ventilation area in the body of the PSU allows for increased air flow
Silent 12cm black fan with optimized thermal fan speed control
Compatible with all Intel form factors up to ATX12V Ver.2.4
Soft, black, flat cables allow for more convenient cable management

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

UP TO 88%+ EFFICIENCY

80Plus 230V EU Bronze Certified for high efficiency performance.

STYLISH, ELEGANT DESIGN

Featuring a stylish, elegant design, the LUX PSU is the perfect balance between power and luxury.

This power supply elevates the look and feel of your rig while delivering maximum efficiency power.

IMPROVED AIR VENTILATION

30% Increased ventilation area in the body of the PSU allows for increased air flow and circulation, preventing your system from overheating.

OPTIMIZED FAN RPM

12cm silent black fan with optimized thermal fan speed control. Fan runs at startup speed (less than 800RPM) before reaching 60% load at 25℃ ambient temperatures

CONVENIENT CABLE MANAGEMENT

Soft, black, flat cables allow for more convenient cable management and easier installation.

CONVENIENT CABLE MANAGEMENT

Soft, black, flat cables allow for more convenient cable management and easier installation.

PRODUCT GALLERY

SPECS

SPECIFICATIONS



AC Input 200-240VAC 4A 50-60Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 42A 0.3A 2.5A
Max.Combined Power 100W 504W 3.6W 12.5W
550W
EAN CODE 4718009156234
