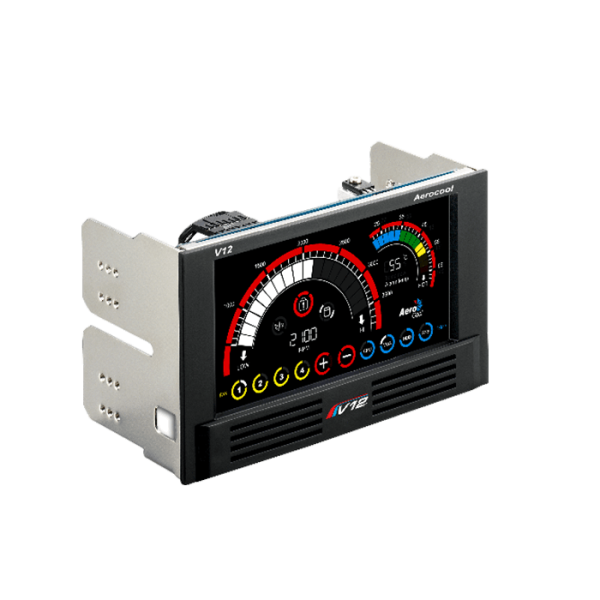

V12XT
FAN CONTROLLER

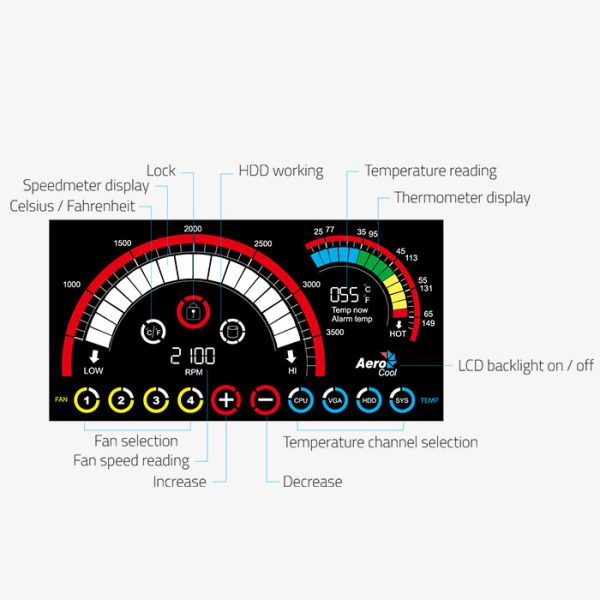

• Large LCD screen
• LCD backlight on/off
• Switch between Celsius and Fahrenheit
• Overheating alarm temperature warning
• HDD working display
• “Lock” function provided to prevent careless miss-touch
| Dimension | 149.5 (W) x 85 (H) x 70(D) mm |
| Box Dimension | 215 (W) x 90(H) x 170(D) mm |
| Net Weight | 350g |
| Gross Weight | 535g (Retail box included) |
| LCD viewable area | 115 (W) x 57 (H) mm |
| Connectors | 4 x 3-pin connectors / 4 x heat sensors |
| Material | ABS front bezel w/ steel bracket |
| Max wattage per fan channel | 6W |
| Inside this packaging | screw 8 (M3x5) / sensor sticker x 6 / spare sensor cables x 2 / spare fan cables x 2 |
