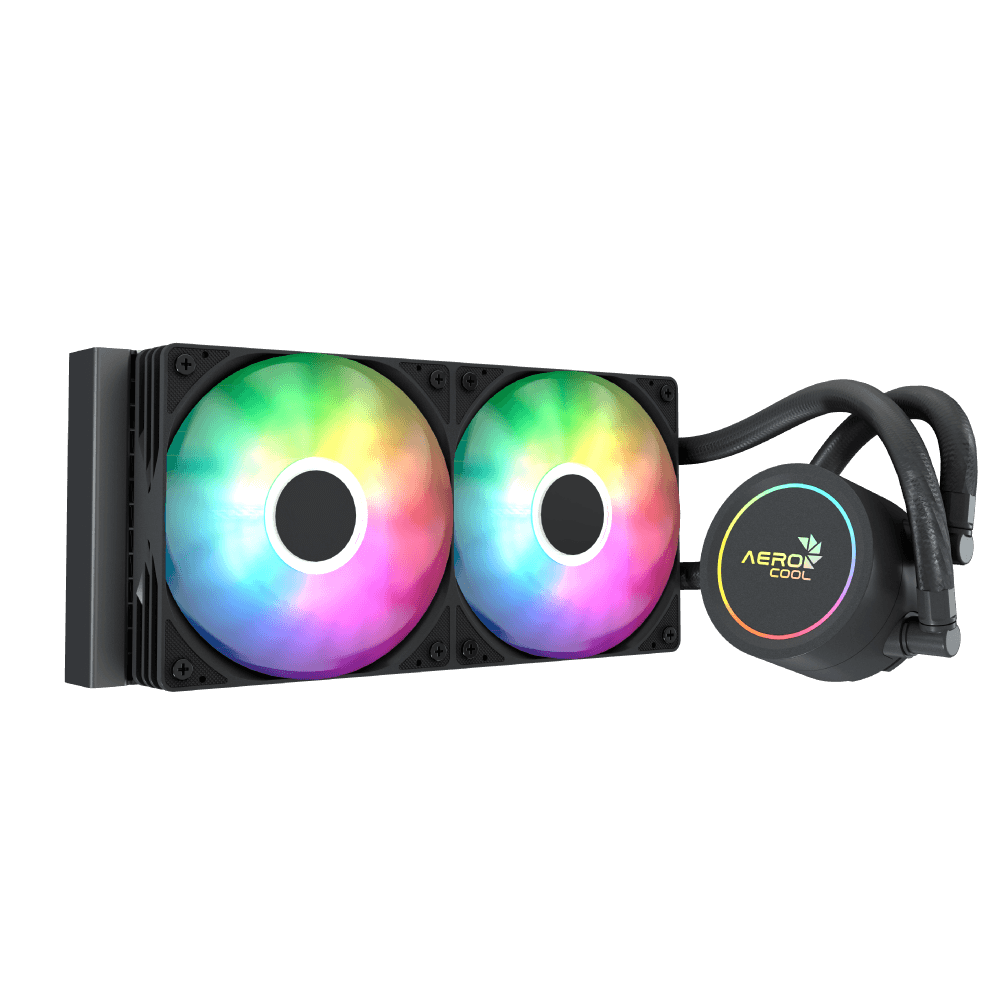

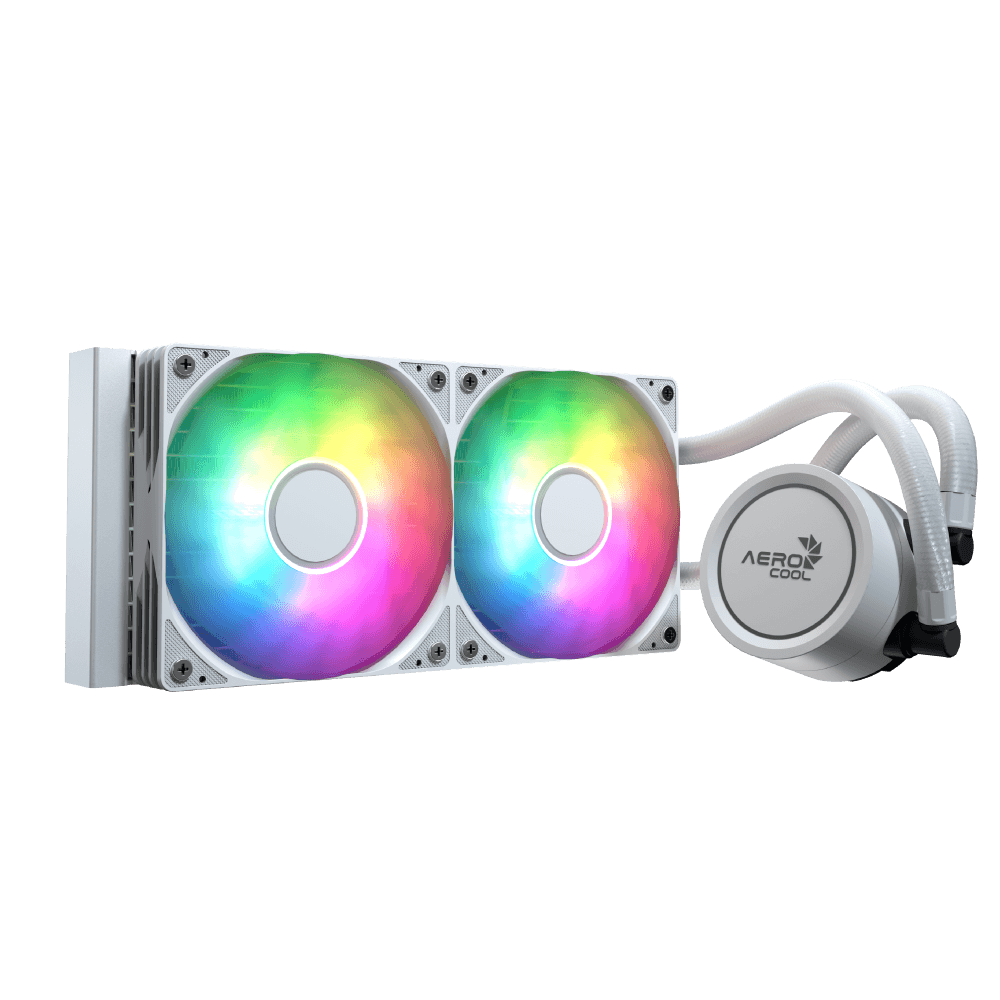

Abyss L240R

360mm ARGB LIQUID COOLER

  • ARGB-illuminated pump head adds vibrant, customizable lighting to enhance your system’s look.
  • 320W TDP rating ensures reliable cooling capacity for demanding systems.
  • Pure copper water block with micro-channel design improves heat transfer for better cooling.
  • Expanded radiator surface increases heat dissipation for enhanced cooling performance.
  • PWM ARGB fans deliver high airflow and pressure for efficient system cooling.
  • Integrated fan frame simplifies installation and keeps cables neat.
  • 16.8 million color control lets you match fan and pump lighting to your build’s style.

Where To Buy
Abyss L240R
Features
Gallery
Specs

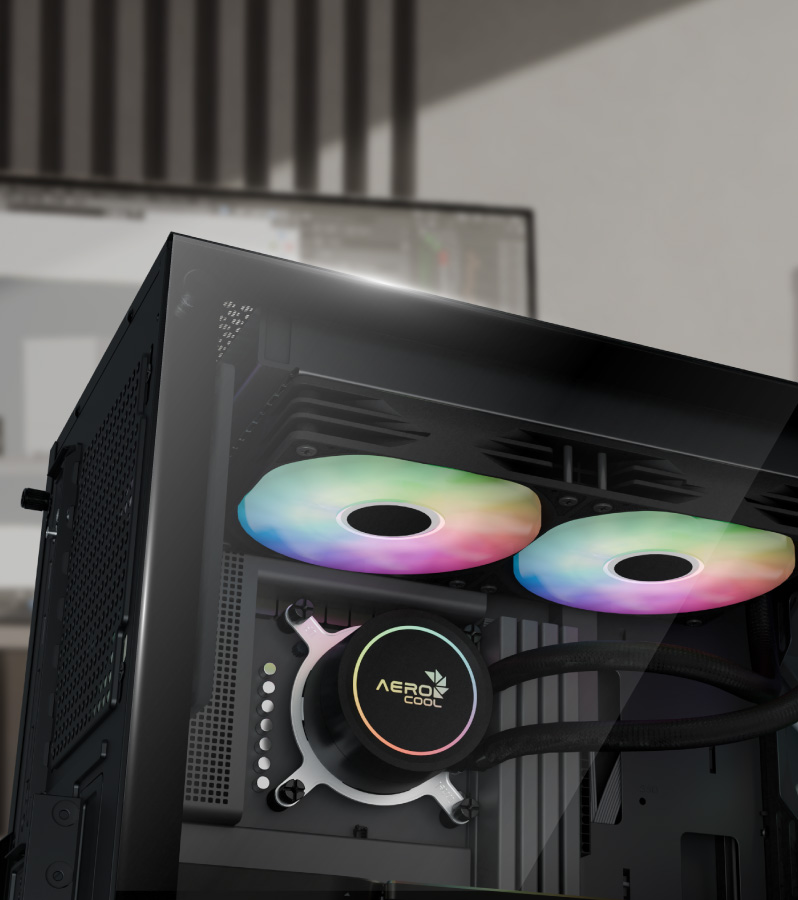

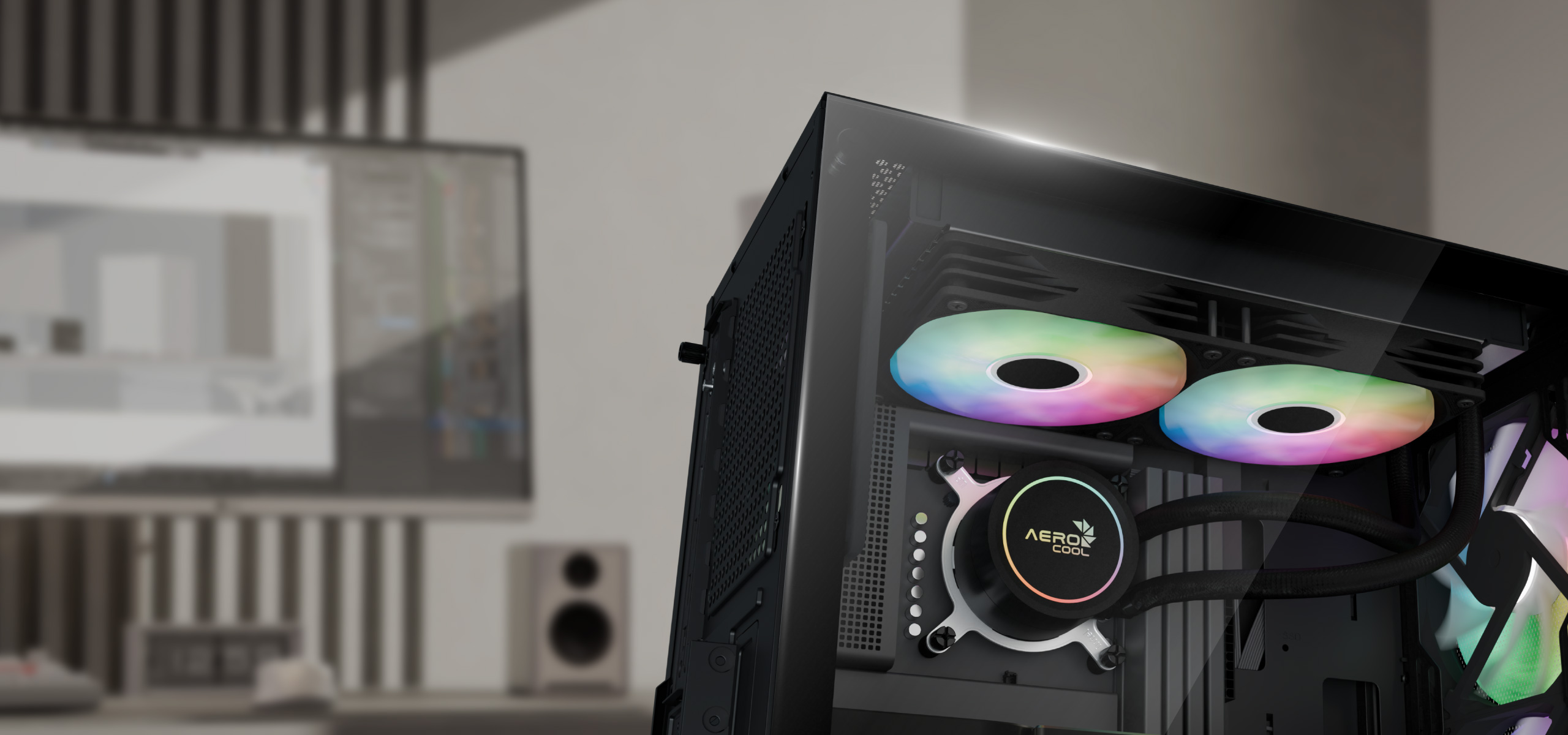

Overview

Elevate your cooling game with AeroCool’s Abyss L240R, engineered for high-performance thermal management and stunning visual appeal. Its pure copper micro-channel water block and expanded radiator surface ensure efficient heat dissipation, while the pre-installed PWM ARGB fans deliver powerful airflow and pressure. With a vibrant ARGB-illuminated pump head, the Abyss L240R is built to perform and designed to impress.

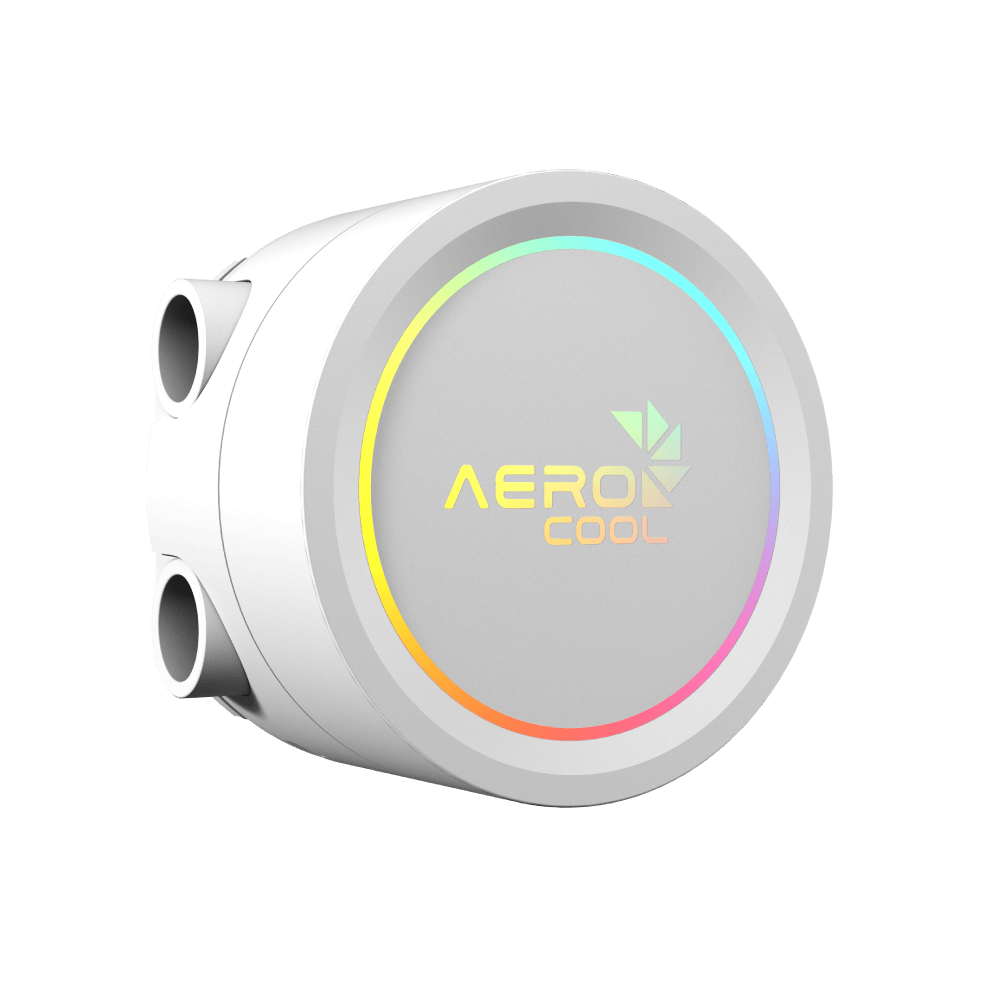

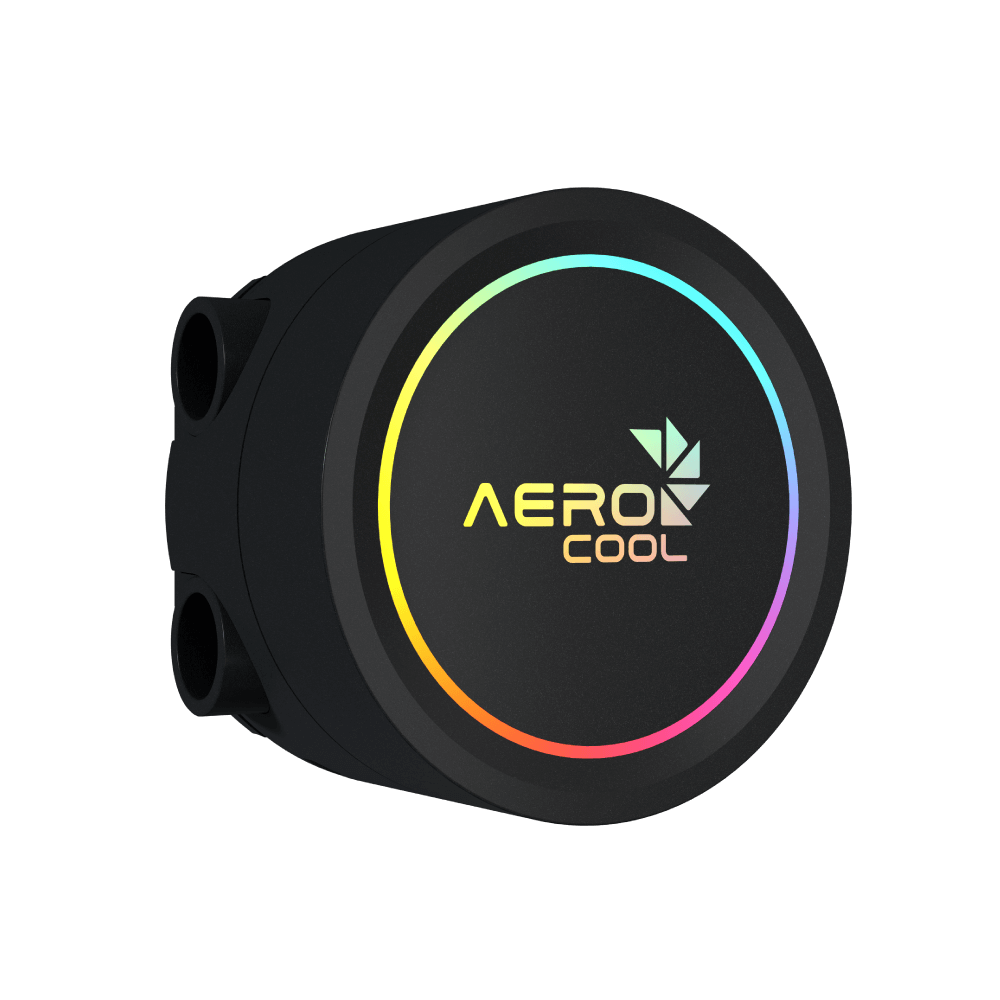

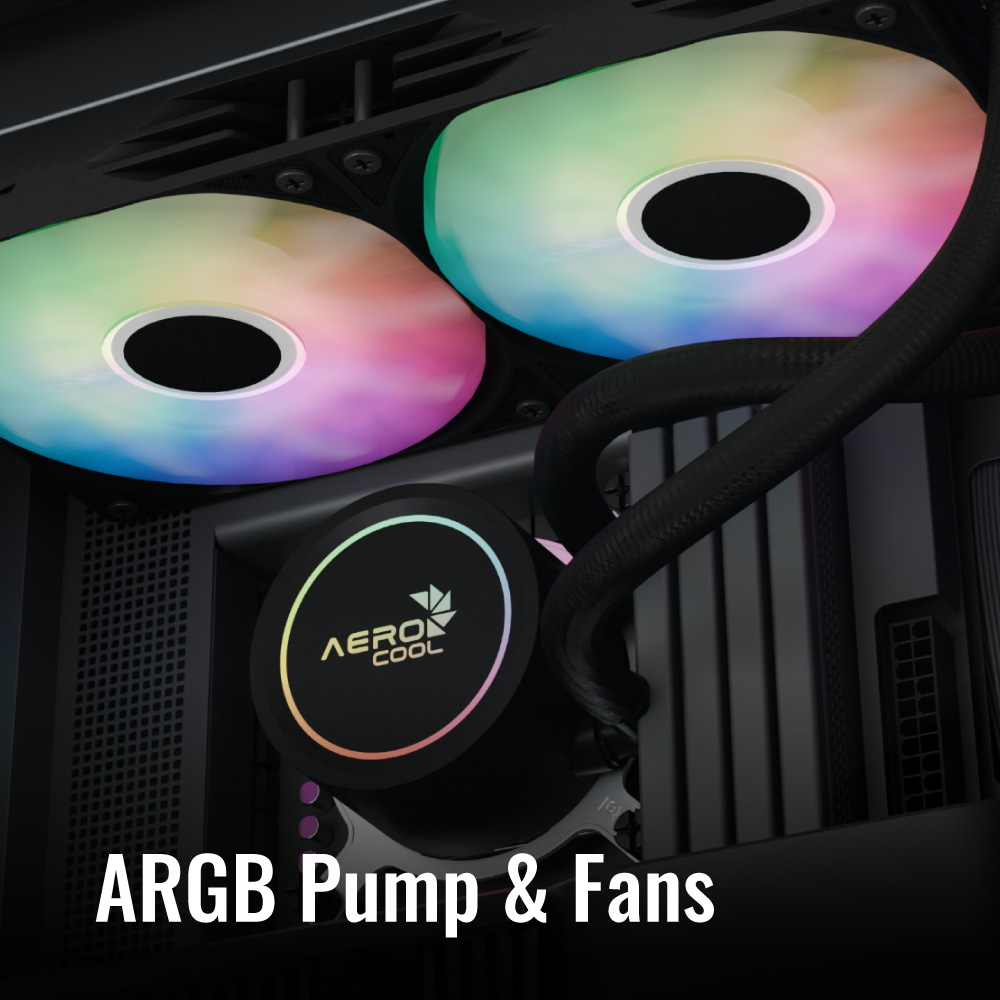

ARGB Lighting That Stands Out

The pump head and fans feature addressable RGB illumination with 16.8 million colors, letting you fully customize the look to match your build’s personality and mood.

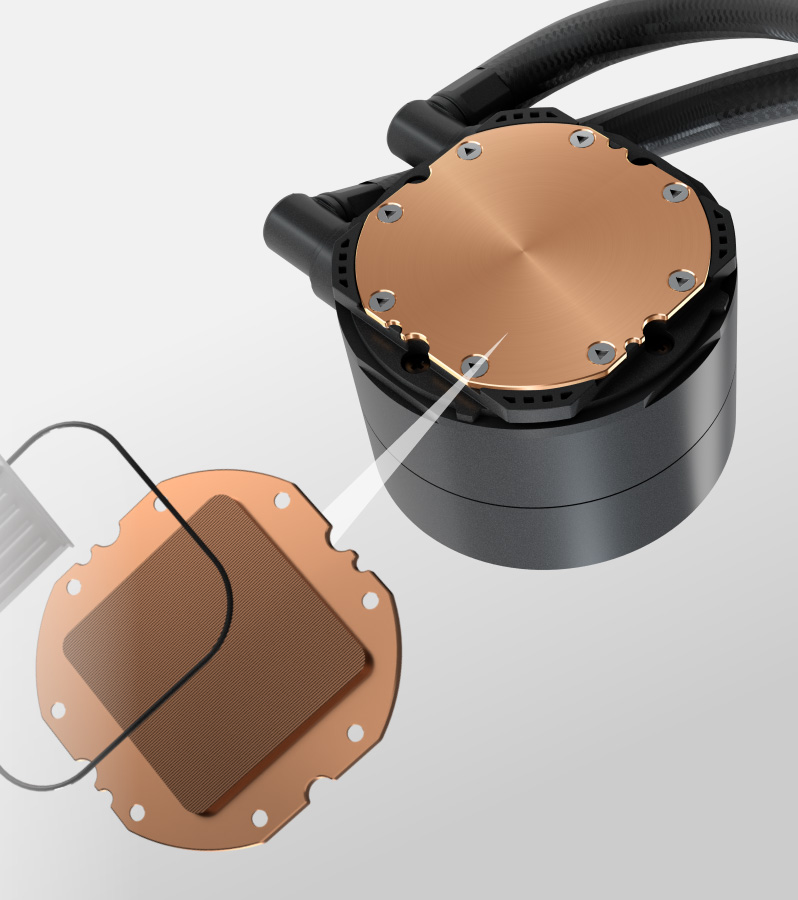

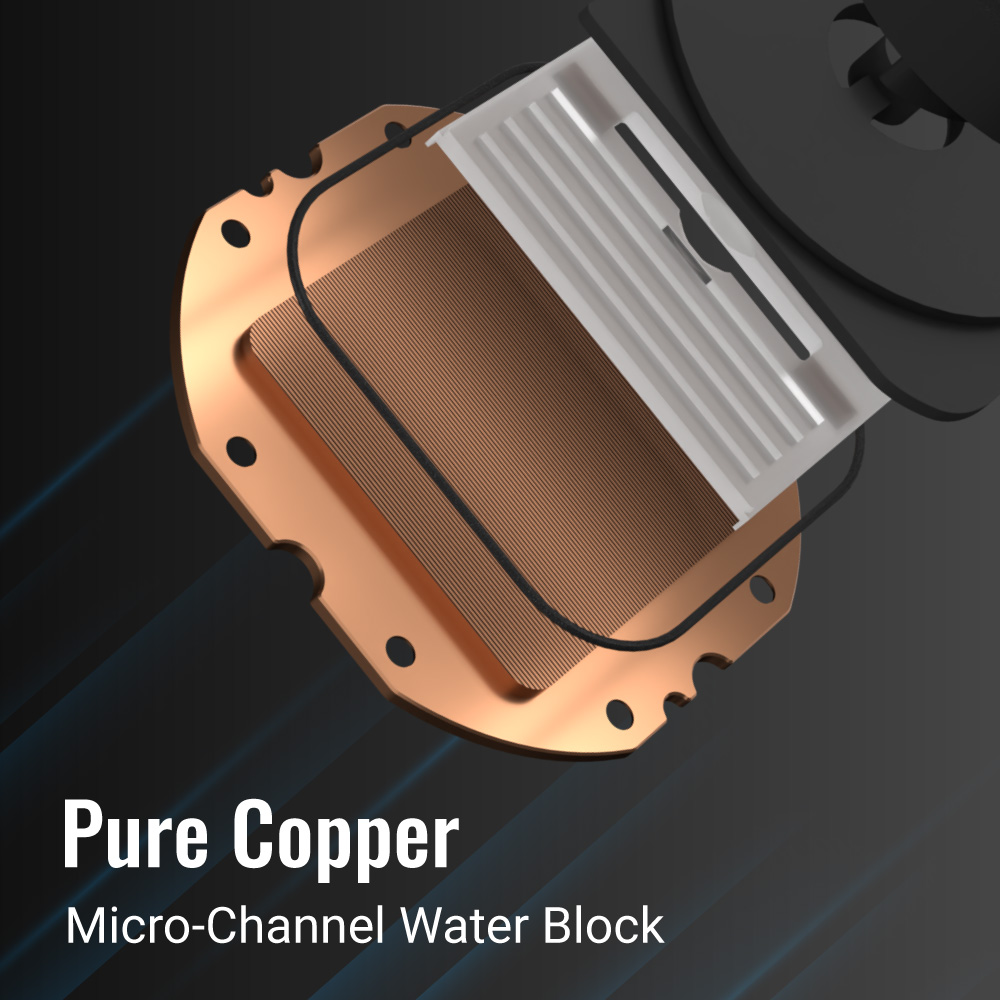

Superior Heat Conductivity

The water block is crafted from pure copper, ensuring excellent heat conductivity. Its micro-channel design accelerates heat dissipation, allowing your system to stay cool and efficient even during intense gaming or heavy workloads. With a TDP rating of 320W, it delivers reliable thermal performance for high-demand setups.

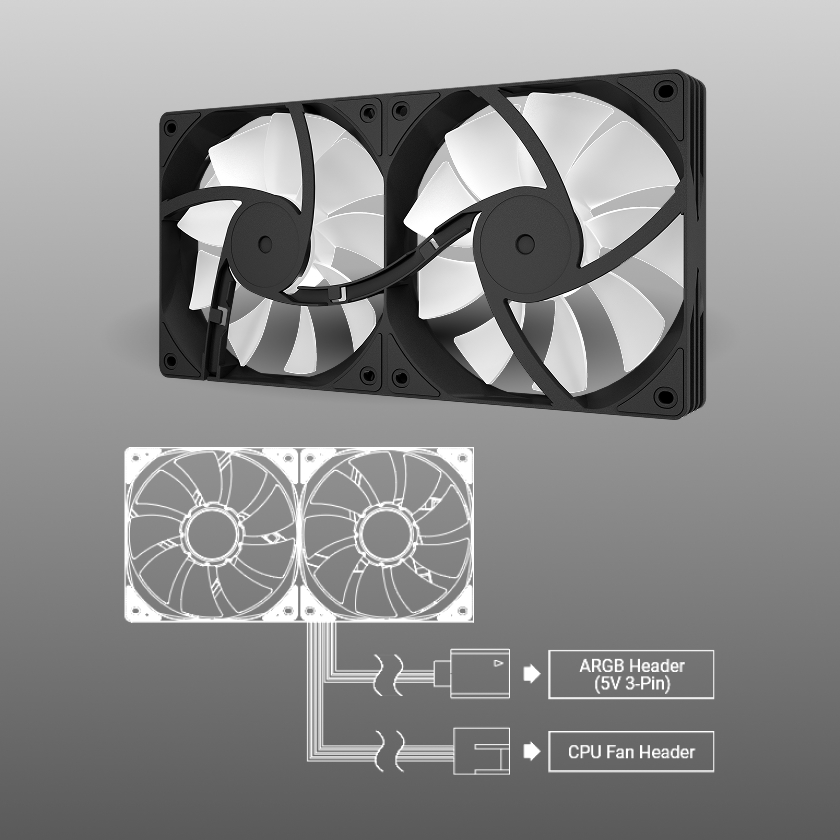

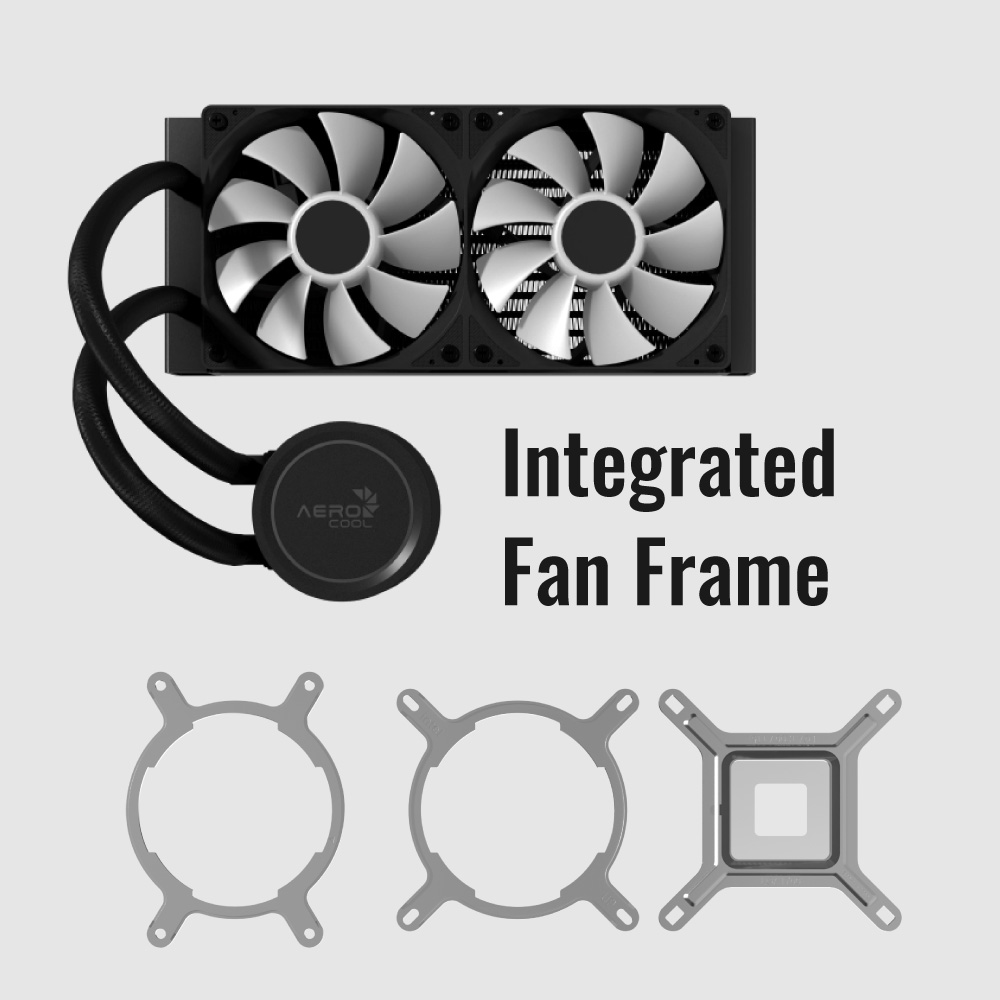

Simple & Clean Design

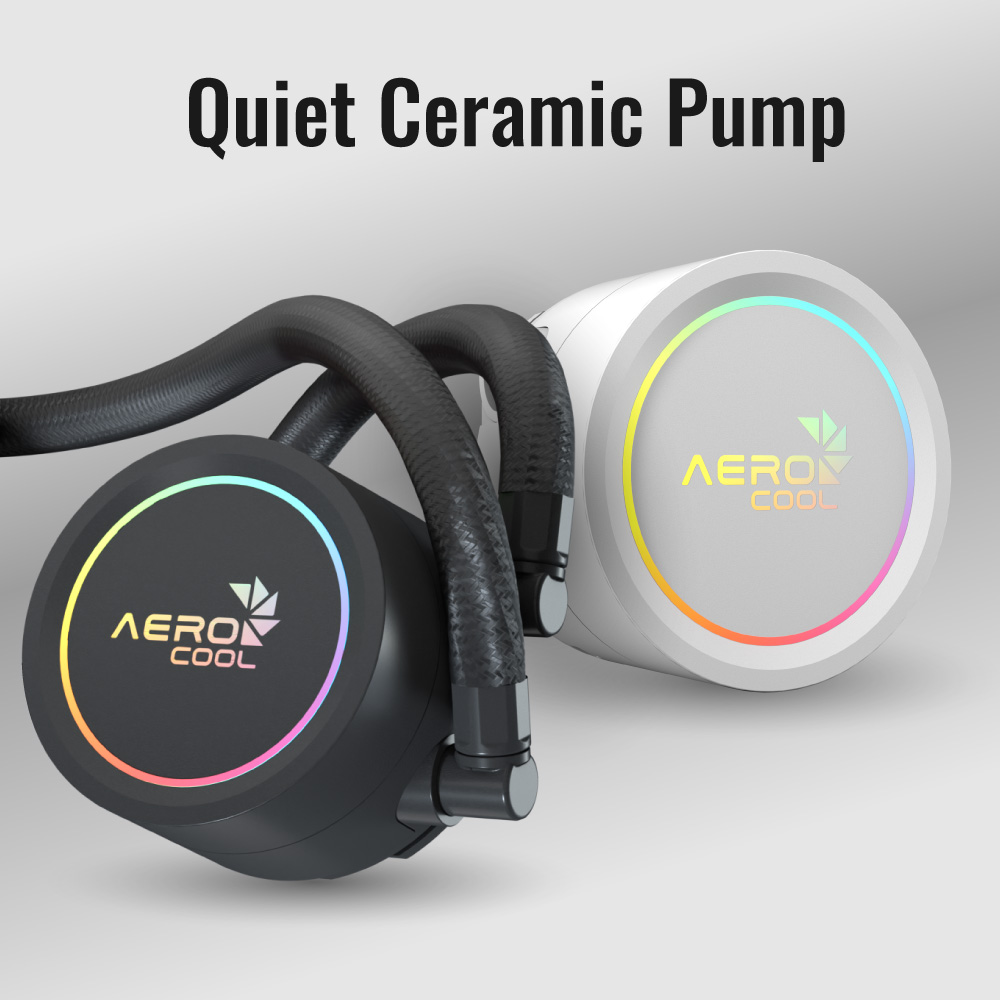

Integrated fan frames streamline installation and cable routing, while ceramic pump bearings ensure long-term durability and whisper-quiet operation.

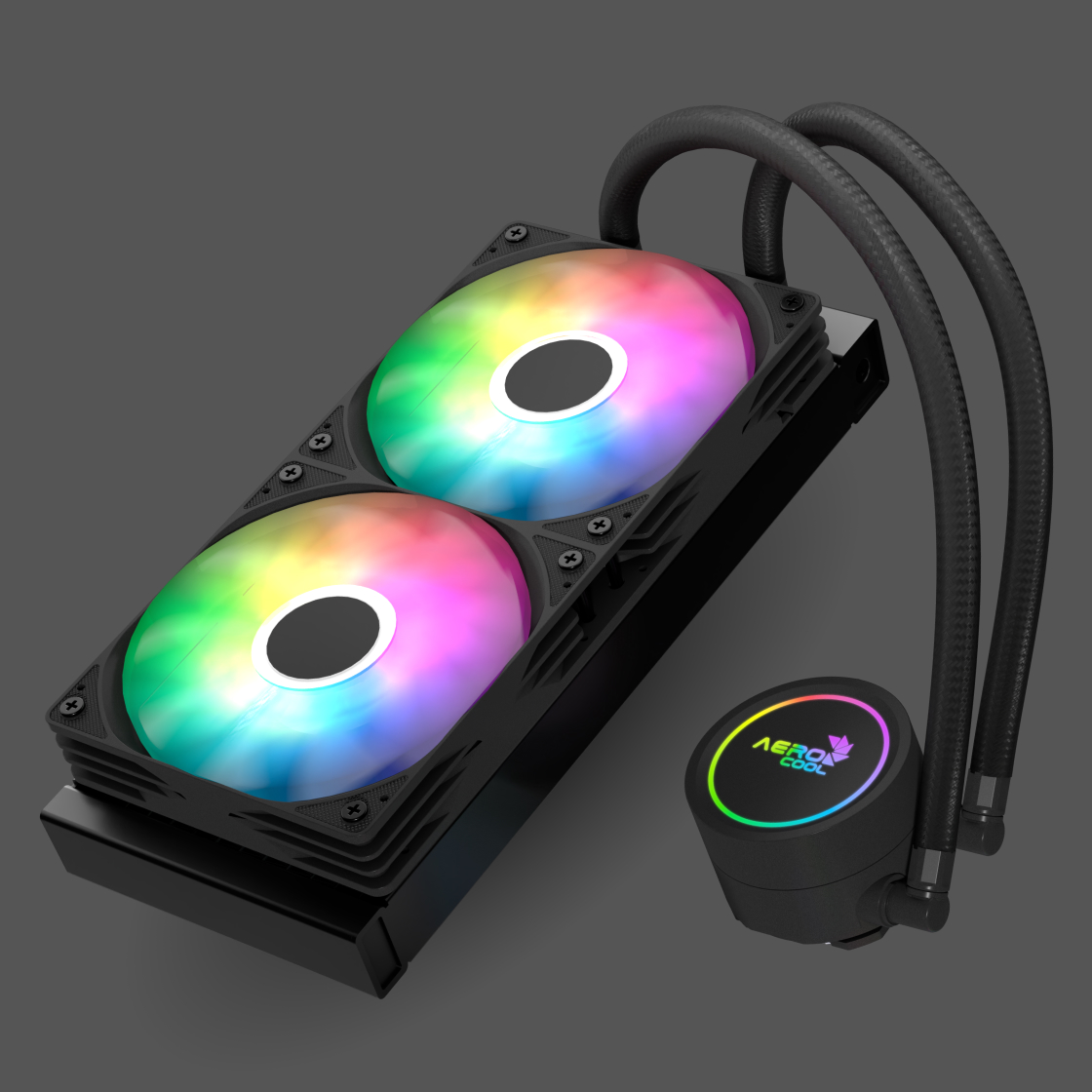

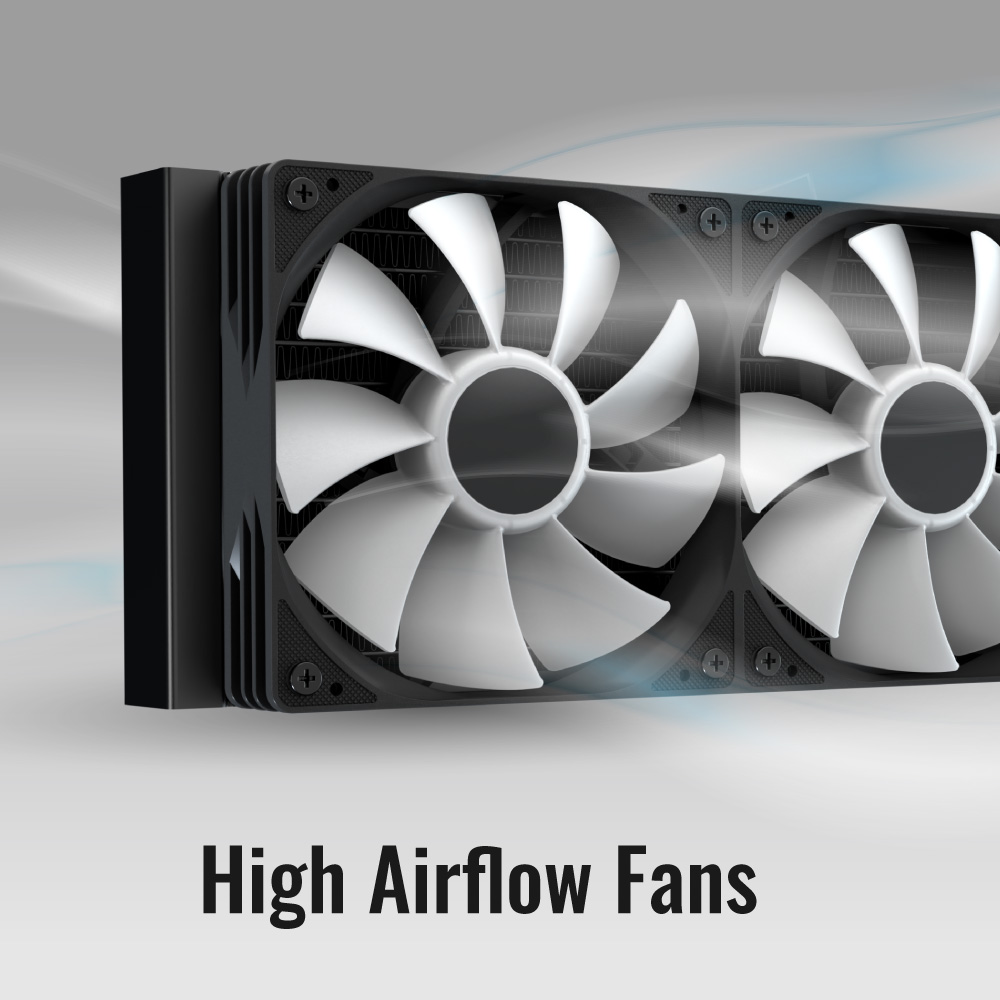

High Performance ARGB Fans

Equipped with high airflow and high air pressure fans, Abyss ensures superior cooling performance. These fans not only provide excellent cooling but also enhance visual appeal with vibrant ARGB lighting.

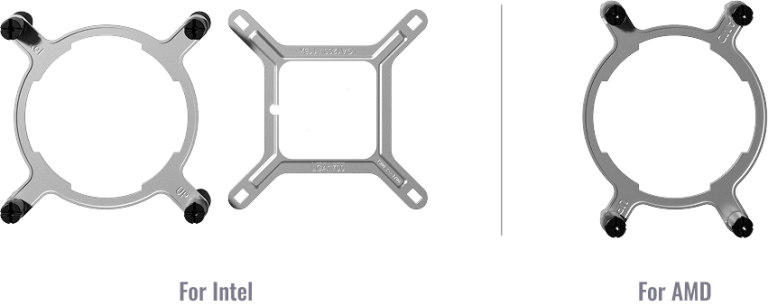

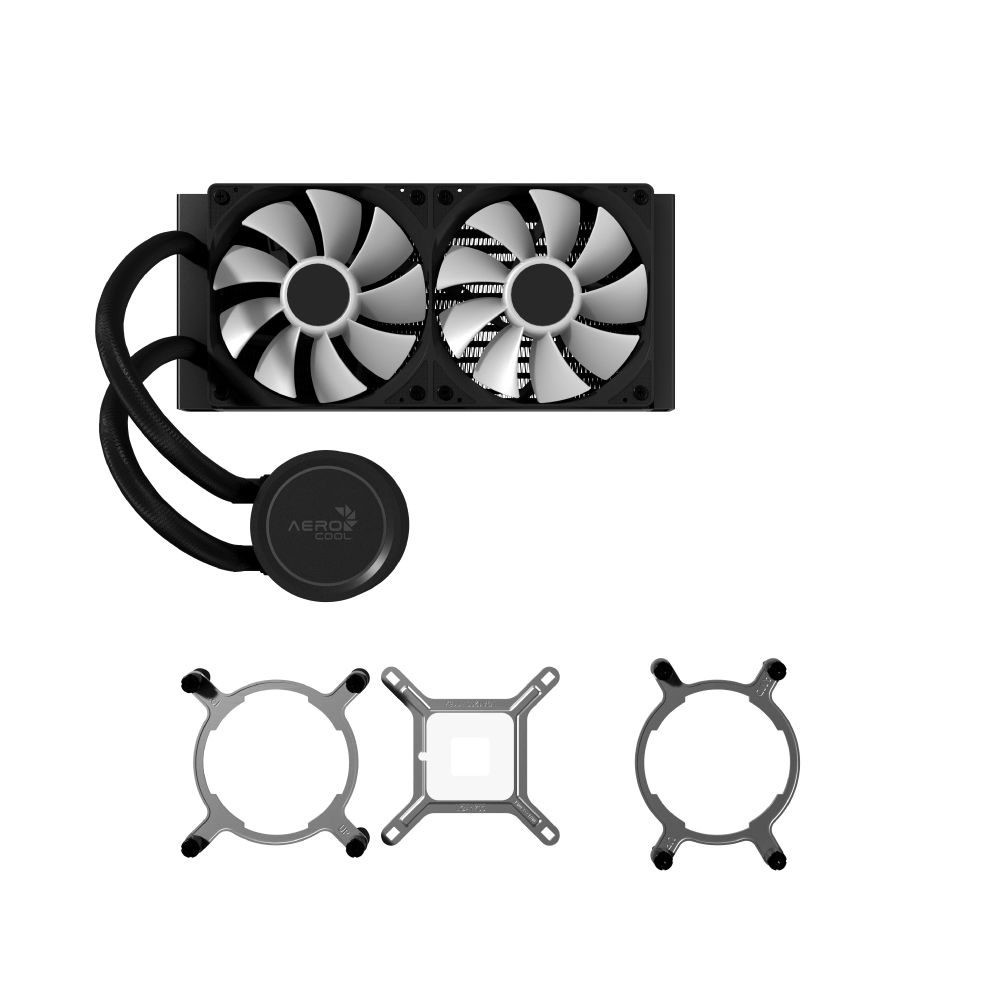

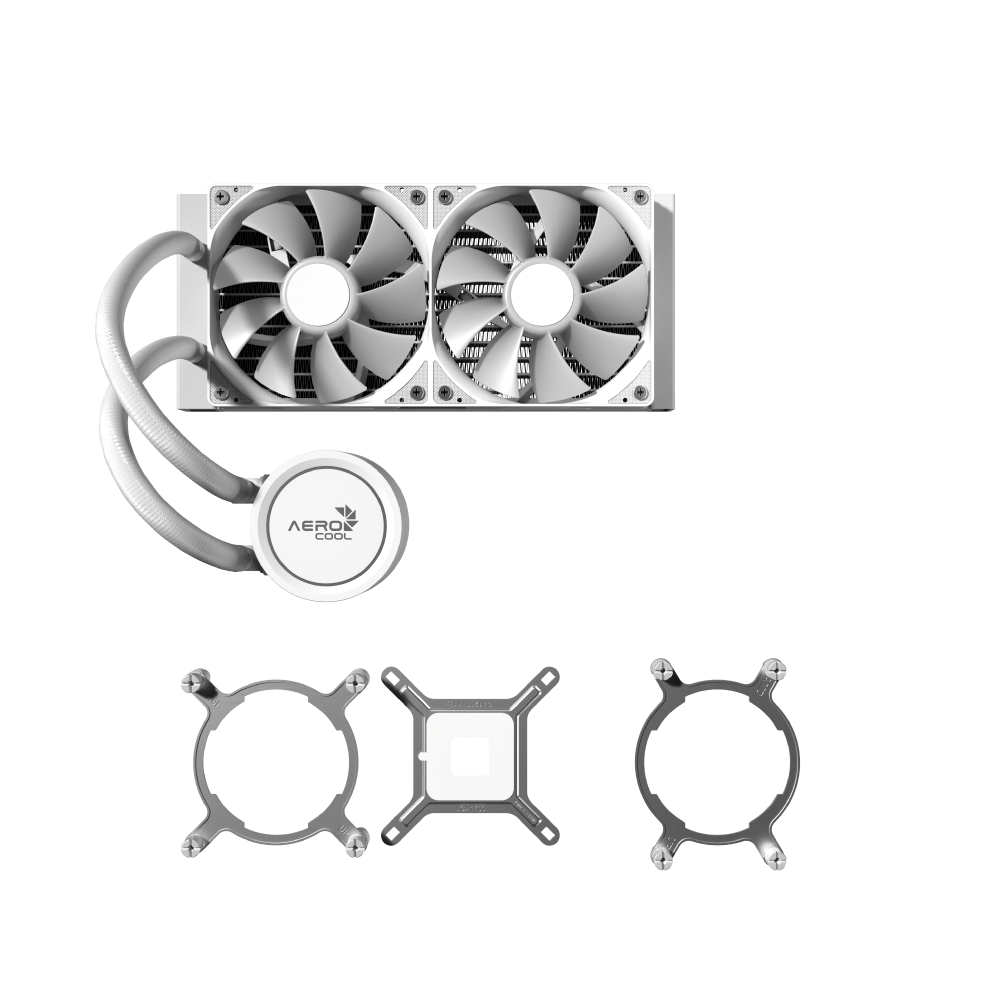

Hassle-free Installation

Designed with fewer parts, the brackets make installation quick and
straightforward, saving time and effort during setup.

SPECS

Model Name Abyss L240R BK / Abyss L240R WH
Block Material Copper
Radiator Material Corrosion resistant aluminum alloy
Radiator Dimension 277 × 120 × 27 mm

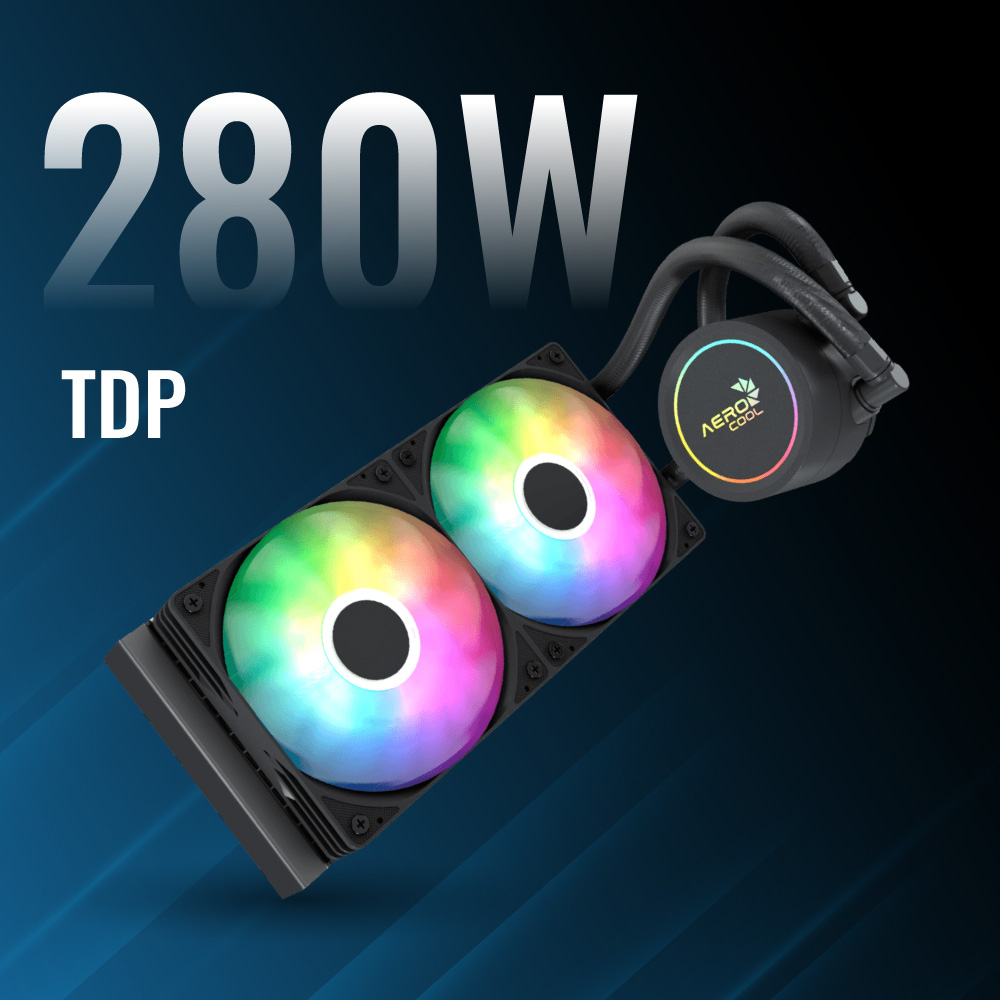

TDP (Thermal Design Power) 280W
Pump Speed 600 ~ 3000 RPM ± 10%
Pump Rated Voltage DC 12.0V
Pump Rated Power 4.2W
Pump Noise 18 dB(A)
Pump Bearing Type Ceramic bearing
Fan Speed 660 ~ 1800 RPM ± 10%
Fan Connector Type PWM 4-Pin
Fan Dimensions (L × W × H) 240 × 120 × 25.4 mm
Fan Starting Voltage 6V
Fan Rated Voltage DC 12.0V
Fan Rated Current 1A
Fan Rated Power 12W
Fan Air Pressure (Max.) (One Fan) 2.3 mmH₂O
Fan Air Flow (Max.) (One Fan) 81.5 CFM
Fan Noise Level (Max.) 36.0 dB(A)
Fan Bearing Type Sleeve Bearing
MTBF 30,000 hrs
Socket Intel LGA1851 / LGA1700 / LGA1200 / LGA115X  |  AMD AM5 / AM4
LED Type Addressable RGB LED
LED Rated Voltage 5 VDC
LED Rated Power 1.8 W (Pump) / 1.44 W × 3 (Fan × 3)
LED Connector 3-Pin (+5V-D-G)
