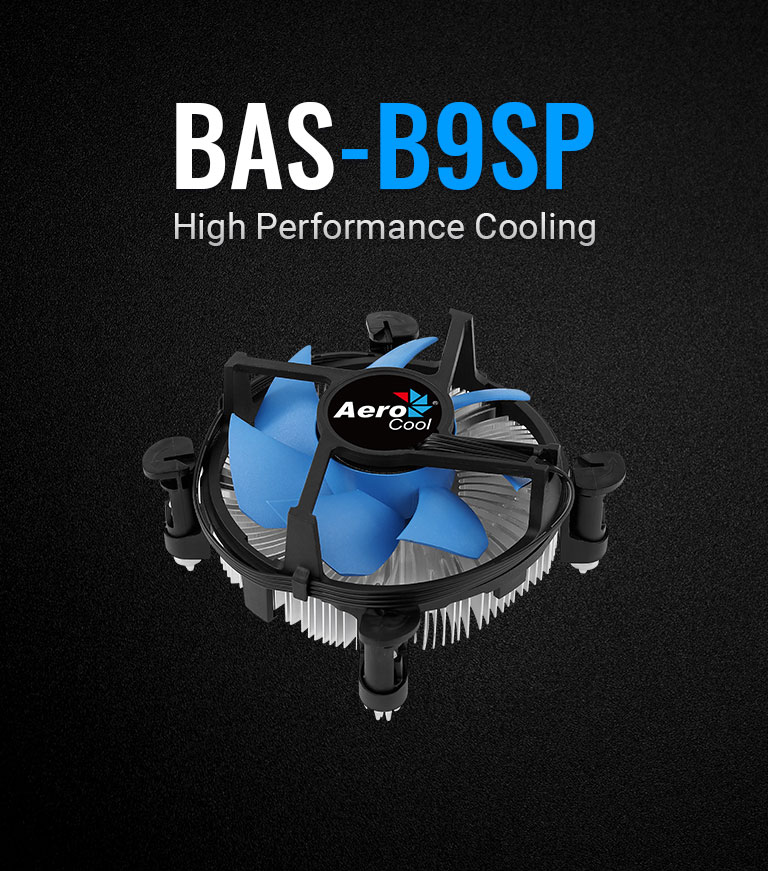

BAS-B9SP

CPU AIR COOLER

CPU air cooling solution equipped with a 9cm high efficiency fan and upgraded fins for maximum thermal performance. Compatible with LGA 115X Intel motherboard designs.

  • Upgraded high efficiency fins for maximum thermal performance
  • Compact profile capable of mounting single 90mm fan configurations
  • Compatible with LGA 115X Intel motherboard designs
  • TDP (Thermal Design Power) up to 80W
  • Comes with PWM 4-Pin connector

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Categories: , , , , ,

FEATURES

EASY TO INSTALL

Do away with applying thermal grease. With the ready-to-go thermal grease at the center of the BAS and with the attached screws, it takes less than a minute to align and install the BAS on your motherboard.

EFFICIENT COOLING

High efficiency 90mm fan minimizes noise while dissipating heat away from the CPU.

HIGH EFFICIENCY FINS

Upgraded high efficiency fins for maximum thermal performance.

COMPATIBILITY

This CPU cooler is compatible with LGA 115X Intel motherboard designs.

COMES WITH PWM 4-PIN CONNECTOR

PRODUCT GALLERY

SPECS

Model BAS-B9SP
Base Material Aluminum
Dimensions 94 x 94 x 57mm
TDP (Thermal Design Power) 80
Fan
Speed 1000-2300 rpm
Connector Type PWM 4Pin
Dimensions 90 x 90 x 25mm
Bearing Type Hydraulic Bearing
Starting Voltage 6V

Rated Voltage 12V
Rated Current 0.19A
Power Consumption 2.28W
Air Pressure 0.42-0.91mm-H2O
Air Flow 25.82-51.36 CFM
Noise 16.1-28.2 dBA
MTBF (Mean Time Before Failure) 60000 hrs.
Socket LGA 115X/1200
EAN Code 4713105962925

Description

Model

Base Material

Dimensions

Thermal Design Power

Socket

Speed

Connector Type

Fan Dimensions

Bearing Type

Starting Voltage

Rated Voltage

Rated Current

Power Consumption

Air Pressure

Air Flow

Noise

MTBF
(Mean Time Before Failure)

BAS-B9

Aluminum

95 x 95 x 57mm

90

LGA 1150/1151/1155/1156

2300 rpm

3Pin

90 x 90 x 25mm

Hydraulic Bearing

6V

12V

0.18A

2.16W

0.98mm-H2O

55.26 CFM

28.2 dBA

60000 hrs.

BAS-B9+

Aluminum

95 x 95 x 63mm

95

LGA 1150/1151/1155/1156

2300 rpm

3Pin

90 x 90 x 25mm

Hydraulic Bearing

6V

12V

0.18A

2.16W

0.98mm-H2O

55.26 CFM

28.2 dBA

60000 hrs.

BAS-B9P+

Aluminum

95 x 95 x 63mm

95

LGA 1150/1151/1155/1156

1000-2300 rpm

PWM 4Pin

90 x 90 x 25mm

Hydraulic Bearing

6V

12V

0.18A

2.16W

0.49-0.98mm-H2O

28.53-55.26 CFM

16.5-28.6 dBA

60000 hrs.

BAS-B9S

Aluminum

94 x 94 x 57mm

80

LGA 1150/1151/1155/1156

2300 rpm

3Pin

90 x 90 x 25mm

Hydraulic Bearing

6V

12V

0.19A

2.28W

0.91mm-H2O

51.36 CFM

28.6 dBA

60000 hrs.

BAS-B9SP

Aluminum

94 x 94 x 57mm

80

LGA 1150/1151/1155/1156

1000-2300 rpm

PWM 4Pin

90 x 90 x 25mm

Hydraulic Bearing

6V

12V

0.19A

2.28W

0.42-0.91mm-H2O

25.82-51.36 CFM

16.1-28.2 dBA

60000 hrs.
