CS-105

MINI TOWER CASE

  • Acrylic front panel design allows for clear viewing of 12cm fan
  • Features a brushed aluminum style front panel
  • Supports liquid cooling in the front of the case
  • Supports air cooling in the front, side, and rear of the case

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Where To Buy

Categories: , , , , , , , , , ,

FEATURES

STYLISH FRONT PANEL

Brushed aluminum style front panel gives the case a unique, modern look.

Acrylic cover on the bottom half of the front panel allows for clear viewing of 12cm fan.

AIR COOLING

Supports air cooling in the front, rear, and side to enhance cooling performance.

  • Front: 120mm fan x 1 (Included)
  • Rear: 80mm fan x 1 (Optional)
  • Side: 80mm x 2 (Optional)

LIQUID COOLING

Supports liquid cooling: 120mm radiator in the front panel.

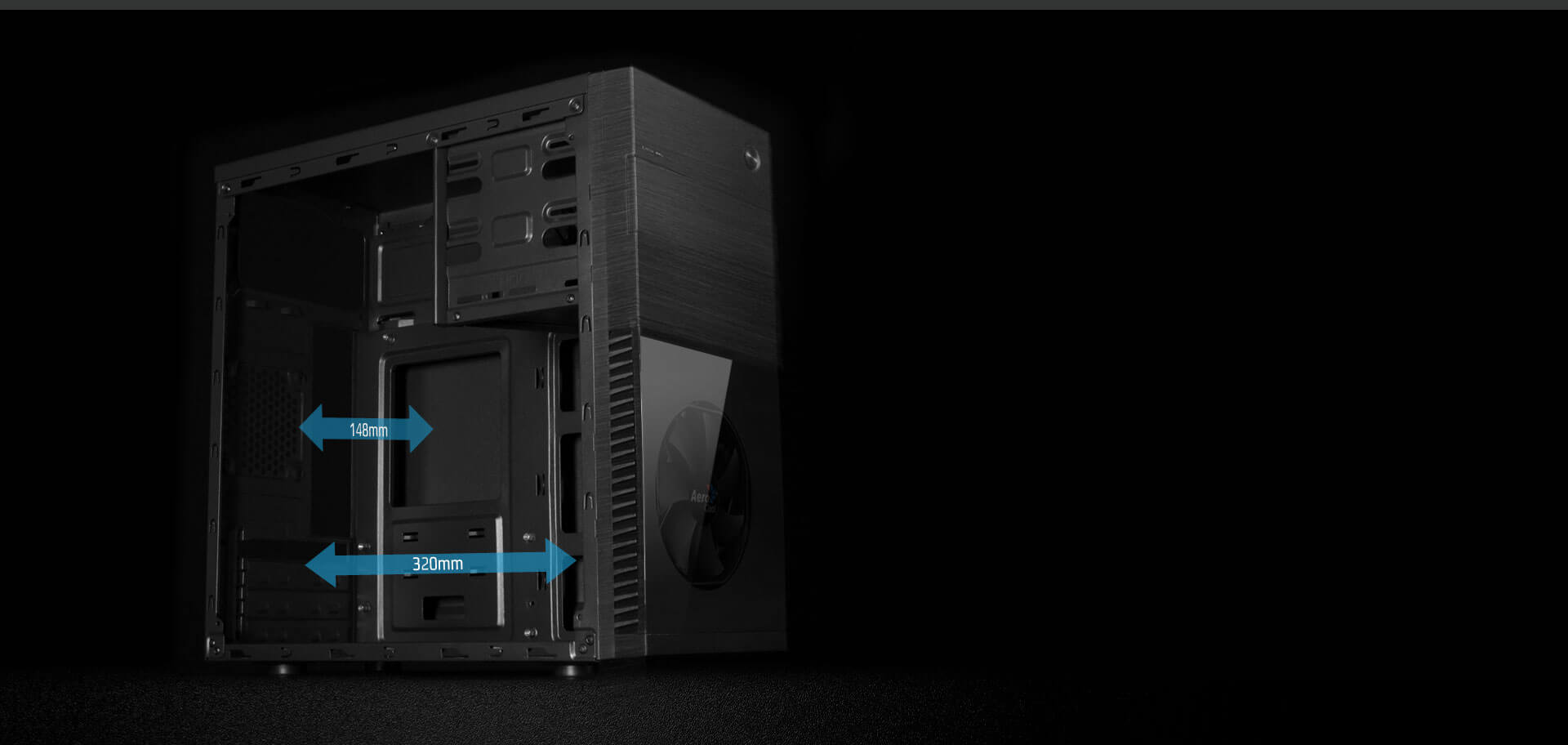

BUILT FOR HIGH PERFORMANCE

Supports CPU cooler up to a max. height of 148mm.
Supports high-end graphics cards up to a max. length of 320mm.

BUILT FOR HIGH PERFORMANCE

Supports CPU cooler up to a max. height of 148mm.
Supports high-end graphics cards up to a max. length of 320mm.

CONVENIENT ACCESS TO YOUR MEDIA

Quick and easy access to 1 x 3.0 USB, 1 x 2.0 USB, HD audio and mic ports, and power and reset buttons.

STORAGE CAPABILITY

External: 1 x 5.25” Drive Bay
Internal: 2 x 3.5” HDDs and 1 x 2.5” SSD or 1 x 3.5” HDD and 2 x 2.5” SSDs

PRODUCT GALLERY

SPECS

Model CS-105
Case Type Mini Tower
Color Black
Body Material SPCC
Front Panel Material ABC + Acrylic
Steel Thickness 0.5mm
Motherboards Micro ATX/mini-ITX
Case Dimensions (Overall) 187 x 361 x 355 mm (W x H x D)
5.25” Drive Bays 1
3.5” Drive Bay 2 (1 with 2 x 2.5”)
2.5” Drive Bay 1 (2 with 1 x 3.5”)
Expansion Slots 4

GPU Clearance Supports GPU up to 320mm
CPU Cooler Clearance Supports CPU up to 148mm
I/O Ports USB3.0 x 1 | USB2.0 x 1 | HD Audio & Mic.
Liquid Cooling Front: 120mm Radiator (Optional)
Air Cooling Front: 120mm or 140mm x 1 (120mm Included)

Rear: 80mm x 1 (Optional)

Side: 80mm x 2 (Optional)
Net Weight/Gross Weight 2.25kg (4.96 lbs.)/2.8kg (6.17 lbs.)
Internal Cable Management Depth 29mm
Power Supply ATX PSU (Optional) (Top)

DOWNLOAD

Download your user manual here.
