D501A

Wood PC Case

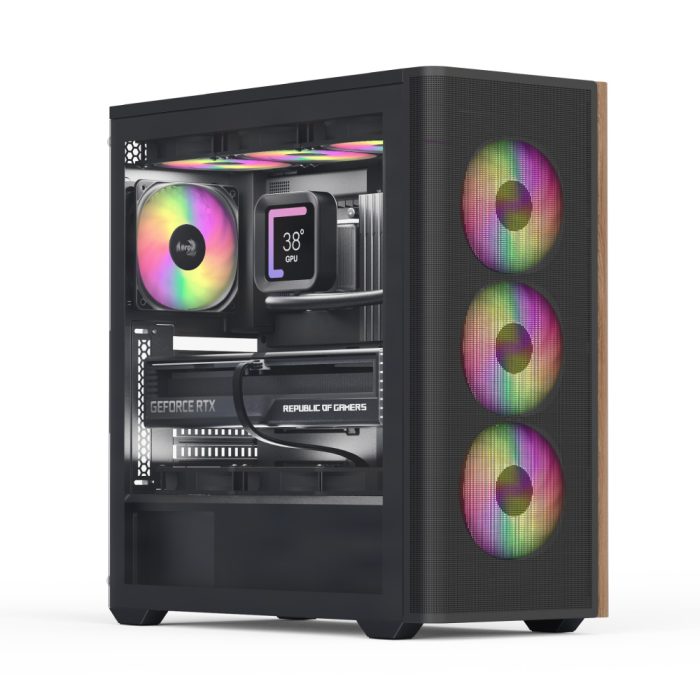

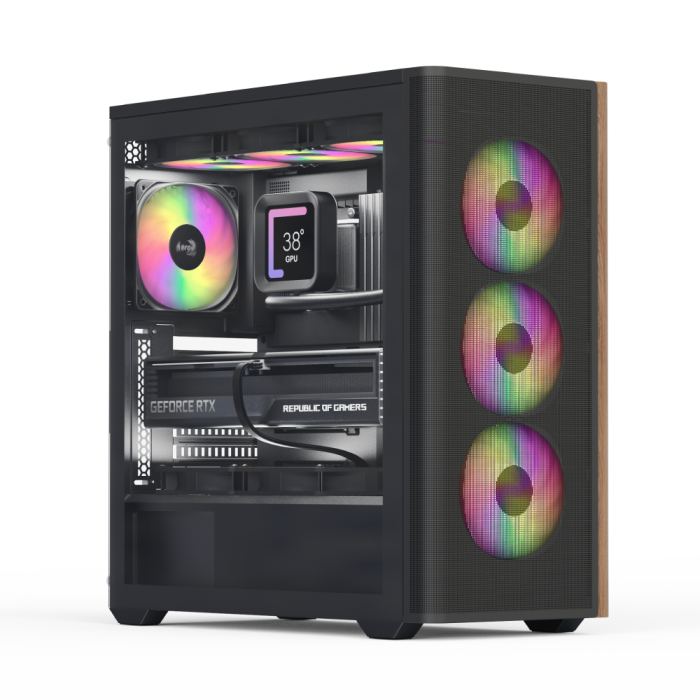

The AeroCool D501A features a wood-accented mesh front panel design, making it an appealing choice for a trendy mid-tower PC build. It supports liquid coolers up to 360mm and offers 11 fan slots, ensuring excellent cooling potential. With durable SPCC body material, magnetic dust filters, and compatibility with ATX, Micro ATX, and mini-ITX motherboards, the D501A provides robust construction, easy maintenance, and versatile storage options.

  • Wood-accented mesh front panel design exhibits trendy appeal and air ventilation for better circulation.
  • Mid tower case that allows for a powerful PC build.
  • Support liquid coolers up to 360mm on the top or front.
  • 11 total fan slots for greater cooling potential.
  • Supports GPUs up to 400mm (without front radiator installed) and CPU coolers up to 171mm.

Where To Buy
D501A
Overview
Gallery
Specs

Fuse Your Game And Life

The AeroCool D501A features a wood-accented mesh front panel design, making it an appealing choice for a trendy mid-tower PC build. It supports liquid coolers up to 360mm and offers 11 fan slots, ensuring excellent cooling potential.

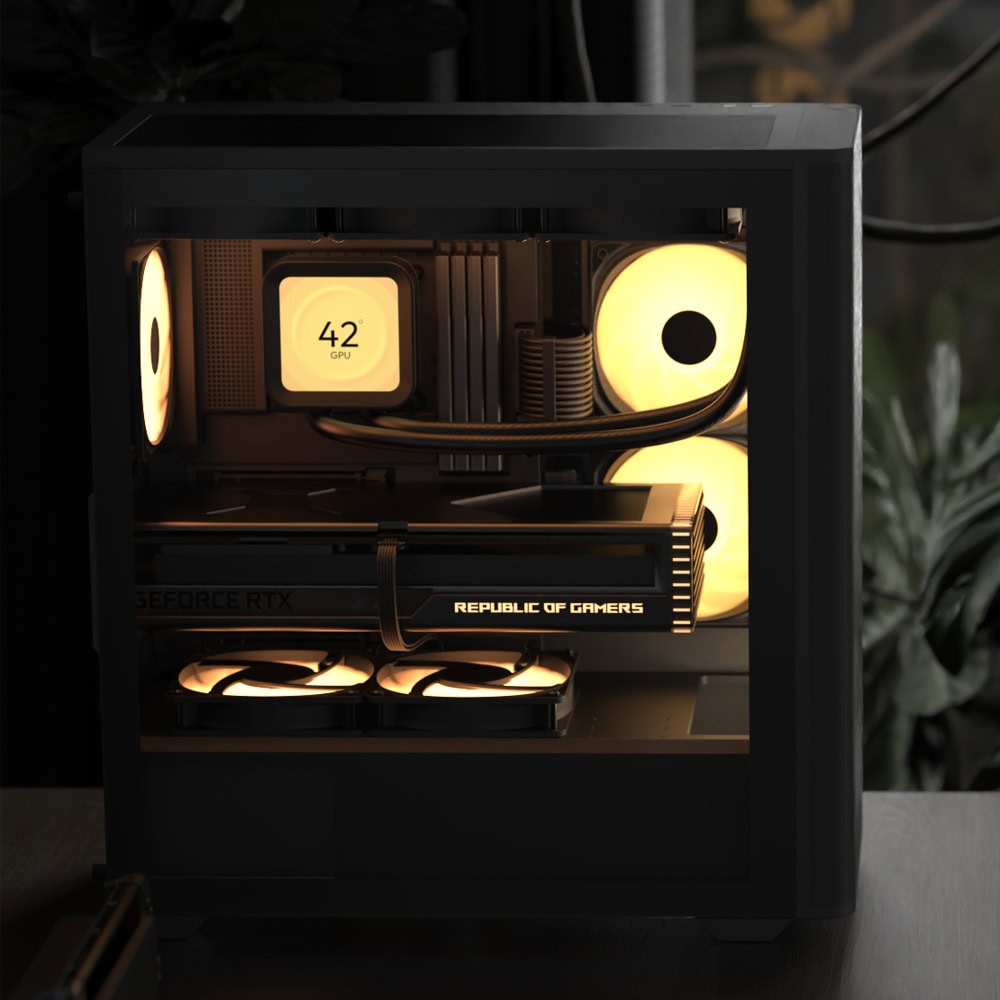

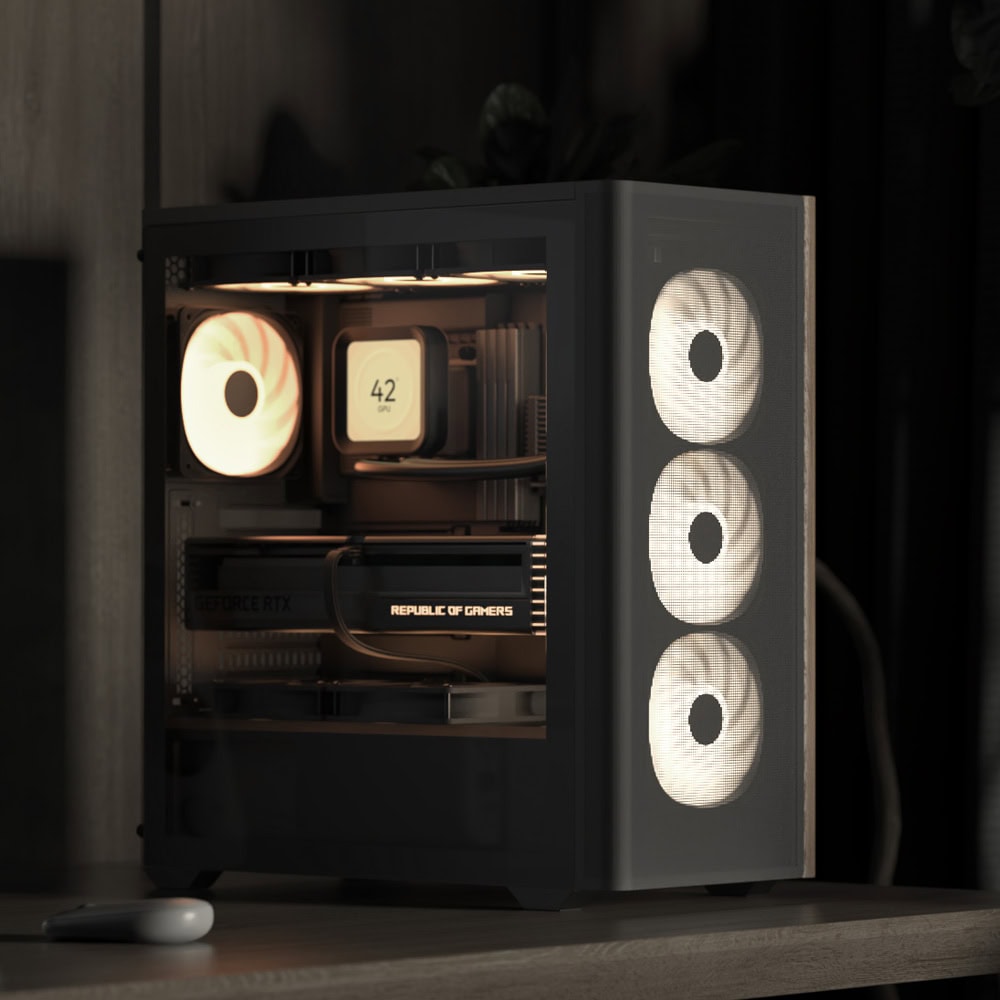

Sleek & Powerful

The sleek design can be seen from inside and out while accommodating your high-end components for gaming or other needs.

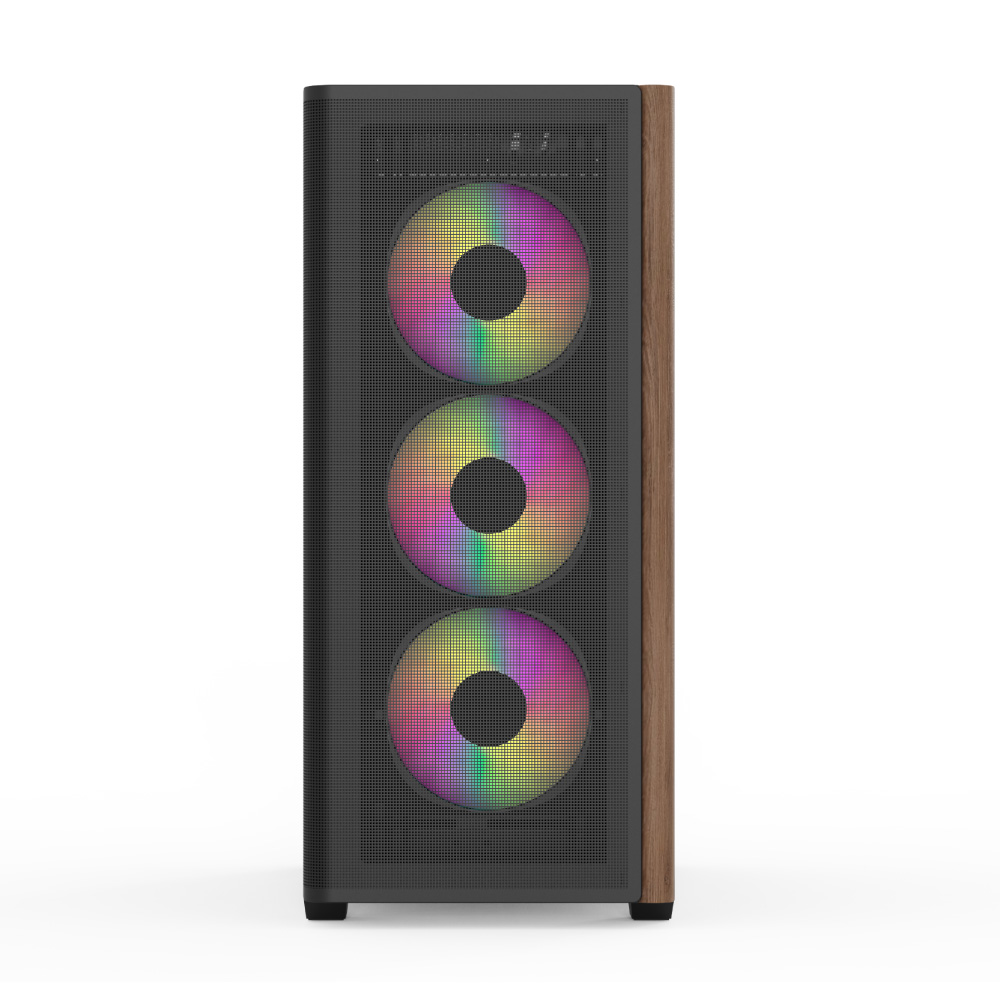

Trendy & Breezy Design

The wood-accented mesh front panel not only adds a stylish touch but also ensures optimal air ventilation for better cooling efficiency.

Elegantly Crafted

Curved edges and the full mesh front panel accentuate the airflow-oriented structure of the D501A.

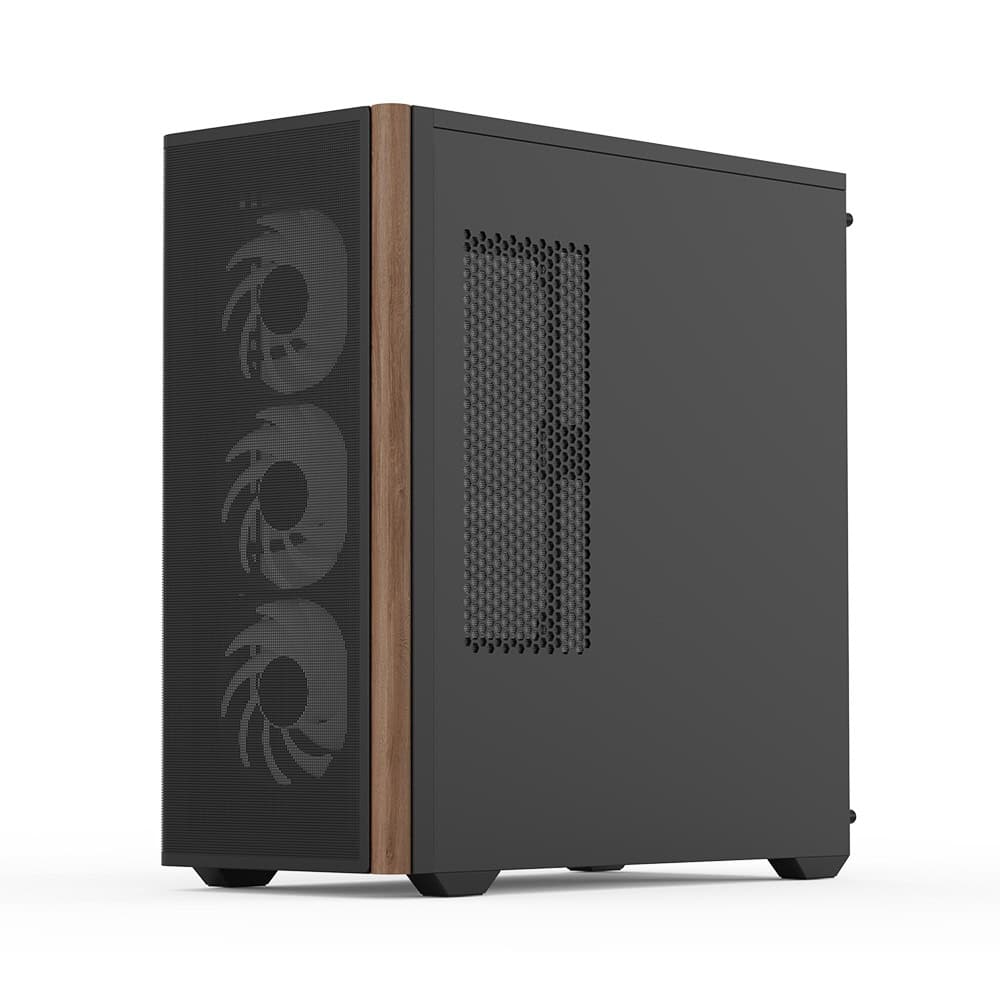

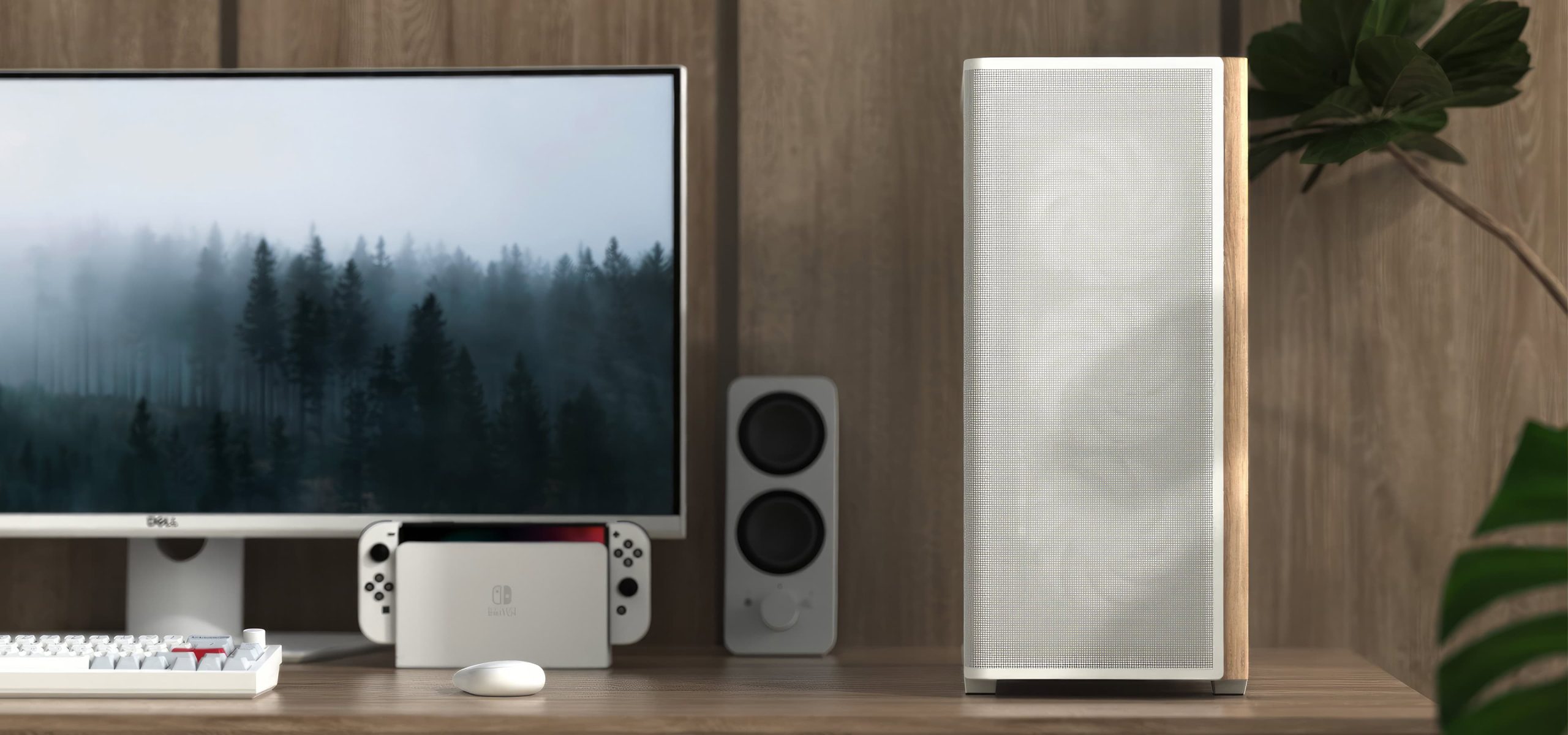

Natural Design

Sit back and enjoy one of our first-ever wood-accented PC cases, with a refined look designed to inspire a natural vibe within your desk space.

Natural Design

Sit back and enjoy one of our first-ever wood-accented PC cases, with a refined look designed to inspire a natural vibe within your desk space.

Superior Cooling Support

Keep your system cool with support for radiators up to 360mm on the top and bottom, 280mm on the side, and 120mm on the rear, ensuring optimal thermal performance.

Large Area Air Intake

The air intake has been specially designed with large ventilation holes to keep your components cool.

Out-of-the-Box Performance

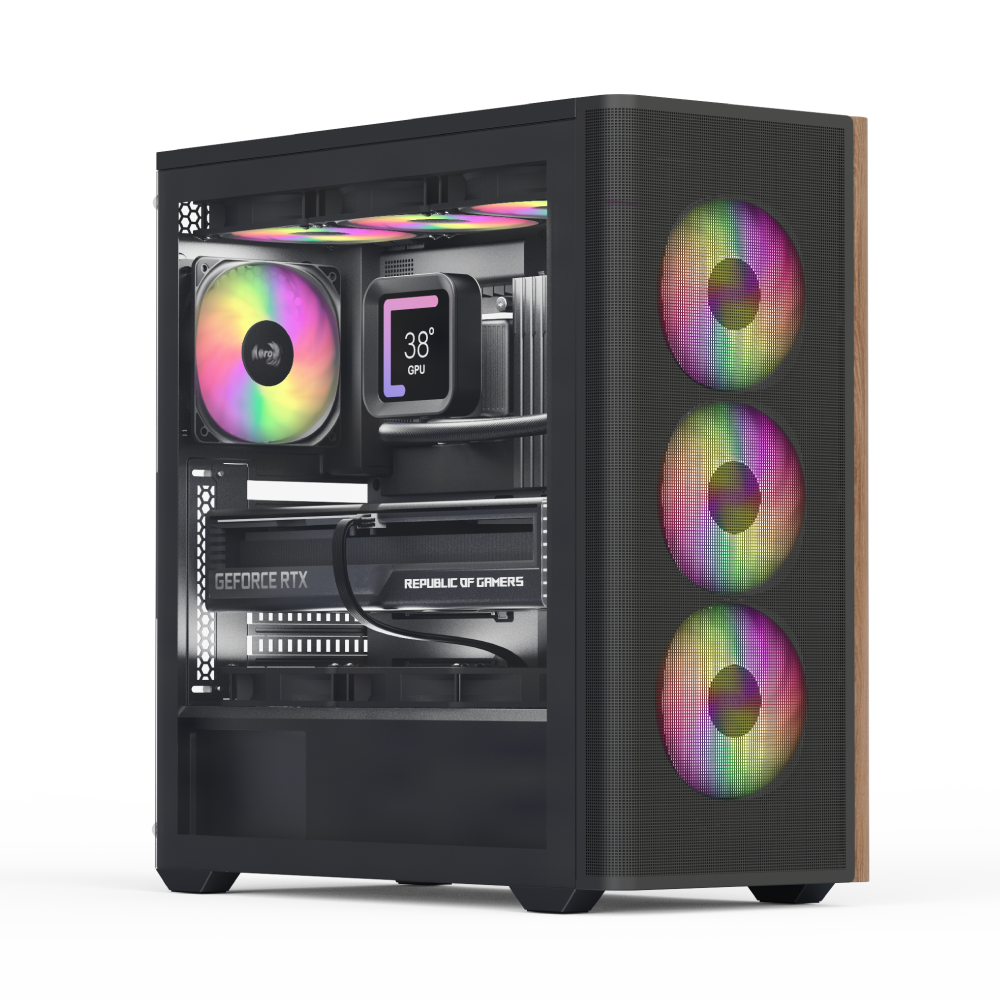

Easily manage your four pre-installed ARGB fans with the 5-port PWM ARGB control hub, giving you full control over your system’s visual aesthetics. (D501A-G-WT-v2 and D501A-G-BK-v2 only)

Type-C Ready

I/O Ports: USB Type C, USB3.0, HD Audio & Mic: Easy access to essential connections.

Spacious and Expandable Support

Accommodating GPUs up to 400mm and CPU coolers up to 171mm, the D501A provides ample space for your high-performance components.

171 mm
CPU Cooler Clearance

400 mm
Graphics Card Clearance

Hassle-Free Maintenance

Keep your system clean with magnetic dust filters on the top and side, and a removable filter on the bottom for easy maintenance.

D501A-G-BK-v1

Rear: 120mm Black fan x1
—-
—-

D501A-G-BK-v2

Front: 120mm ARGB fan x3
Rear: 120mm ARGB fan x1
5-port fan PWM ARGB hub

D501A-G-WT-v1

Rear: 120mm White fan x1
—-
—-

D501A-G-WT-v2

Front: 120mm ARGB fan x3
Rear: 120mm ARGB fan x1
5-port fan PWM ARGB hub

SPECS

Model D501A-G-WT-v1, D501A-G-WT-v2, D501A-G-BK-v1, D501A-G-BK-v2
Case Type Mid Tower
Color Black, White
Body Material SPCC
Front Panel Material ABS, SPCC, Wood
Steel Thickness 0.5mm
Motherboards ATX/Micro ATX/Mini-ITX
Case Dimensions (Internal) 213 x 462 x 412mm (W x H x D)
Case Dimensions (Overall) 213 x 476.5 x 458.6mm (W x H x D)
3.5” Drive Bays 2 Max. (2x 3.5”)
2.5” Drive Bays 4 Max. (3x 3.5”)
Expansion Slots 7
GPU Clearance Supports GPU up to 400mm (W/O front radiator)
CPU Cooler Clearance Supports CPU cooler up to 171mm

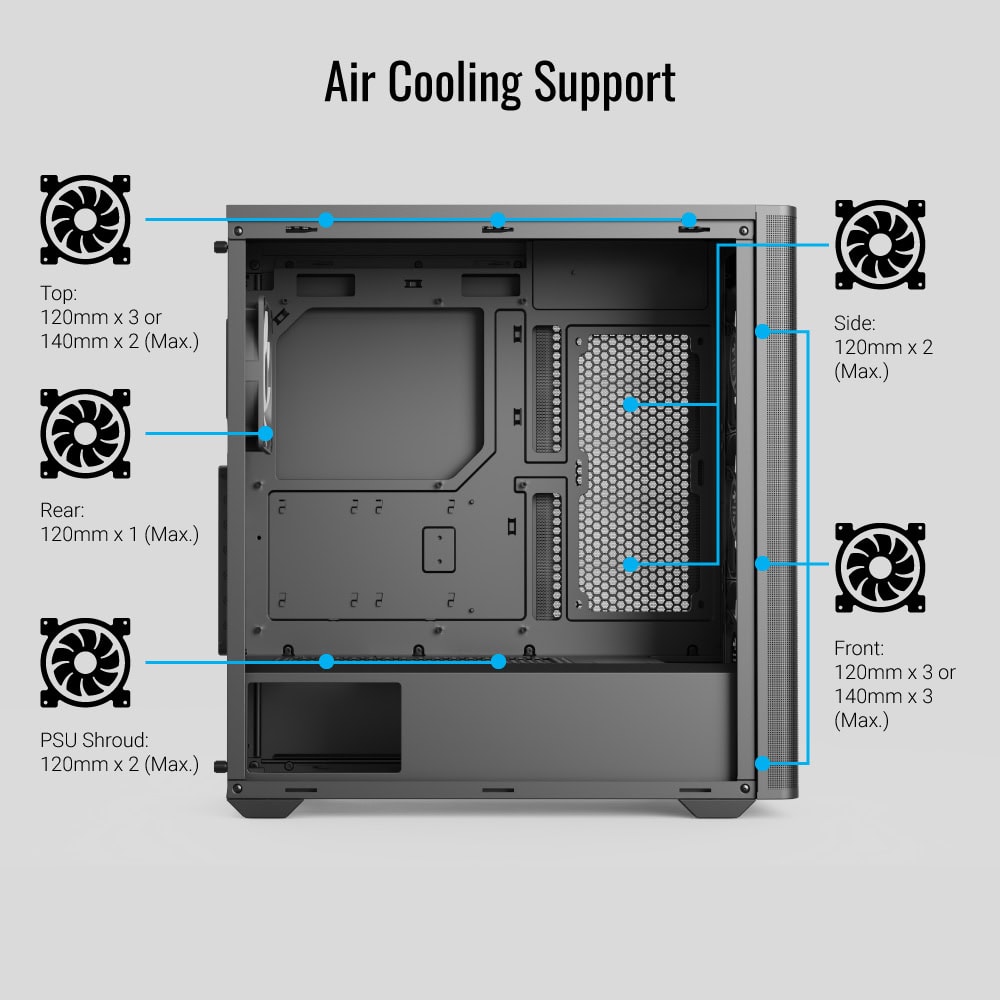

Air Cooling Front: 120mm x 3 or 140mm x 3 (Max.)
Top: 120mm x 3 or 140mm x 2 (Max.)
Side: 120mm x 2 (Max.)
PSU Shroud: 120mm x 2 (Max.)
Rear: 120mm x 1 (Max.)

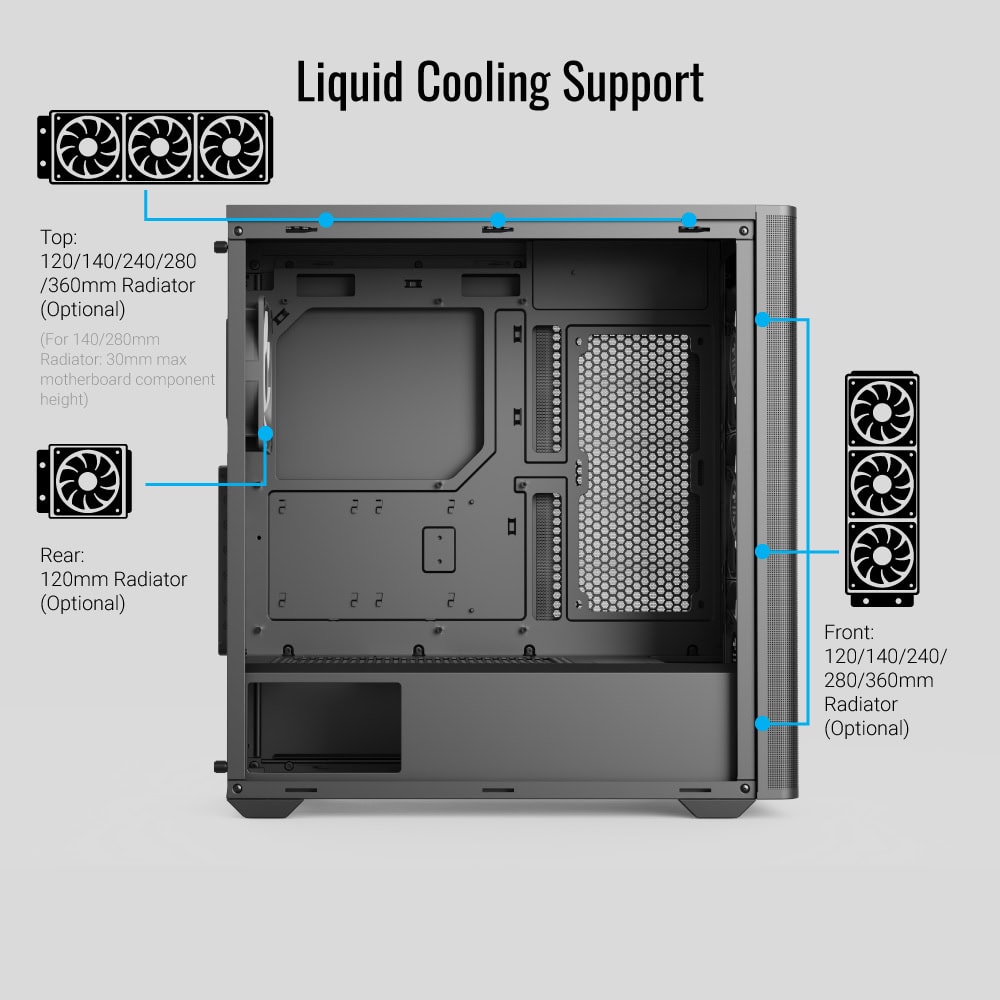

Liquid Cooling Front:120/140/240/280/360mm Radiator (Optional)
Top: 120/140/240/280/360mm Radiator (Optional)
(For 140/280mm Radiator: 30mm max motherboard component height)
Rear: 120mm Radiator (Optional)
I/O Ports Type C x 1 | USB3.0 x 2 | HD Audio & Mic.
Internal Cable Management Depth 19.6mm
Power Supply ATX PSU (Including cables, up to 220mm) (Optional)
  • Wood-accented mesh front panel design exhibits trendy appeal and air ventilation for better circulation.
  • Mid tower case that allows for a powerful PC build.
  • Support liquid coolers up to 360mm on the top or front.
  • 11 total fan slots for greater cooling potential.
  • Supports GPUs up to 400mm (without front radiator installed) and CPU coolers up to 171mm.
  • Includes a 5-port PWM ARGB control hub to connect your Addressable RGB fans.
  • Magnetic dust filters on the top & side, and the removable filter on the bottom making maintenance a breeze.
  • SPCC body material: Durable and robust construction for longevity.
  • ATX/Micro ATX/mini-ITX compatibility: Supports the popular motherboard formats.
  • Versatile storage options for HDDs/SSDs.
  • I/O Ports: USB Type C, USB3.0, HD Audio & Mic – Easy access to essential connections.
