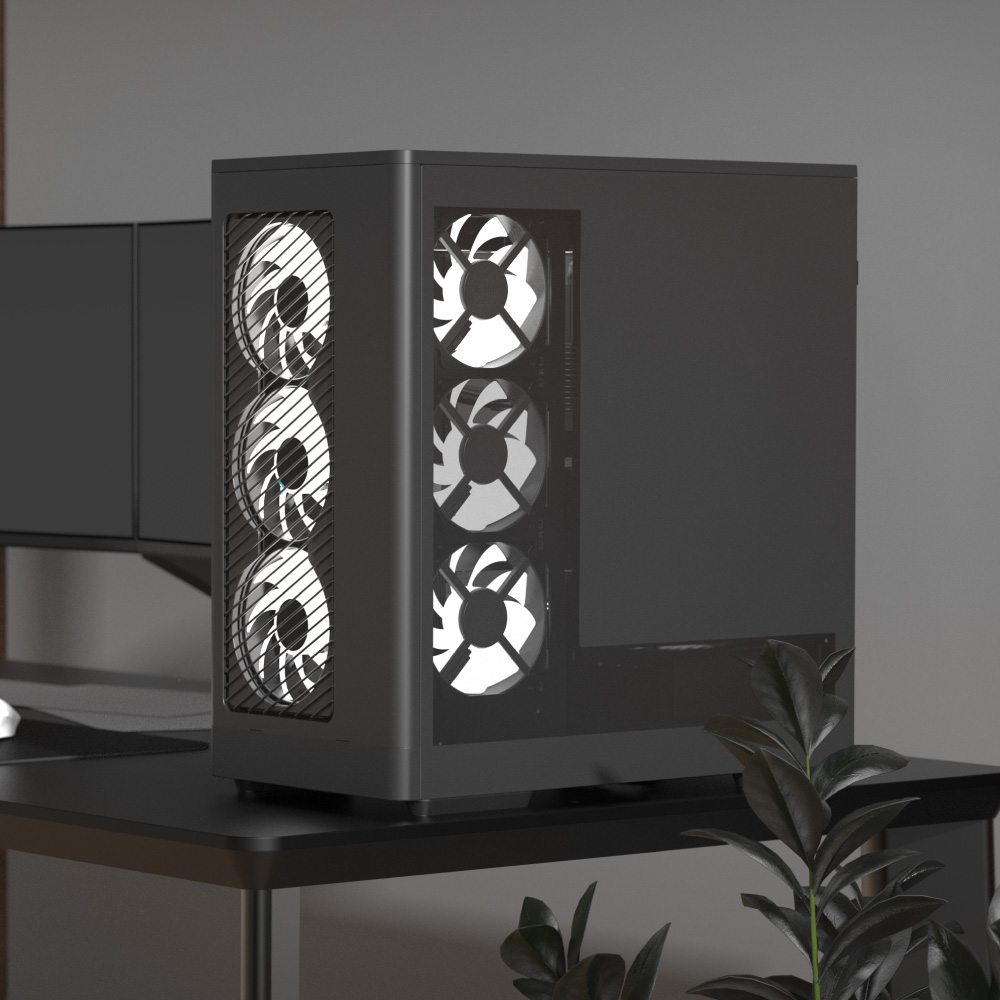

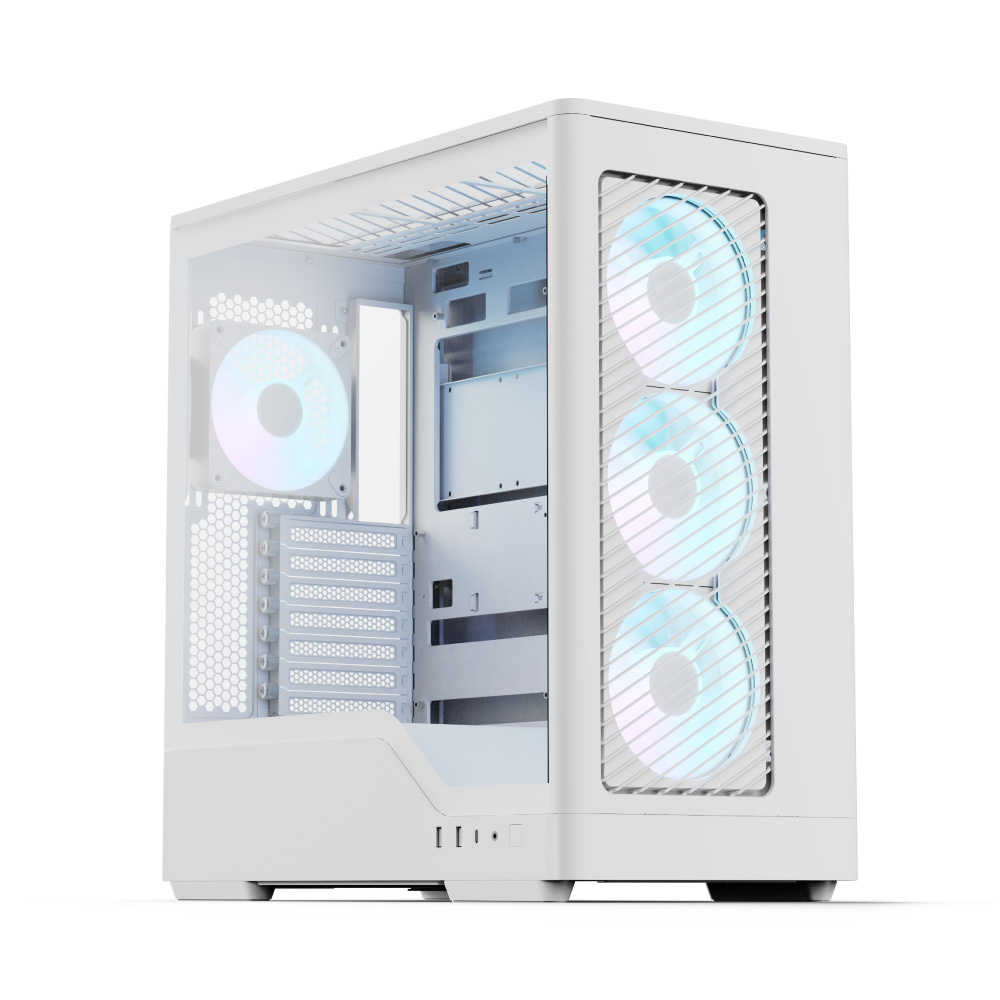

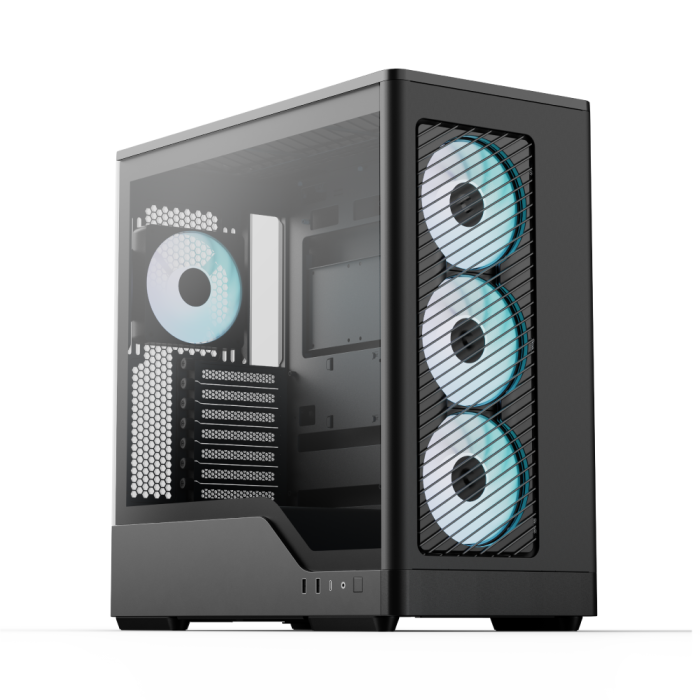

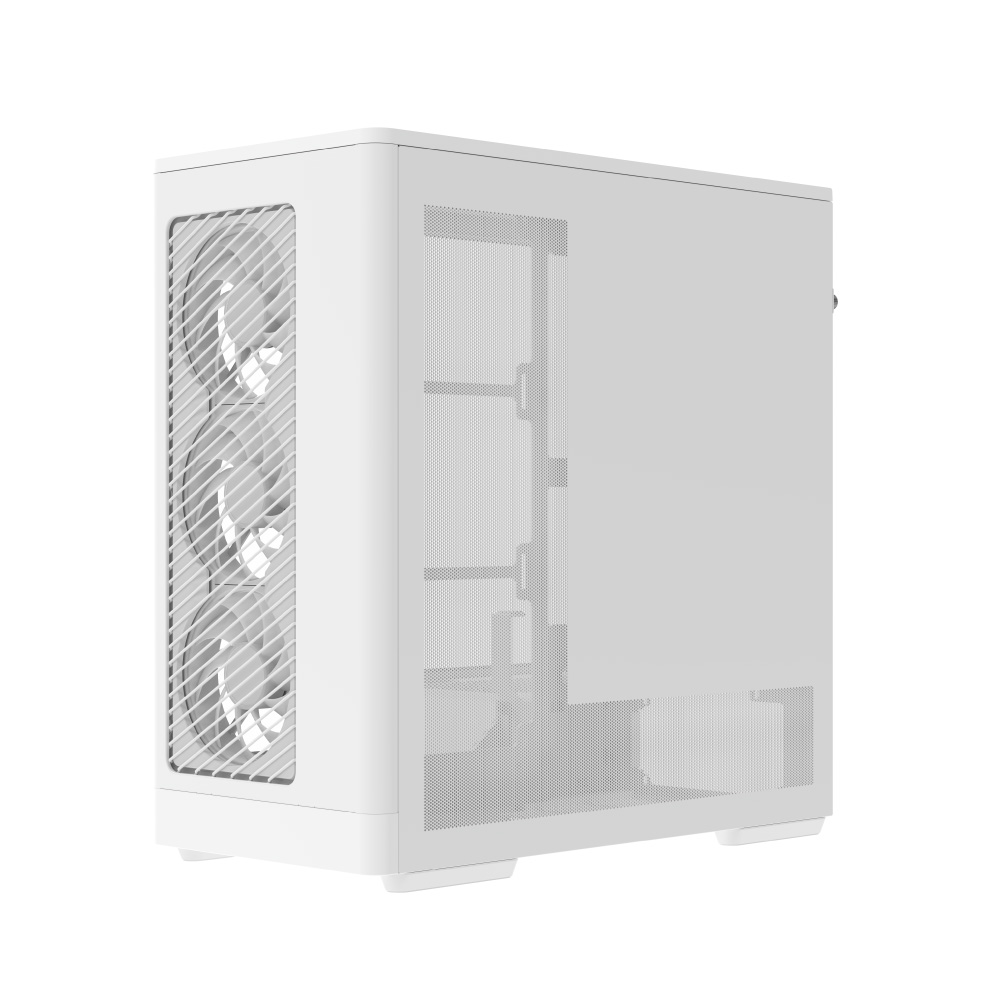

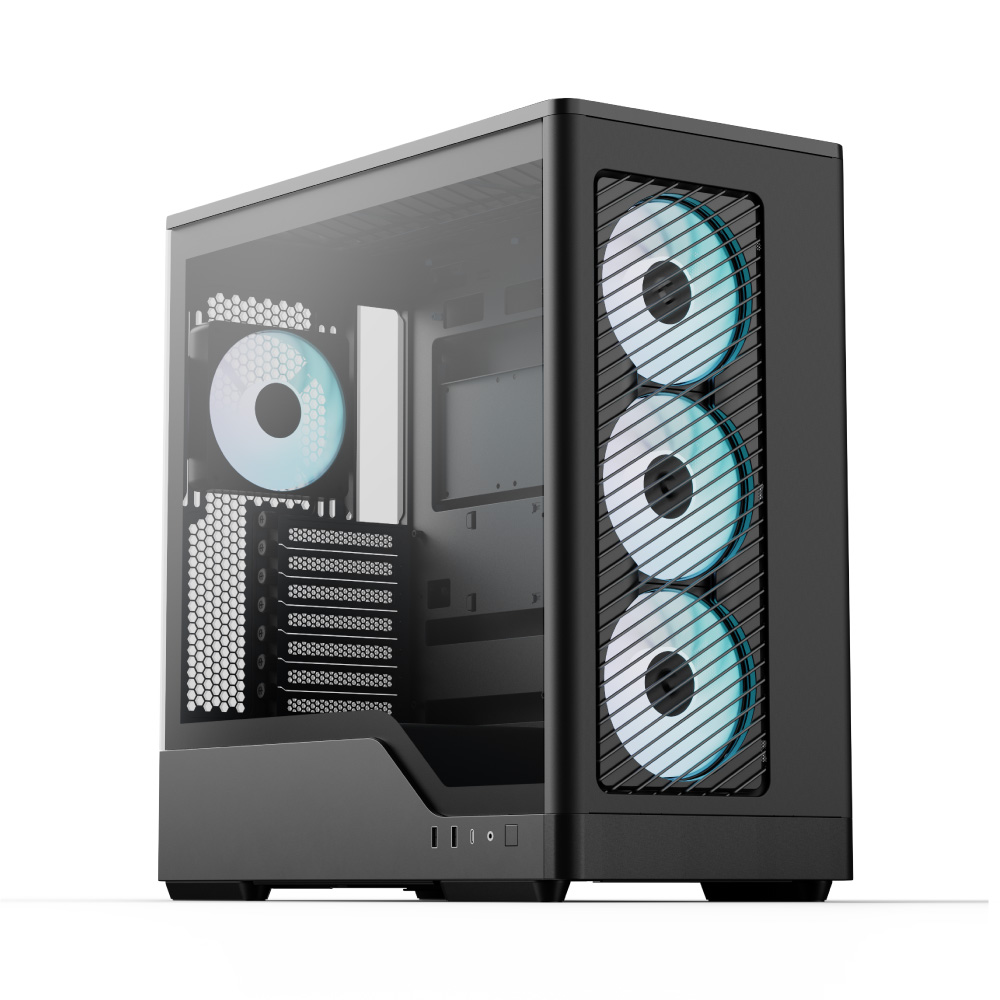

D520A

Mid Tower Case
Where to Buy ▼

  • Supports reverse connector motherboards that keep cables out of sight
  • Ventilated metal grill front panel with improved airflow design
  • A total of 12 fan slots for even greater cooling potential
  • Airflow-optimized PSU shroud design
  • GPU support bracket for heavy graphics cards

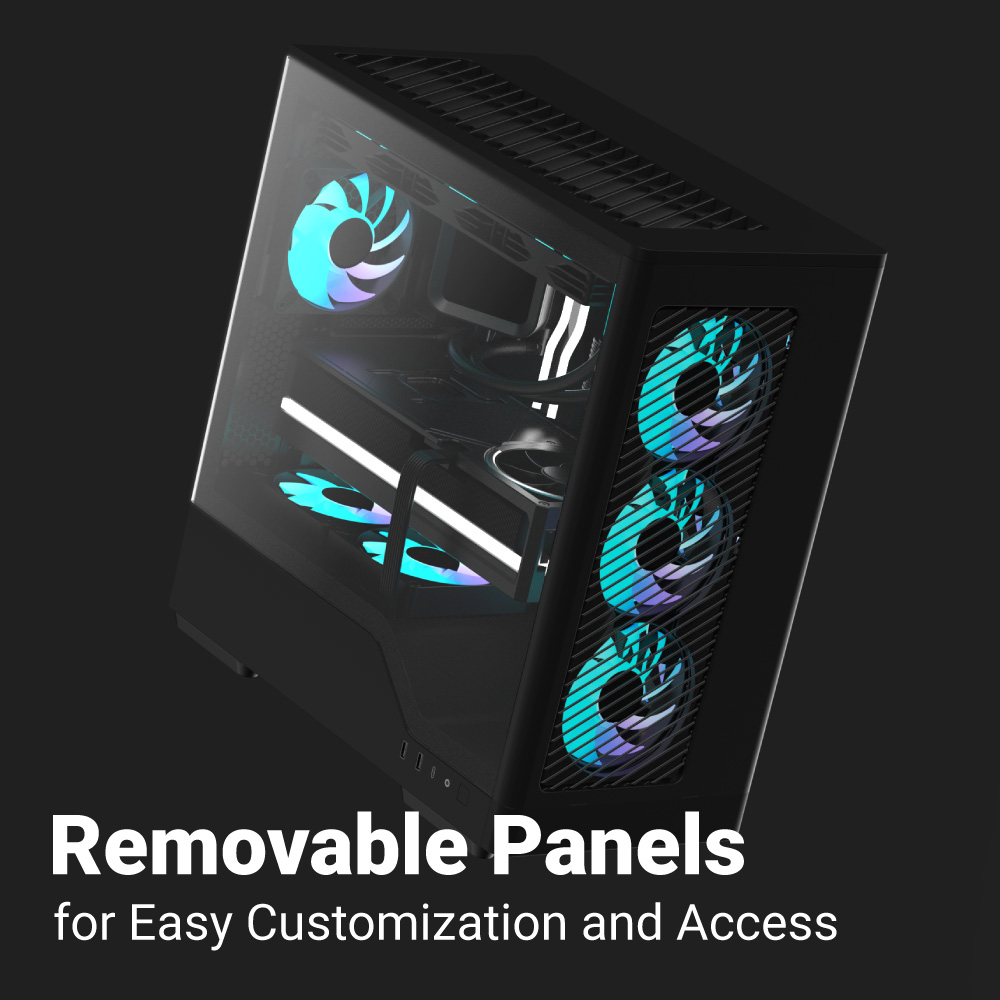

  • Removable front, top, and side panels (left & right)
  • Removable nylon dust filters on the front, bottom, and top for easy maintenance

Overview

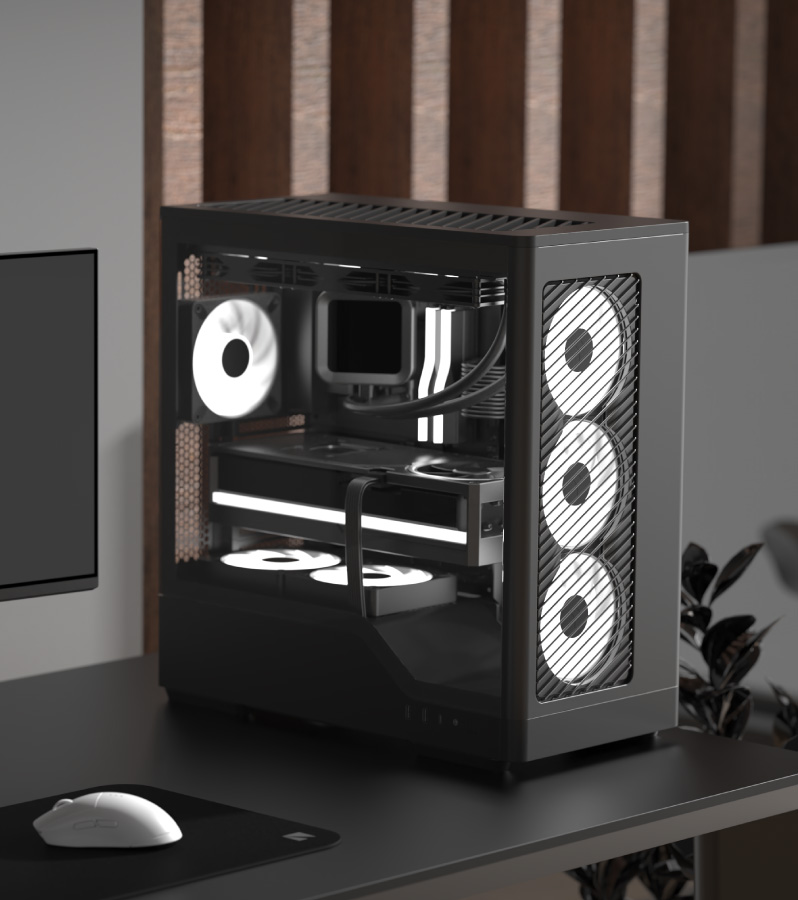

The AeroCool D520A is a mid-tower case for builders who demand total control, featuring tool-free removable panels on all sides and strategic dust filters to keep airflow pure and maintenance easy. ​
With support for reverse connector motherboards, an airflow-optimized PSU shroud, reinforced with a GPU support bracket, and up to 12 fan slots, this case is primed for next-level performance and reliability. ​
Finished with a ventilated metal grill front panel with an improved airflow design, the D520A blends elite cooling with showcase aesthetics.

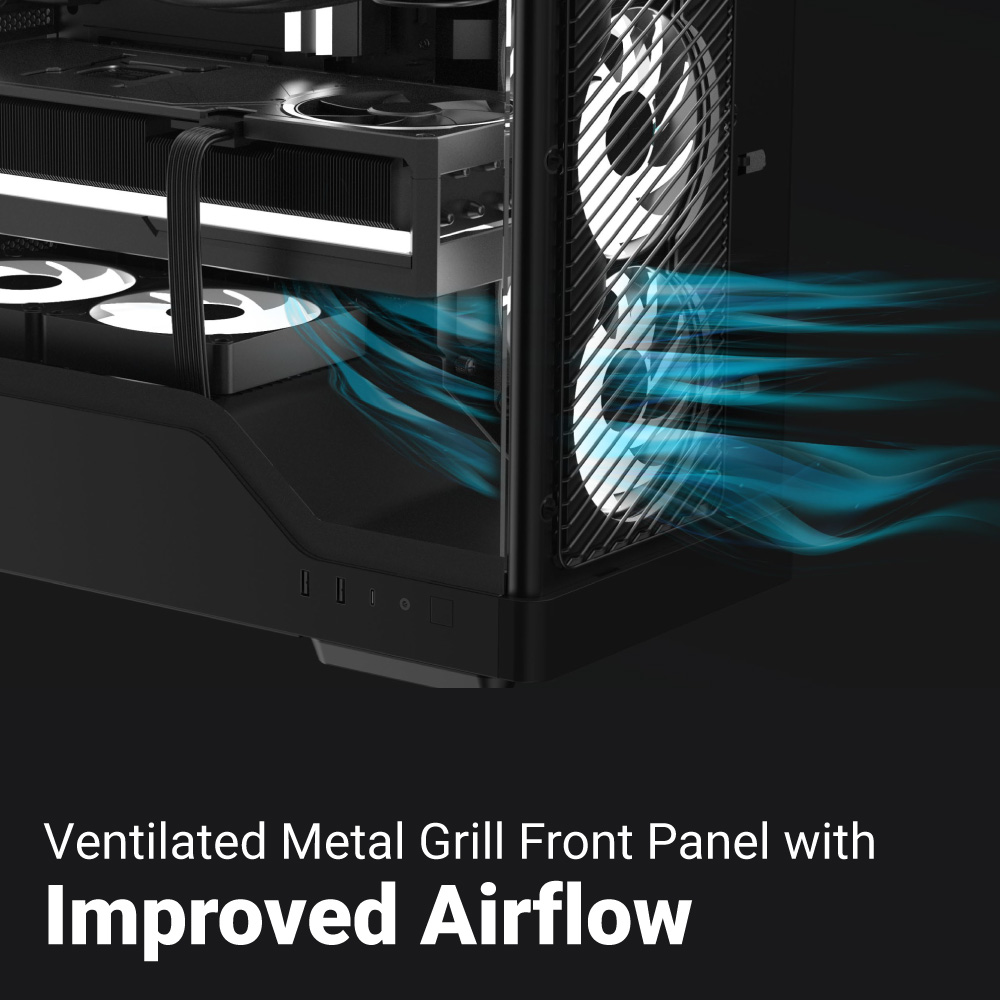

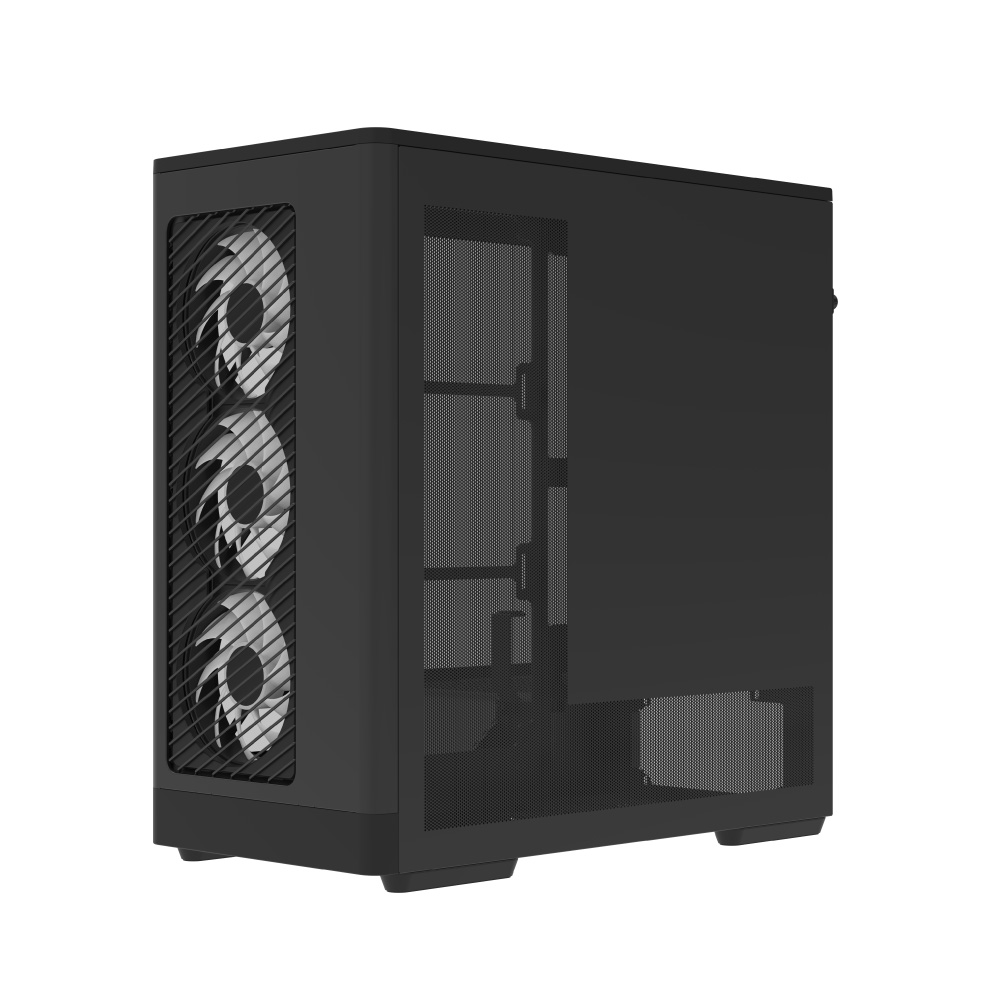

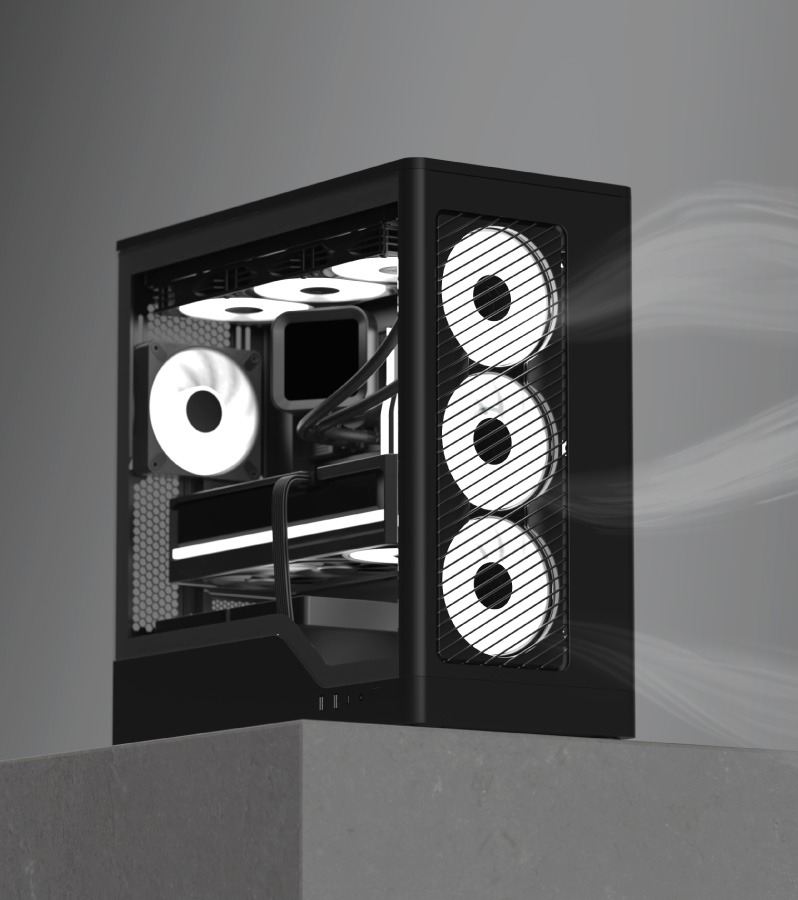

High-Airflow Metal Front Panel

The D520A features a ventilated metal grill front panel designed to maximize intake and improve overall cooling efficiency. Keep your components cooler with a case that breathes better by design.

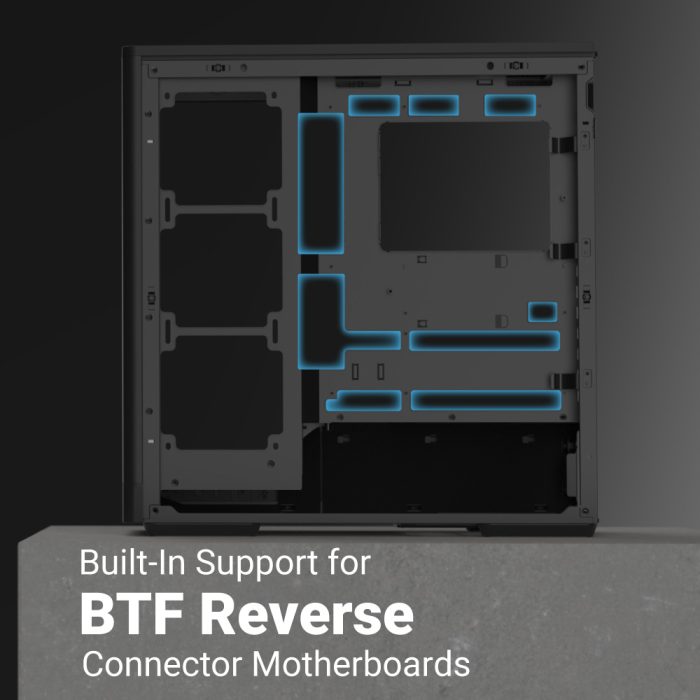

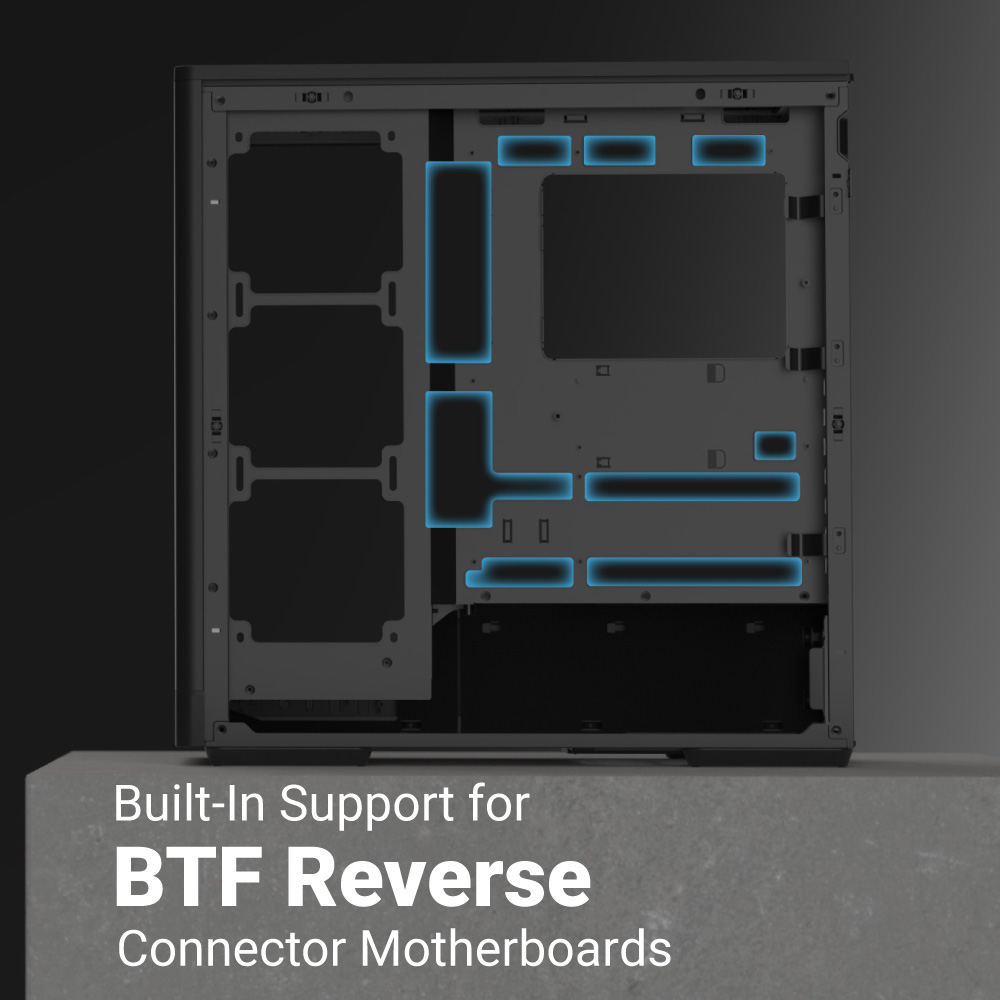

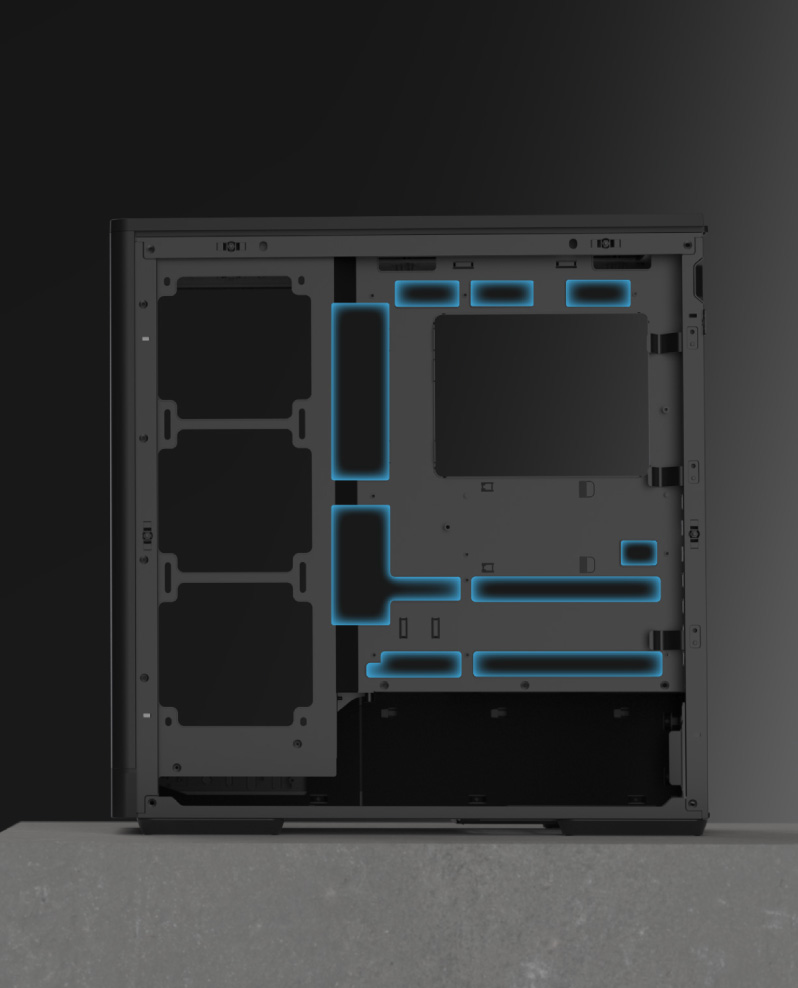

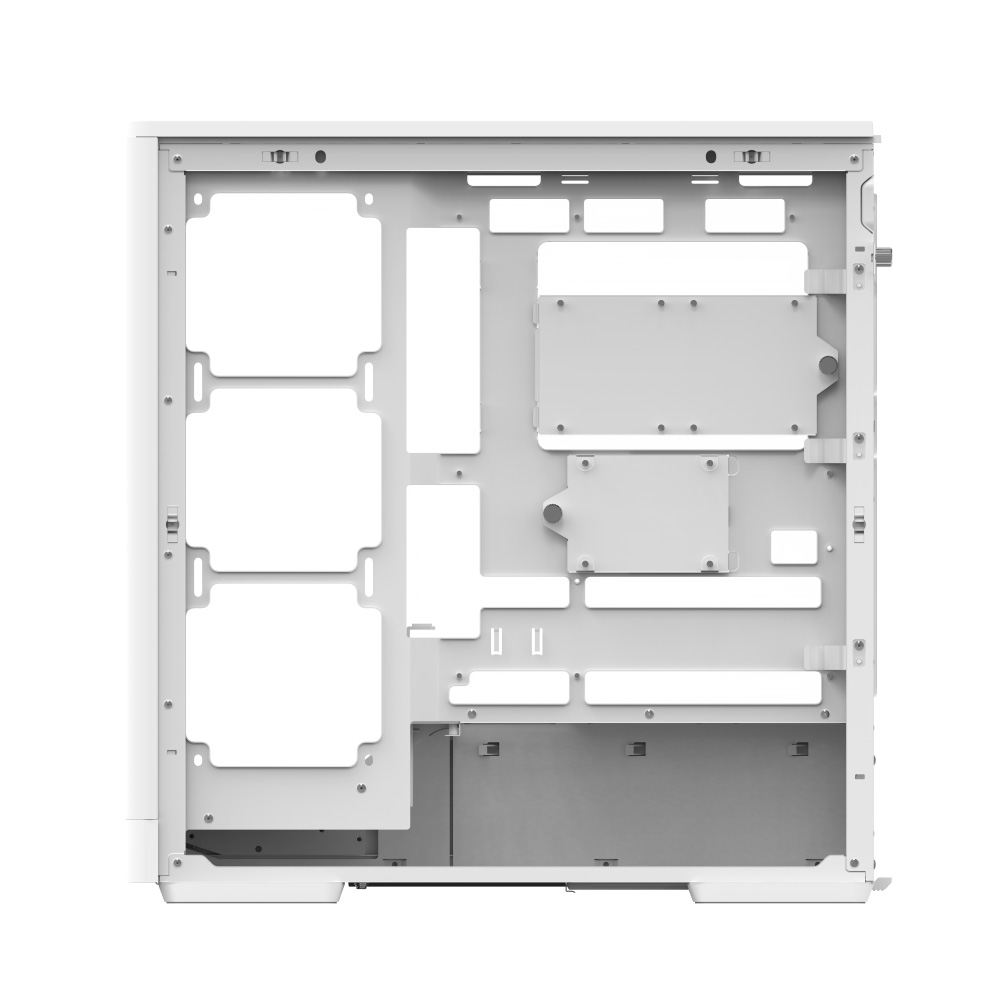

Hidden Cable Magic

Designed for mainstream BTF reverse connector motherboards to route cables behind the motherboard tray. Enjoy a clean, professional look with uninterrupted component visibility and easier airflow.

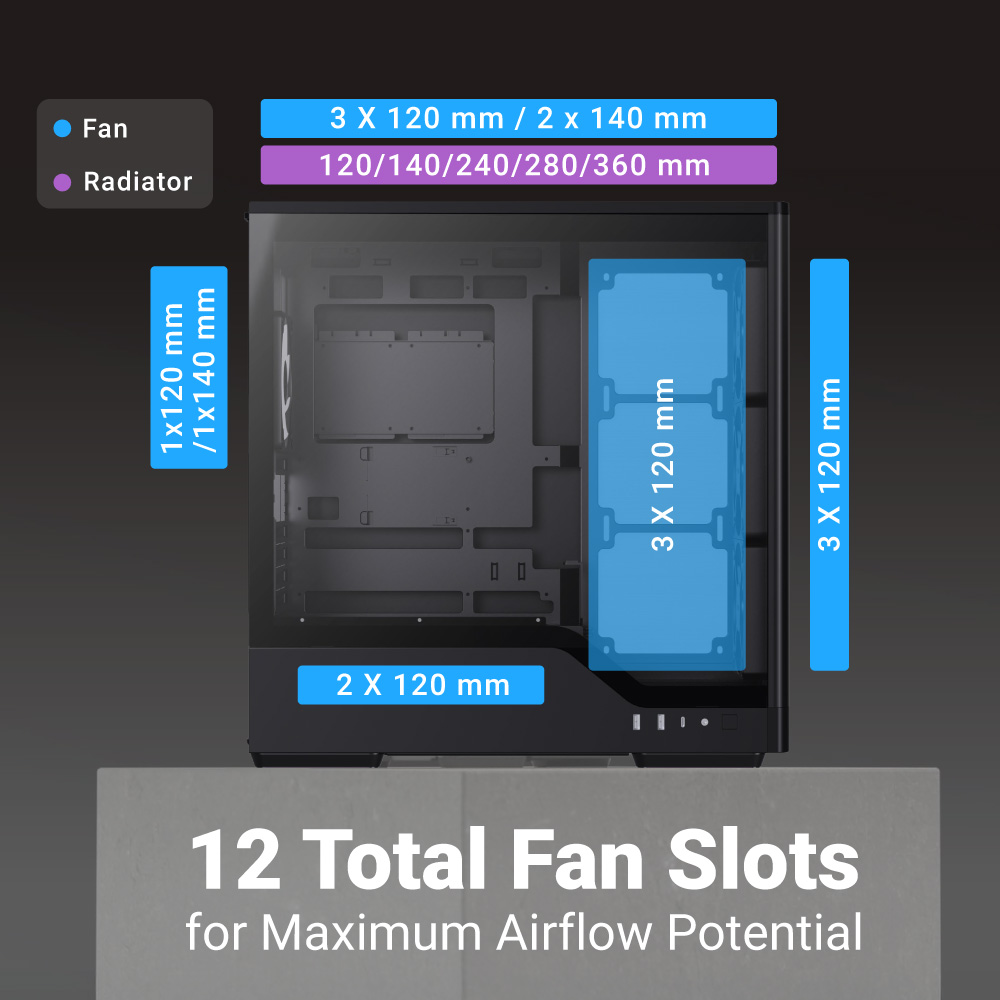

Massive Cooling Capacity

Supports up to twelve total fans to deliver outstanding cooling potential for high-performance systems. Whether you’re gaming, editing, or overclocking, your system stays cool under pressure.

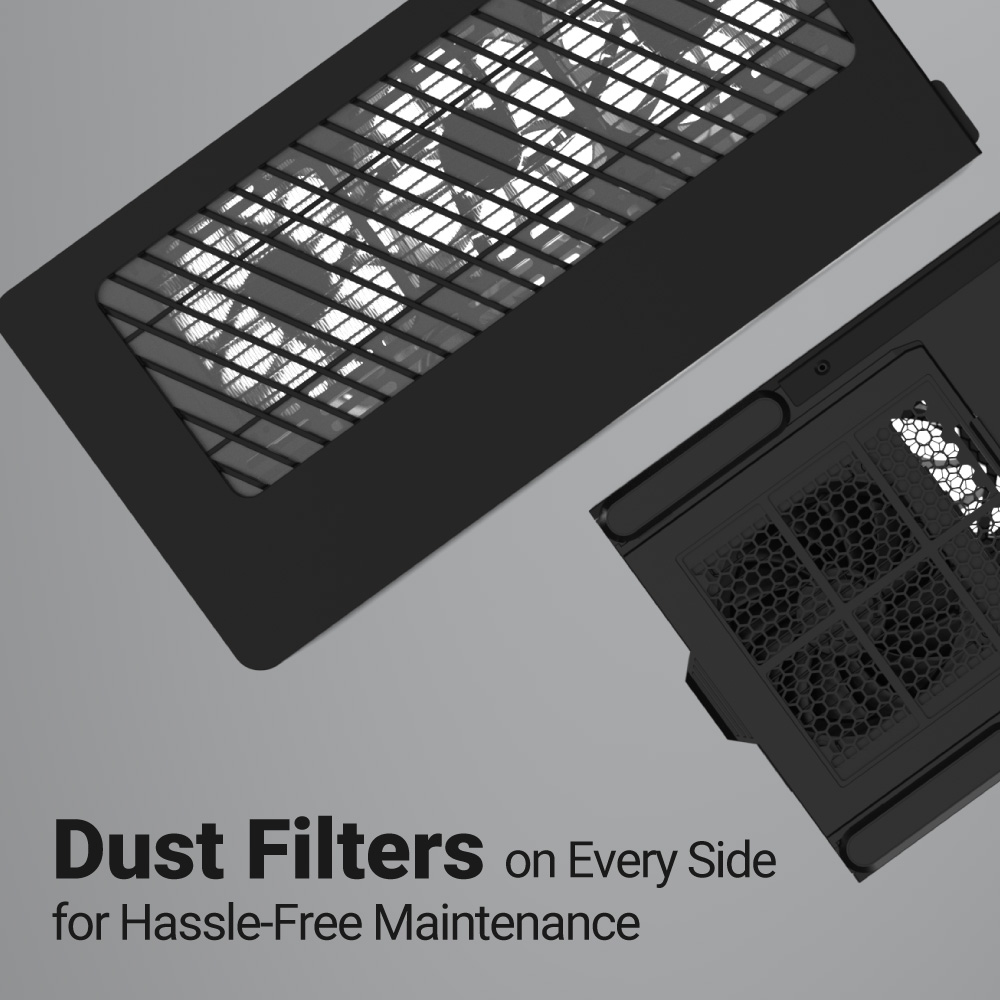

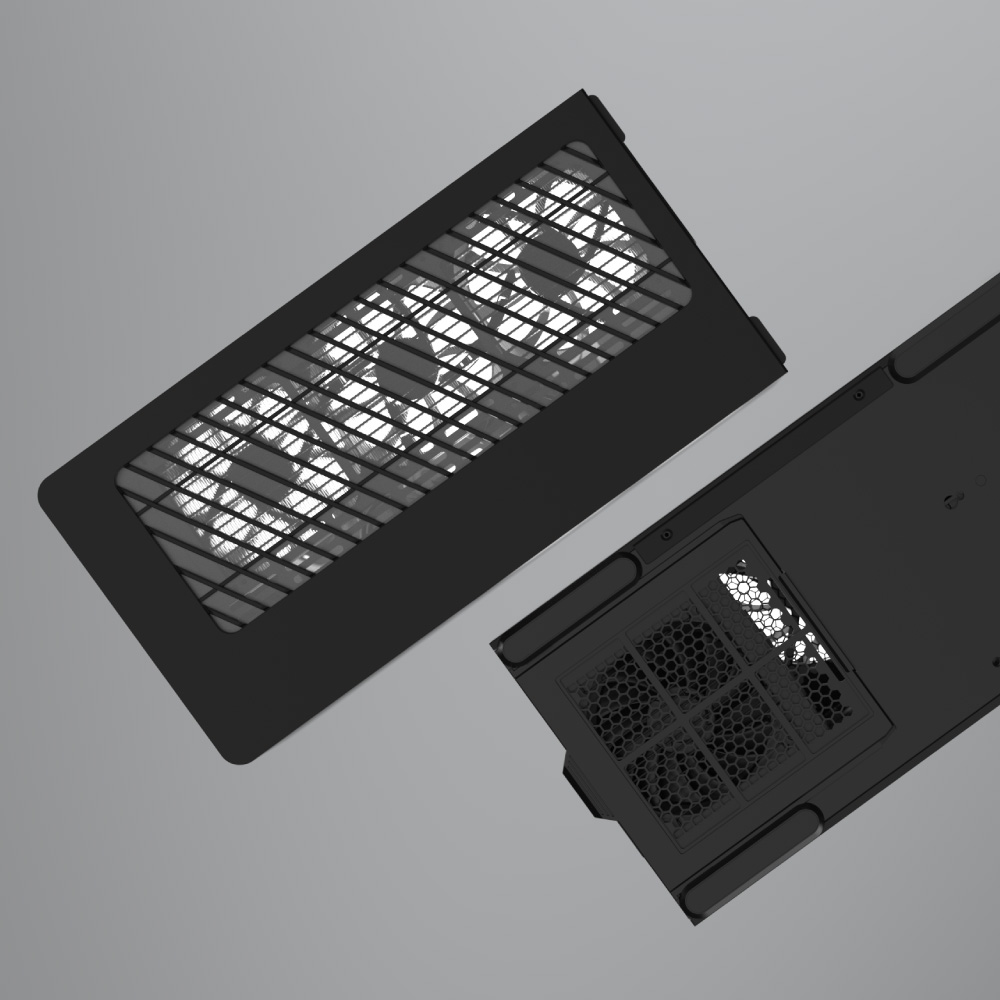

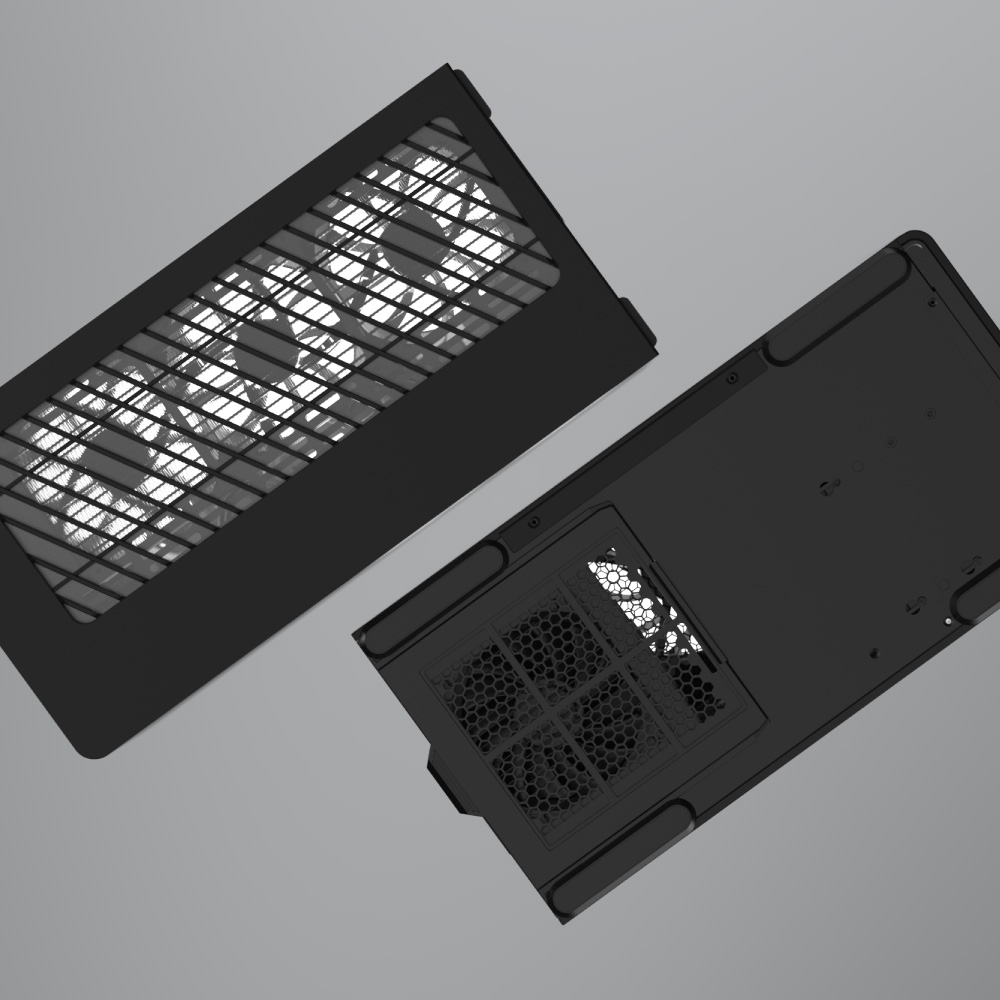

Dust-Free Design

Removable nylon filters on the front, top, and bottom keep out dust while allowing smooth airflow. Maintenance stays simple while your components stay cleaner, longer.

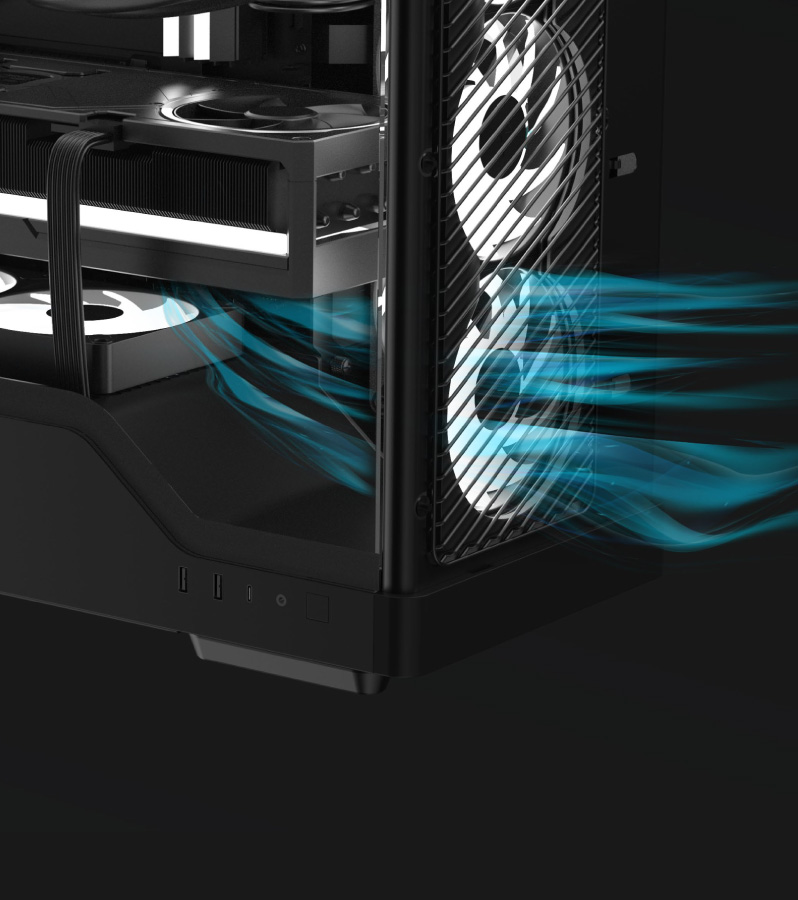

Optimized PSU Shroud

An airflow-focused PSU shroud helps direct cool air directly onto your GPU while hiding unsightly cables. Achieve both better thermals and a cleaner-looking build.

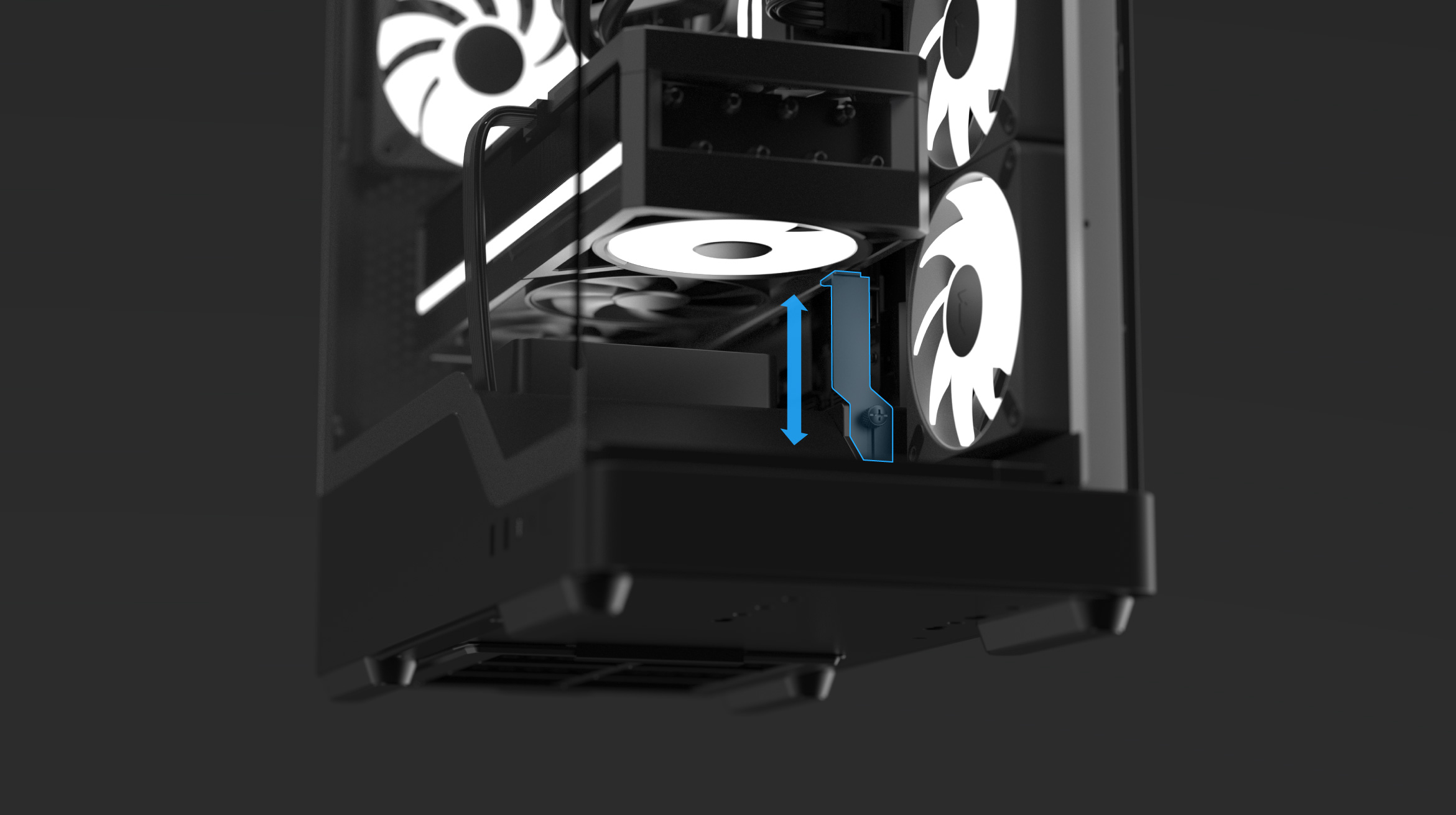

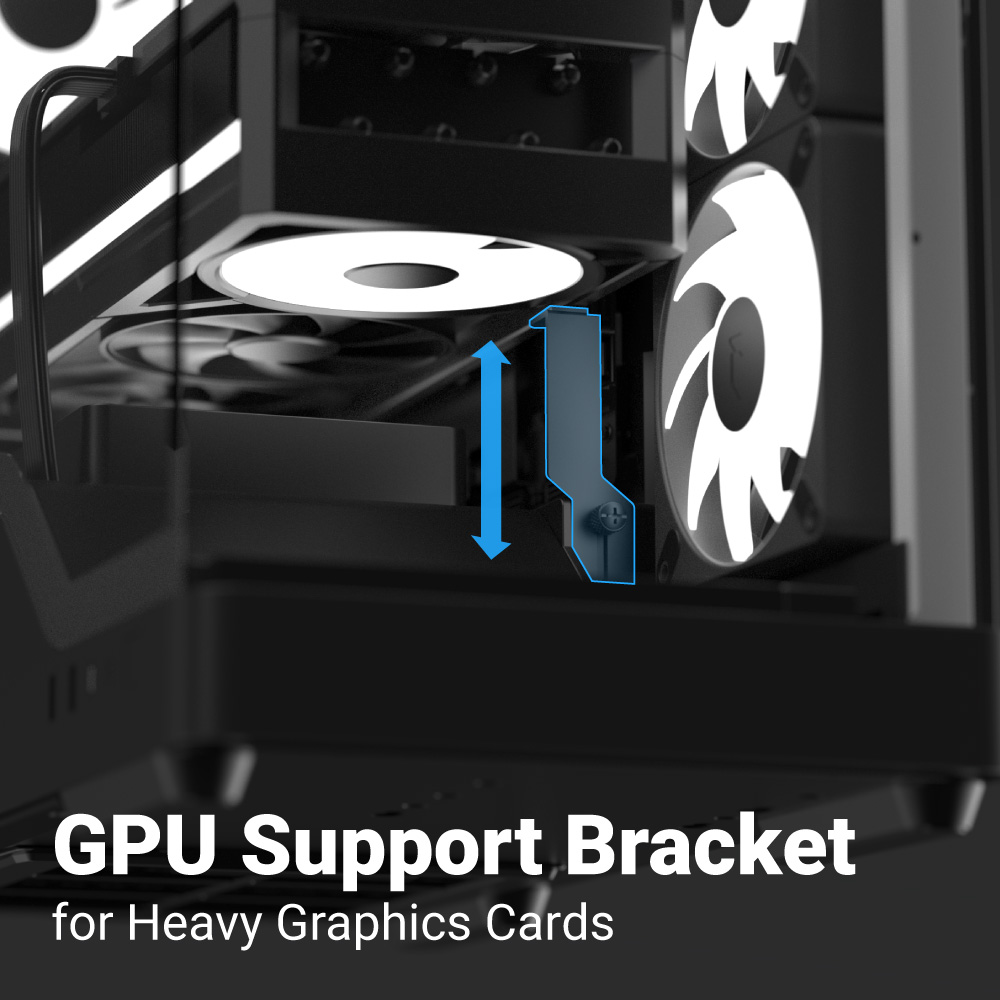

Adjustable GPU Support Bracket

The built-in adjustable GPU support bracket secures heavy graphics cards and prevents long-term sag. Customize the height to fit your setup perfectly and protect your investment with confidence.

SPECS

Product Name D520A
Model ACL-D520A-BK-FRPB / ACL-D520A-WT-FRPW
Case Type Mid Tower
Color Black / White
Body Material SPCC
Steel Thickness 0.6~0.8mm
Motherboards ATX / Micro ATX / Mini-ITX
Case Dimensions 460 x 235 x 480mm (D x W x H)
Capacity 49L
Case Dimensions (Internal) 460 x 235 x 454mm (W x H x D)
Case Dimensions (Overall) 460 x 235 x 480mm (W x H x D)
5.25” Drive Bays N/A
3.5” Drive Bays 1 Max. (2 x 3.5”/1 x 2.5″ or 1 x 3.5”/2 x 2.5″)
2.5” Drive Bays 3 Max. (3 x 2.5” or 2 x 3.5”/1 x 2.5″ or 1 x 3.5”/2 x 2.5″)
Expansion Slots 7
GPU Clearance Supports GPU up to 400mm (W/O radiator in the front-right position)
CPU Cooler Clearance Supports CPU cooler up to 180mm
Air Cooling Front: 120mm x 3 (Max.) (3x 120mm ARGB PWM Fan included)
Side: 120mm x 3 (Max.)
Top: 120mm x 3 or 140mm x 2 (Max.)
Power Supply Shroud: 120mm x 2 (Max.)
Rear: 120mm x 1 or 140mm x 1 (1x 120mm ARGB PWM Fan included)
Liquid Cooling Side: N/A
Top: 120/140/240/280/360 Radiator (Optional)
I/O Ports USB3.2 Gen 2×2 Type-C x 1 | USB3.2 Gen 1 Type-A x 2 | HD Audio & Mic.
Net Weight / Gross Weight N/A
Internal Cable Management Depth 30mm
Power Supply ATX PSU (Including cables, up to 280mm) (Optional)
  • Supports reverse connector motherboards that keep cables out of sight
  • Ventilated metal grill front panel with improved airflow design
  • A total of 12 fan slots for even greater cooling potential
  • Airflow-optimized PSU shroud design
  • GPU support bracket for heavy graphics cards
  • Removable front, top, and side panels (left & right)
  • Removable nylon dust filters on the front, bottom, and top for easy maintenance

Download your user manual here.
