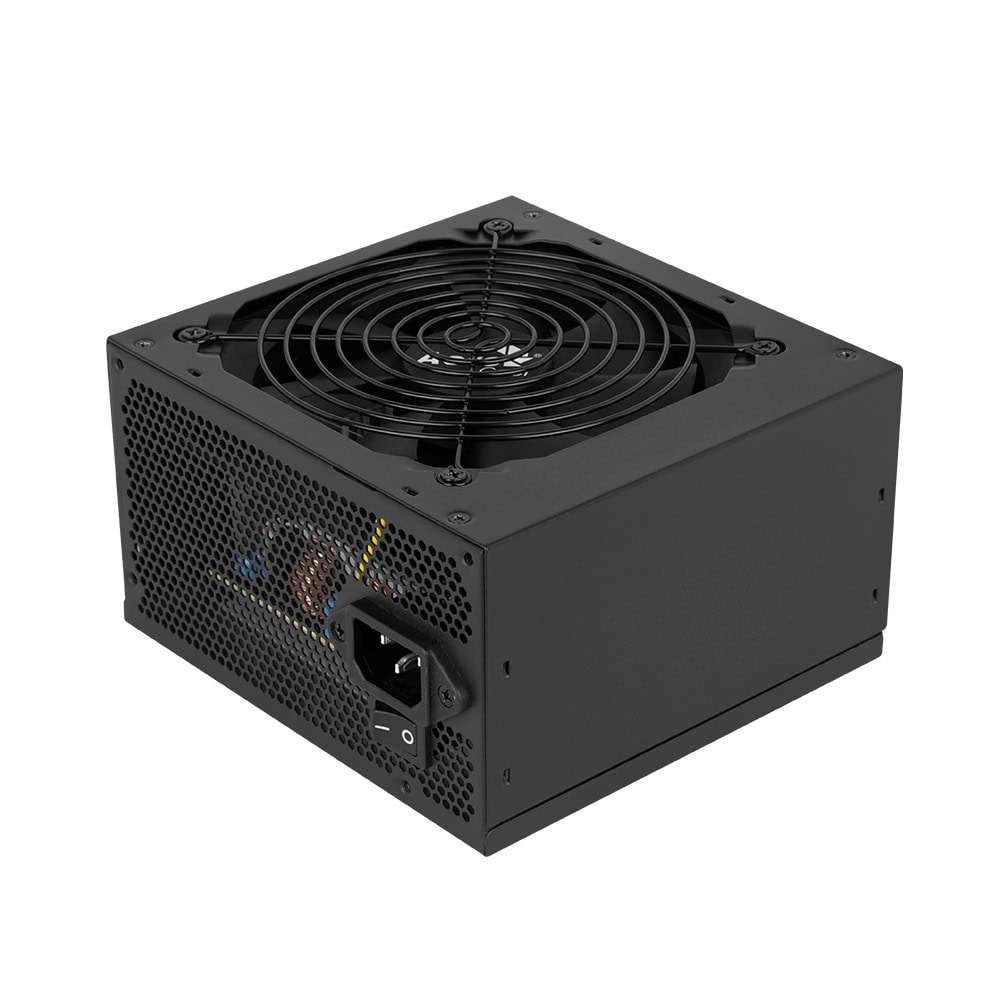

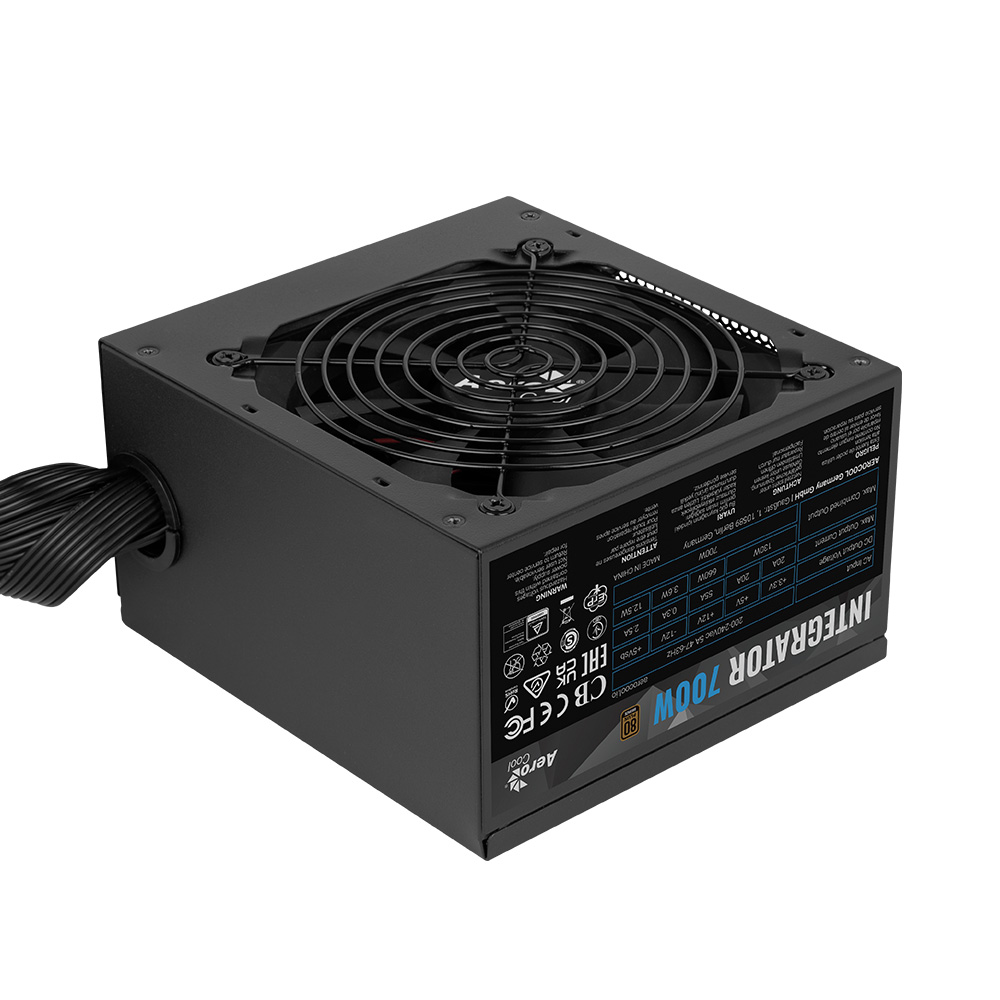

Integrator 500W/600W/700W

80PLUS Bronze PSU

The most affordable 80Plus Bronze power supply unit that delivering maximum efficiency performance and stable power output with minimum noise.
Now with optimized fan speed curve and soft black cables for better cable management.

  • Compatible with all intel form factors up to ATX12V Ver. 2.52.
  • Built-in APFC (Active Power Factor Correction) rates > 0.9
  • Up to 85%+ efficiency with official 80Plus Bronze certificate
  • Silent 12cm fan with optimized thermal fan speed control
  • Single 12V rail for high current output and compatibility

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Where To Buy
FEATURES SPECS

UP TO 85%+ EFFICIENCY

80Plus Bronze Certified for high efficiency performance.
Built-in APFC (Active Power Factor Correction) rates > 0.9.

CONVENIENT CABLE MANAGEMENT

Soft, black, flat cables allow for more convenient cable management and easier installation.

COMPATIBILITY

Compatible with all Intel form factors up to ATX12V Ver. 2.52.

SPECS

AC Input 230VAC, 4A, 47-53 Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 18A 18A 38A 0.3A 2.5A
Max.Combined Power 110W 456W 3.6W 12.5W
500W
AC Input 230VAC, 4.5A, 47-53 Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 46A 0.3A 2.5A
Max.Combined Power 120W 552W 3.6W 12.5W
600W
AC Input 230VAC, 5A, 47-53 Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 55A 0.3A 2.5A
Max.Combined Power 130W 660W 3.6W 12.5W
700W
AC Input
230VAC~, 4A, 47-53 Hz
DC Output
+3.3V / +5V +12V -12V / +5VSB
Max Current
18A / 18A 38A 0.3A / 2.5A
Max.Combined Power
110W 456W 3.6W / 12.5W
500W
AC Input
230VAC~, 4.5A, 47-53 Hz
DC Output
+3.3V / +5V +12V -12V / +5VSB
Max Current
20A / 20A 46A 0.3A / 2.5A
Max.Combined Power
120W 552W 3.6W / 12.5W
600W
AC Input
230VAC~, 5A, 47-53 Hz
DC Output
+3.3V / +5V +12V -12V / +5VSB
Max Current
20A / 20A 55A 0.3A / 2.5A
Max.Combined Power
130W 660W 3.6W / 12.5W
700W
  • Compatible with all intel form factors up to ATX12V Ver. 2.52.
  • Built-in APFC (Active Power Factor Correction) rates > 0.9
  • Up to 85%+ efficiency with official 80Plus Bronze certificate
  • Silent 12cm fan with optimized thermal fan speed control
  • Single 12V rail for high current output and compatibility.
  • 2x PCIe 6+2pin for high-end graphics card.
  • Certified by CE and UKCA for safe operation.
  • Long cable length provide easy accessibility to all components.
  • All DC cables equipped with soft black flat rubber for optimized airflow and easy management.
  • With OVP/UVP/OPP/OTP/SCP/SIP electrical protection.
  • Eco-friendly in accordance with RoHS and ErP directives.
