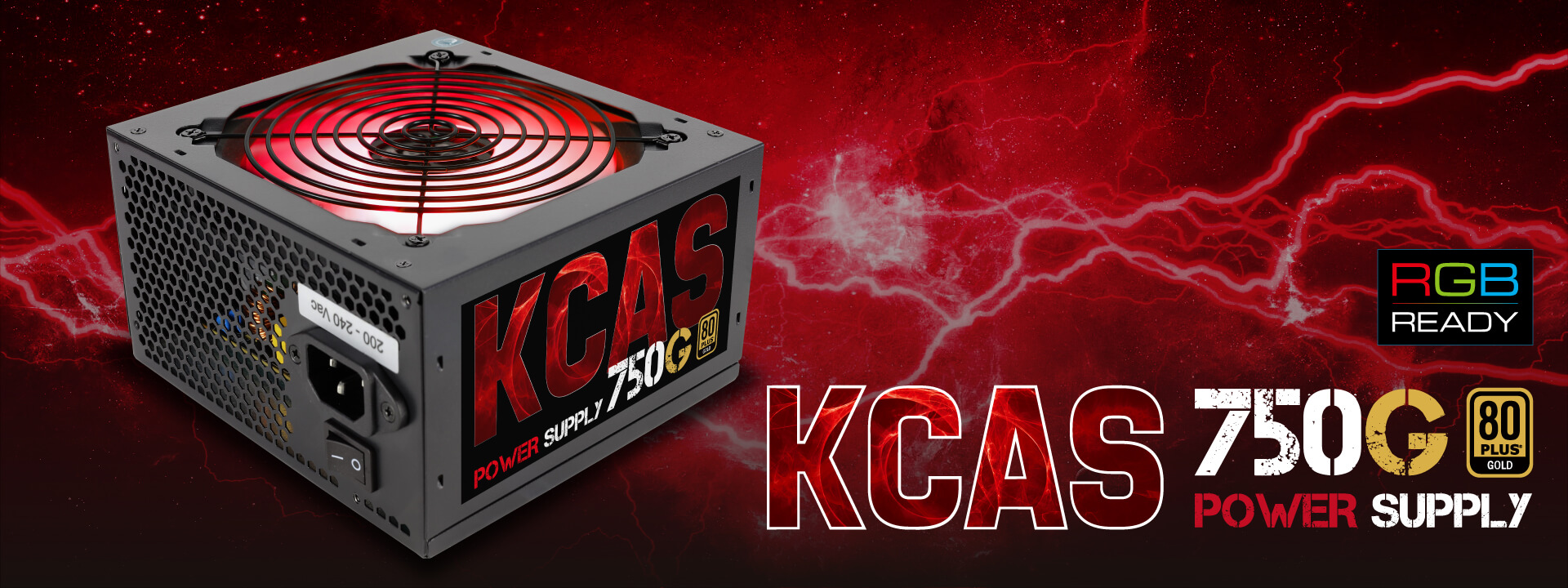

KCAS 750G

RGB POWER SUPPLY UNIT

• Built-in APFC (Active Power Factor Correction) rates > 0.9
• RGB Lighting – Control up to 16.8 million colors and 3 LED lighting modes
• Up to 90%+ efficiency with official 80Plus Gold certificate

• Mesh sleeves reduce the blockage of system air flow
• Silent 12cm fan with optimized thermal fan speed control
• Powerful single +12V rail offers compatible DC output

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

RGB LIGHTING

Access 16.8 million colors and three LED modes with P7-S1 (Project 7-Software 1) available with our P7-Hub (P7-H1).
RGB functions can also be controlled through motherboards with 4-pin configurations.





Product by itself will not light up.
Requires Hub or RGB motherboard to enable lighting and RGB function.

RGB SOFTWARE

16.8 million colors with three LED lighting modes including solid color, breathing, and pulsating. Set your color by entering RGB color code or HTML code.

MONITOR FAN RPM

Monitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)

UP TO 90% EFFICIENCY

80 PLUS Gold certified for highest efficiency.

MOST AFFORDABLE

The most affordable, low noise, high efficiency, and stable output PSU.

12CM COOLING FAN

Super silent 12cm high performance cooling fan with smart thermal speed control circuit.

12cm silent black fan with smart thermal fan speed control circuit.

PRODUCT GALLERY

SPECS

SPECIFICATIONS



AC Input 200-240VAC 6A 47-63HZ
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 62.5A 0.3A 2.5A
Max.Combined Power0 130W 750W 3.6W 12.5W
750W
EAN CODE 4713105957617



EFFICIENCY

CABLES

DOWNLOAD

Learn more about P7-S1 (Project7-Software1)

Cables and Connectors Usage Guidelines
