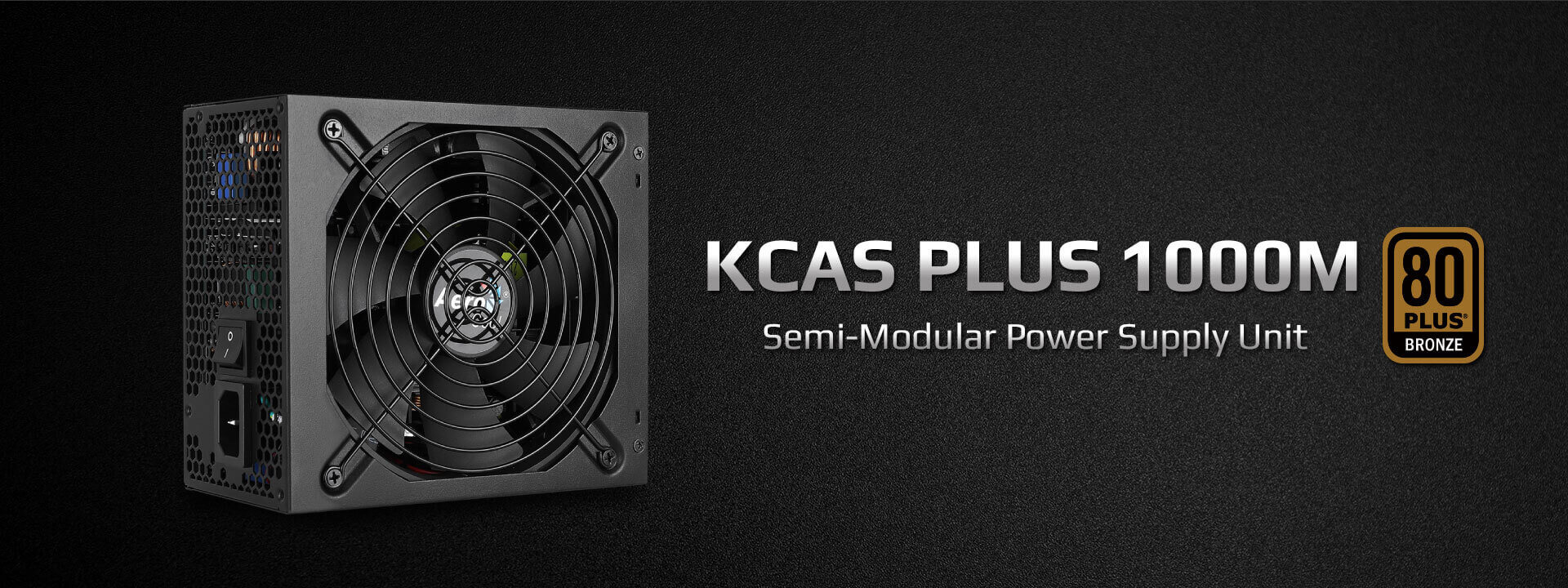

KCAS PLUS 1000M

SEMI-MODULAR POWER SUPPLY

Featuring a smart semi-modular design, this high-efficiency power supply unit offers easier cable management. Comes equipped with mesh sleeves to reduce the blockage of system air flow. The KCAS PLUS M is 80Plus Bronze certified for high performance with up to 85%+ efficiency. Comes equipped with DC-to-DC conversion circuit for more reliable operation with heavy CPU and GPU loads.

• Built-in APFC (Active Power Factor Correction) rates > 0.9
• Smart semi-modular design offers easier cable management
• 80Plus Bronze certified for 85%+ efficiency
• Mesh sleeves reduce the blockage of system air flow
• Equipped with DC-to-DC conversion circuit
• Silent 14cm fan with optimized thermal fan speed control
• Powerful single +12V rail offers compatible DC output
• Complete over current protection and over temperature protection

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

SMART MODULAR DESIGN

Smart modular design offers easier cable management and mesh sleeves reduce blockage of system airflow.

Built-in APFC (Active Power Factor Correction) rates > 0.9

UP TO 85%+ EFFICIENCY

80Plus Bronze certified for high efficiency performance.

BUILT-IN DC-TO-DC CIRCUIT

Equipped with DC-to-DC conversion circuit for tight voltage regulation even under heavy cross-loading conditions.
This ensures reliable operation with heavy CPU and GPU loads.

OPTIMIZED FAN RPM

14cm silent black fan with optimized thermal fan speed control. Fan runs at startup speed (less than 800RPM) before reaching 60% load at 25℃ ambient temperatures.

PRODUCT GALLERY

SPECS

SPECIFICATIONS

AC Input 200-240VAC 15/7A 50-60HZ
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 80A 0.5A 3A
Max.Combined Power0 120W 960W 6W 15W
1000W
EAN CODE 4713105962703

EFFICIENCY

CABLES

DOWNLOAD

Cables and Connectors Usage Guidelines

COMPARISON

Comparison
KCAS M (discontinued)
KCAS PLUS M
Benefits of KCAS PLUS M

Secondary Circuit
Magnetic Amplifier
DC-to-DC Circuit
Ensures reliable operation with heavy CPU and GPU loads
Fan Curve
Smart Thermal Fan Speed Control
Optimized Fan Speed Curve
Maintains silent fan operation before reaching 60% load
Wire Gauge
AWG#18 by Intel Design Guide
AWG#16 PCIe 12V Wire
Provides more current to secure high-end graphics cards
Protections
OVP/UVP/OPP/SCP/SIP
Extra OCP and OTP
Provides protection from overcurrent and overheating
