P500A

Mid Tower Case
Where to Buy ▼

  • Supports mainstream BTF reverse connector motherboards that keep cables out of sight

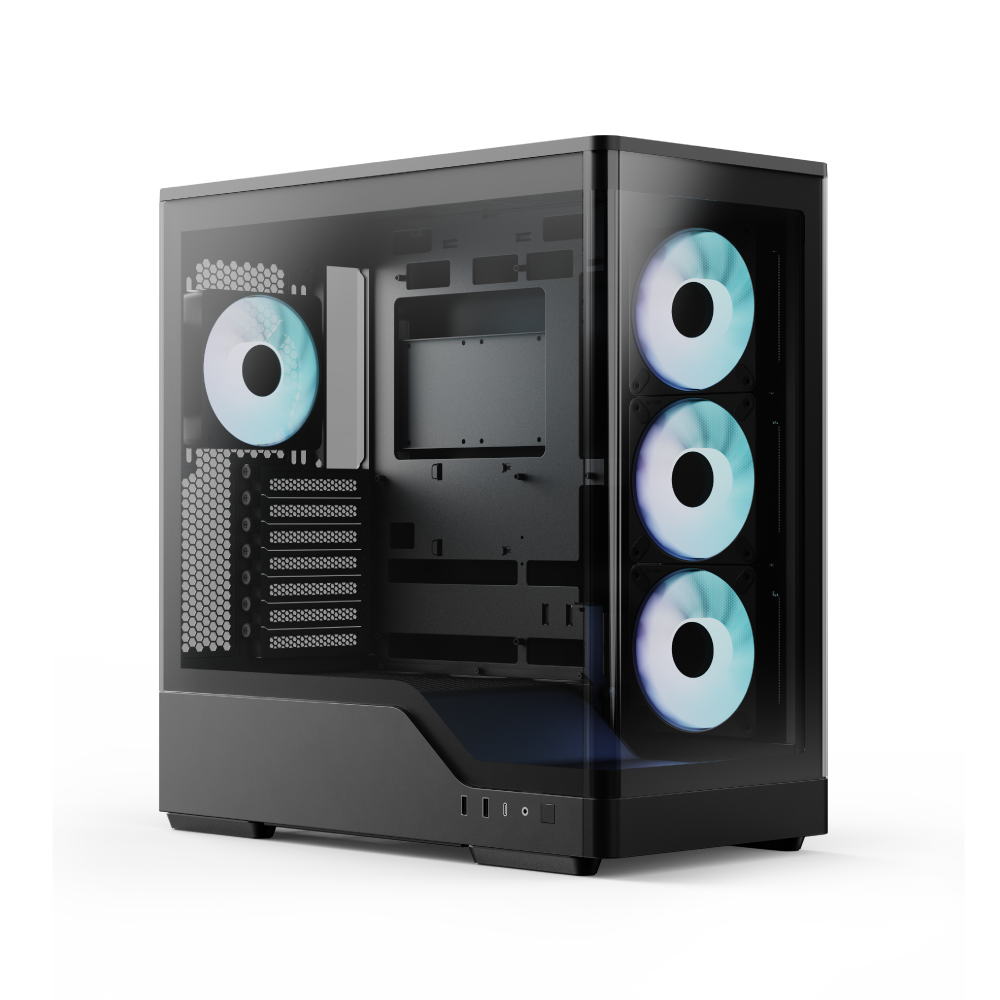

  • Dual curved glass front and side panels for 270-degree panoramic view
  • A total of 9 fan slots for even greater cooling potential
  • Airflow-optimized PSU shroud design
  • GPU support bracket for heavy graphics cards
  • Removable front, top, and side panels (left & right)
  • Removable nylon dust filters on the top and bottom for easy maintenance

FIND RETAILER
P500A
Overview
Gallery
Specs

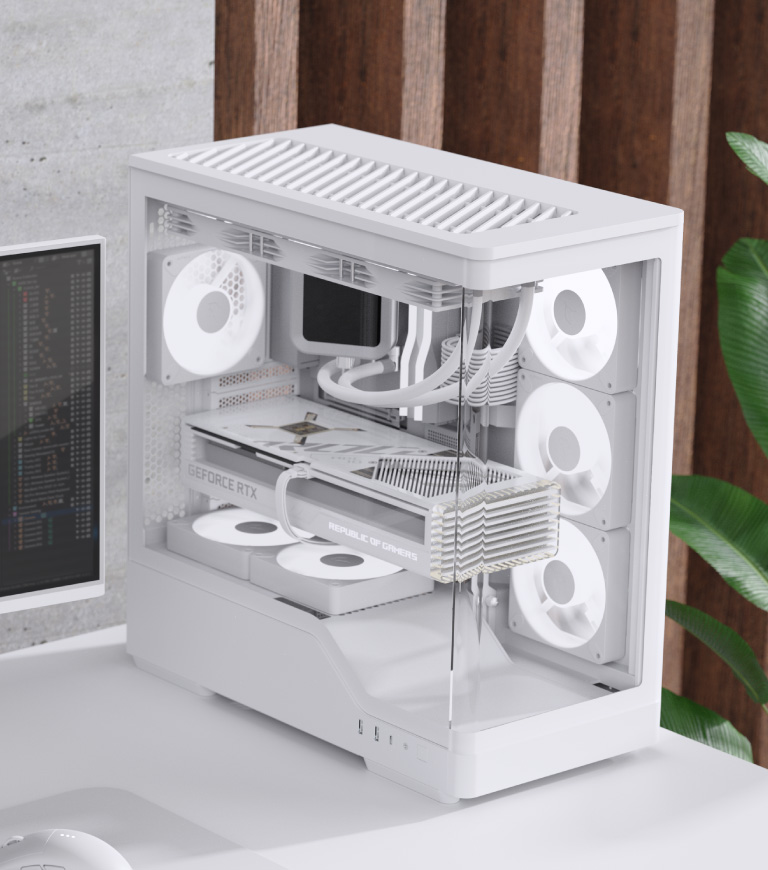

Overview

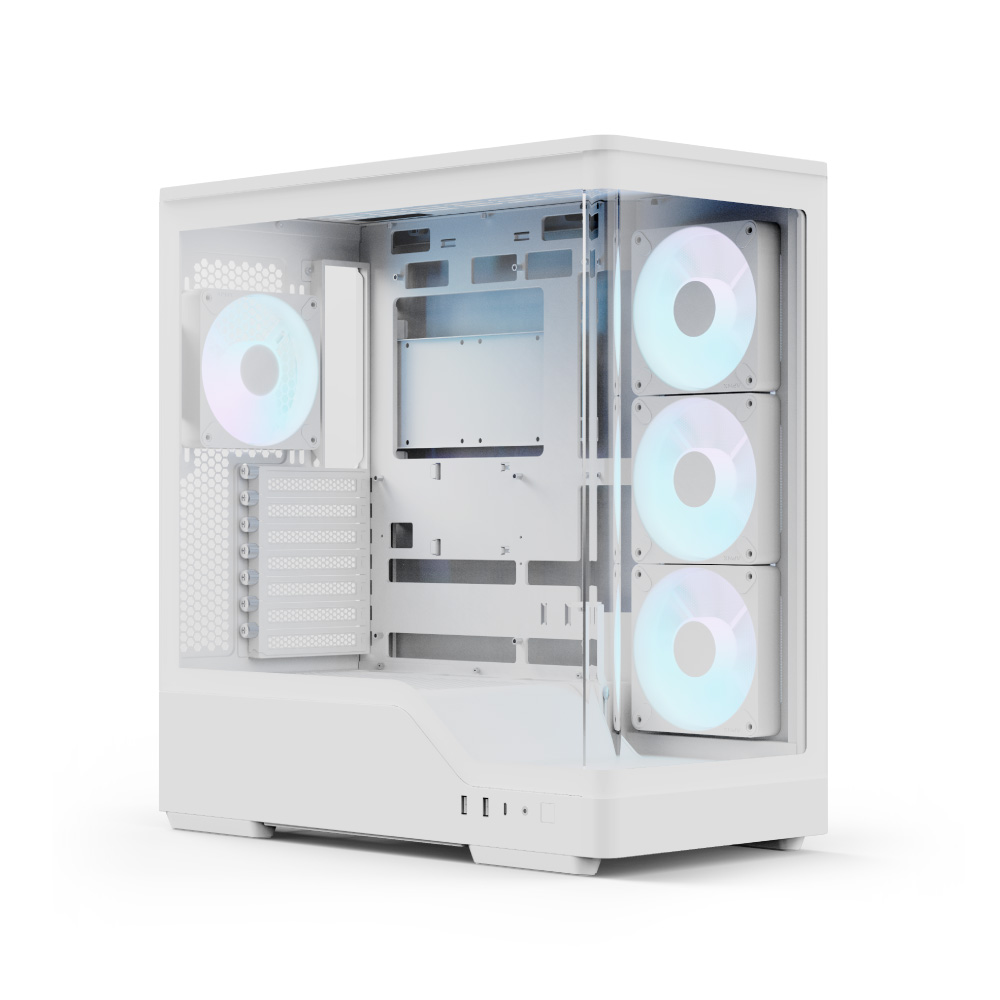

The AeroCool P500A is a mid-tower case for builders who demand total control, featuring tool-free removable panels on all sides and strategic dust filters to keep airflow pure and maintenance easy. ​
With support for reverse connector motherboards, an airflow-optimized PSU shroud, reinforced with a GPU support bracket, and up to 9 fan slots, this case is primed for next-level performance and reliability. ​

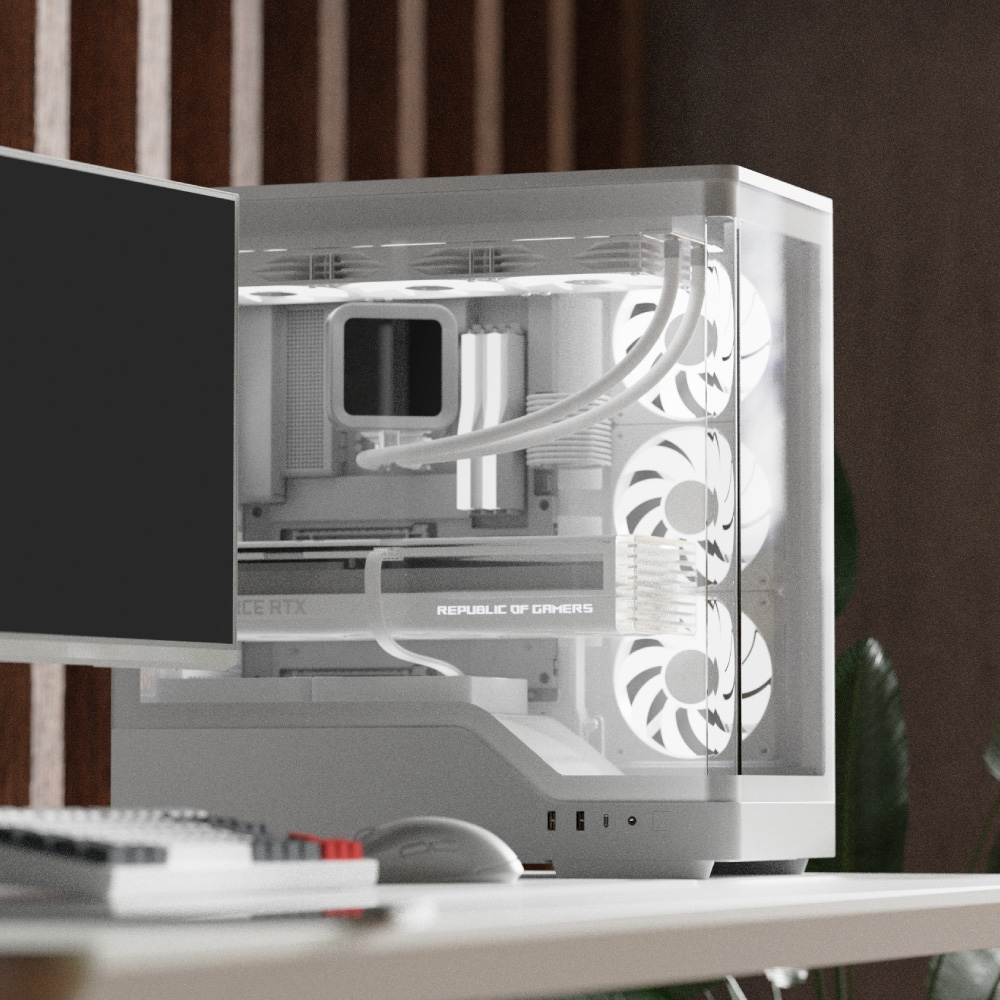

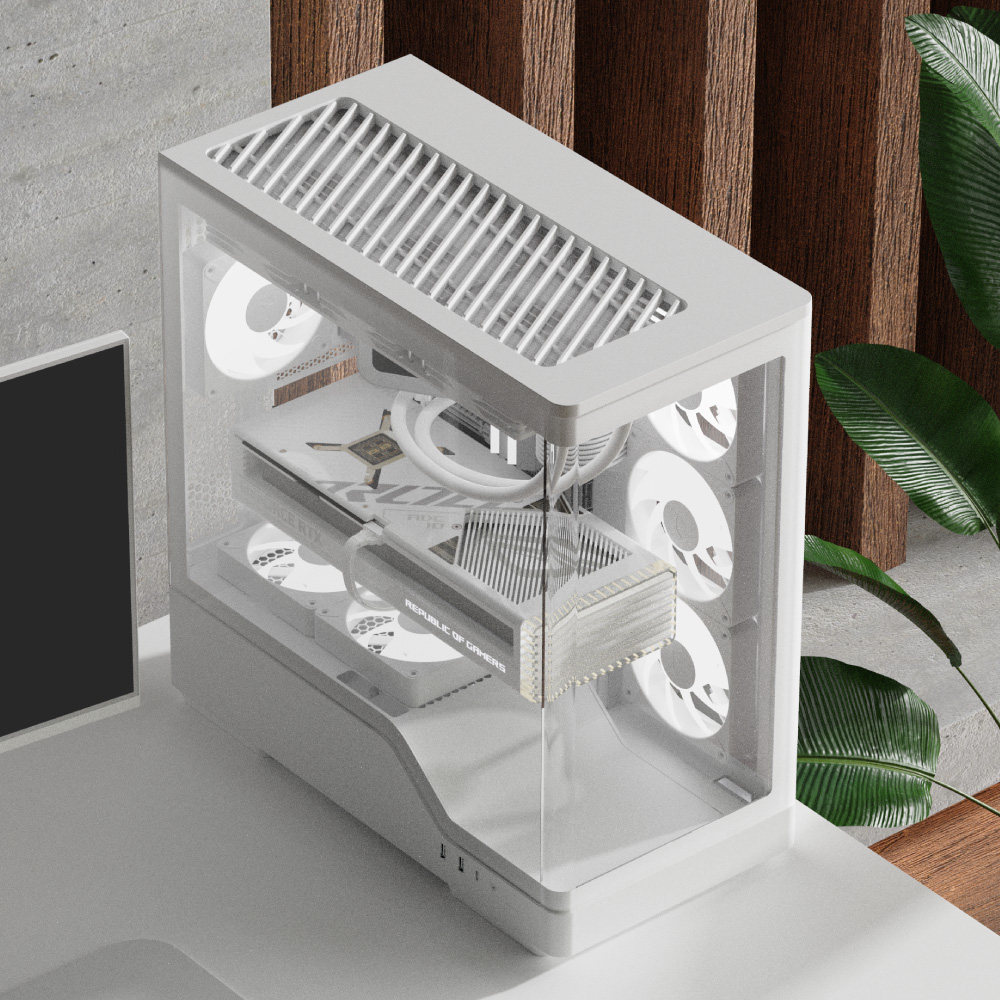

Finished with dual curved glass front and side panels, the P500A blends elite cooling with showcase aesthetics.​

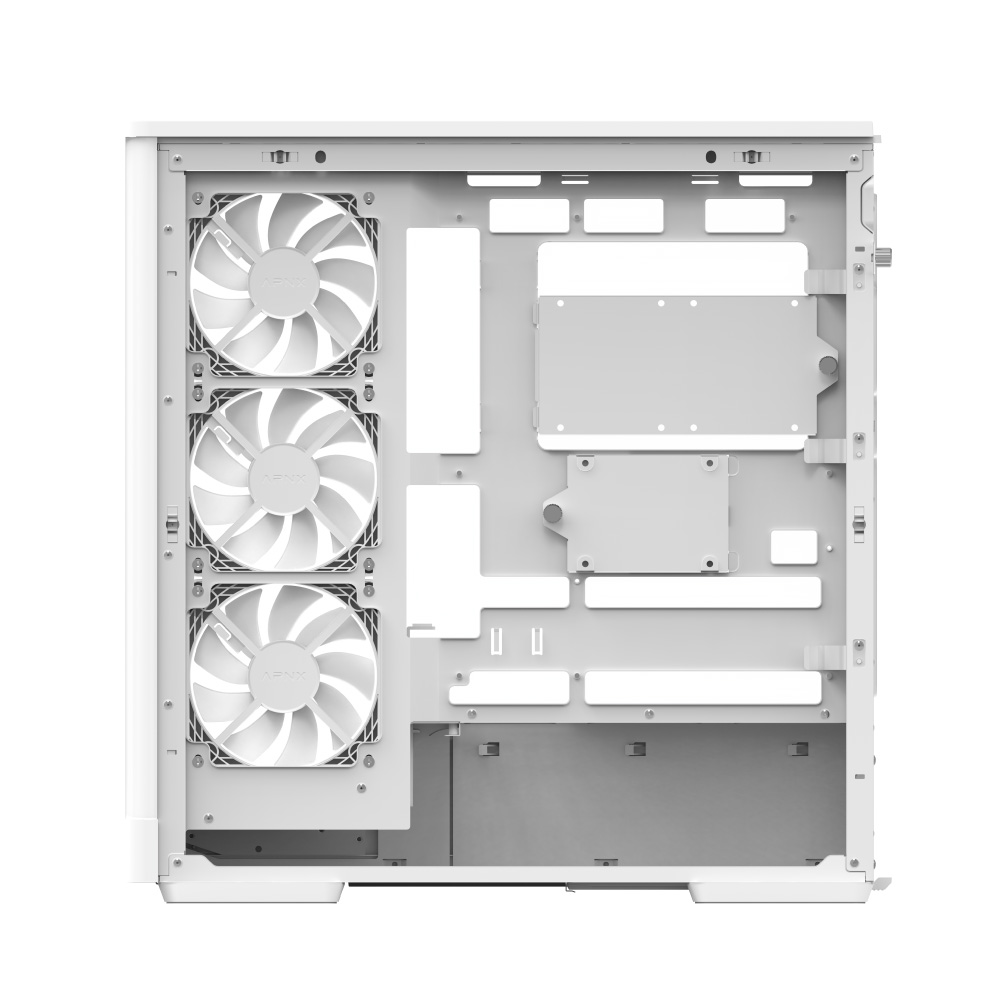

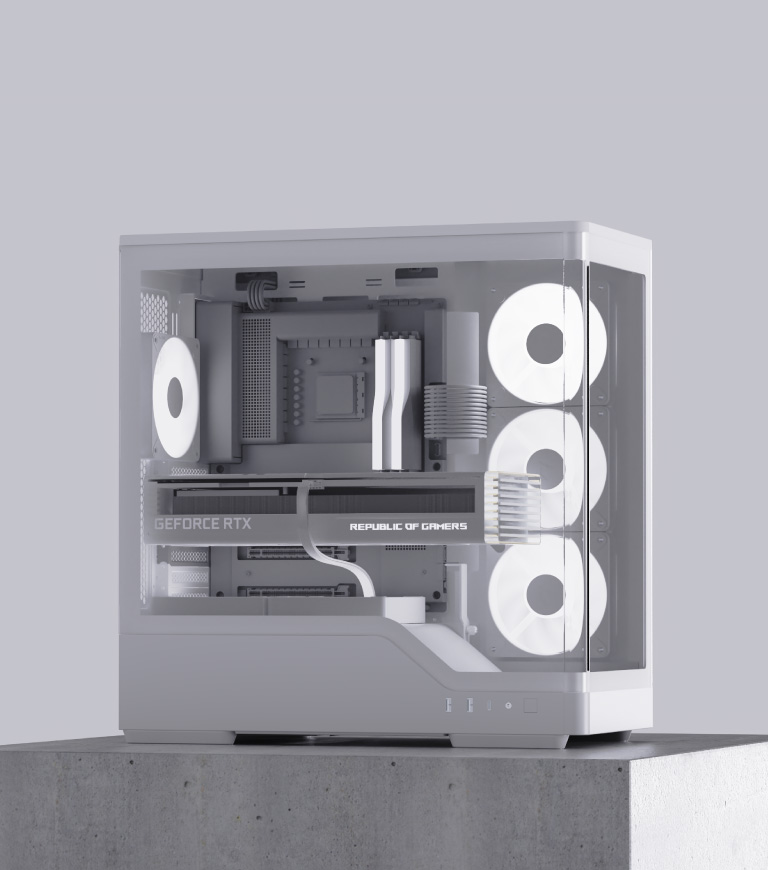

Hidden Cable Magic

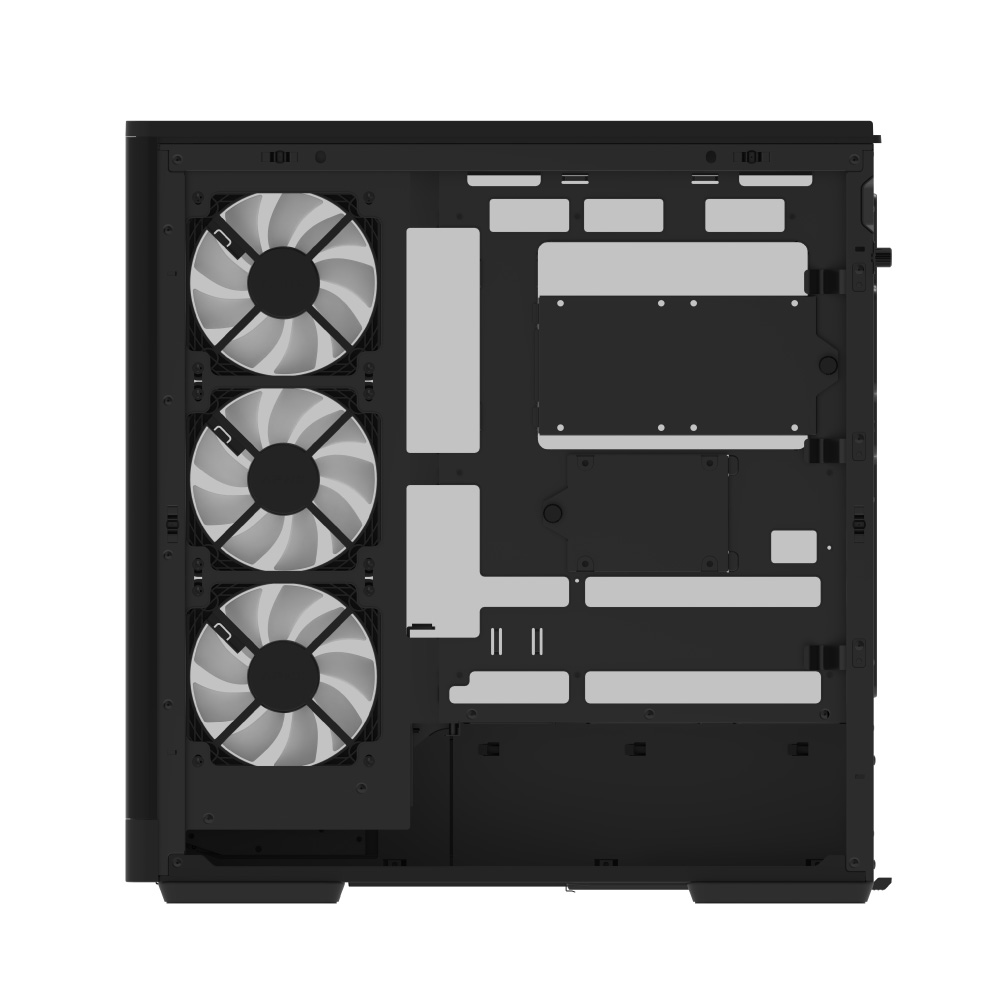

Designed for mainstream BTF reverse connector motherboards to route cables behind the motherboard tray. Enjoy a clean, professional look with uninterrupted component visibility and easier airflow.

Massive Cooling Capacity

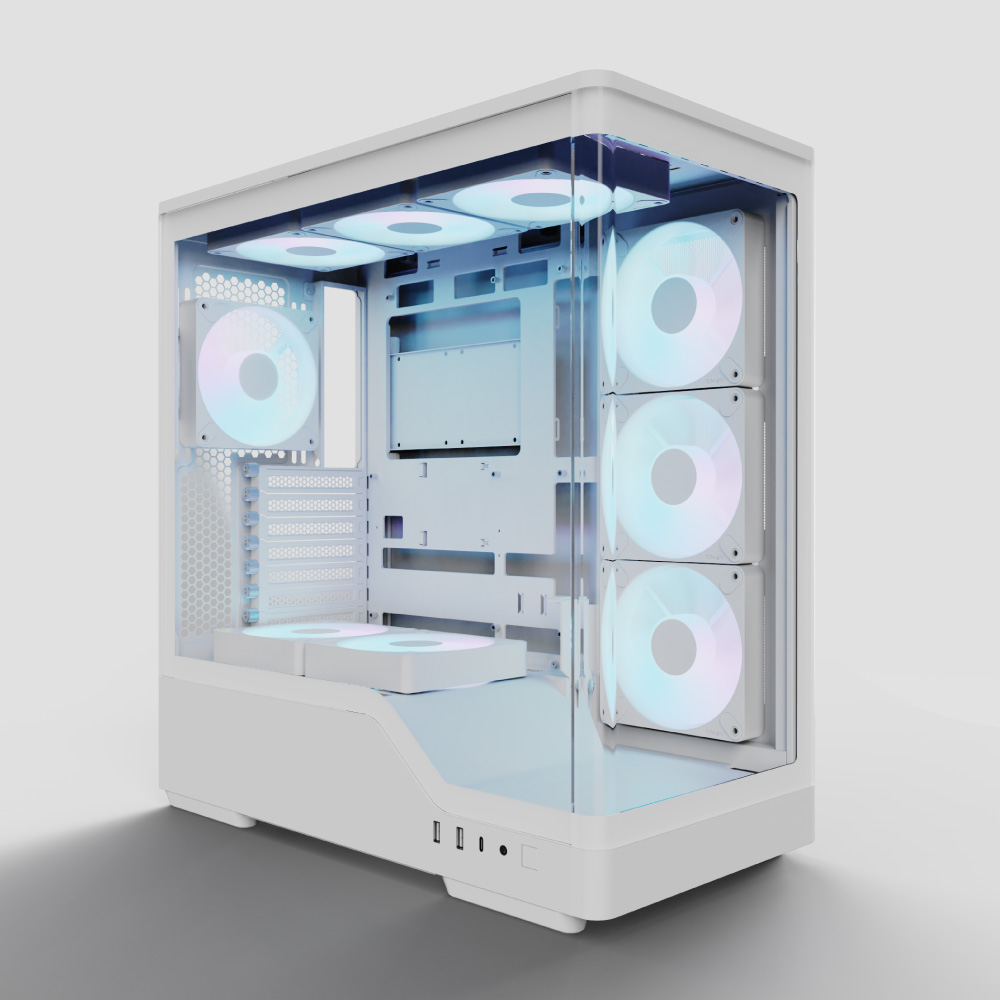

Supports up to nine total fans to deliver outstanding cooling potential for high-performance systems. Whether you’re gaming, editing, or overclocking, your system stays cool under pressure.

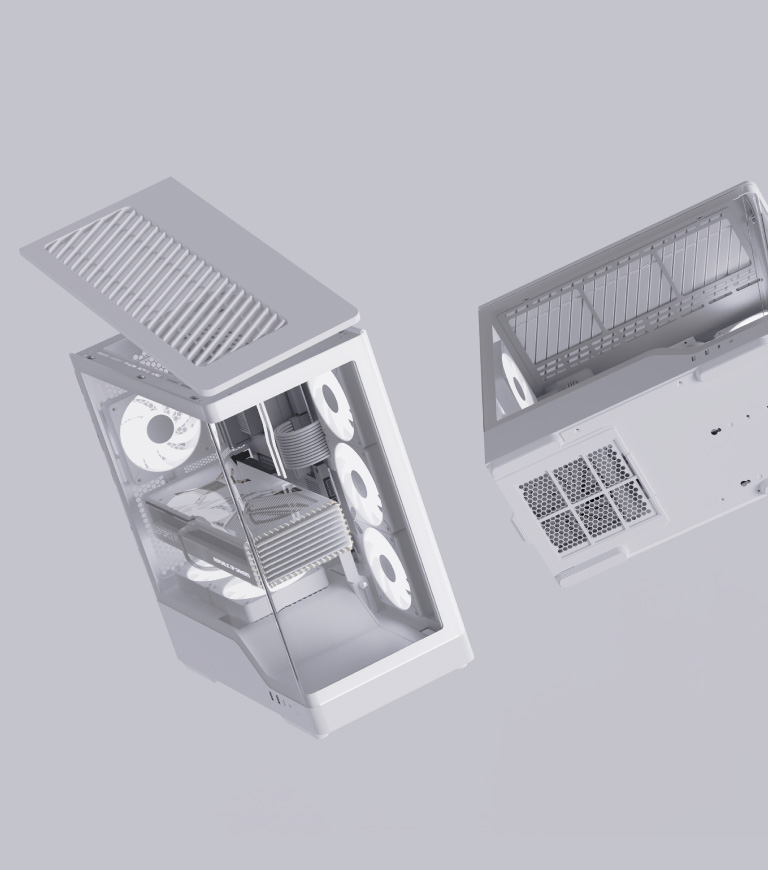

Dust-Free Design

Removable nylon filters on the top and bottom keep out dust while allowing smooth airflow. Maintenance stays simple while your components stay cleaner, longer.

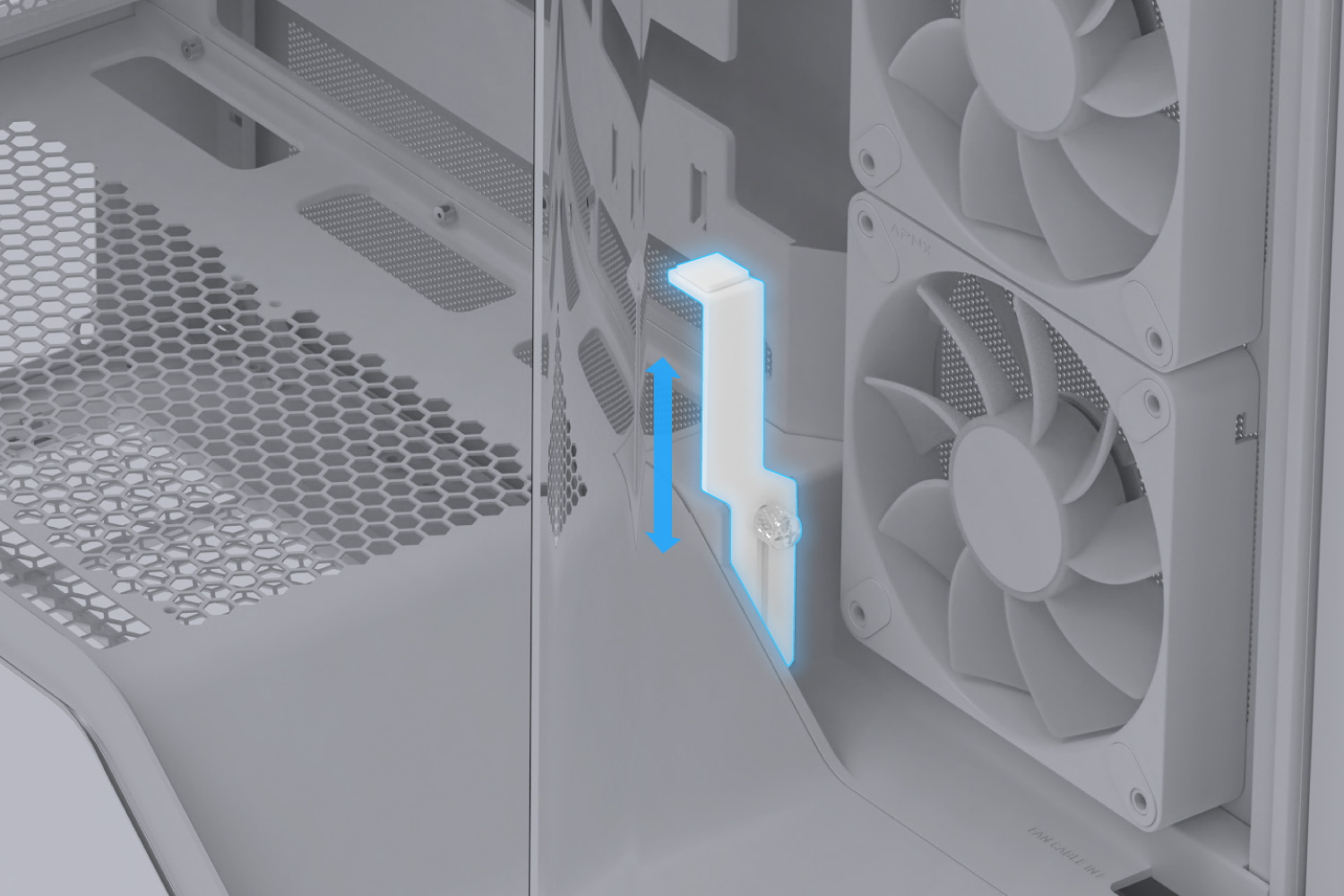

Adjustable GPU Support Bracket

The built-in adjustable GPU support bracket secures heavy graphics cards and prevents long-term sag. Customize the height to fit your setup perfectly and protect your investment with confidence.

SPECS

Model ACL-P500A-BK-FRPB / ACL-P500A-WT-FRPW
Case Type Mid Tower
Color Black, White
Body Material SPCC
Steel Thickness 0.6~0.8mm
Motherboards ATX/Micro ATX/Mini-ITX
Case Dimensions (Internal) 285 x 380 x 420 mm (W x H x D)
Case Dimensions (Overall) 460 x 235 x 480mm (D x W x H)
Capacity 49L
5.25” Drive Bays N/A
3.5” Drive Bays 1 Max. (2 x 3.5”/1 x 2.5″ or 1 x 3.5”/2 x 2.5″)
2.5” Drive Bays 3 Max. (3 x 2.5” or 2 x 3.5”/1 x 2.5″ or 1 x 3.5”/2 x 2.5″)
Expansion Slots 7
GPU Clearance Supports GPU up to 420mm (W/O radiator in the front-right position)
CPU Cooler Clearance Supports CPU cooler up to 180mm

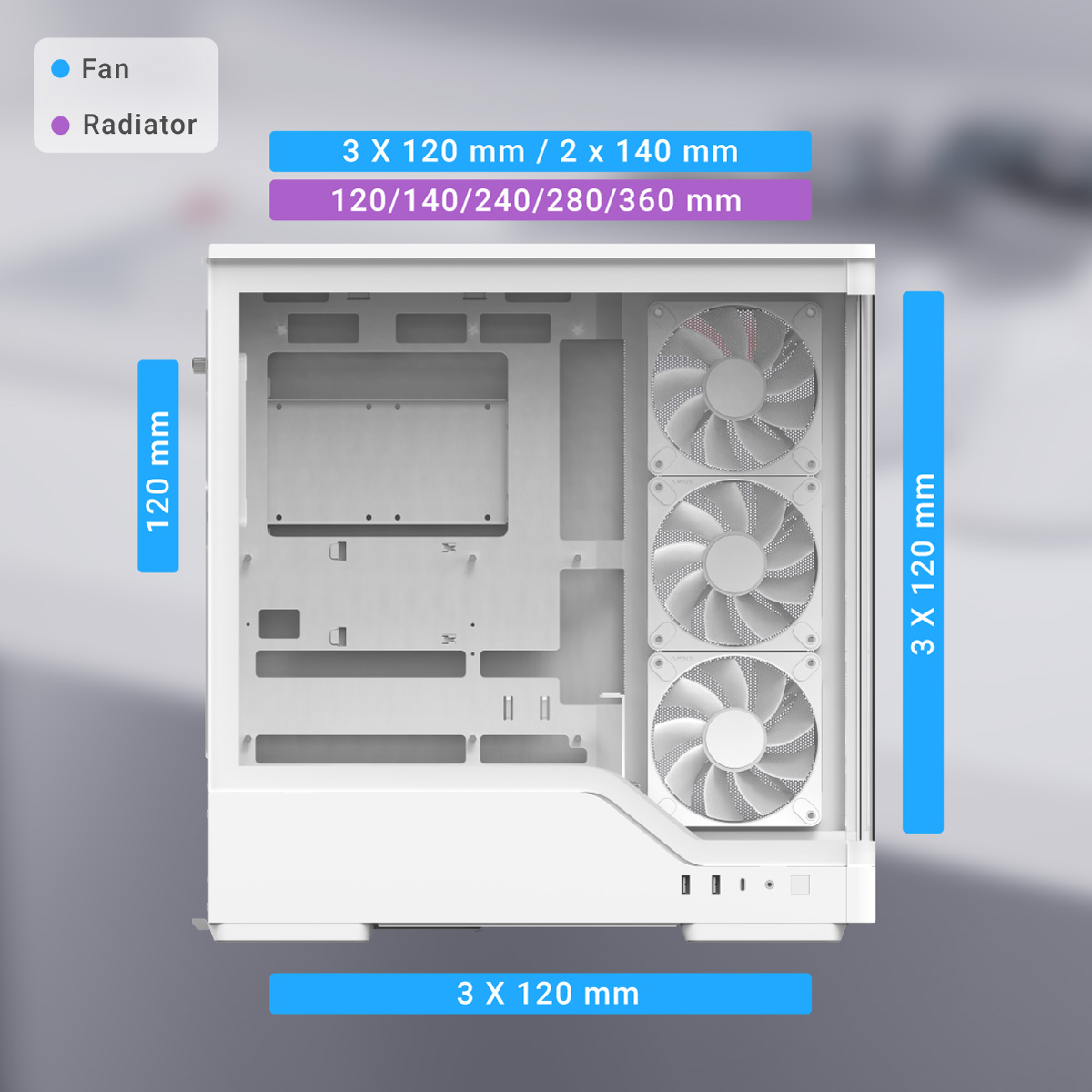

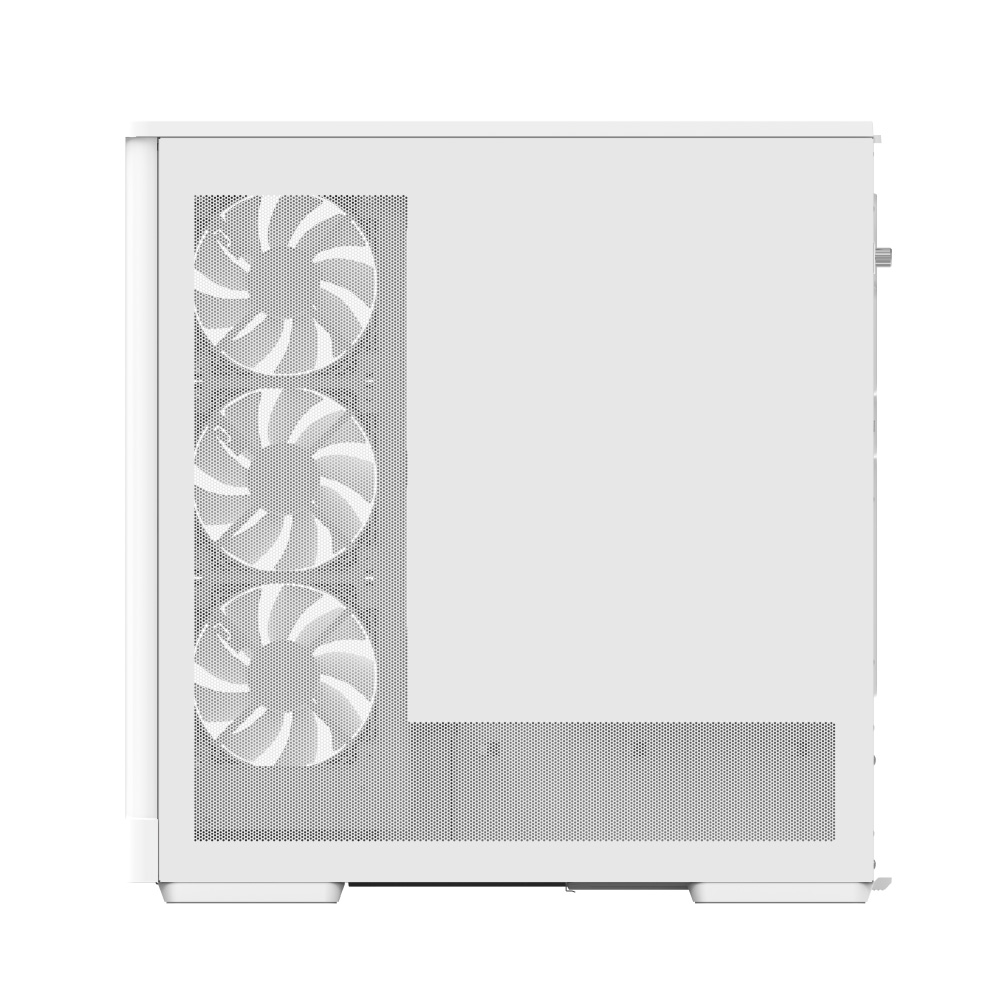

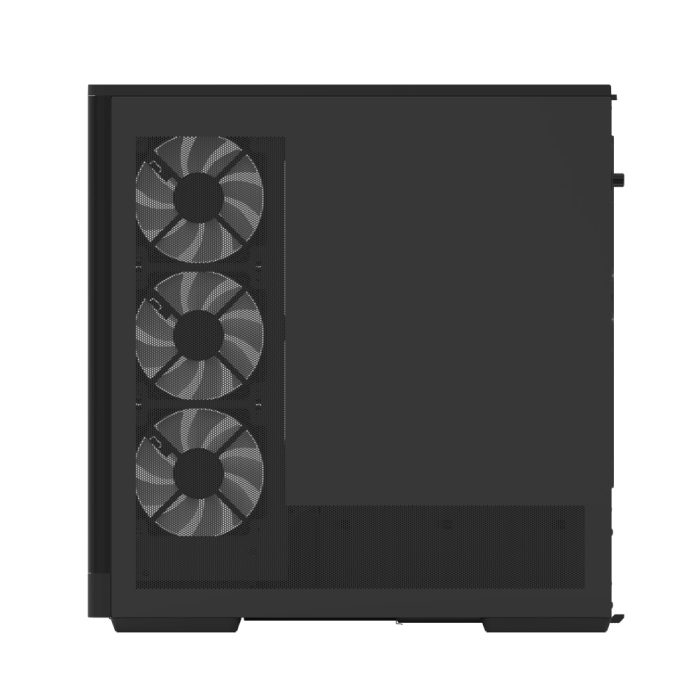

Air Cooling Side: 120mm x 3 (Max.)
(3x 120mm Reversed ARGB PWM Fan included)
Top: 120mm x 3 or 140mm x 2(Max.)
Power Supply Shroud: 120mm x 2 (Max.)

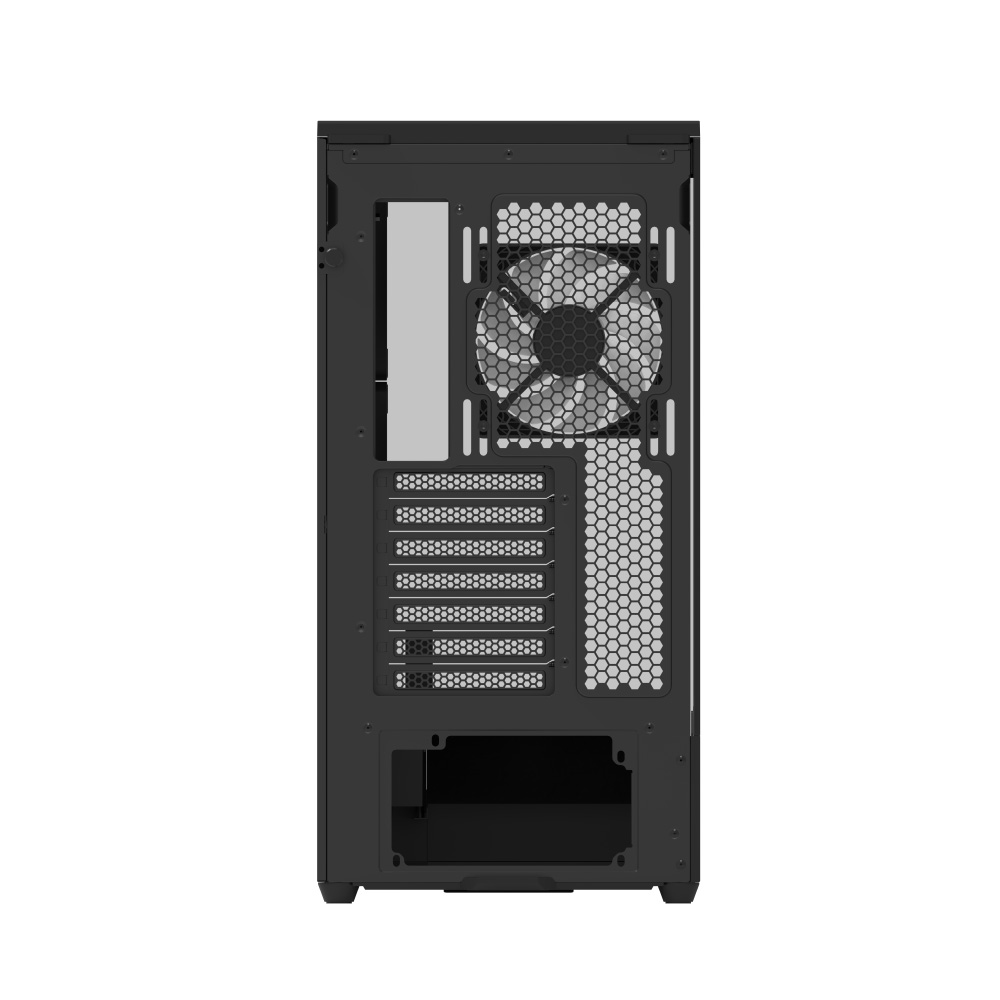

Rear: 120mm x 1 or 140mm x 1
(1x 120mm ARGB PWM Fan included)
Liquid Cooling Side:N/A
Top: 120/140/240/280/360 Radiator (Optional)
I/O Ports USB3.2 Gen 2×2 Type-C x 1 | USB3.2 Gen 1 Type -A x 2 | HD Audio & Mic.
Internal Cable Management Depth 30mm
Power Supply ATX PSU (Including cables, up to 280mm) (Optional)
  • Supports mainstream BTF reverse connector motherboards that keep cables out of sight
  • Dual curved glass front and side panels for 270-degree panoramic view
  • A total of 9 fan slots for even greater cooling potential
  • Airflow-optimized PSU shroud design
  • GPU support bracket for heavy graphics cards
  • Removable front, top, and side panels (left & right)
  • Removable nylon dust filters on the top and bottom for easy maintenance

Download your user manual here.

Download
