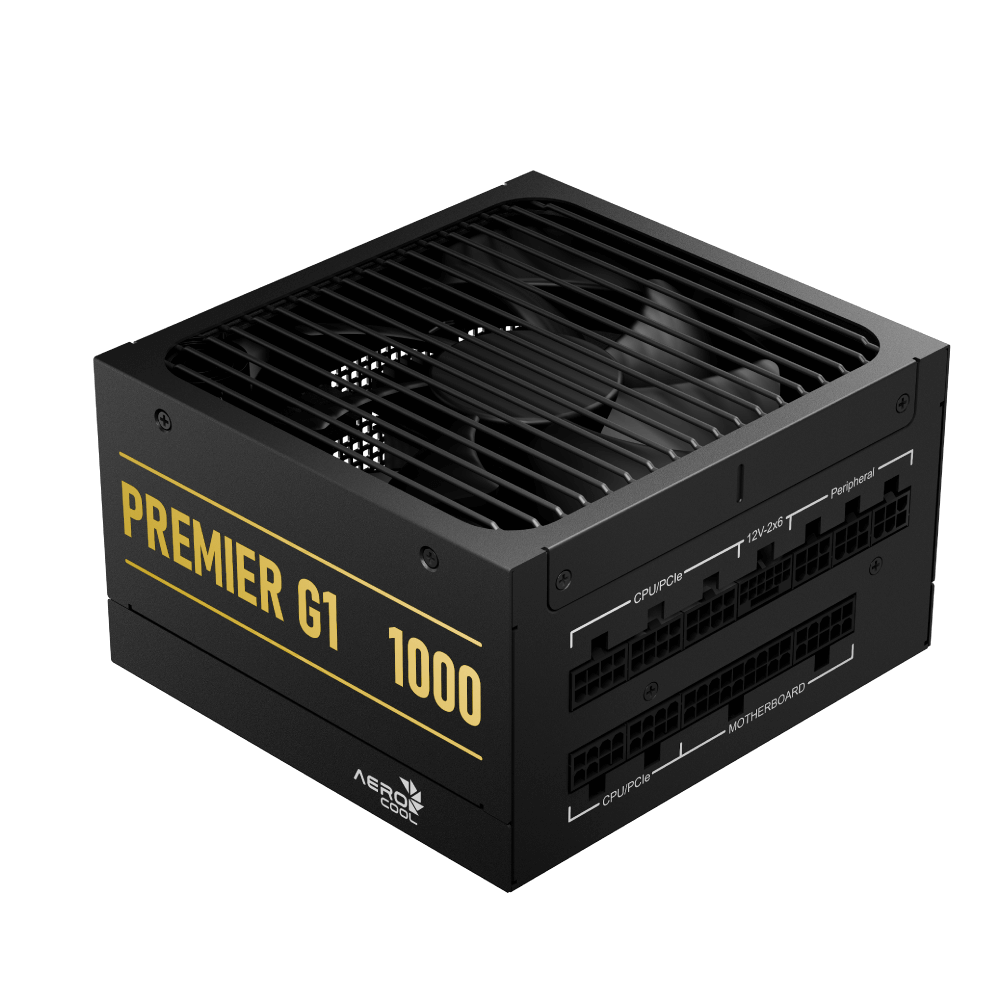

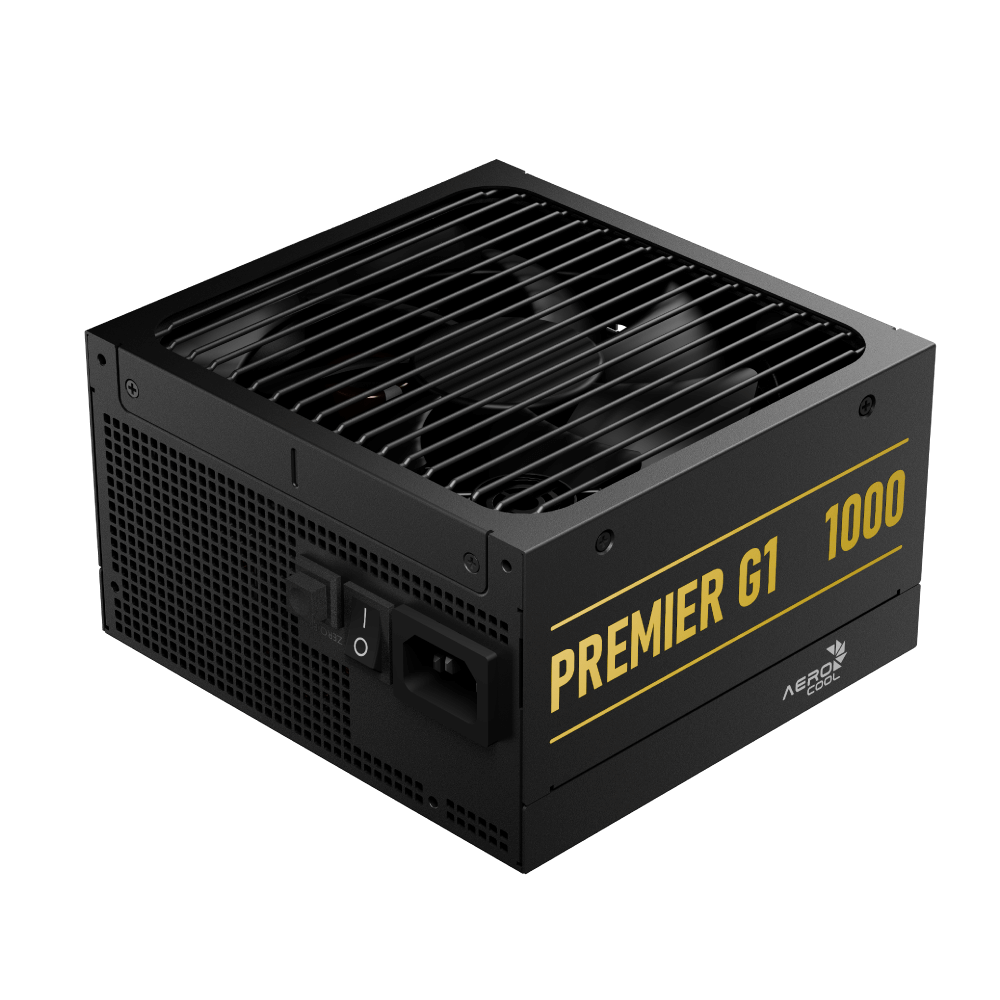

Premier G1

80 PLUS Gold
Where to Buy ▼

  • Compliant with the latest ATX 3.1 and PCIe 5.1 standards, featuring a more secure 12V-2×6 connector
  • Equipped with 100% high-grade 105°C capacitors, ensuring long-term durability, stability, and consistent performance over time
  • The compact 140mm shell facilitates easier installation in cases with limited space.
  • Featuring a custom 135mm fluid dynamic bearing fan with Zero Fan Mode, the PSU operates silently at light loads for an uninterrupted experience
  • Seven different protection mechanisms ensure your PC’s resilience against potential issues: OVP, UVP, OPP, SCP, OCP, OTP, and Input Surge & Inrush Protection
  • Compliant with ErP 2013 Lot 6 and ErP 2014 Lot 3 and Vampire Power below 0.25W

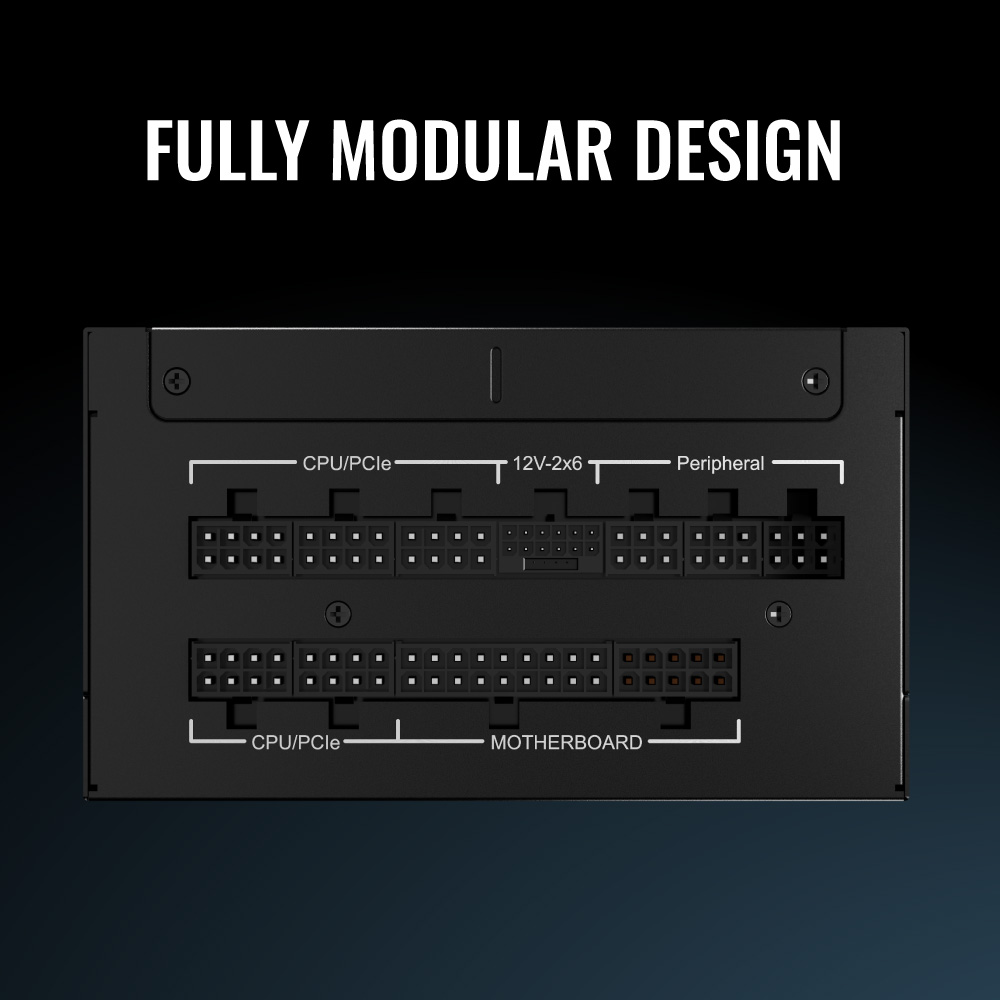

  • Fully Modular Design: Connect only the cables you need to reduce clutter, enhance airflow, and create a cleaner, more organized build
  • Certified 80 PLUS Gold and Cybenetics Platinum for outstanding real-world efficiency and ultra-low standby power draw, combining top-tier performance with eco-conscious design

Specifications are subject to change without notice. Products and models may vary depending on your region. Contact your local retailer for more information.

Overview

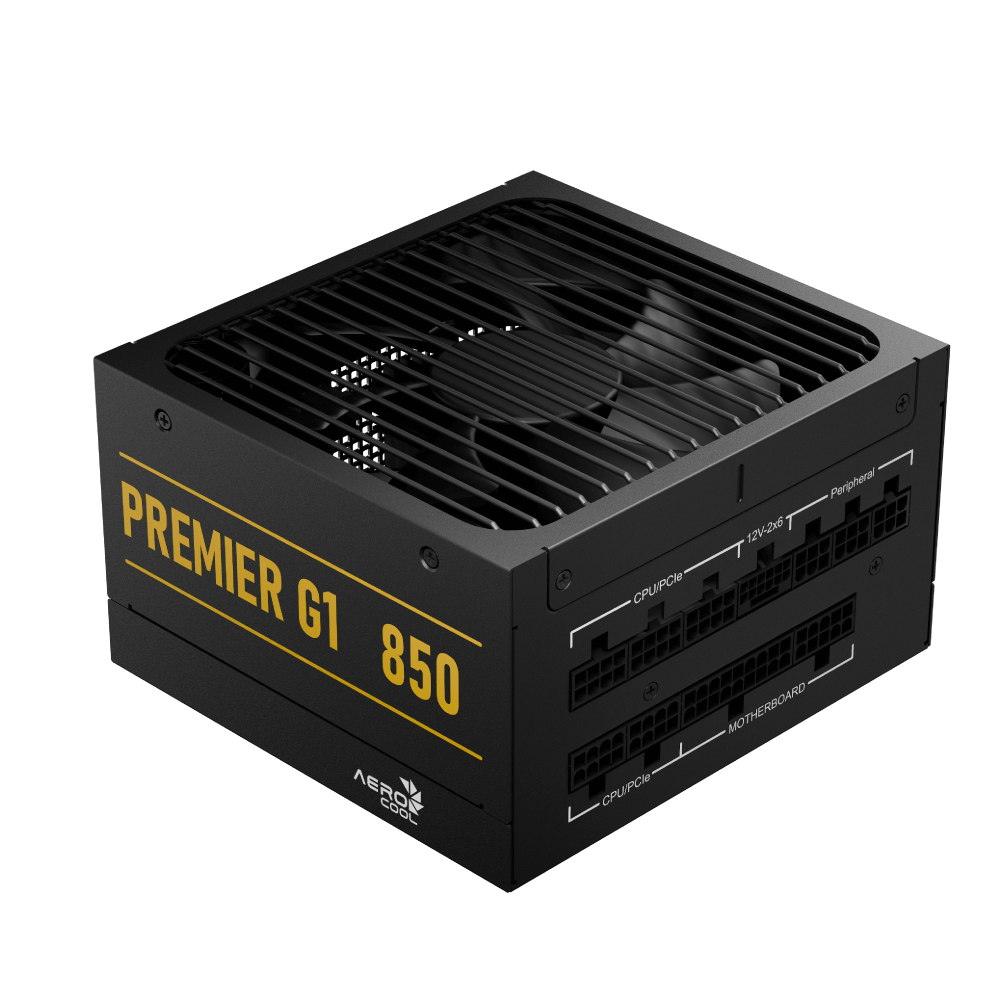

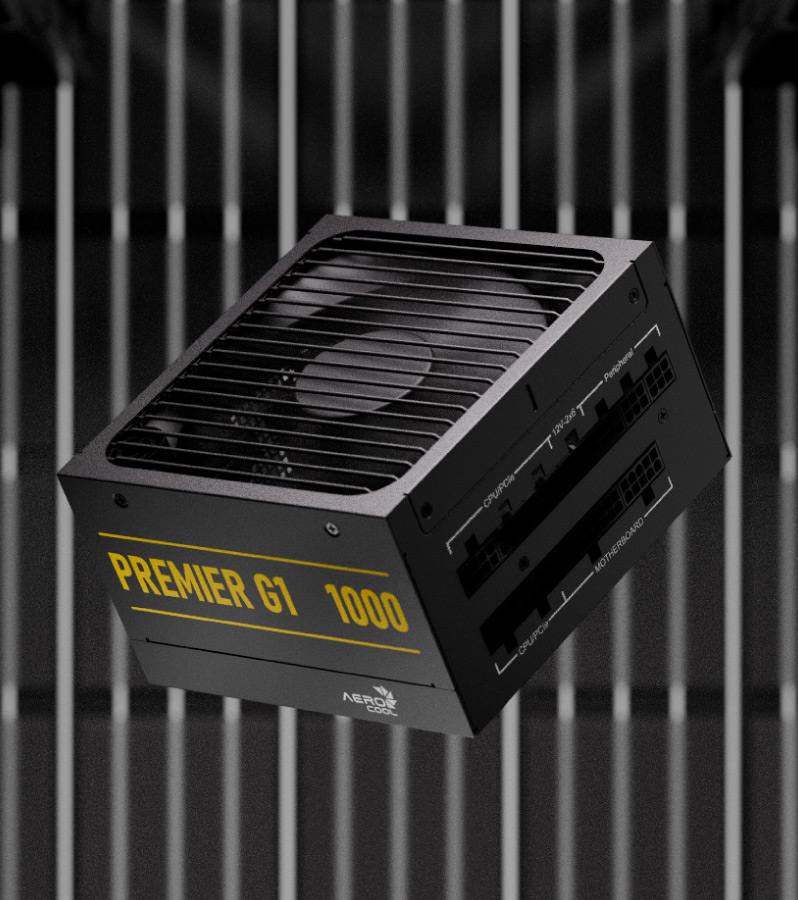

The AeroCool PREMIER G1 is a high-performance, 80 PLUS Gold and Cybenetic Platinum certified ATX 3.1 power supply, engineered for next-gen gaming and workstation builds. With a secure 12V-2×6 PCIe 5.1 connector, APFC, and DC-to-DC conversion, it delivers stable, efficient power with ultra-low standby consumption. A 135mm fluid dynamic bearing fan with Zero RPM mode ensures silent operation at low loads, while the fully modular design streamlines cable management. Built with premium 105°C capacitors and backed by a 7-year warranty, it offers long-term reliability and robust protection for your system.

80 PLUS GOLD

Cybenetics Platinum

ATX 3.1 Compliance

PCIe Gen 5.1 Support

Tested under full load at 40°C

High-grade Capacitors

7 Years Warranty

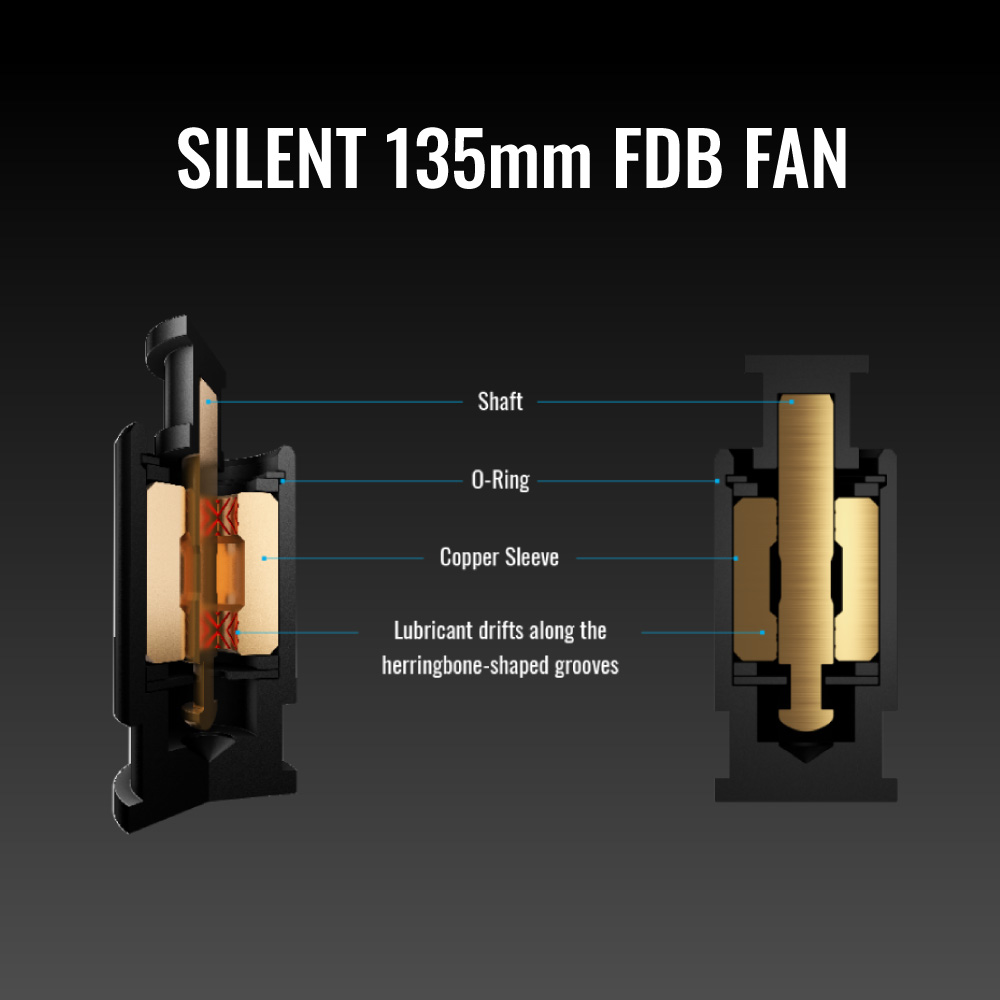

FDB

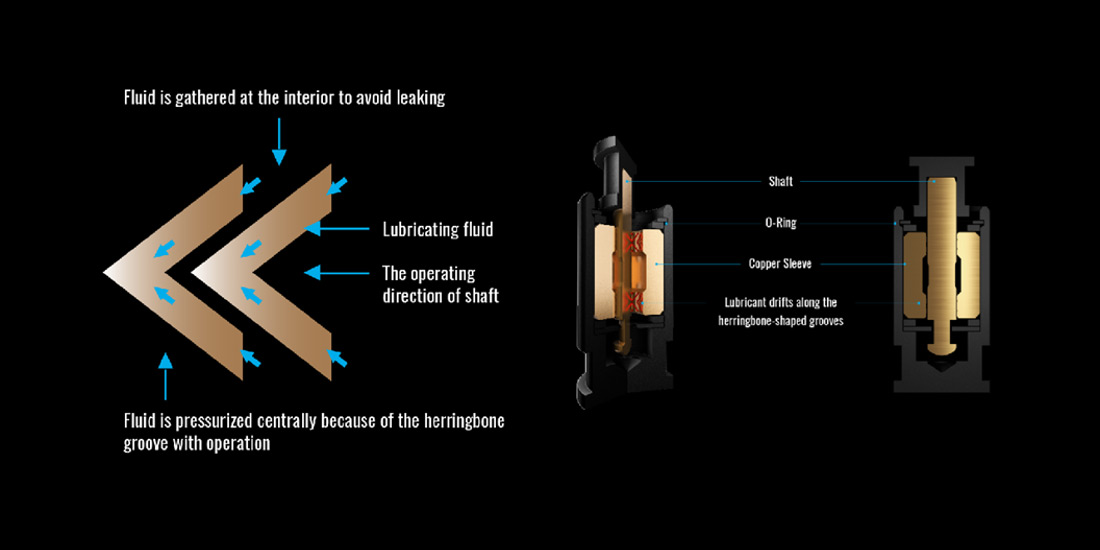

The fan’s Fluid Dynamic Bearing (FDB) offers superior durability and reduced noise through its smooth operation based on fluid dynamics, enabling overall performance and extending its lifespan.

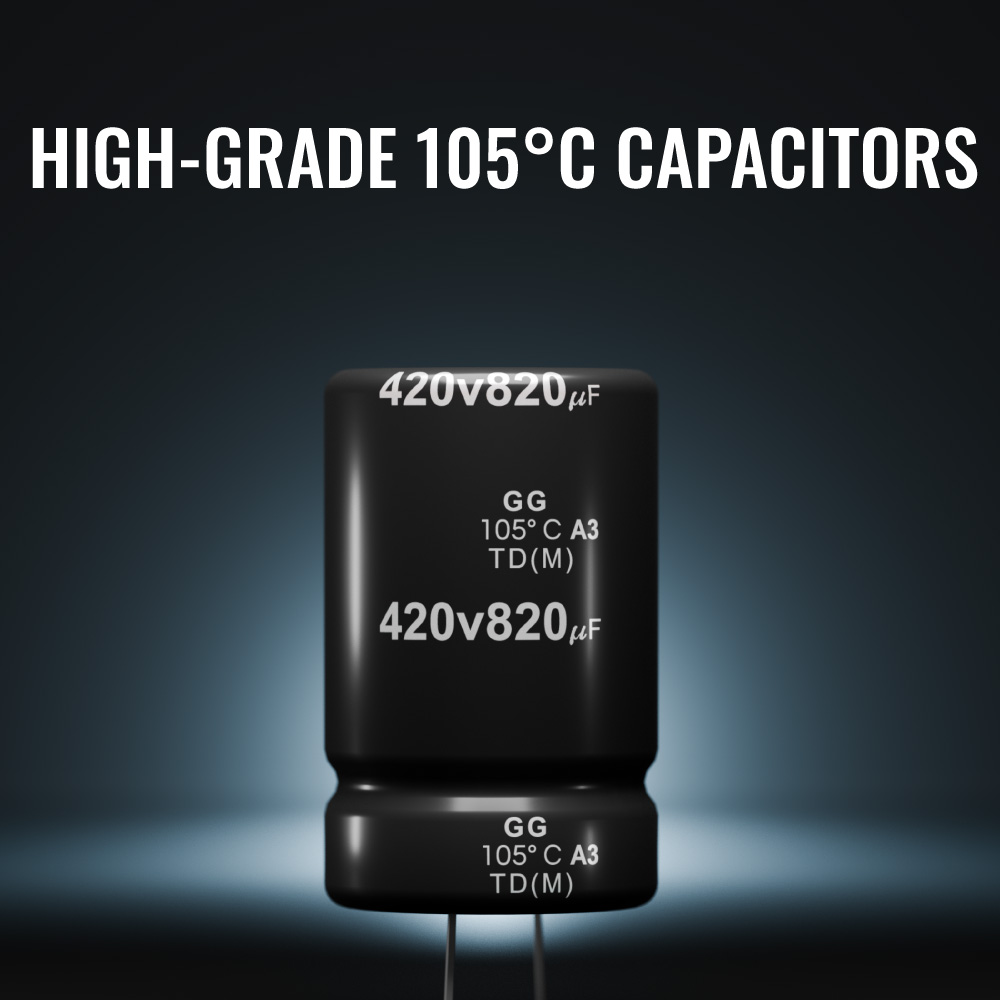

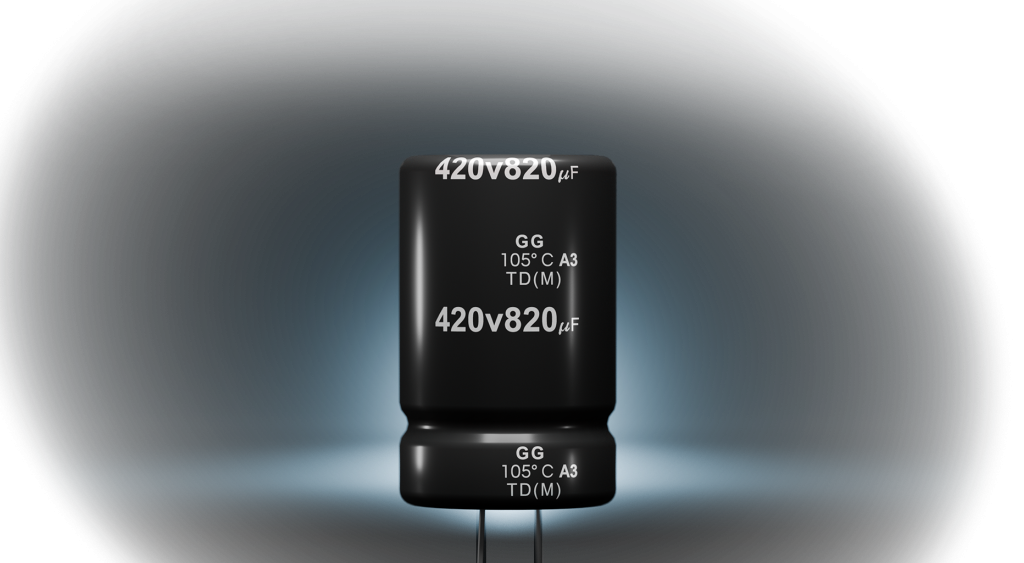

Premium Capacitor Build

Built with 100% high-grade 105°C capacitors, this PSU ensures long-term durability and rock-solid voltage regulation. Enjoy consistent, reliable performance across gaming, rendering, and multitasking.

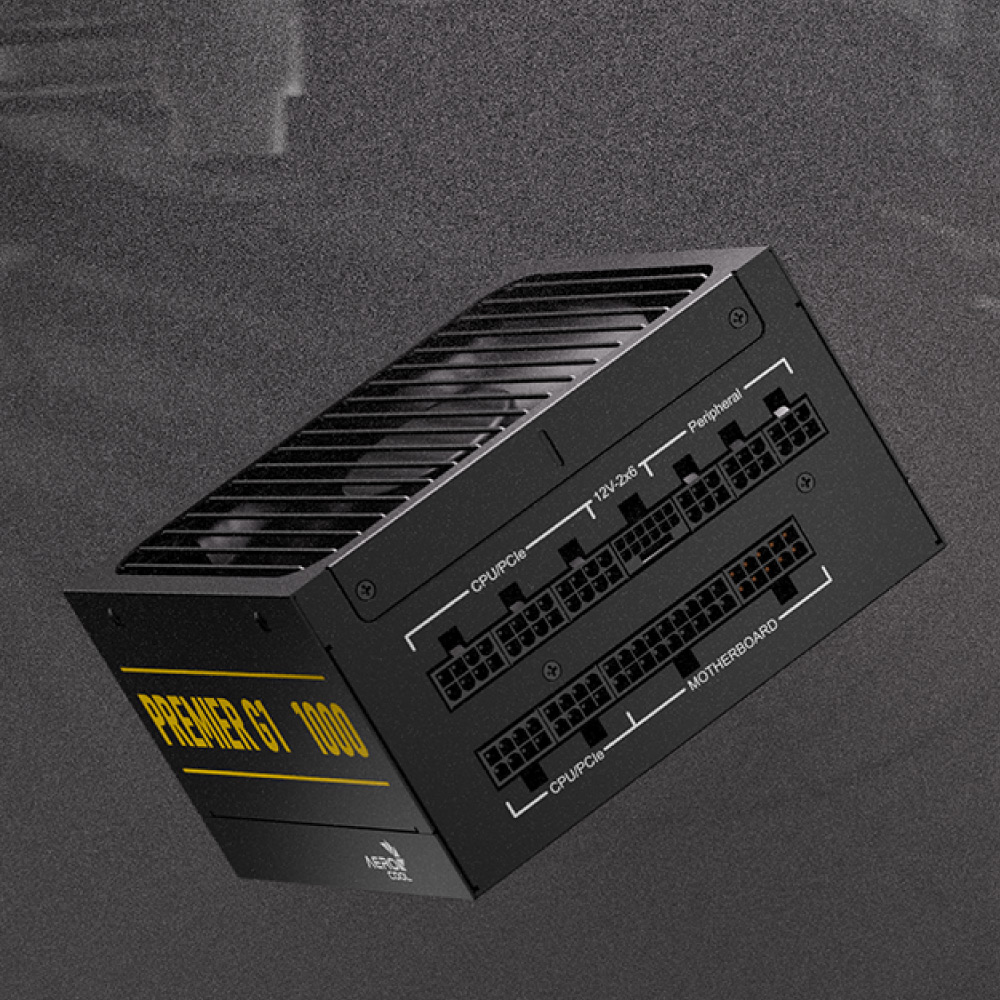

Next-Gen Standards Ready

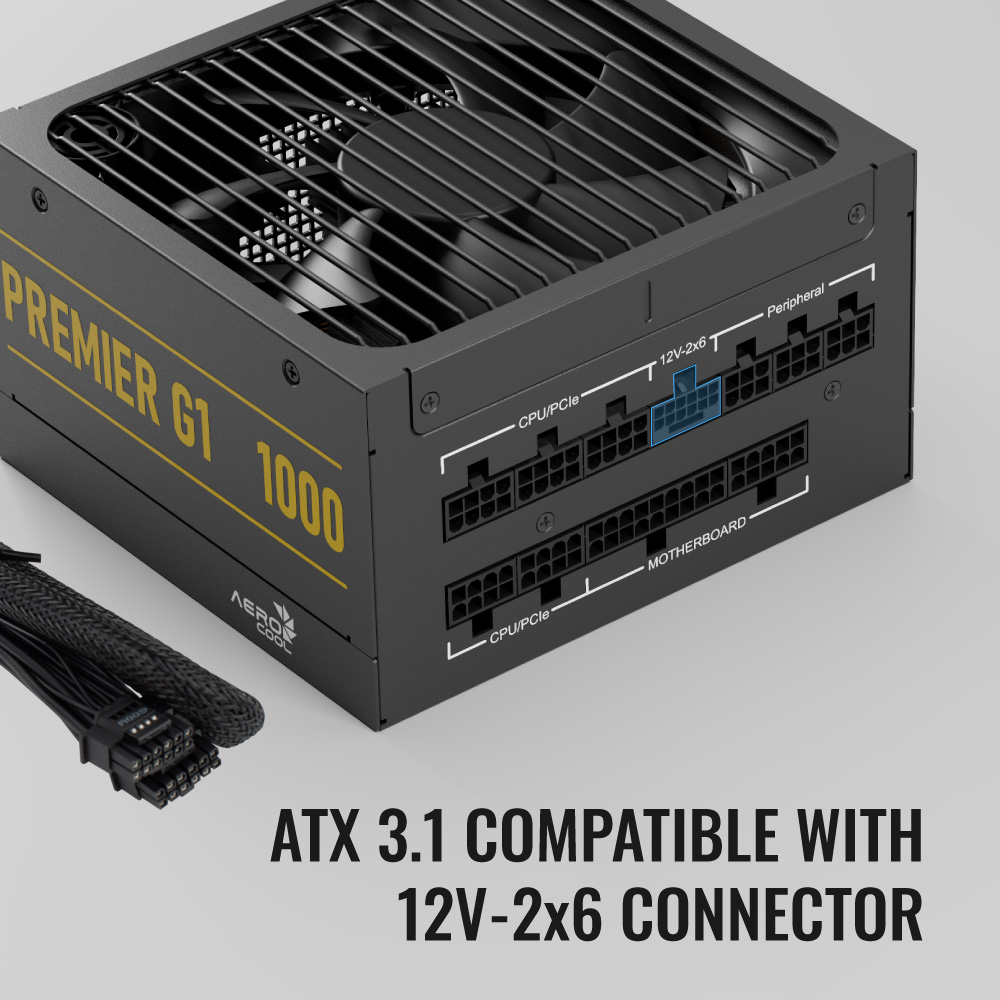

Compliant with the latest ATX 3.1 and PCIe 5.1 specifications, the PREMIER G1 delivers future-proof performance. A secure 12V-2×6 connector ensures stable power delivery to next-gen GPUs.

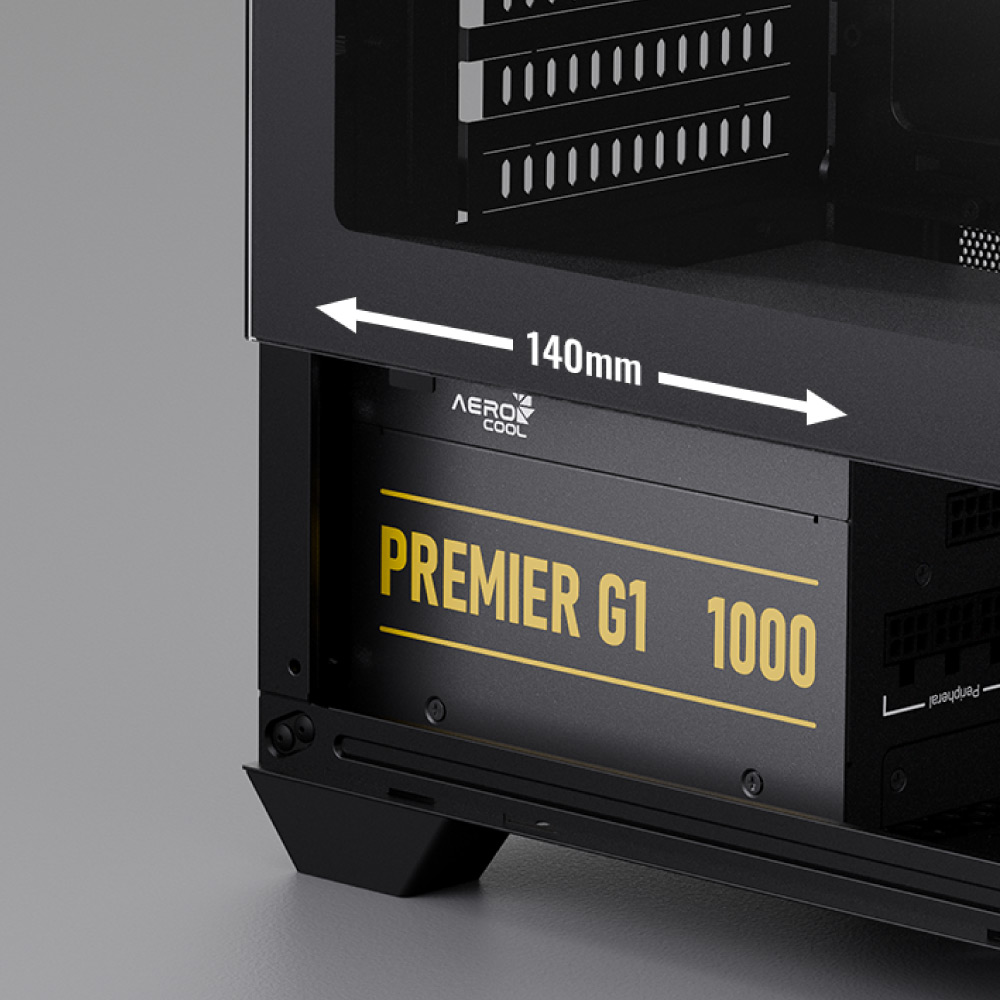

Compact & Case-Friendly

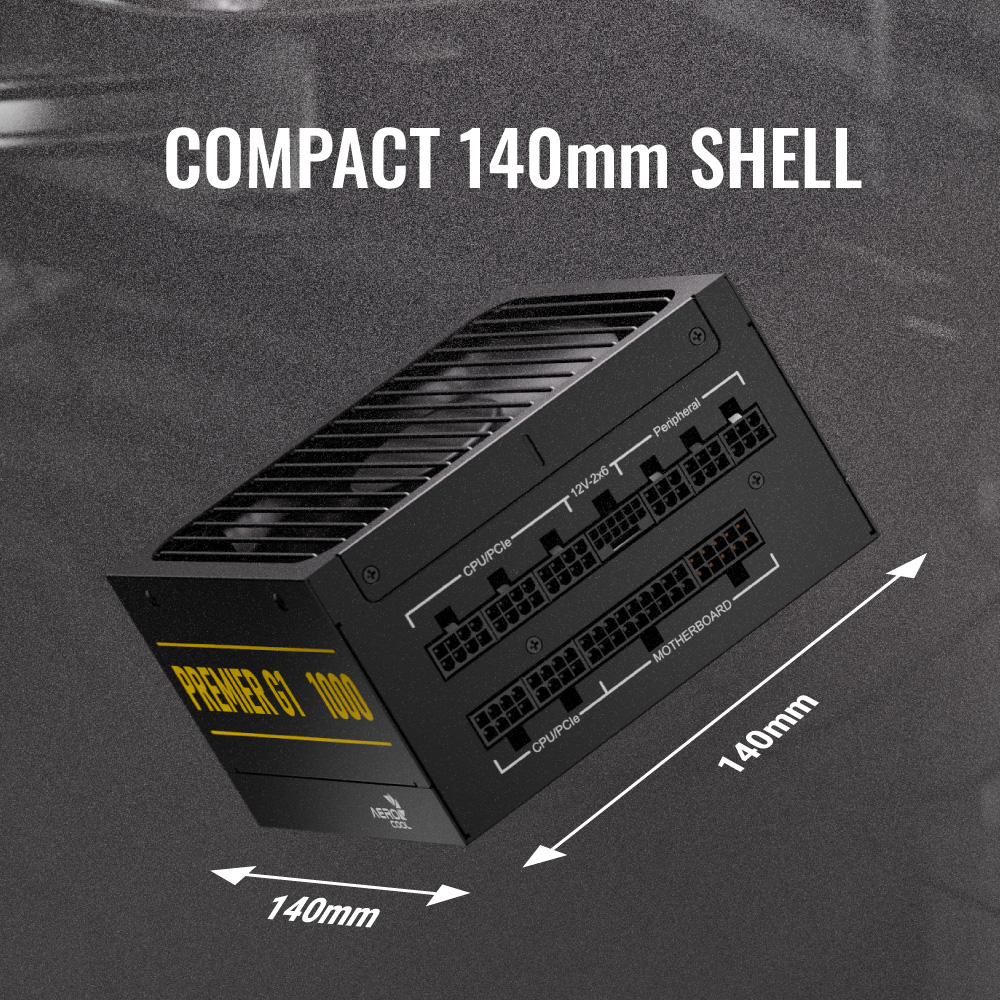

A shorter 140mm shell makes installation easier in tighter spaces or compact PC cases. Ideal for streamlined builds without sacrificing power.

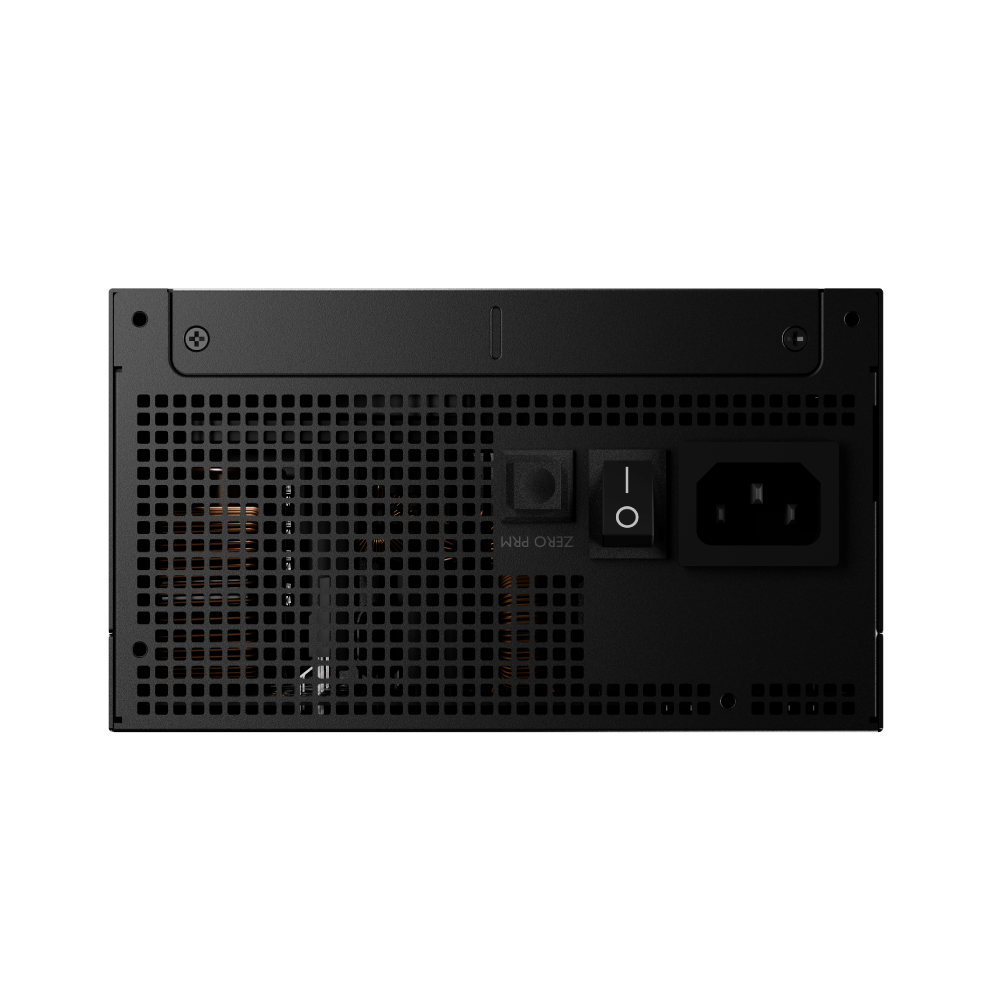

Fan Curve

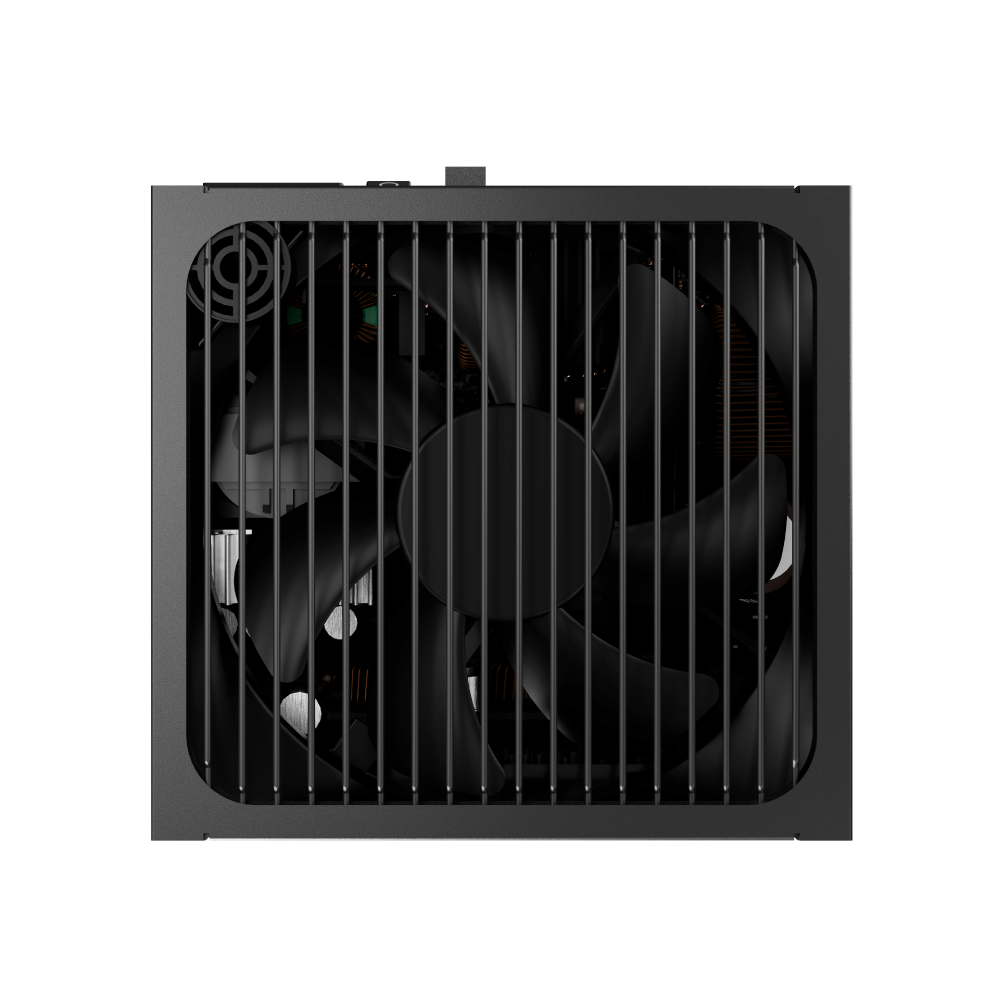

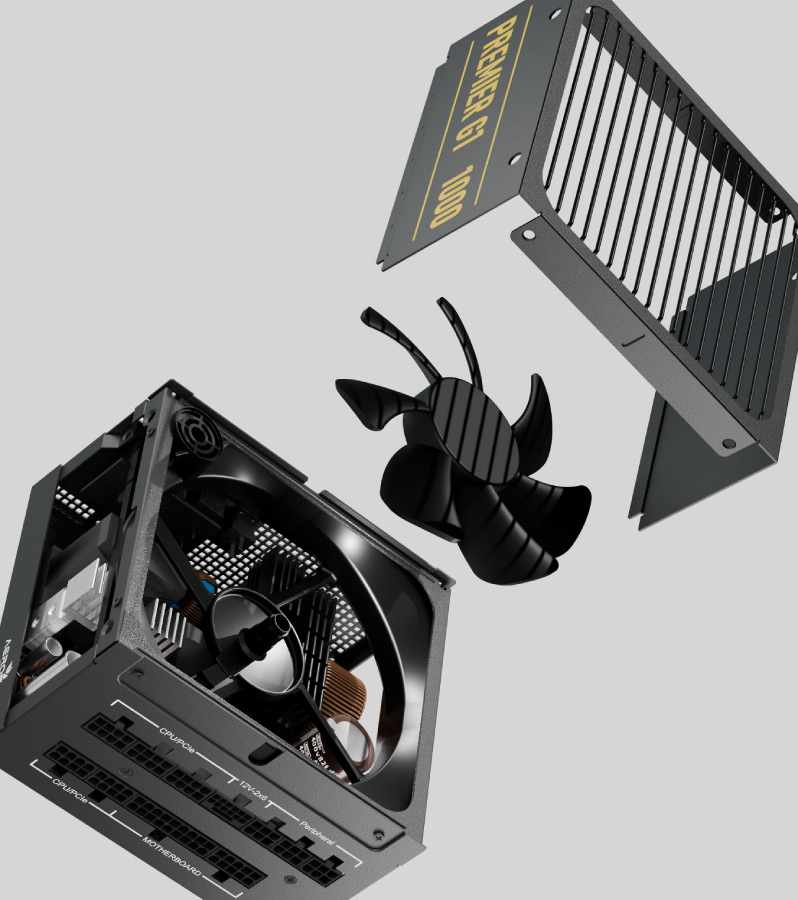

Whisper-Quiet Cooling

A 135mm fluid dynamic bearing fan with Zero RPM Mode keeps noise to a minimum during low loads. Enjoy silent operation and smooth thermals when you’re not pushing your system.z

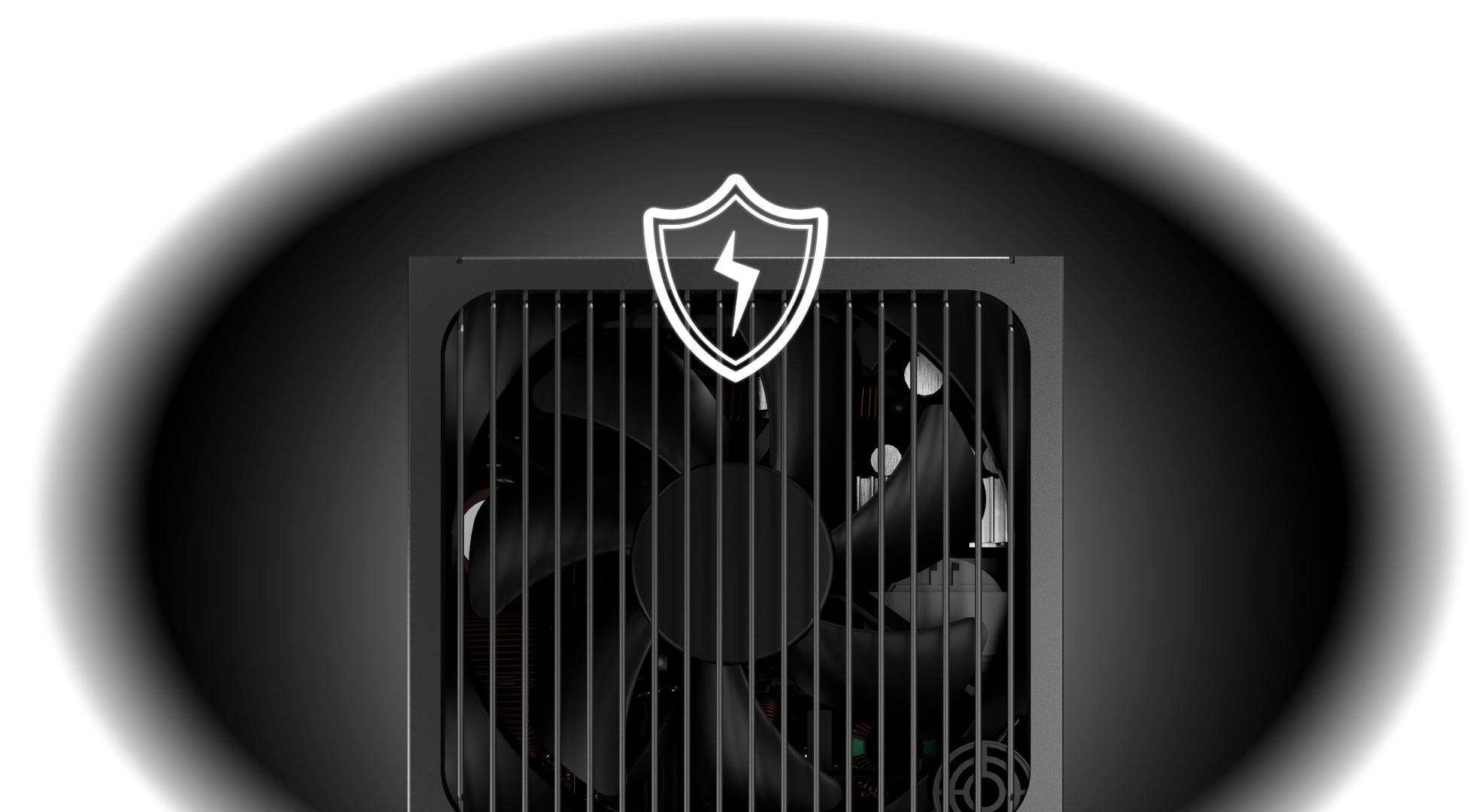

Robust System Protection

Seven layers of safety—OVP, UVP, OPP, SCP, OCP, OTP, and surge/inrush protection—guard your system from electrical hazards. Peace of mind comes built in.

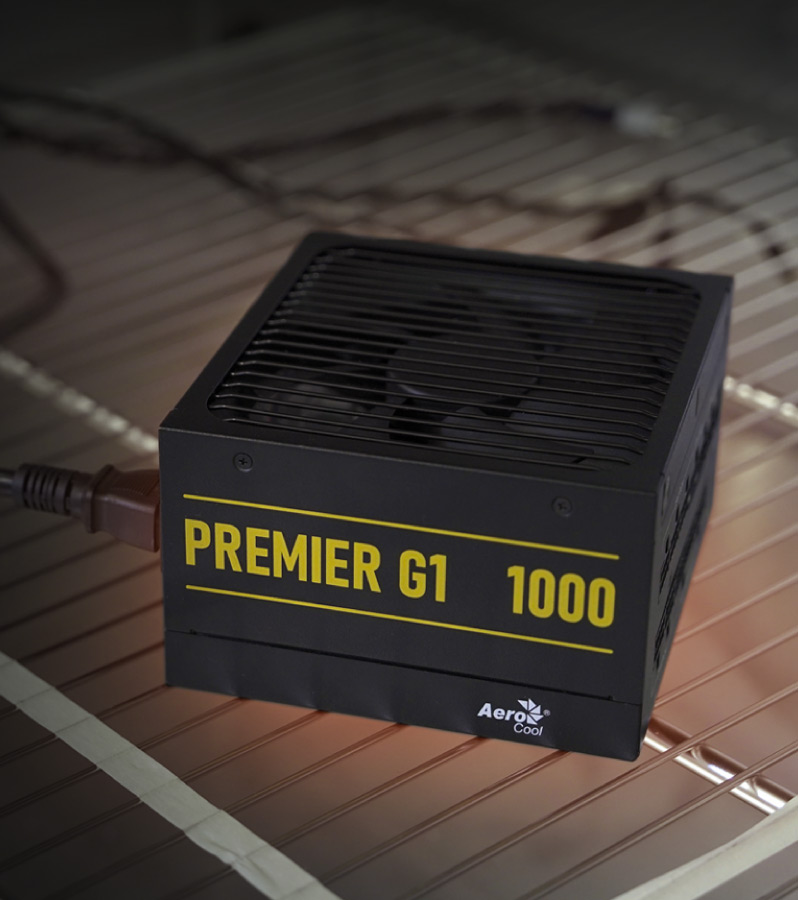

Built to Last

Engineered with high-quality components to endure 100,000 hours at full load and 40°C. This ensures long-term stability, reliability, and consistent performance under demanding conditions.

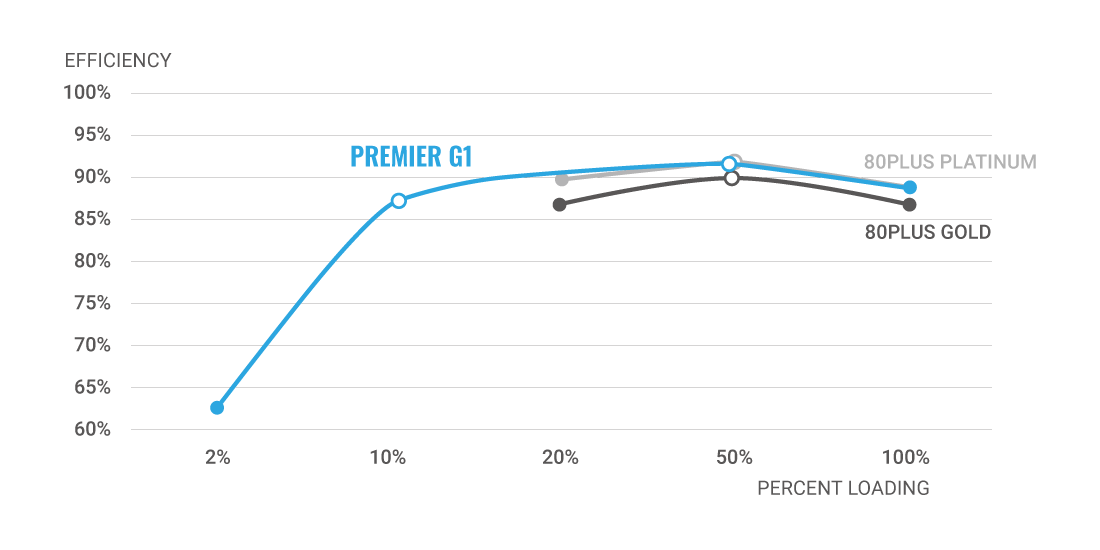

Eco-Conscious Efficiency

Certified 80 PLUS Gold and Cybenetics Platinum, the PREMIER G1 delivers top-tier power efficiency and ultra-low standby consumption. Meets ErP 2013 Lot 6 and ErP 2014 Lot 3 standards with vampire power under 0.25W.

SPECS

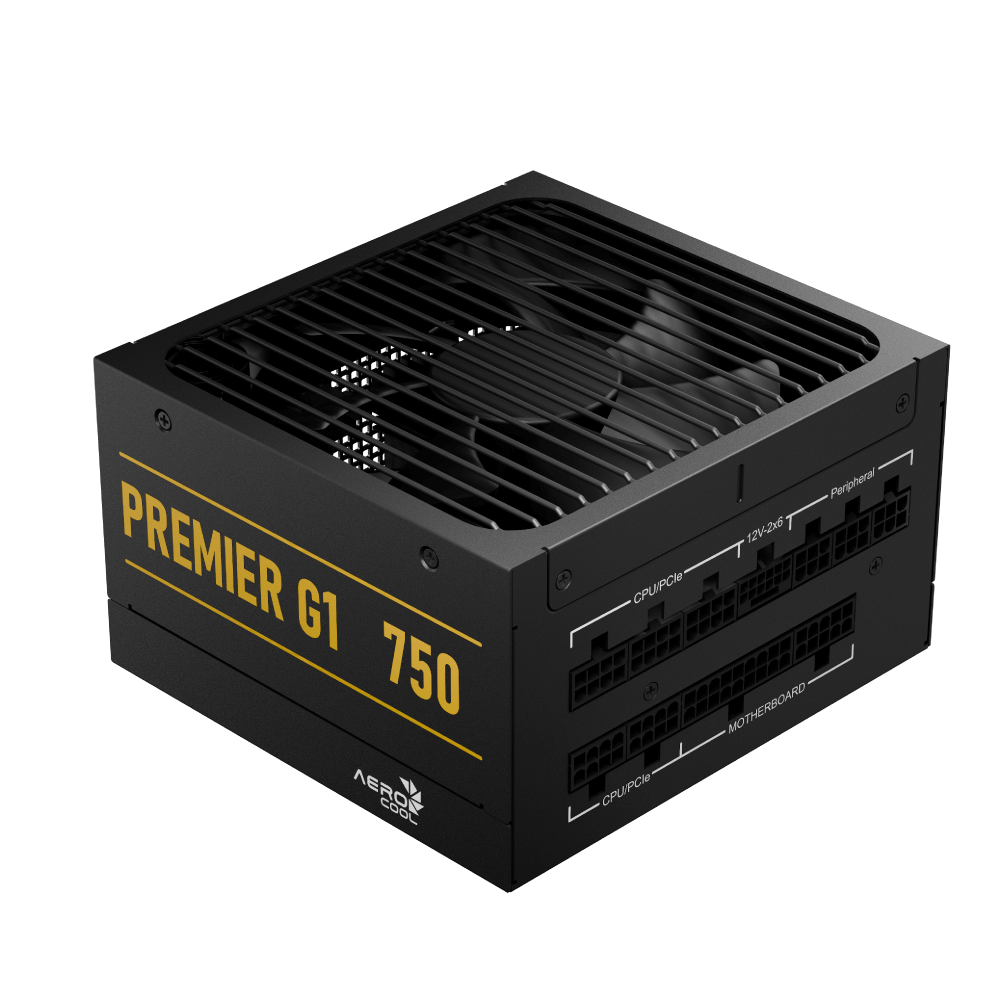

PREMIER G1 750
AC INPUT RATING 100V~240V~ 10A~5A 50Hz-60Hz
MODEL NO. ACPS-2503
DC OUTPUT RATING +3.3V +5V +12V -12V +5VSB
20A 20A 62.5A 0.3A 3A
TOTAL POWER 100W 750W 3.6W 15W
750W

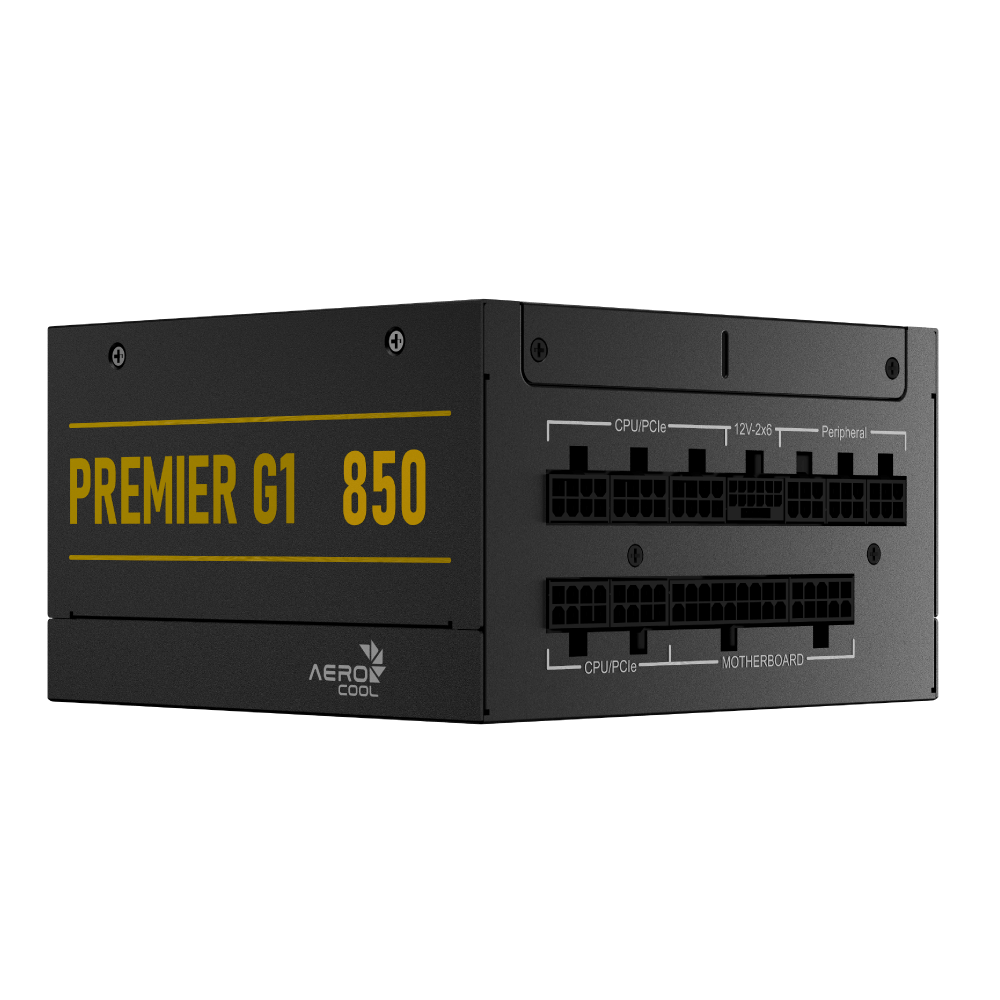

PREMIER G1 850
AC INPUT RATING 100V~240V~ 12A (not for China)
200V~240V~ 6A (only for China)
MODEL NO. ACPS-2502
DC OUTPUT RATING +3.3V +5V +12V -12V +5VSB
20A 20A 70.8A 0.3A 3A
TOTAL POWER 100W 849.6W 3.6W 15W
850W



PREMIER G1 1000
AC INPUT RATING 100V~240V~ 13A (not for China)
200V~240V~ 6.5A (only for China)
MODEL NO. ACPS-2501
DC OUTPUT RATING +3.3V +5V +12V -12V +5VSB
20A 20A 83.3A 0.3A 3A
TOTAL POWER 100W 999.6W 3.6W 15W
1000W
PREMIER G1 750
AC INPUT RATING
100V~240V~ 10A~5A 50Hz-60Hz
MODEL NO.
ACPS-2503
DC OUTPUT RATING
+3.3V +5V +12V -12V +5VSB
20A 20A 62.5A 0.3A 3A
TOTAL POWER
100W 750W 3.6W 15W
750W



PREMIER G1 850
AC INPUT RATING
100V~240V~ 12A (not for China)
200V~240V~ 6A (only for China)
MODEL NO.
ACPS-2502
DC OUTPUT RATING
+3.3V +5V +12V -12V +5VSB
20A 20A 70.8A 0.3A 3A
TOTAL POWER
100W 849.6W 3.6W 15W
850W



PREMIER G1 1000
AC INPUT RATING
100V~240V~ 13A (not for China)
200V~240V~ 6.5A (only for China)
MODEL NO.
ACPS-2501
DC OUTPUT RATING
+3.3V +5V +12V -12V +5VSB
20A 20A 83.3A 0.3A 3A
TOTAL POWER
100W 999.6W 3.6W 15W
1000W
  • Compliant with the latest ATX 3.1 and PCIe 5.1 standards, featuring a more secure 12V-2×6 connector
  • Equipped with 100% high-grade 105°C capacitors, ensuring long-term durability, stability, and consistent performance over time
  • The compact 140mm shell facilitates easier installation in cases with limited space.
  • Featuring a custom 135mm fluid dynamic bearing fan with Zero Fan Mode, the PSU operates silently at light loads for an uninterrupted experience
  • Seven different protection mechanisms ensure your PC’s resilience against potential issues: OVP, UVP, OPP, SCP, OCP, OTP, and Input Surge & Inrush Protection
  • Compliant with ErP 2013 Lot 6 and ErP 2014 Lot 3 and Vampire Power below 0.25W
  • Fully Modular Design: Connect only the cables you need to reduce clutter, enhance airflow, and create a cleaner, more organized build
  • Certified 80 PLUS Gold and Cybenetics Platinum for outstanding real-world efficiency and ultra-low standby power draw, combining top-tier performance with eco-conscious design
PREMIER G1 750
CABLE CONFIGURATIONS
24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
2x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 2
12V-2×6 PCIe Cable: 650mm, Output Connectors: 1
2x SATA Cable: 500+150mm, Output Connectors: 6
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral



PREMIER G1 850
CABLE CONFIGURATIONS
24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
3x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 3
12V-2×6 PCIe Cable: 650mm, Output Connectors: 1
2x SATA Cable: 500+150mm, Output Connectors: 6
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral



PREMIER G1 1000
CABLE CONFIGURATIONS
24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
3x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 3
12V-2×6 PCIe Cable: 650mm, Output Connectors: 1
2x SATA Cable: 500+150mm, Output Connectors: 6
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral
PREMIER G1 750 CABLE CONFIGURATIONS
24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
2x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 2
12V-2×6 PCIe Cable: 650mm, Output Connectors: 1
2x SATA Cable: 500+150mm, Output Connectors: 6
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral



PREMIER G1 850 CABLE CONFIGURATIONS
24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
3x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 3
12V-2×6 PCIe Cable: 650mm, Output Connectors: 1
2x SATA Cable: 500+150mm, Output Connectors: 6
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral



PREMIER G1 1000 CABLE CONFIGURATIONS
24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
3x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 3
12V-2×6 PCIe Cable: 650mm, Output Connectors: 1
2x SATA Cable: 500+150mm, Output Connectors: 6
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral

Download your user manual here.
