Rave 4 ARGB

ARGB CPU AIR COOLER

PWM air cooling solution with a 12cm ARGB fan with translucent fan blades that can be controlled using Addressable RGB motherboard or LED control button. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increases heat dissipation area and improves efficiency of dissipation.

  • PWM air cooling solution with 12cm ARGB fan with translucent fan blades
  • Compatible with Addressable RGB motherboards (ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion) or hubs (H66F)
  • Heat Core Touch Technology with 4 ultra-efficient thermal heat pipes
  • Black thermal coating on fins increases the cooler’s thermal conductivity and heat dissipation capabilities
  • Upgraded high efficiency fins for maximum thermal performance
  • Compatible with most current motherboard designs

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

ADDRESSABLE RGB COMPATIBLE

Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync and MSI Mystic Light Sync as well as Gigabyte RGB Fusion motherboards using 3-Pin XWD connector.

EQUIPPED WITH 12CM ARGB FAN

Comes equipped with a 12cm ARGB fan to add a stylish flair to your rig. Translucent fan blades allow you to fully appreciate the beauty of this cooler’s RGB lighting.

HEAT CORE TOUCH TECHNOLOGY (HCTT)

Four ultra-efficient thermal heat pipes provide a perfectly flat and smooth surface to maximize contact surface area.

This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation.

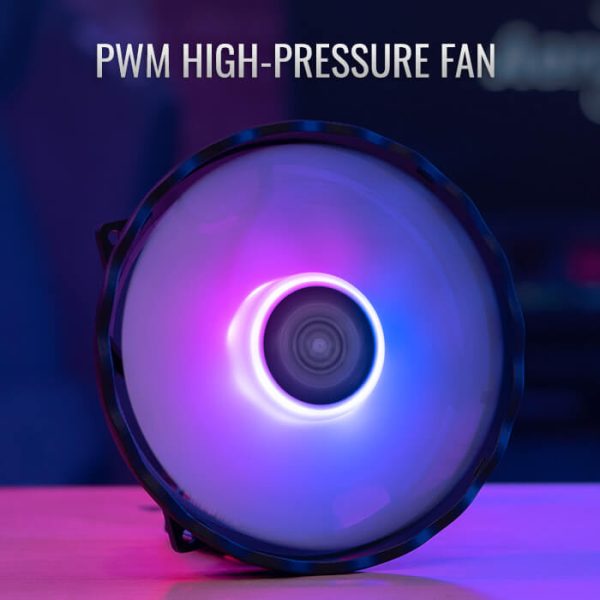

PWM HIGH-PRESSURE FAN

120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.

HIGH EFFICIENCY FINS

Upgraded high efficiency aluminum fins for maximum thermal performance.

Black thermal coating on fins increases the cooler’s thermal conductivity and heat dissipation capabilities.

COMPATIBILITY

Compatible with most current motherboard designs.

Socket compatibility:
LGA 1200/115X/775
AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

COMES WITH PWM 4-PIN CONNECTOR

PRODUCT GALLERY

SPECS

Model Rave 4 ARGB
Base Material Aluminum block with HCTT Heat Core Touch Technology
Fin Material Aluminum
Heat pipe Dia. 6mm x 4
Dimension 125 x 80 x 135mm
TDP(Thermal Design Power) 130
Fan
Speed 900-1800 rpm
Connector PWM 4-Pin
Dimension 120 x 120 x 25mm
Bearing Type Hydraulic Bearing
Started Voltage 5V
Rated Voltage 12V
Rated Current 0.5 A
Power Consumption 6 Watts
Air Pressure 0.6-1.6 mm-H2O
Air Flow 24.1-58.0 CFM
Noise 18-27 dBA
MTBF (Mean Time Before Failure) 60000 hrs.
Socket LGA 1700 / 1200 / 115X / 775
AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
For compatibility, check that LGA1700/AM5 is listed as a supported bracket on the packaging.
EAN Code 4711099472253
