Rev RGB Pro

12CM RGB FANS x 3 | P7-H1 HUB x 1

Equipped with RGB LED Lighting, this fan gives your rig stylish flair while providing superior cooling capabilities. Dual Ring Lighting Design delivers a truly unique way to keep your system cool, in more ways than one. Access 16.8 million colors with RGB software and monitor fan RPM with P7-H1 Hub. Removable curved fan blades enhance cooling performance and anti-vibration pads dampen vibrations caused by fan rotation.

Comes with 3 x 12cm Rev RGB fans and 1 x P7-H1 RGB Controller
RGB LED Dual Ring Lighting
Access 16.8 million colors with RGB software
Curved fan blades maximize cooling performance
Anti-vibration pads absorb and dampen vibrations
Removable fan blades for convenient maintenance
30 LEDs ensure color and brightness uniformity

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Categories: , , , , , ,

FEATRUES

P7-H1 (Project7-Hub1)

Changes the color scheme and lighting modes of Rev RGB fans. Synchronizes all AeroCool RGB products and other RGB 4-Pin compatible products. Works with RGB Strip Lighting up to 24W.
The P7-H1 does not control fan speed but allows you to monitor fan RPM.


*RGB Spectrum image for reference only

P7-H1 (Project7-Hub1)

Changes the color scheme and lighting modes of Rev RGB fans. Synchronizes all AeroCool RGB products and other RGB 4-Pin compatible products. Works with RGB Strip Lighting up to 24W.
The P7-H1 does not control fan speed but allows you to monitor fan RPM.


*RGB Spectrum image for reference only

RGB LED Dual Ring Lighting Design

Equipped with RGB LED Lighting to give your rig stylish flair while providing superior cooling capabilities to improve performance.
Brand new Dual Ring Lighting Design delivers a truly unique way to keep your system cool, in more ways than one.



??

RGB LED Dual Ring Lighting Design

Equipped with RGB LED Lighting to give your rig stylish flair while providing superior cooling capabilities to improve performance.
Brand new Dual Ring Lighting Design delivers a truly unique way to keep your system cool, in more ways than one.



??

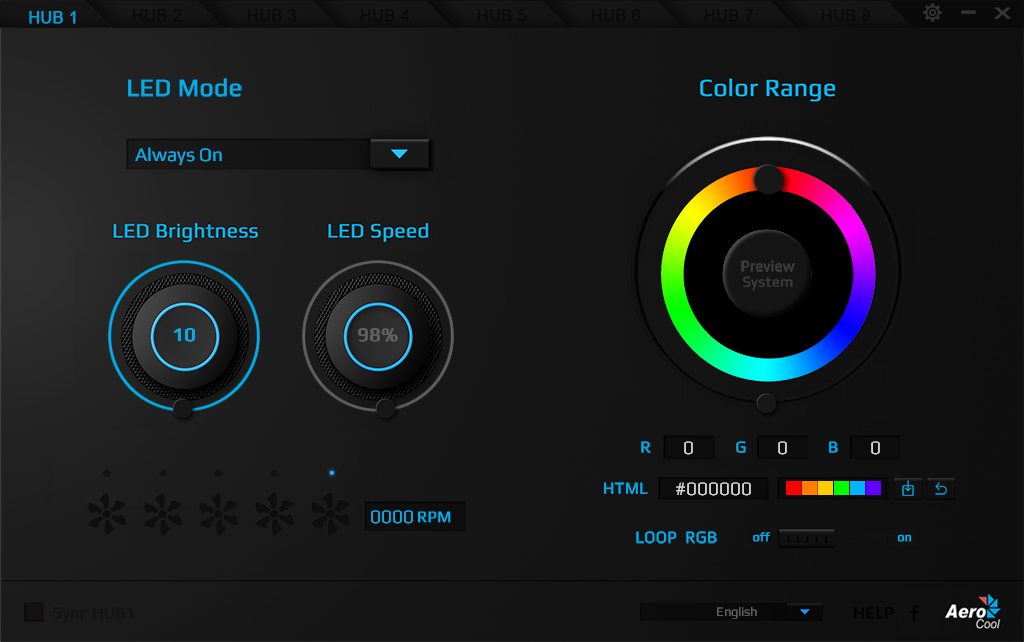

RGB Software

Take complete control of 16.8 million colors. Choose from different lighting modes or set your color by entering HTML color code.

Monitor Fan RPM

Monitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)

Curved Fan Blades

Curved fan blade fins effectively direct airflow to increase air pressure for maximum cooling performance and reduce air resistance while minimizing noise.

Curved Fan Blades

Curved fan blade fins effectively direct airflow to increase air pressure for maximum cooling performance and reduce air resistance while minimizing noise.

Anti-Vibration Pads

Anti-vibration pads absorb and dampen vibrations caused by fan rotation.

Anti-Vibration Pads

Anti-vibration pads absorb and dampen vibrations caused by fan rotation.

Convenient Maintenance

Removable blades for convenient maintenance.

PRODUCT GALLEY

SPECS

Model Name Rev RGB Pro
Included Rev RGB x3 & P7-H1 x 1
Rev RGB
Power Connector Type 3-Pin
LED Connector Type 4-Pin (12V-G-R-B)
Fan Dimension (L x W x H) 120mm x 120mm x 25mm
Fan Speed 1200 rpm
Fan Starting Voltage 7 V
Fan Rated Voltage 12 V
Fan Rated Current 0.15 A
Air Pressure 0.98 mmH2O
Air Flow 41.3 CFM
Fan Noise Level 15.1 dBA
Bearing Type Hydraulic Bearing
MTBF 60000 hrs.

P7-H1 (Project 7-Hub1)
Main Function Monitor RPM & Control RGB Colors and Effects
Connector 9-Pin USB 2.0
LED Output 2 Connectors (Expandable)
LED Output (Watt) Up to 24 Watts
Fan Output 5 Connectors
Fan Output (Watt) Up to 18 Watts
System Compatibility Windows 7 and Newer Versions
Software Enabled LED Light Control
Accessories Velcro Strap x 1, Screw x 4, Black Zip Tie x 4

DOWNLOAD

Download P7-S1 (Project7-Software1)

Download your user manual here.
