Rime 4

ARGB CPU AIR COOLER

PWM air cooling solution featuring best in-class cooling performance with patent-pending heat pipe technology. AeroFlow Frame features curved guide vanes built into the frame of the cooling fan to direct and channel air flow better.

Comes with built-in RGB lighting effects and compatibility with Addressable RGB motherboards or hubs. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes.

  • Patent-pending heat pipe composite material vastly accelerates heat transfer
  • AeroFlow Frame – Guide vanes on the cooling fan channel and direct air flow better
  • High-tech ceramic composite coating for maximum heat dissipation
  • Comes with built-in RGB lighting effects and compatibility with Addressable RGB motherboards or hubs
  • Heat Core Touch Technology with 4 ultra-efficient thermal heat pipes
  • Upgraded high efficiency fins for optimal thermal performance
  • TDP (Thermal Design Power) up to 230W

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

PATENT-PENDING HEAT PIPE TECHNOLOGY

Rime 4 heat pipes are designed with patent-pending composite wick material which vastly accelerates the evaporation-condensation phase. This speeds up heat transfer to produce significantly greater cooling performance.

BEST IN-CLASS COOLING PERFORMANCE

Rime 4 outperforms similar price point CPU coolers as shown by thorough cooling performance tests. When compared to other models of CPU coolers, Rime 4 comes out on top with lower Delta temperatures.

Delta temperature or ΔT is the difference between measured temperature and ambient temperature which when lower, indicates higher performance.

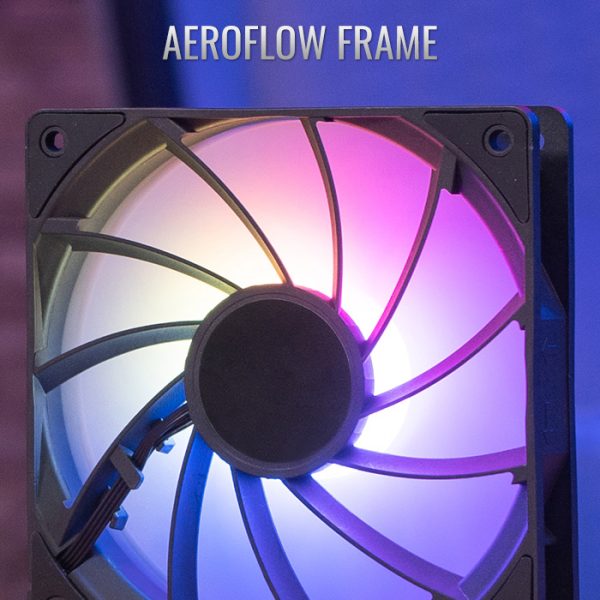

AEROFLOW FRAME

Curved guide vanes built into the frame of the cooling fan direct and channel air flow more effectively, allowing for maximum cooling efficiency.

ADDRESSABLE RGB COMPATIBLE

Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync and MSI Mystic Light Sync as well as Gigabyte RGB Fusion motherboards using 3-Pin XWD connector.

EQUIPPED WITH 12CM ARGB FAN

Comes equipped with 12cm Addressable RGB fan that can be controlled using Addressable RGB motherboard or LED control button.

Translucent fan blades allow you to fully appreciate this fan’s beautiful RGB lighting.

PWM HIGH-PRESSURE FAN

120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.

Control your fan speed with ease up to a maximum of 1800 RPM.

HEAT CORE TOUCH TECHNOLOGY (HCTT)

Four ultra-efficient thermal heat pipes provide a perfectly flat and smooth surface to maximize contact surface area.

This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation.

HIGH-TECH CERAMIC COMPOSITE COATING

High-tech ceramic composite coating for maximum heat dissipation.

Black ceramic coating on fins increases the cooler’s thermal conductivity and heat dissipation capabilities.

HIGH EFFICIENCY FINS

Upgraded high efficiency aluminum fins for maximum thermal performance.

COMPATIBILITY

Compatible with most current motherboard designs.

Socket compatibility:
LGA 2066/2011/1700/1200/115X
AM4

COMES WITH PWM 4-PIN CONNECTOR

PRODUCT GALLERY

SPECS

Model Rime 4
Base Material Aluminum block with HCTT Heat Core Touch Technology
Fin Material Aluminum with thermal coating
Heat pipe Dia. 6mm x 4
Dimension 125 x 83 x 155mm
TDP(Thermal Design Power) 230
Fan
Speed 800-1800 rpm
Connector PWM 4-Pin
Dimension 120 x 120 x 25mm
Bearing Type Hydraulic Bearing
Started Voltage 5V
Rated Voltage 12V
Rated Current 0.5 A
Power Consumption 6 Watts
Air Pressure 1.38-3.04 mm-H2O
Air Flow 37.1-75.3 CFM
Noise 17-34 dBA
MTBF (Mean Time Before Failure) 60000 hrs.
Socket LGA 2066 / 2011 / 1700 / 1200 / 115X / AM5 / AM4
For compatibility, check that LGA1700/AM5 is listed as a supported bracket on the packaging.
EAN Code 4711099470952
