FEATURES
AVAILABLE IN 2 COLOR COMBINATIONS
TOP PANEL I/O
Build-in 2 Fan controller channels with LOW / OFF / HIGH setting.
Supports SD / Micro SD card reader (optional)
TOP PANEL I/O
Build-in 2 Fan controller channels with LOW / OFF / HIGH setting.
Supports SD / Micro SD card reader (optional)
WATER-COOLING
Specially designed top metal cover with extended depth to easily install 240mm water-cooling system.

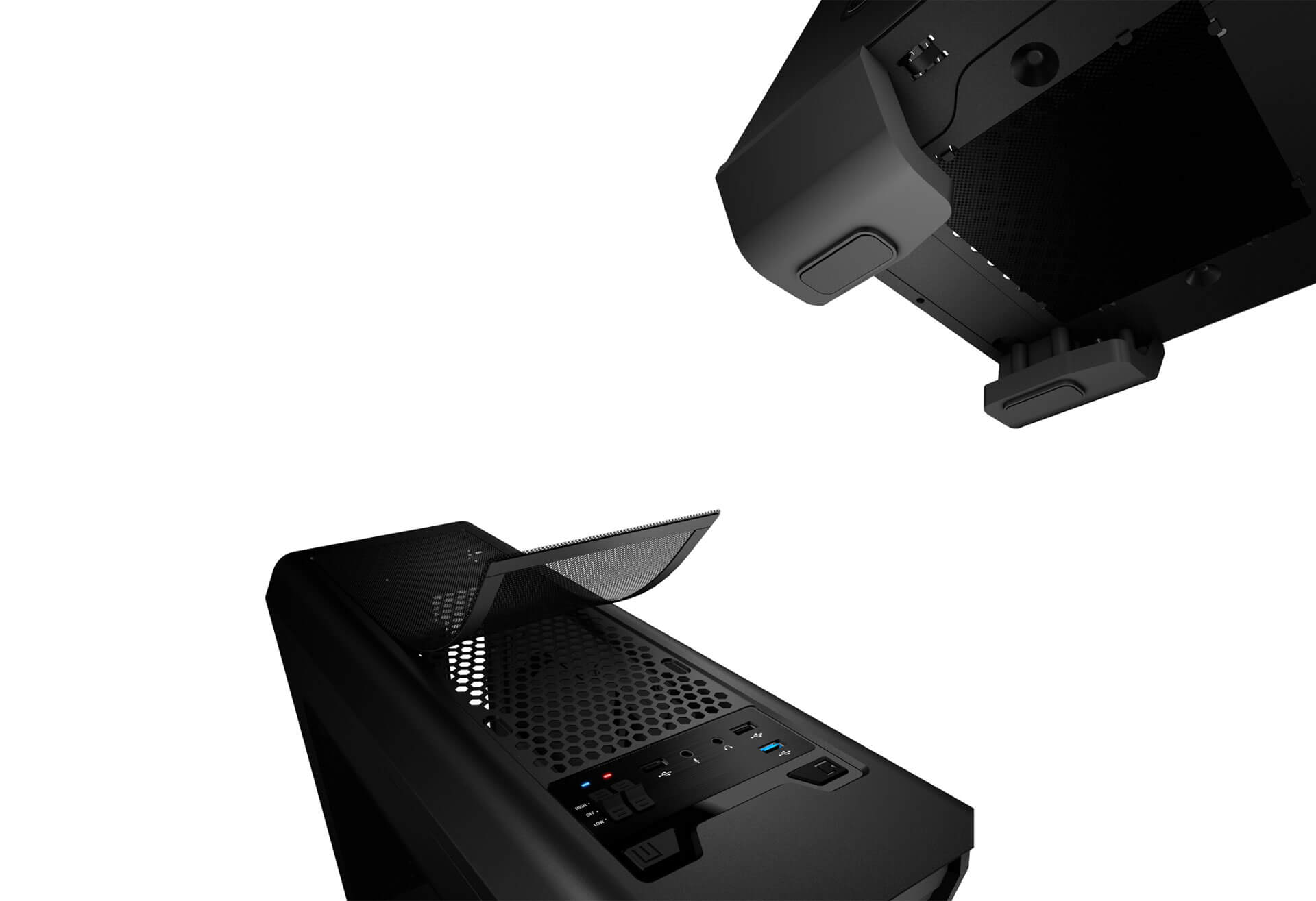

DUST FILTER
Easy to clean PSU dust filter.
Magnetic top panel filter is easily removed for cleaning.
DUST FILTER
Easy to clean PSU dust filter.
Magnetic top panel filter is easily removed for cleaning.
HDD ALLOCATIONS
Supports up to 4 x 3.5″HDD and 2 x 2.5″HDD/SSD or 1 x 3.5″HDD and 5 x 2.5″HDD/SSD.
Caution !!
Do not plug the peripheral 4Pin connector to PSU
SPECS
| Model |
Aero-500 |
| Case Type |
Mid Tower |
| Steel Thickness |
0.5mm |
| Motherboards |
ATX / micro ATX / mini-ITX |
| Case Dimensions (Overall) |
203 x 505 x 439.5mm (W x H x D, overall) |
| 5.25” Drive Bay |
2 (Exposed) |
| 3.5” Drive Bay |
4 (Internal) |
| 2.5” Drive Bays |
2 (Internal) |
| Expansion Slots |
7 |
| GPU Clearance |
374mm |
| CPU Clearance |
155mm |
| I/O Ports |
1 x USB3.0 + 2 x USB2.0 + HD Audio & Mic. + Fan Controller (Card Reader-Optional) |
| Air Cooling |
Front : 2 x 120mm Fans (Optional)
Rear : 1 x 120mm Fan (1 x 120mm Included)
Top : 2 x 120mm Fans (Optional) |
| Radiator Support |
Top : 240mm Radiator Installation.(MAX. 39mm thickness) |
| Net Weight |
4.9 Kg (G.W 5.5 Kg) |
| Power Supply |
ATX PSU (Optional) |
| EAN Code |
4713105955514 – Black Edition
4713105955521 – White Edition |
| Model Variation |
Model Name |
| Standard |
Aero-500 Black
Aero-500 White |
| W / Card Reader |
Aero-500 Black – C
Aero-500 White – C |
| W / Black Bay Lever |
Aero-500 Black – B
Aero-500 White – B |
| W / Black Bay Lever+Card Reader |
Aero-500 Black – BC
Aero-500 White – BC |
| Model Variation |
Model Name |
| Window On Side Panel |
Aero-500 Window Black
Aero-500 Window White |
| W / Card Reader |
Aero-500 Window Black – C
Aero-500 Window White – C |
| W / Black Bay Lever+Card Reader |
Aero-500 Black – BC
Aero-500 White – BC |
DOWNLOADS
Download your user manual here.
