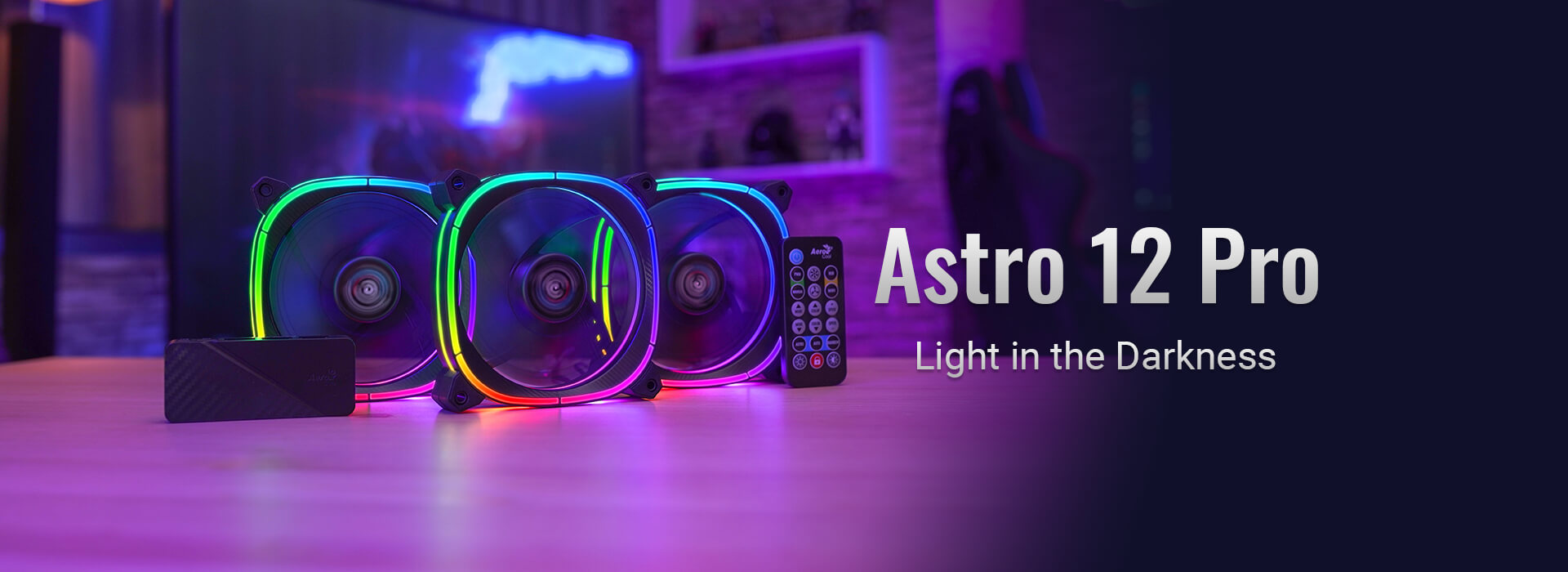

Astro 12 Pro

12CM ARGB FANS x 3 | H66F HUB x 1 | REMOTE CONTROL x 1

120mm fan with 6-Pin connector featuring a stylish Omni RGB LED Lighting design. Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

Comes equipped with three Astro 12 Addressable RGB fans, H66F RGB Control Hub, and Remote Control.

  • Comes with 3 x Astro 12 fans, 1 x H66F RGB Control Hub, and 1 x Remote Control
  • Omni RGB LED Lighting design adds extra flair to your rig
  • Access 16.8 million colors using compatible Addressable RGB motherboards
  • H66F hub allows you to connect up to six 6-Pin ARGB fans and up to two ARGB accessories with +5V ARGB connector
  • H66F hub comes with PWM control functions for optimized fan RPM

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

ADDRESSABLE RGB COMPATIBLE

Take full control of your Astro 12 Addressable RGB fans using any one of three ways:

ADDRESSABLE
RGB MOTHERBOARD

LED CONTROL
BUTTON

RGB REMOTE
CONTROL

H66F RGB CONTROL HUB

Features a 6-port hub with PWM control functions that allows you to connect up to six 6-Pin Addressable RGB fans and up to two Addressable RGB accessories with 5V ARGB connector.

Motherboard connector supports Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).

PWM CONTROL FUNCTIONS

H66F hub comes with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.

Please check if the 4-Pin fan header on your motherboard is PWM compatible.

PWM based – PWM compatible
Voltage basednot PWM compatible

For more information, refer to our PWM Compatibility Guide

ADDRESSABLE RGB RECEPTOR CABLE INCLUDED

Comes with a receptor cable to connect your hub with compatible Addressable RGB motherboards.

  1. ARGB MB Connector (For all other ARGB MBs such as ASUS, MSI, etc.)
  2. ARGB MB Connector (Gigabyte RGB Fusion)
  3. 4-PIN Hub Connector
  4. PWM 4-Pin Connector

POWER CABLE INCLUDED

Comes with a cable to power the hub.

  1. SATA Power Connector
  2. 4-Pin Hub Power Connector

OMNI RGB LED LIGHTING DESIGN

Equipped with RGB LED Lighting on the front, sides, and back of the fan, the Astro allows for clear viewing of your RGB from any angle while providing superior cooling performance.

CARBON FIBER STYLE FINISHING

Featuring a stylish carbon fiber style finishing, this fan delivers a futuristic flair to your rig.

CURVED FAN BLADES

Curved fan blades effectively direct airflow to increase air pressure and reduce air resistance for maximum cooling performance.

ANTI-VIBRATION PADS

Anti-vibration pads absorb and dampen vibrations caused by fan rotation.

COMES WITH 6-PIN CONNECTOR

Connects to H66F RGB Control Hub. Compatible with Tor, Tor Pro, and Klaw cases.

PRODUCT GALLERY

VIDEOS

SPECS

Model Astro 12 Pro
Included Astro 12 x 3 & Hub x 1 & Remote Control x 1
Astro 12
Fan Dimensions (L x W x H) 120mm x 120mm x 25mm
Fan Speed 1000 rpm
Connector Type 6-Pin
Fan Starting Voltage 7 V
Fan Rated Voltage 12 V
Fan Rated Current 0.61 A
Power Consumption 7.32 W
Air Pressure 1.68 mmH2O
Air Flow 42.1 CFM
Fan Noise Level 17.5 dBA
Bearing Type Hydraulic Bearing
MTBF 60000 hrs.

Hub & Remote Control
Type RF wireless
Connector SATA
Rated Voltage 12 V/5V
Rated Current 3 A
Frequency 433.92 MHz
Receive range 10m
Port for fan 6
Port for 5V ARGB connector 2
Accessories Velcro Strap x 1

Screw x 12

Black Zip Tie x 2

ARGB Receptor Cable x 1

EAN Code 4710562750164

DOWNLOAD

H66F RGB Hub – Remote Control Function Guide
