B310A Flow

Mini Tower Case
Where to Buy ▼

  • Mesh front panel enhances airflow while showcasing front LED fans.
  • Pre-installed with three 12cm front fans and one 12cm rear fan with daisy-chain support.
  • 8 total fan slots for even greater cooling potential.
  • Magnetic top and quick-release dust filters ensure easy maintenance.
  • Supports GPUs up to 345mm and radiators up to 360mm.
  • Tempered glass side panel showcases internal components and RGB lighting for a sleek, modern look.
  • Cable routing clips help keep cables organized for a cleaner setup.
  • Included GPU support stand to prevent sag.


FIND RETAILER
B310A Flow
Overview
Gallery
Specs

Overview

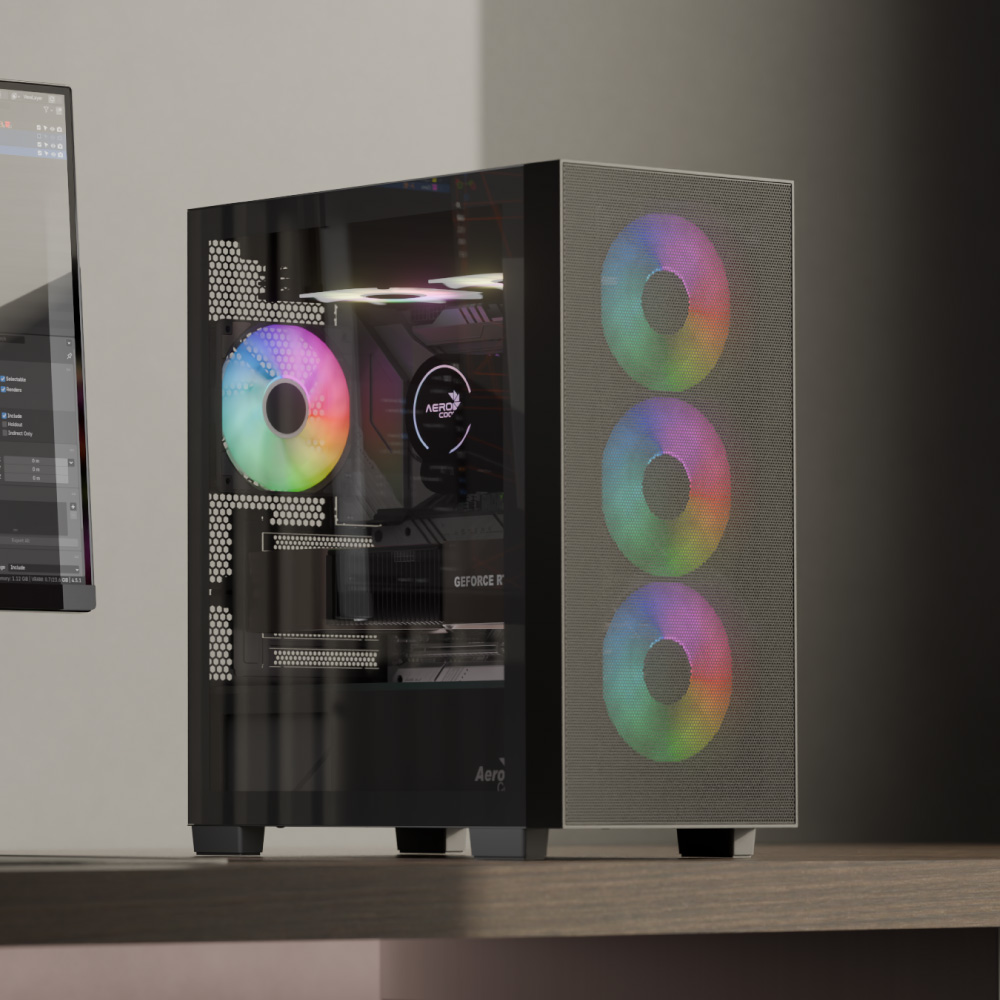

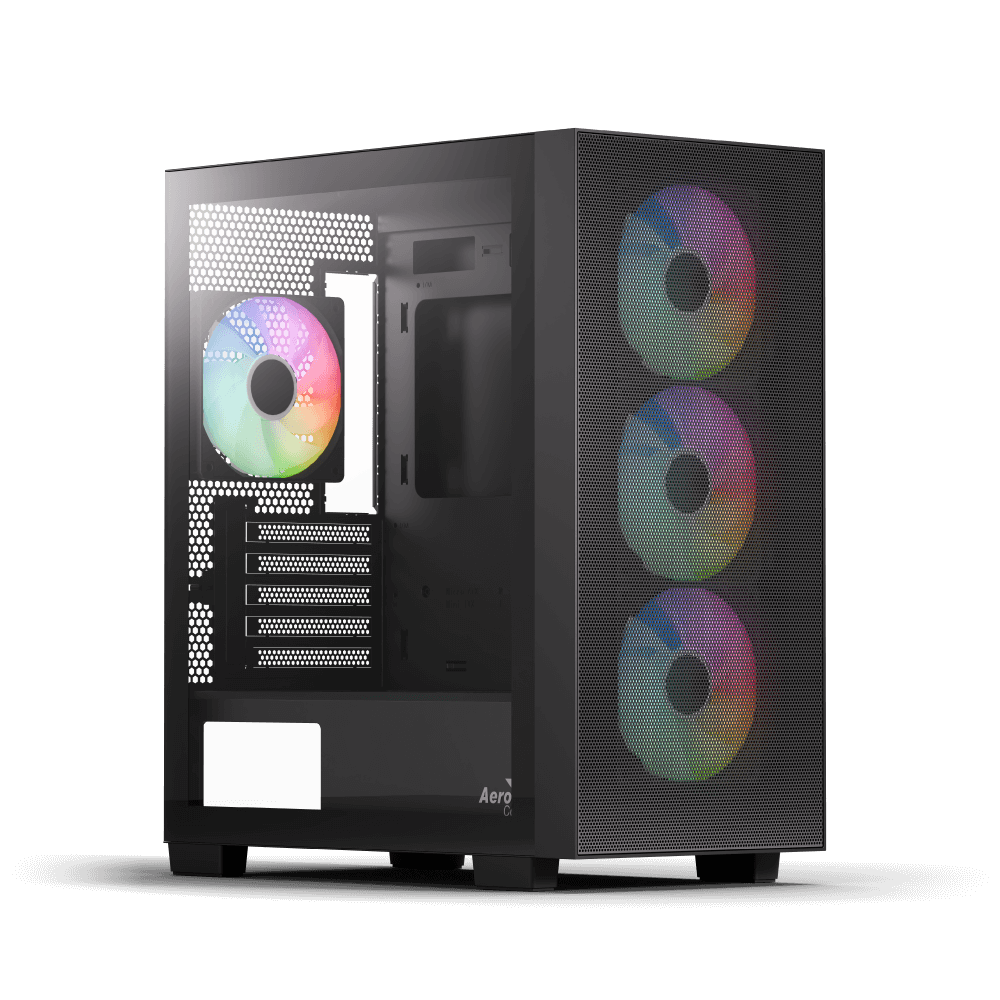

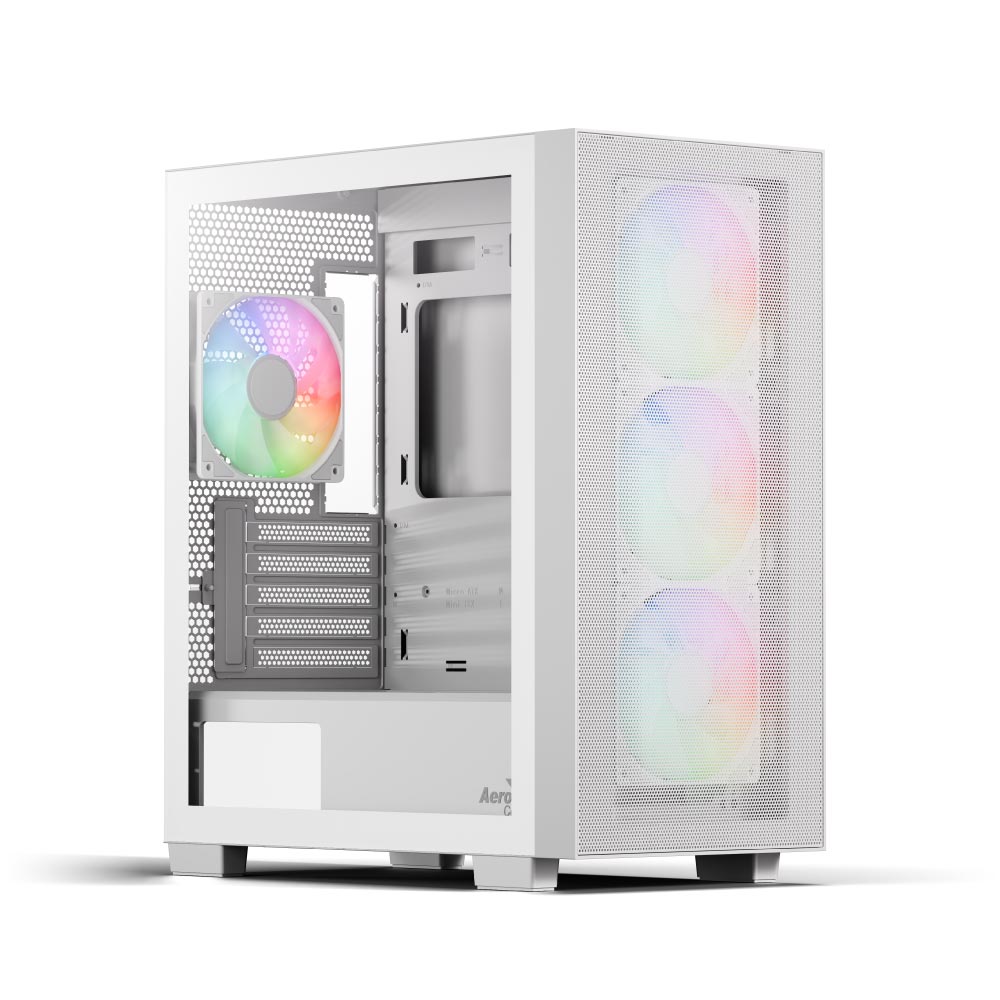

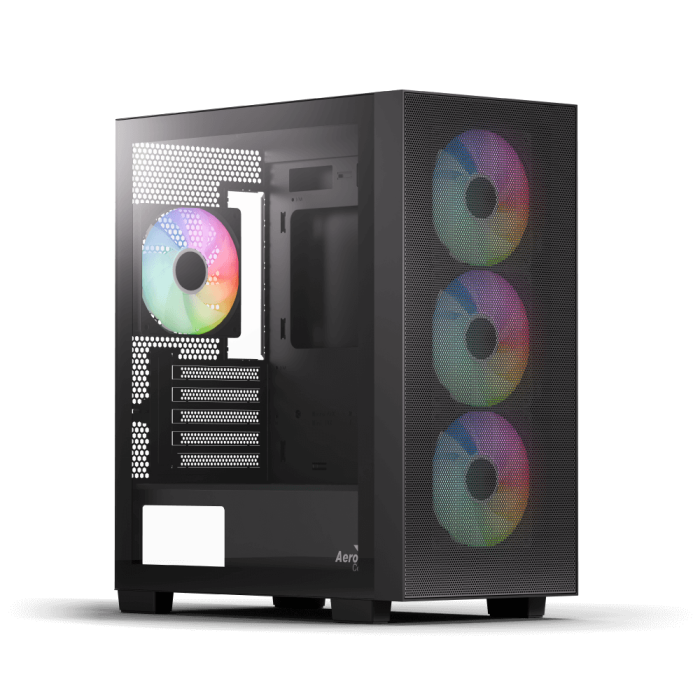

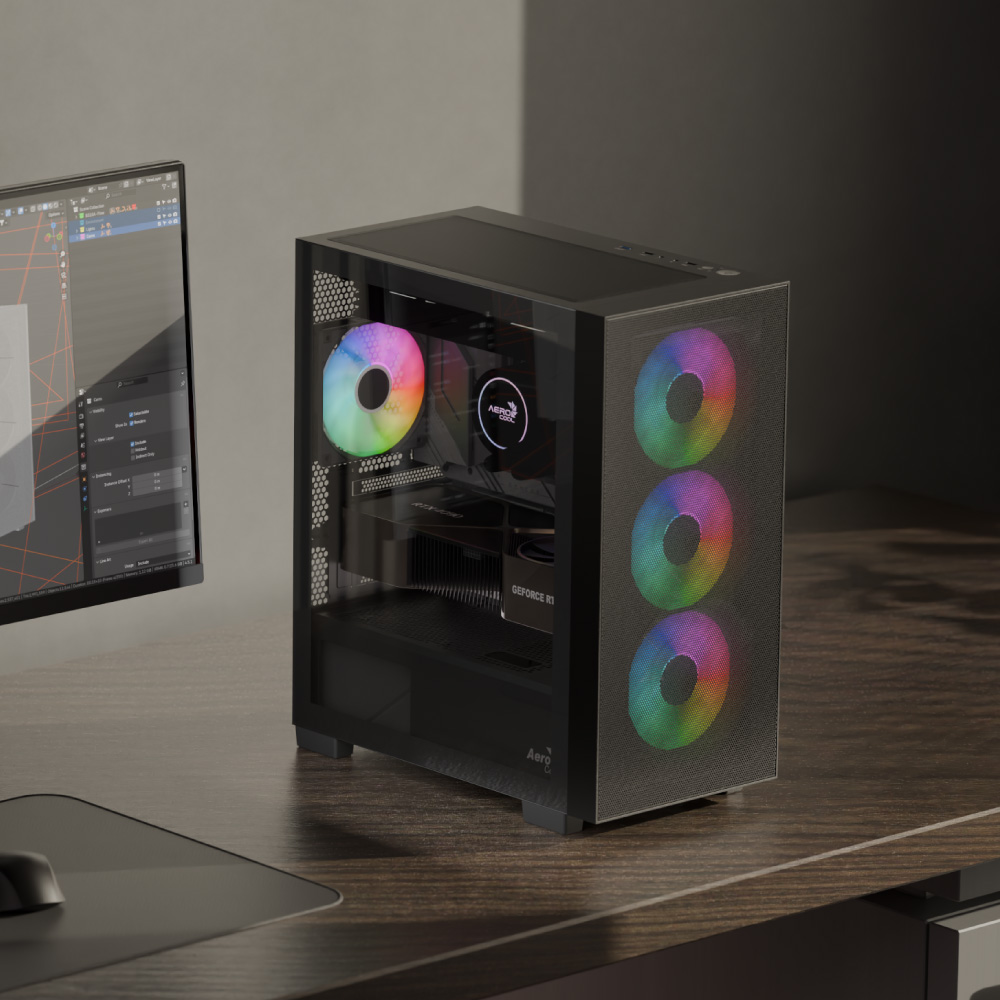

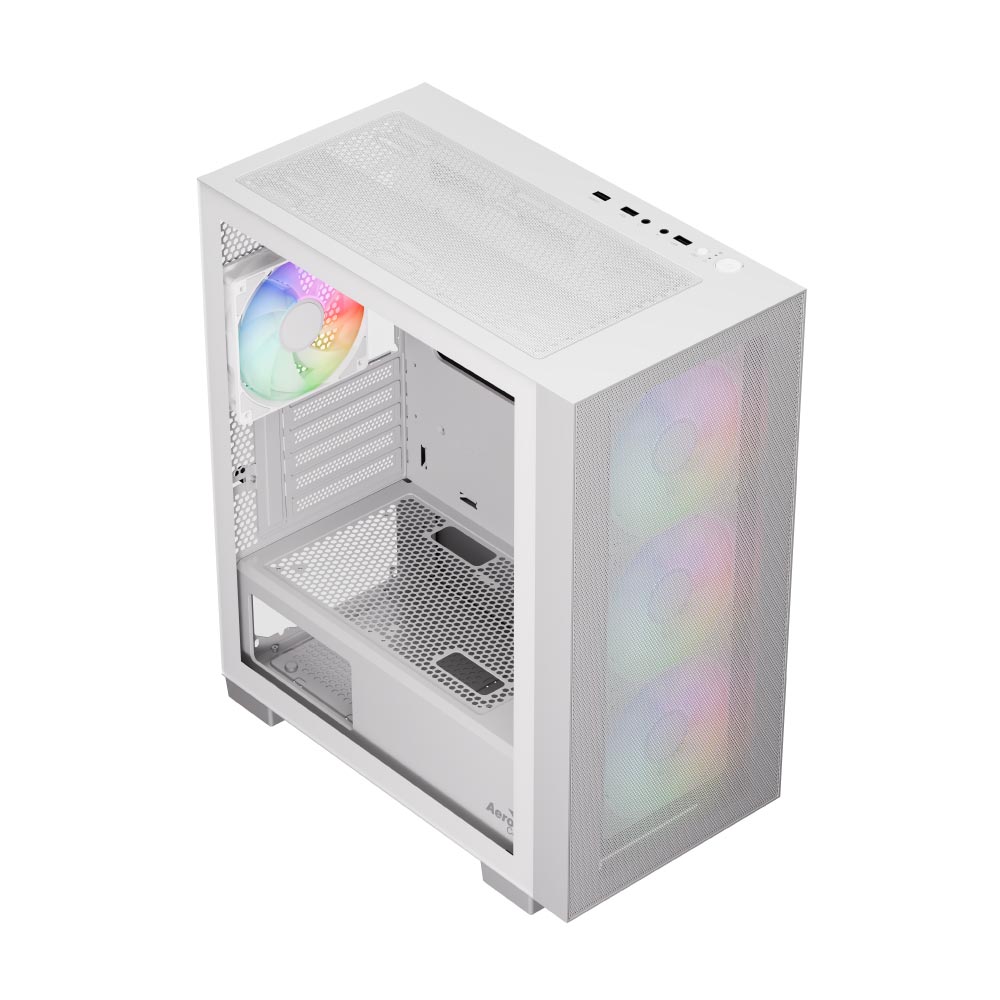

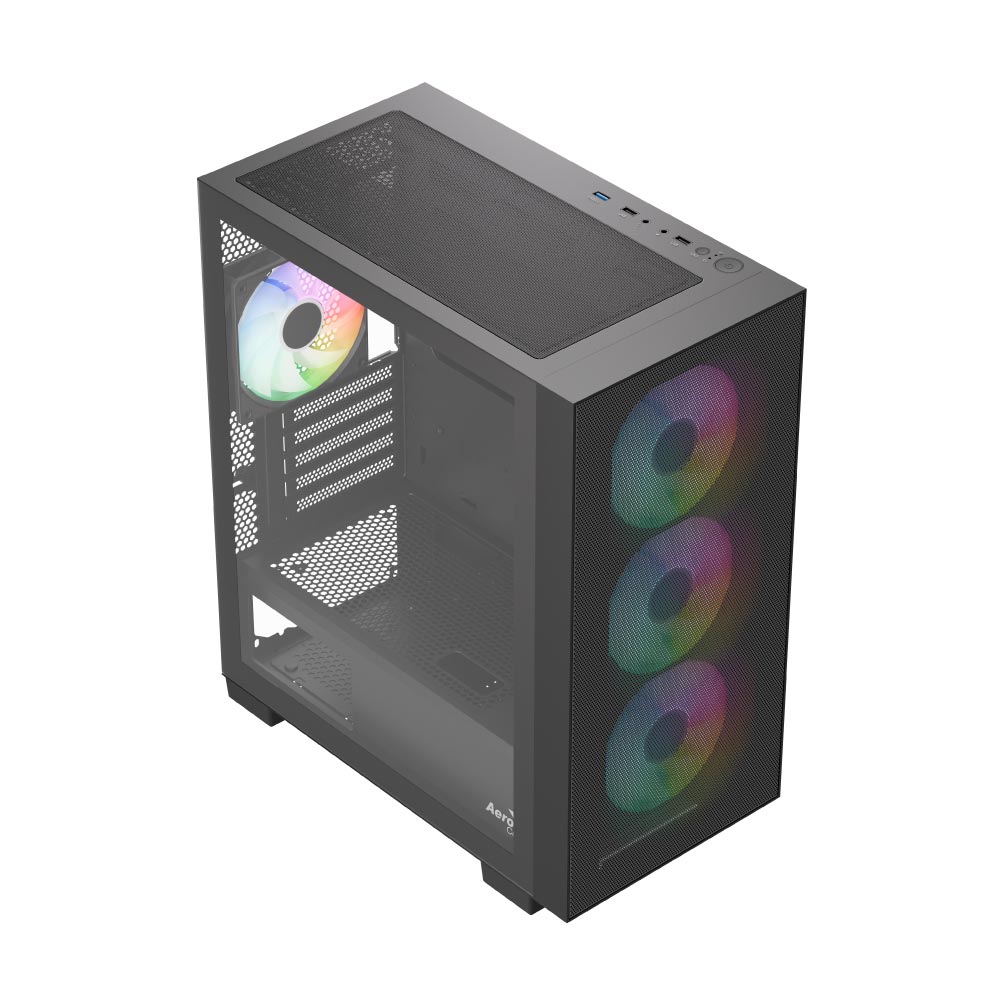

The AeroCool B310A Flow mini tower case combines sleek aesthetics with high-performance cooling, featuring a mesh front panel for optimal airflow and showcasing four pre-installed ARGB 120mm fans. Designed for Micro ATX and Mini-ITX motherboards, it supports up to a 345mm GPU, a 165mm CPU cooler, and multiple radiator configurations for advanced cooling flexibility. With magnetic dust filters for easy maintenance and ample expansion options, this case delivers both style and function for your next build.

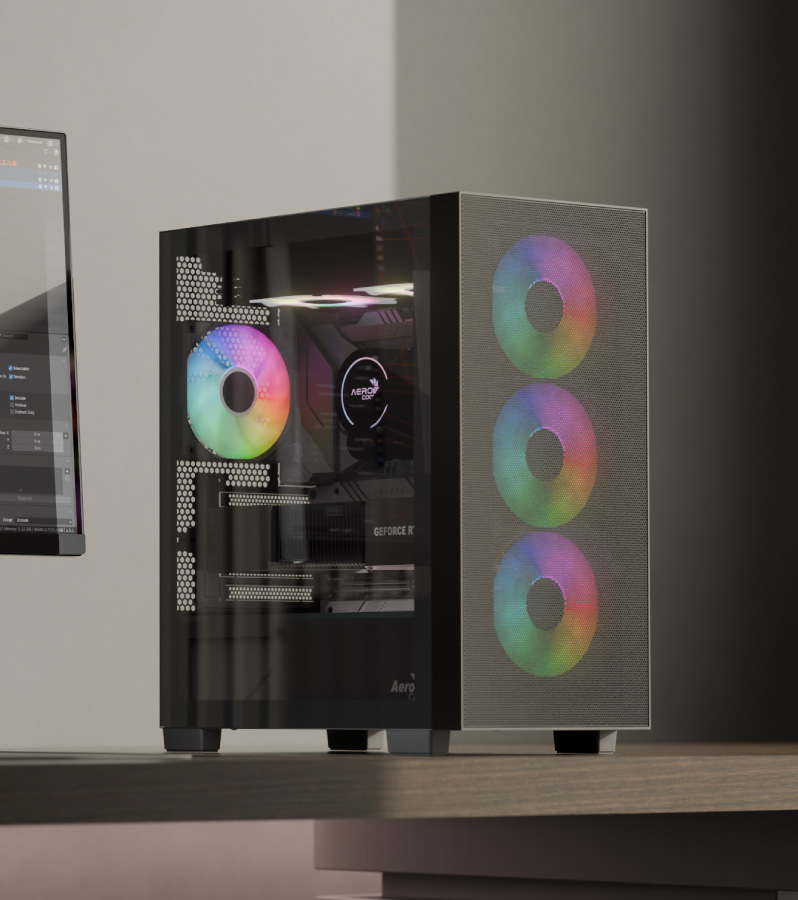

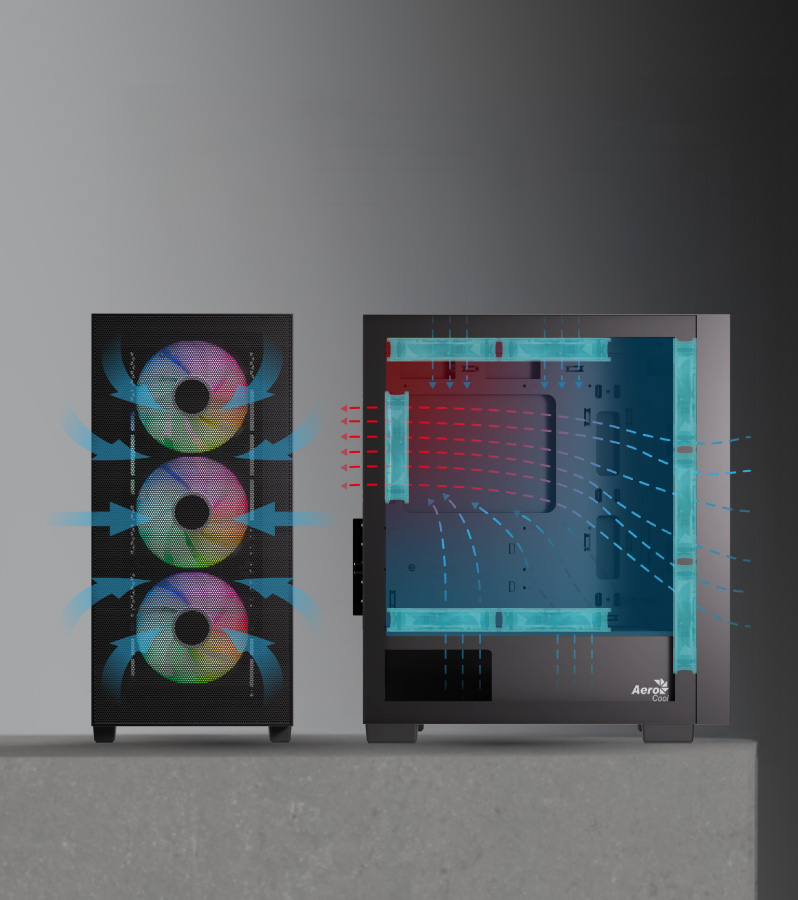

High-Airflow Design with Style

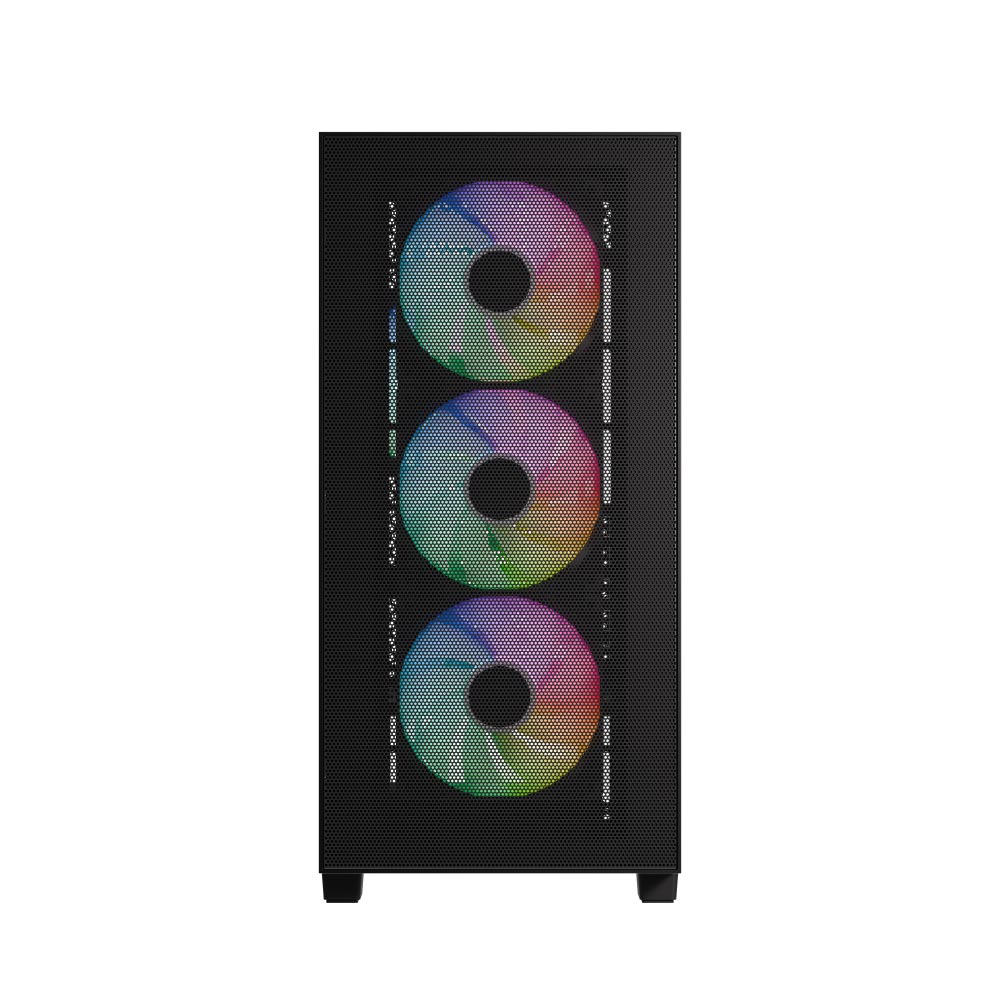

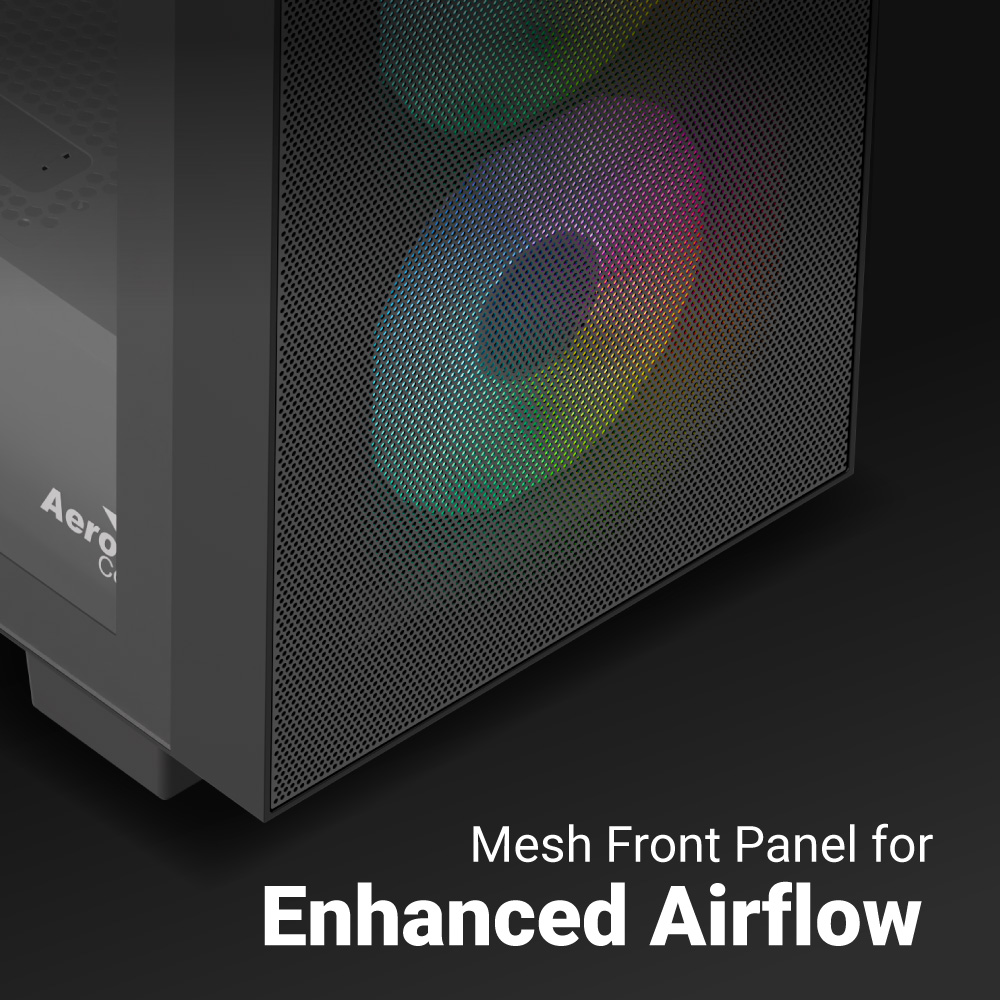

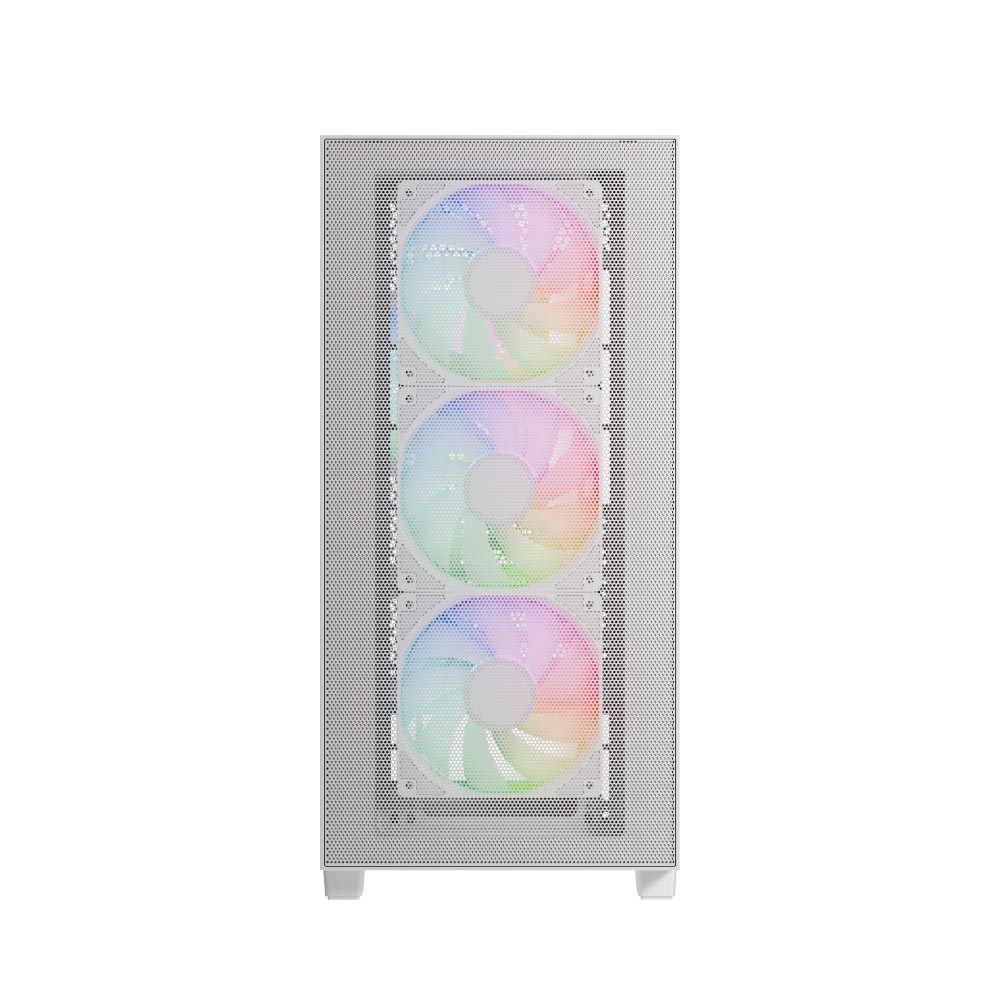

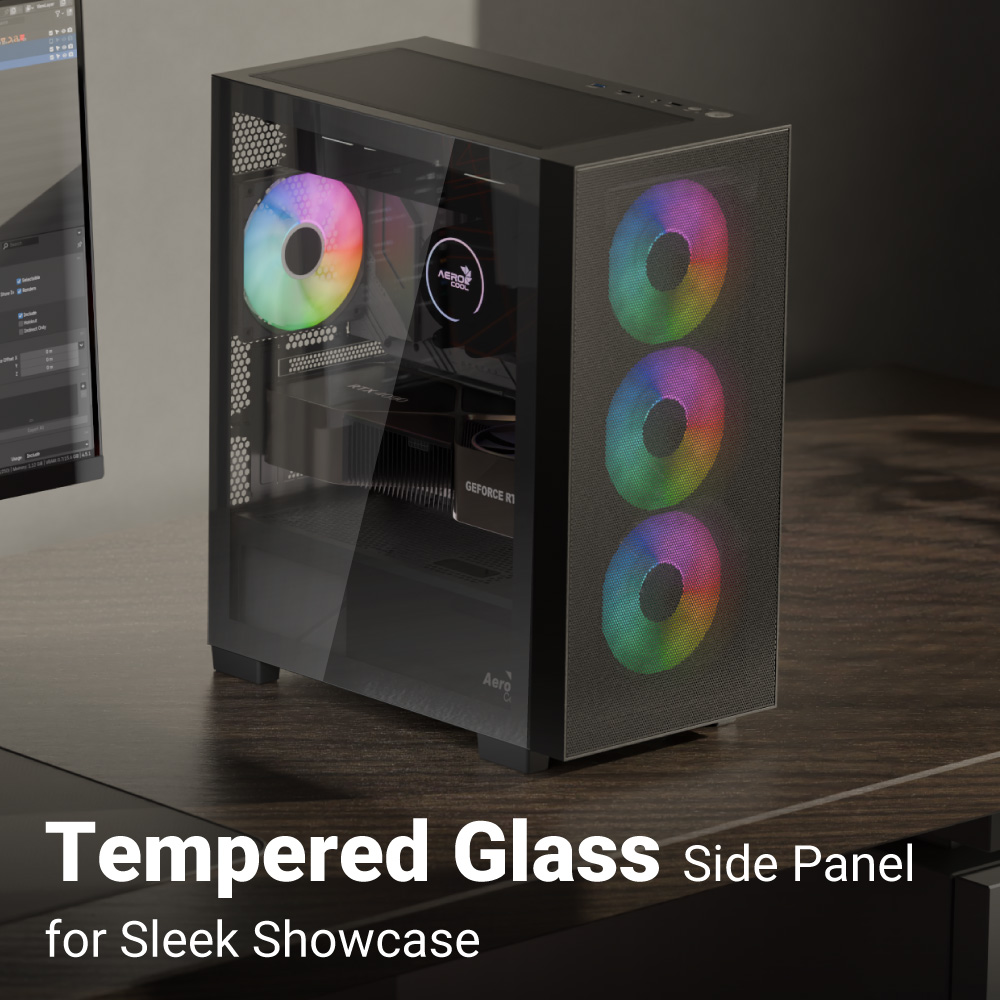

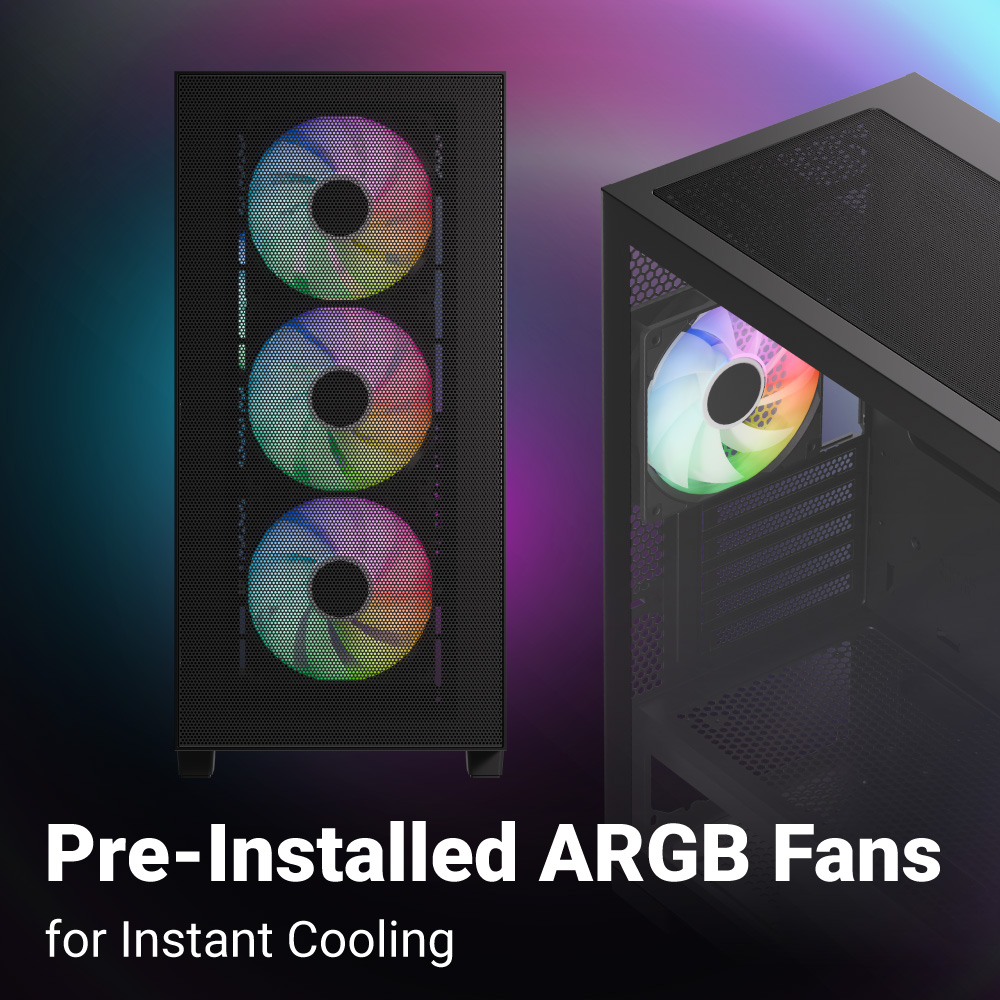

The B310A Flow features a full mesh front panel and four pre-installed 12cm ARGB fans for maximum airflow and cooling performance. The tempered glass side panel lets you show off your hardware and lighting in clean, modern style.

Ready for Serious Hardware

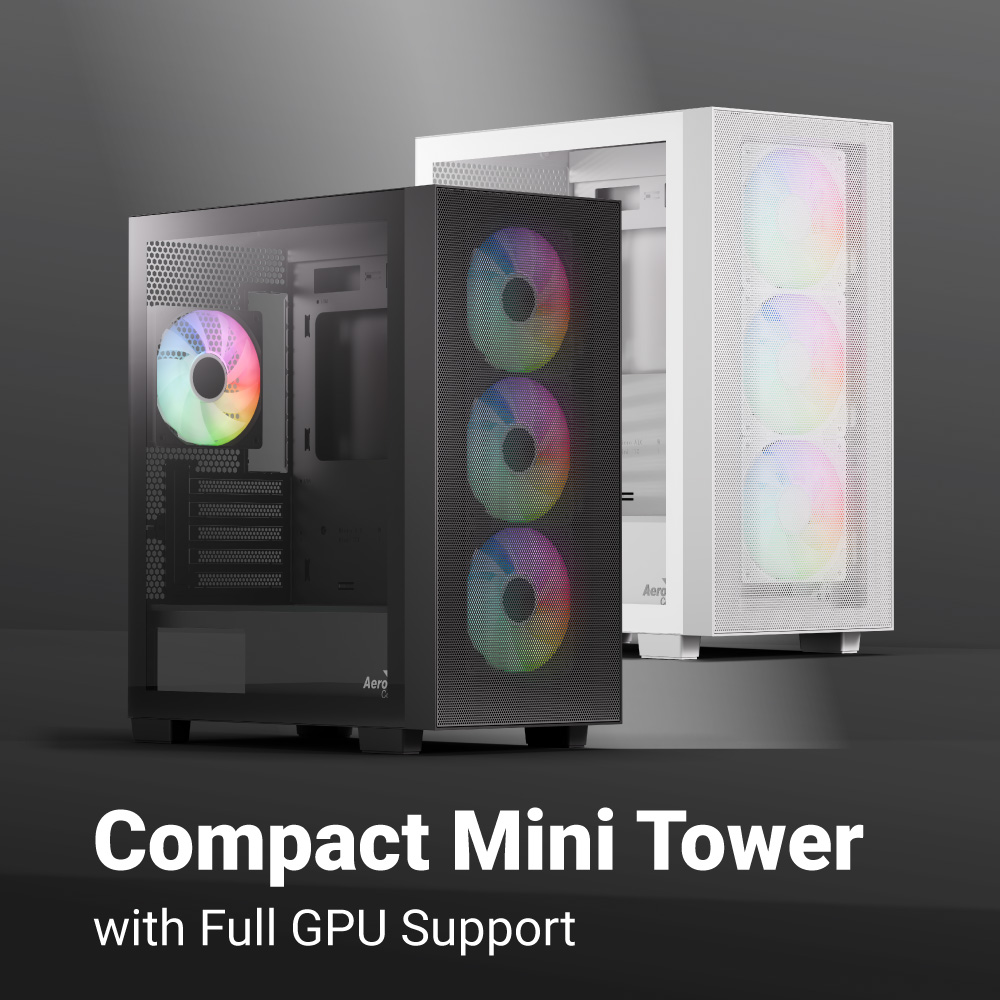

This compact mini tower supports GPUs up to 345mm and radiators up to 360mm, giving you flexibility for high-performance builds. The included GPU support stand prevents sag and keeps your build stable for years to come.
With 8 total fan slots, it’s optimized for both air and liquid cooling to meet your system’s needs.

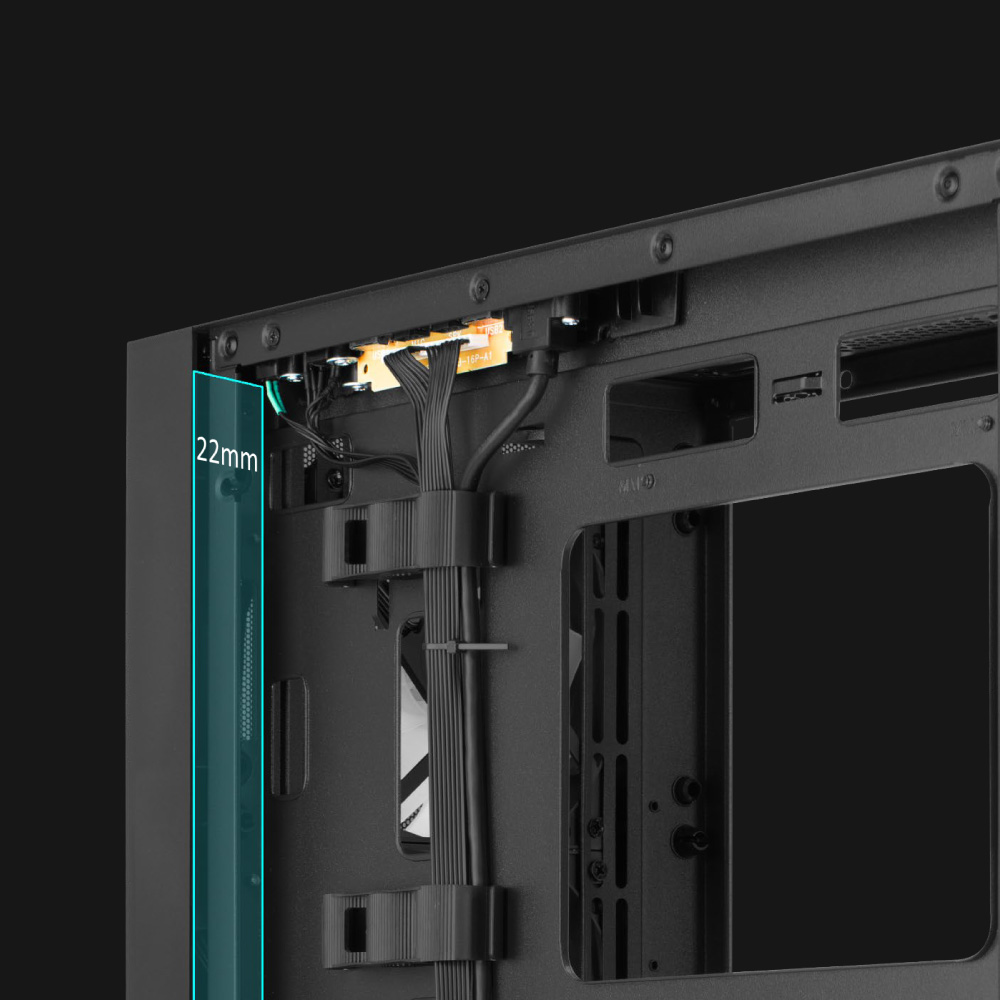

Built for Clean Builds

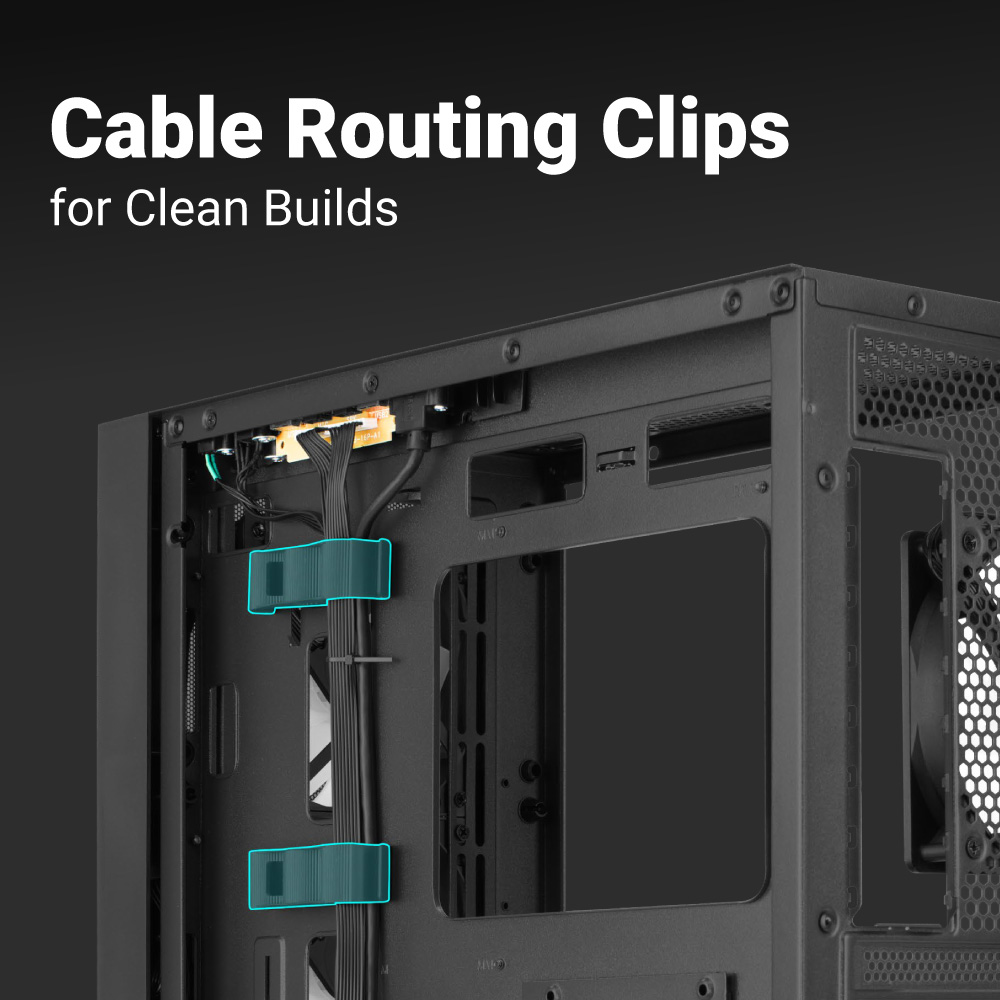

Cable routing clips and a 22mm cable management depth help you achieve a clean, organized interior with optimal airflow. A PSU shroud and flat fan layout keep your build sleek and functional.

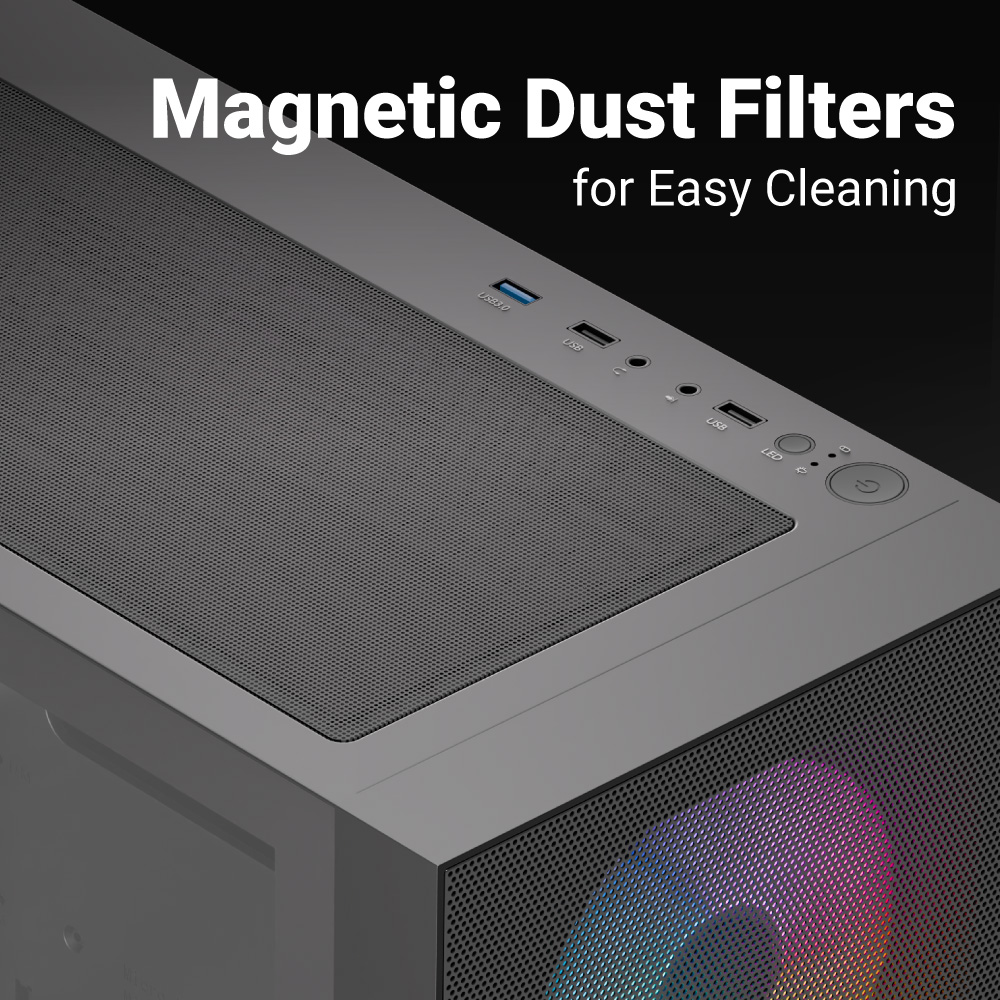

Easy Maintenance, Long-Term Cleanliness

Magnetic top dust filters and a quick-release bottom filter snap on and off with ease, keeping your system dust-free with minimal effort. This means more cooling efficiency and less cleaning over time.

SPECS

Models B310A Flow-G-BK-v1, B310A Flow-G-WT-v1
Case Type Mini Tower
Colors Black, White
Body Material SPCC
Front Panel Material ABS, SPCC
Steel Thickness 0.5mm
Motherboards Micro ATX/Mini-ITX
Case Dimensions (Internal) 210 x 430 x 350mm (W x H x D)
Case Dimensions (Overall) 210 x 450 x 399mm (W x H x D)
5.25” Drive Bays N/A
3.5” Drive Bays 2 Max. (1x 3.5” and 1 x 3.5”/2.5”)
2.5” Drive Bays 2 Max. (1 x 2.5” and 1 x 2.5”/3.5”)
Expansion Slots 5
GPU Clearance Supports GPU up to 345mm (W/O front radiator)
CPU Cooler Clearance Supports CPU cooler up to 165mm

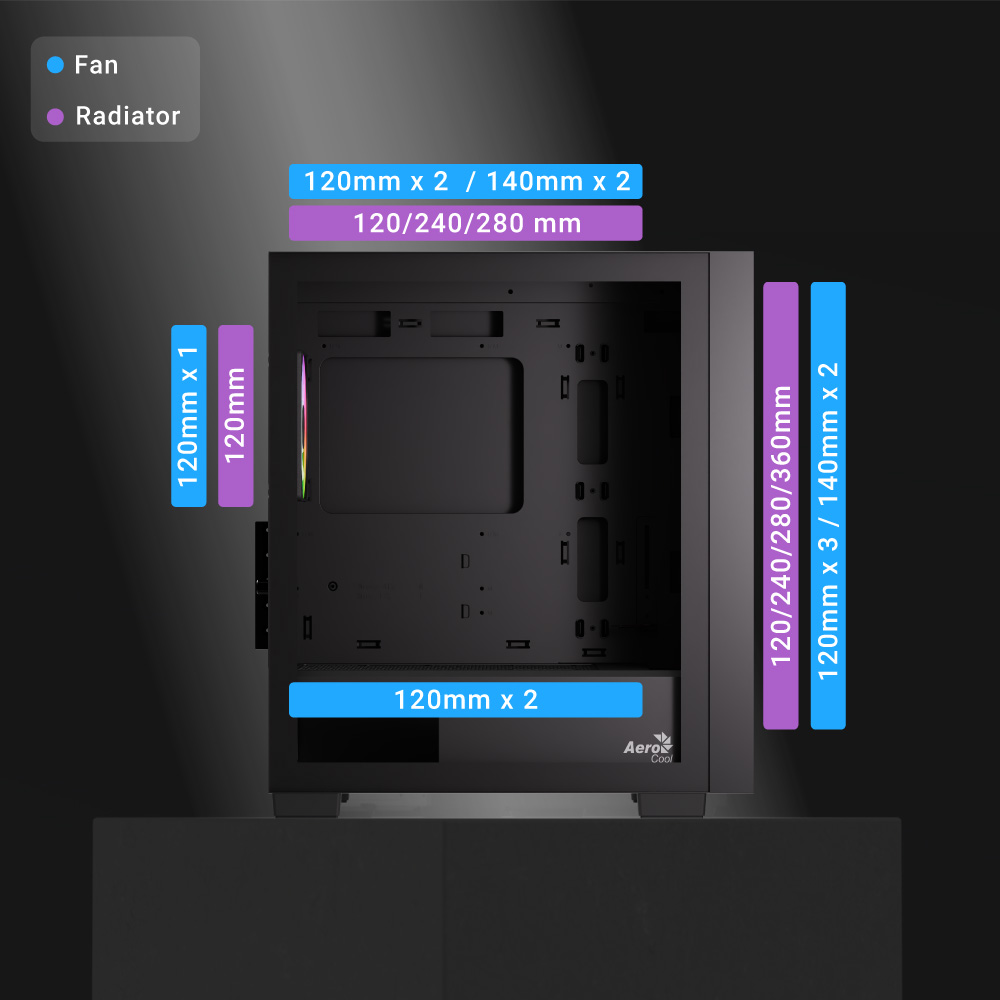

Air Cooling Front: 120mm x 3 or 140mm x 2 (Max.) (Included ARGB 120mm x 3)
Top: 120mm x 2 or 140mm x 2 (Max.)
PSU Shroud: 120mm x 2 (Max.)
Rear: 120mm x 1 (Max.) (Included ARGB 120mm x 1)
Liquid Cooling Front: 120/240/280/360mm Radiator (Optional)
Top: 120/240/280mm Radiator (Optional)
Rear: 120mm Radiator (Optional)

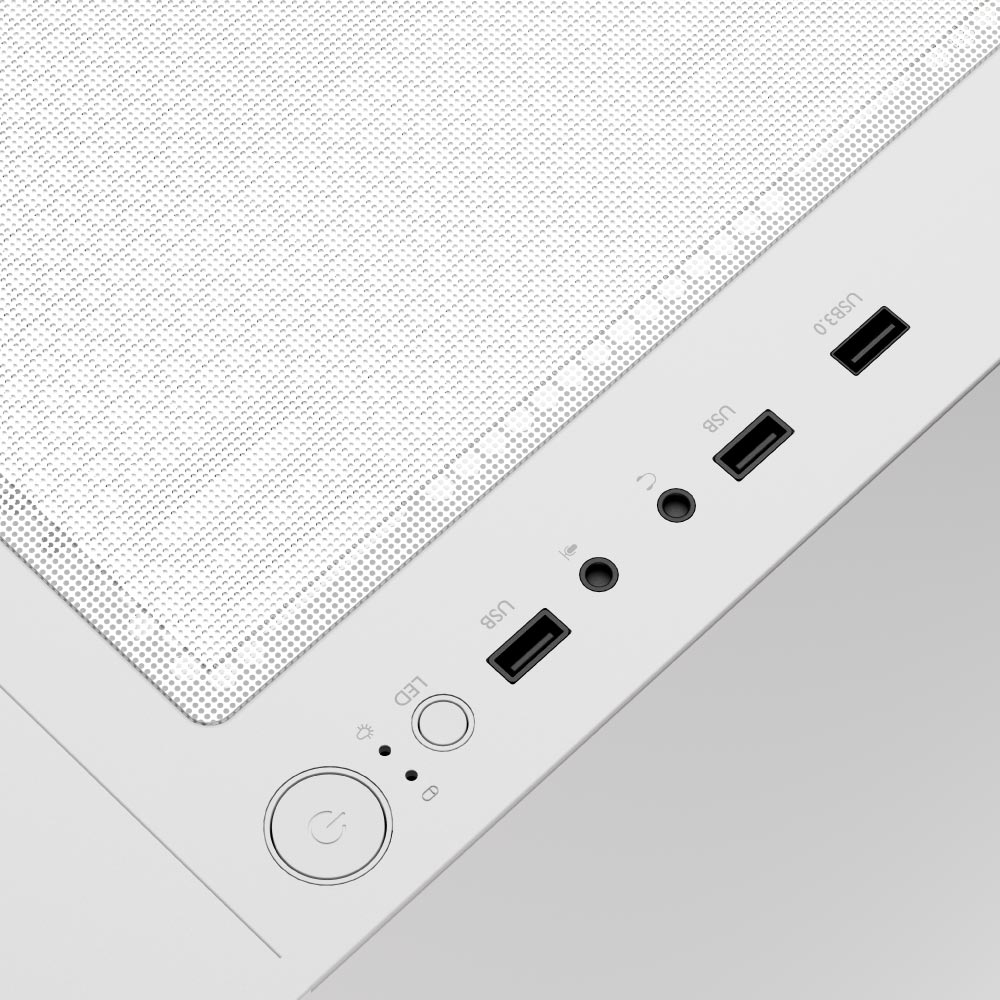

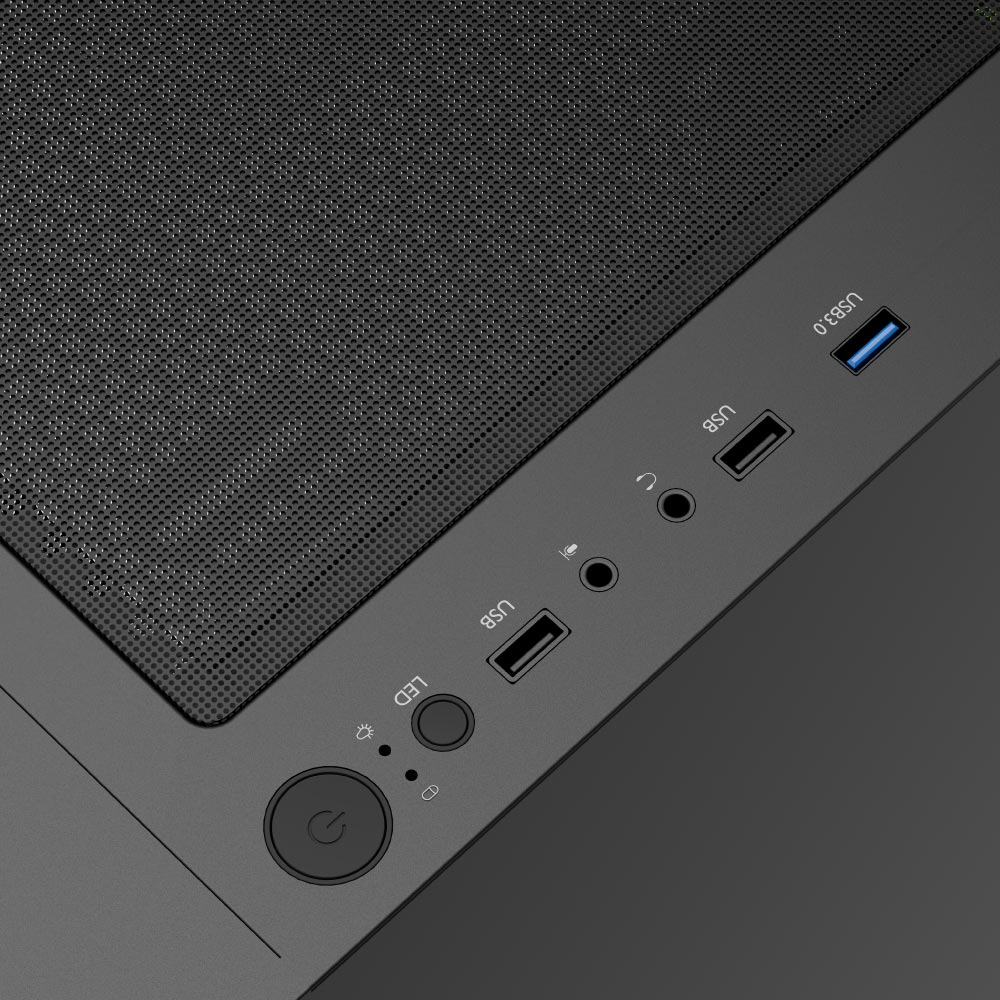

I/O Ports USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic.
Internal Cable Management Depth 22mm
Power Supply ATX PSU (Including cables, up to 185mm) (Optional)
  • Mesh front panel enhances airflow while showcasing front LED fans.
  • Pre-installed with three 12cm front fans and one 12cm rear fan with daisy-chain support.
  • 8 total fan slots for even greater cooling potential.
  • Magnetic top and quick-release dust filters ensure easy maintenance.
  • Supports GPUs up to 345mm and radiators up to 360mm.
  • Tempered glass side panel showcases internal components and RGB lighting for a sleek, modern look.
  • Cable routing clips help keep cables organized for a cleaner setup.
  • Included GPU support stand to prevent sag.

Download your user manual here.
