B508A Flow

Mid Tower Case

The AeroCool B508A Flow is designed for optimal airflow and high-performance gaming setups. With support for powerful GPUs, liquid coolers, and multiple fan configurations, it keeps your system running smoothly even under heavy loads. Show off your build with a tempered glass side panel while enjoying easy maintenance with magnetic dust filters.

  • Mid-tower case compatible with ATX, m-ATX, and mini-ITX motherboards
  • Stylish front panel design with air ventilation for better circulation
  • Accommodates GPUs up to 340mm and CPU coolers up to 158mm
  • 5 total fan slots fit up to four 140mm fans for even greater cooling potential
  • Includes top (magnetic) and bottom dust filters
  • Tempered glass side panel to show components

Where To Buy
B508A Flow
Overview
Gallery
Specs

Overview

The AeroCool B508A Flow is designed for optimal airflow and high-performance gaming setups. With support for powerful GPUs, liquid coolers, and multiple fan configurations, it keeps your system running smoothly even under heavy loads. Show off your build with a tempered glass side panel while enjoying easy maintenance with magnetic dust filters.

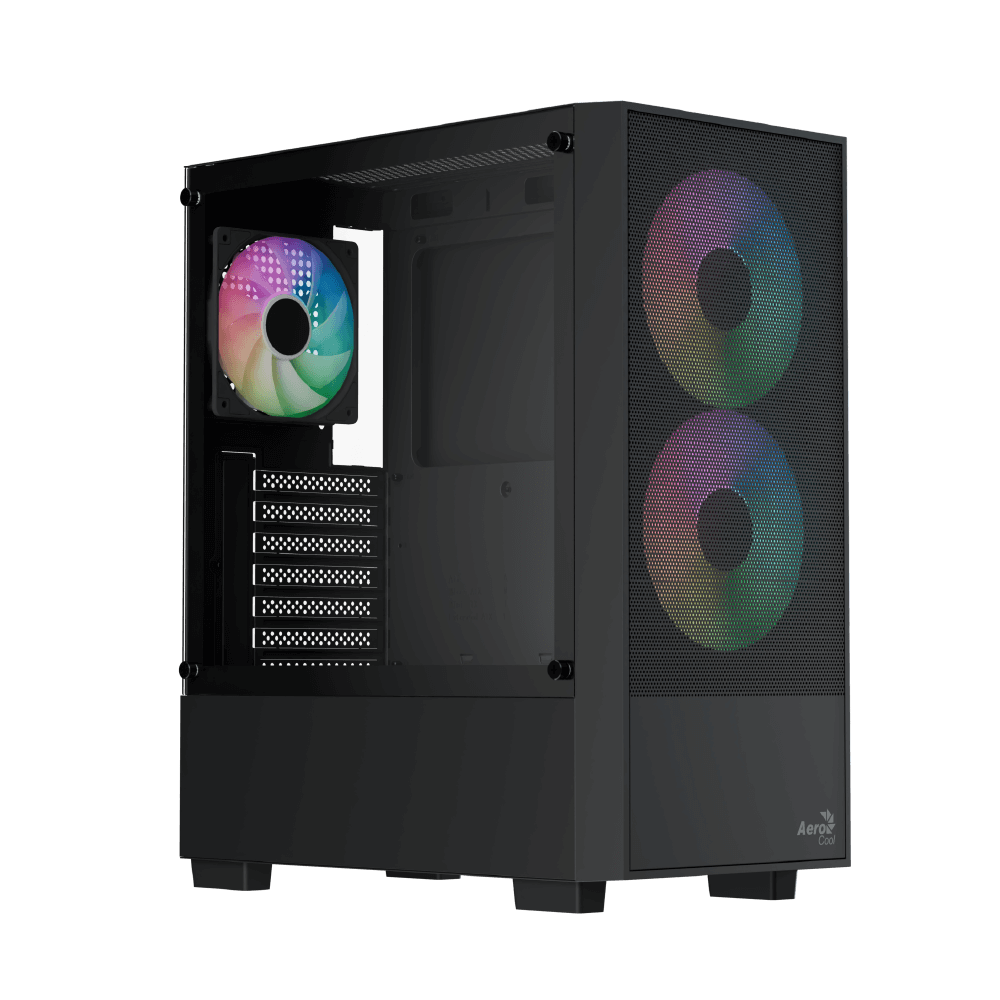

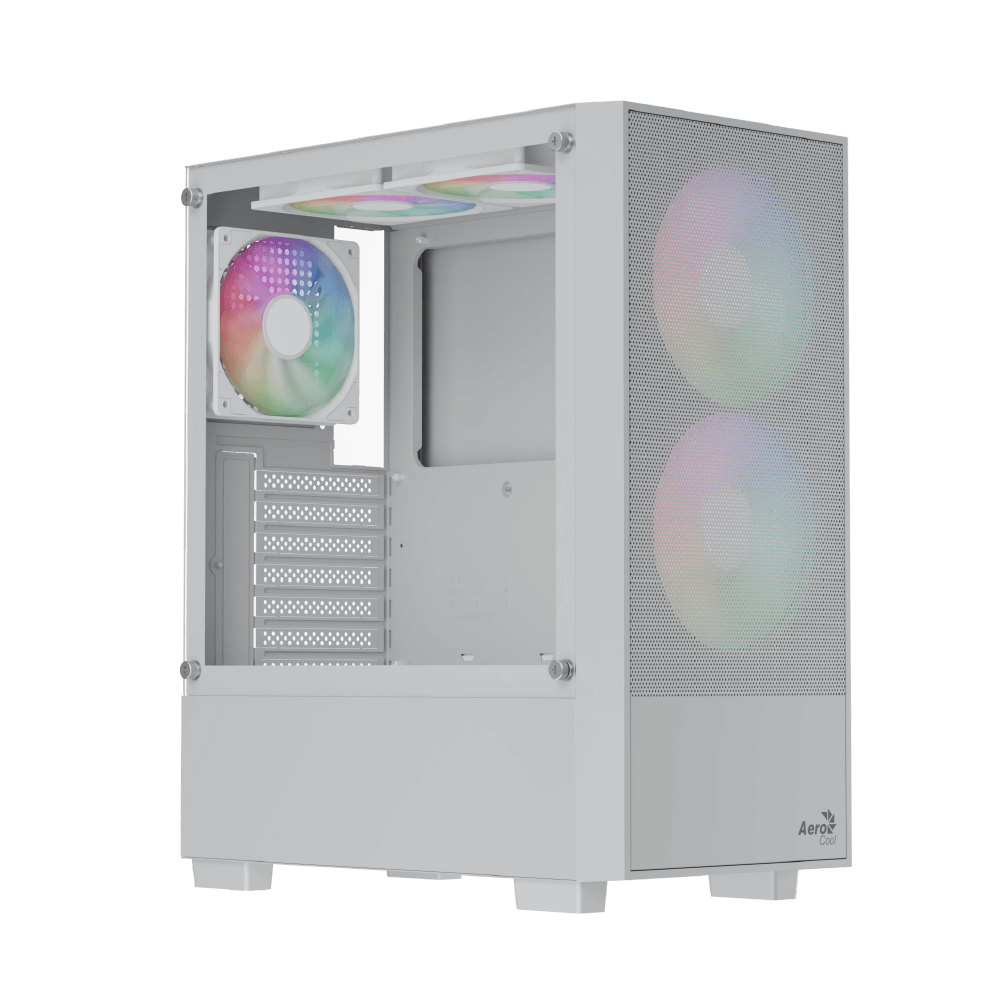

Airflow Meets Style

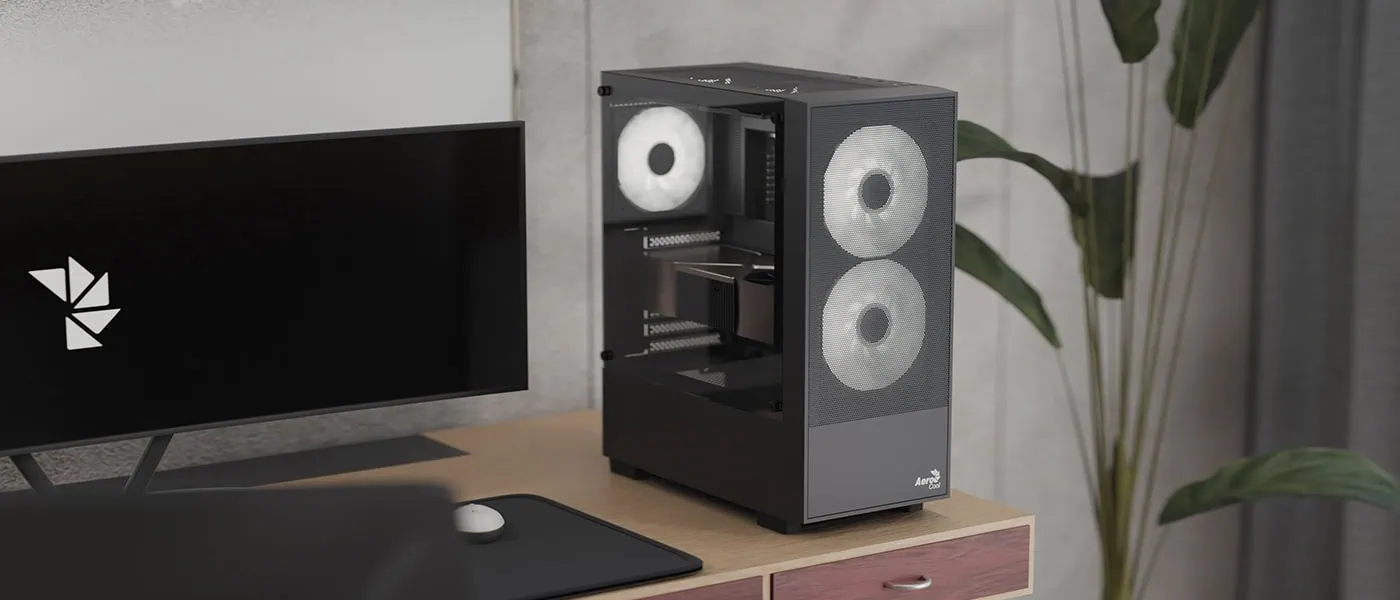

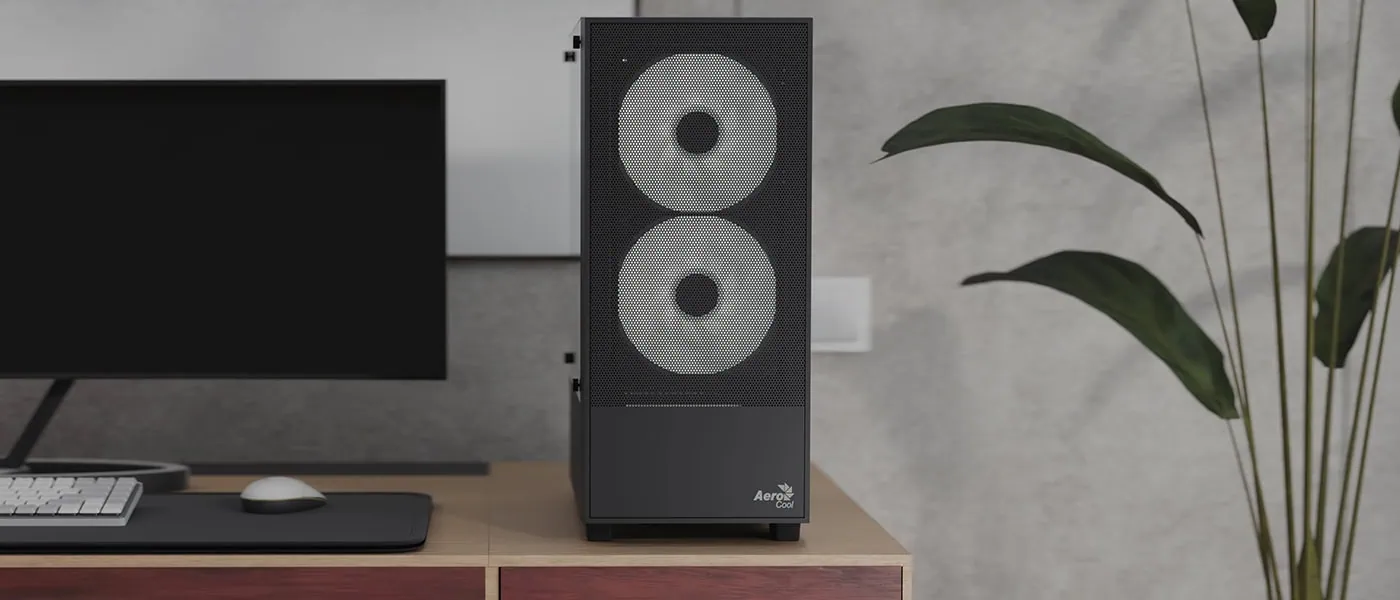

Designed with a sleek front panel featuring air ventilation, the B508A Flow maximizes airflow while maintaining a bold, modern look. Keep your system cool and performing at its best without compromising on aesthetics.

Optimized Airflow Potential

Equipped with five total fan slots, including space for up to four 140mm fans, the B508A Flow ensures efficient heat dissipation. Keep your components running at peak performance with superior airflow.

Liquid Cooling Excellence

Support for radiators up to 280mm on the front and 120mm on the rear ensures optimal thermal performance.

Room for High-Performance Hardware

With support for GPUs up to 340mm, liquid coolers up to 280mm, and CPU coolers up to 158mm, this case is built for powerful setups. Enjoy smooth gaming and seamless multitasking with the hardware you need.

Room for High-Performance Hardware

With support for GPUs up to 340mm, liquid coolers up to 280mm, and CPU coolers up to 158mm, this case is built for powerful setups. Enjoy smooth gaming and seamless multitasking with the hardware you need.

Easy Maintenance Filters

Keep your system clean and efficient with the magnetic top filter and removable bottom filter, designed for effortless cleaning and effective dust prevention.

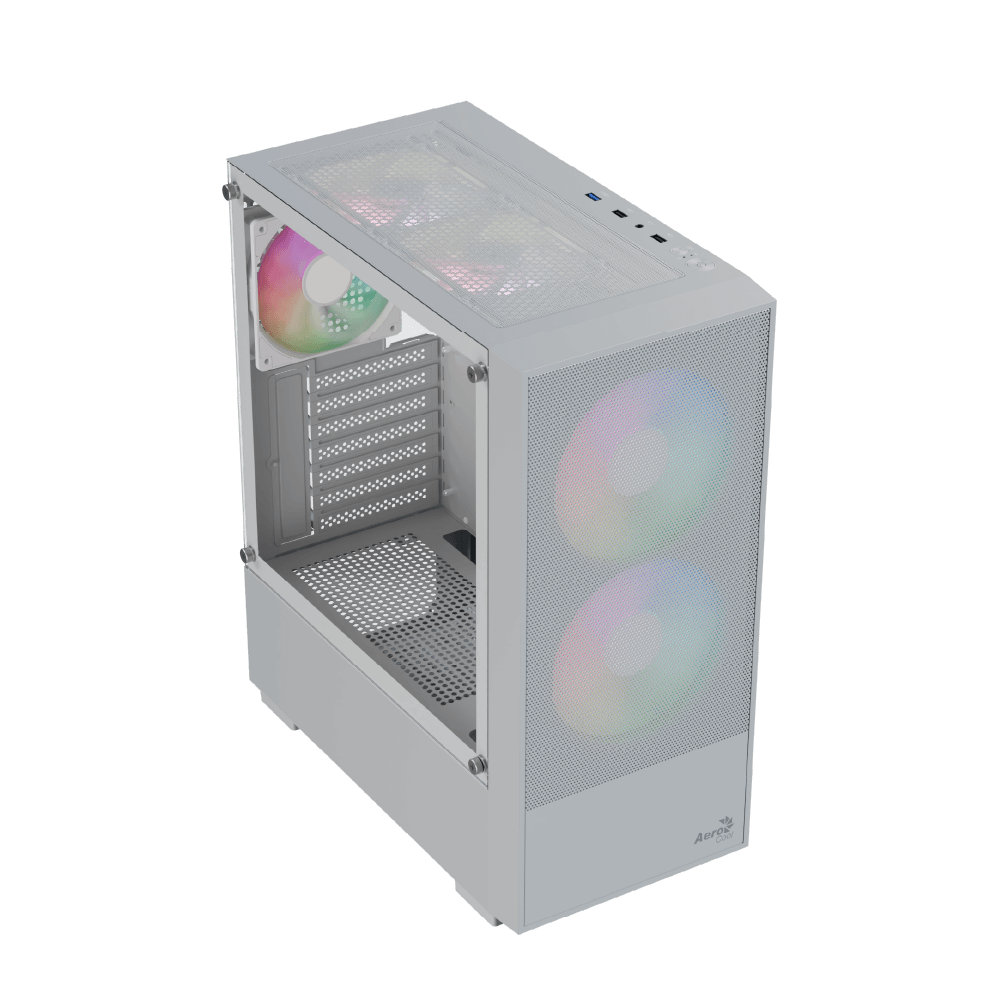

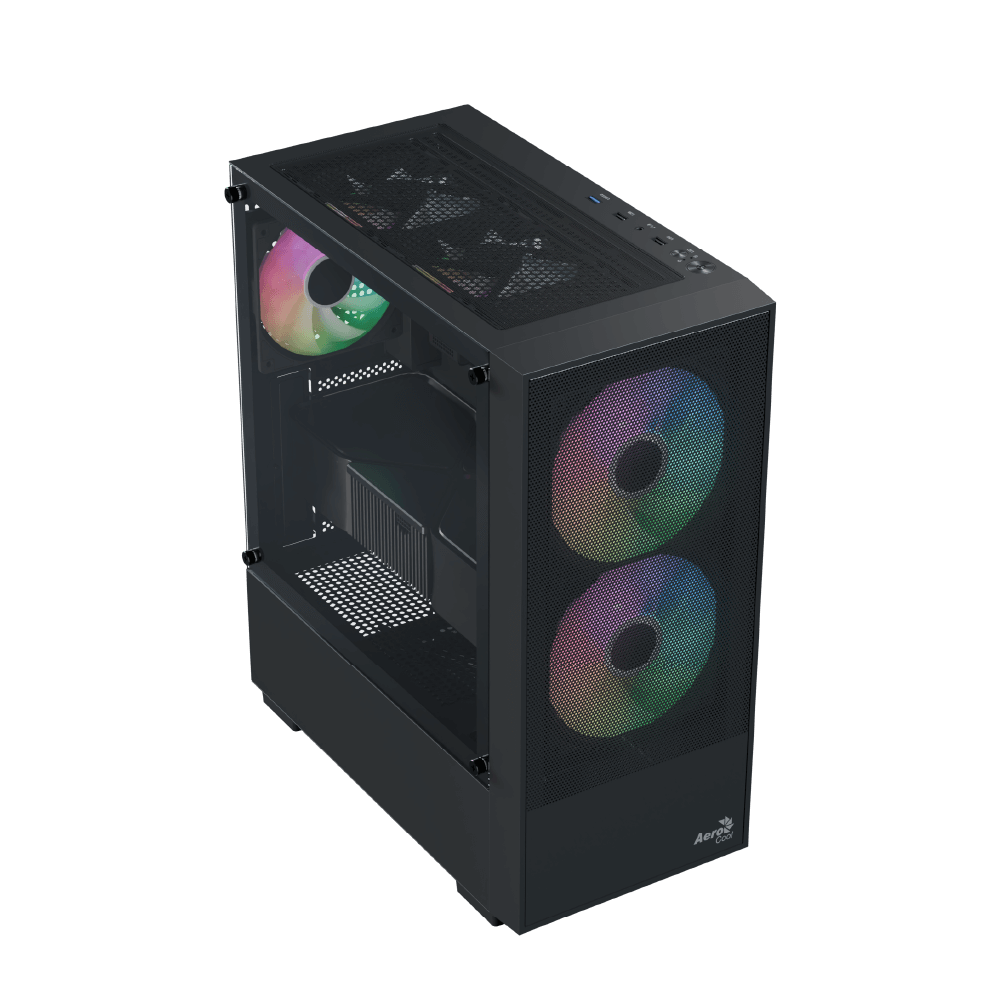

Showcase Your Build

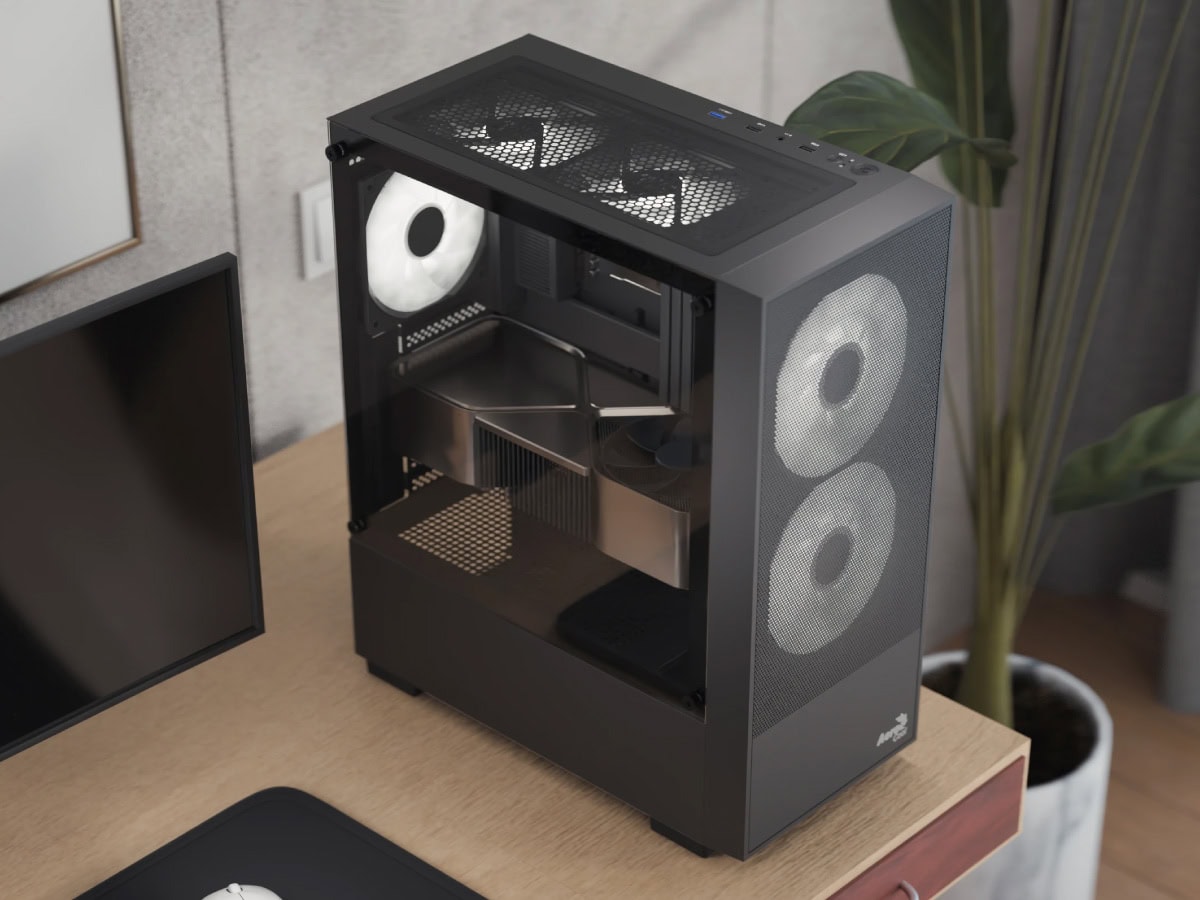

A sleek tempered glass side panel lets you display your components with pride. Highlight your RGB lighting and premium hardware with a clear, stylish view.

SPECS

Model B508A Flow-G-BK-v1, B508A Flow-G-WT-v1
Case Type Mid Tower
Color Black, White
Body Material SPCC
Front Panel Material ABS, SPCC
Steel Thickness 0.5mm
Motherboards ATX/ Micro ATX/Mini-ITX
Case Dimensions (Internal) 200 x 440 x 350mm (W x H x D)
Case Dimensions (Overall) 206.5 x 450.5 x 400.55mm (W x H x D)
3.5” Drive Bays 2 Max. (1x 3.5” and 1 x 3.5”/2.5”)
2.5” Drive Bays 5 Max. (4 x 2.5” and 1 x 2.5”/3.5”)

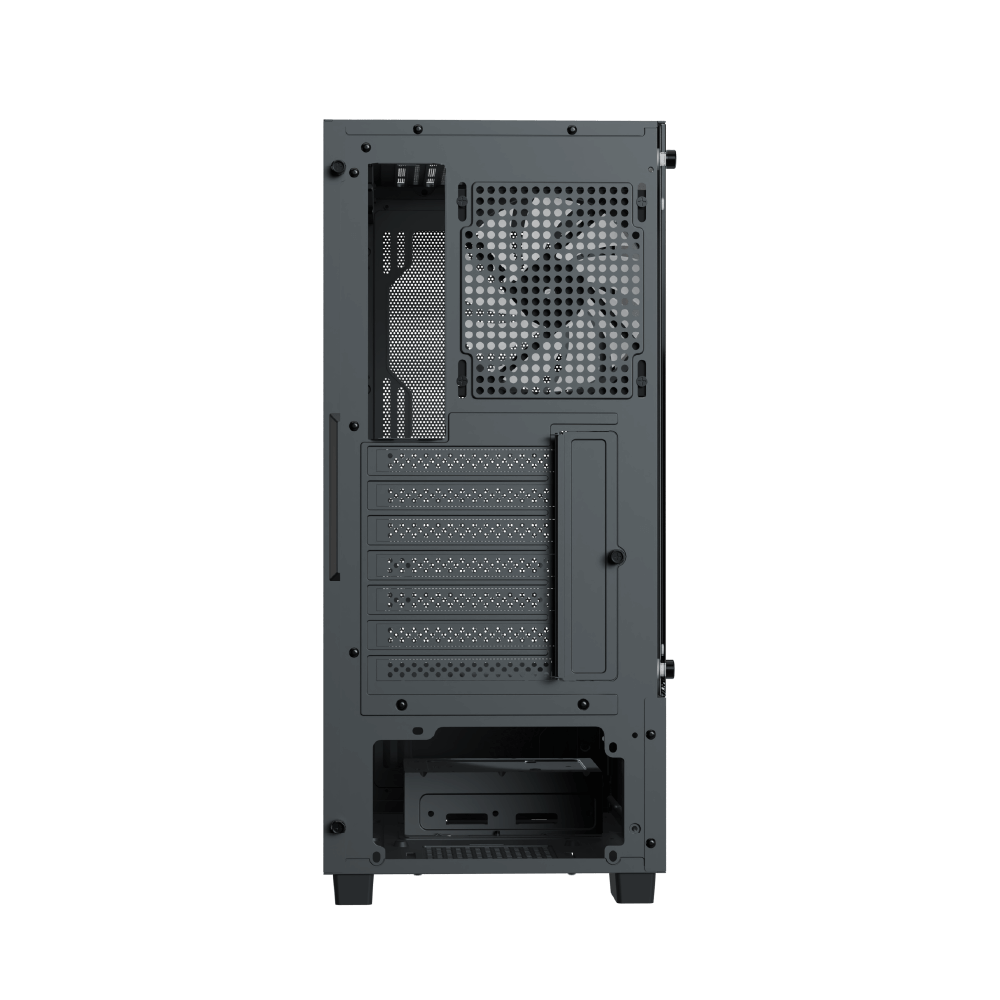

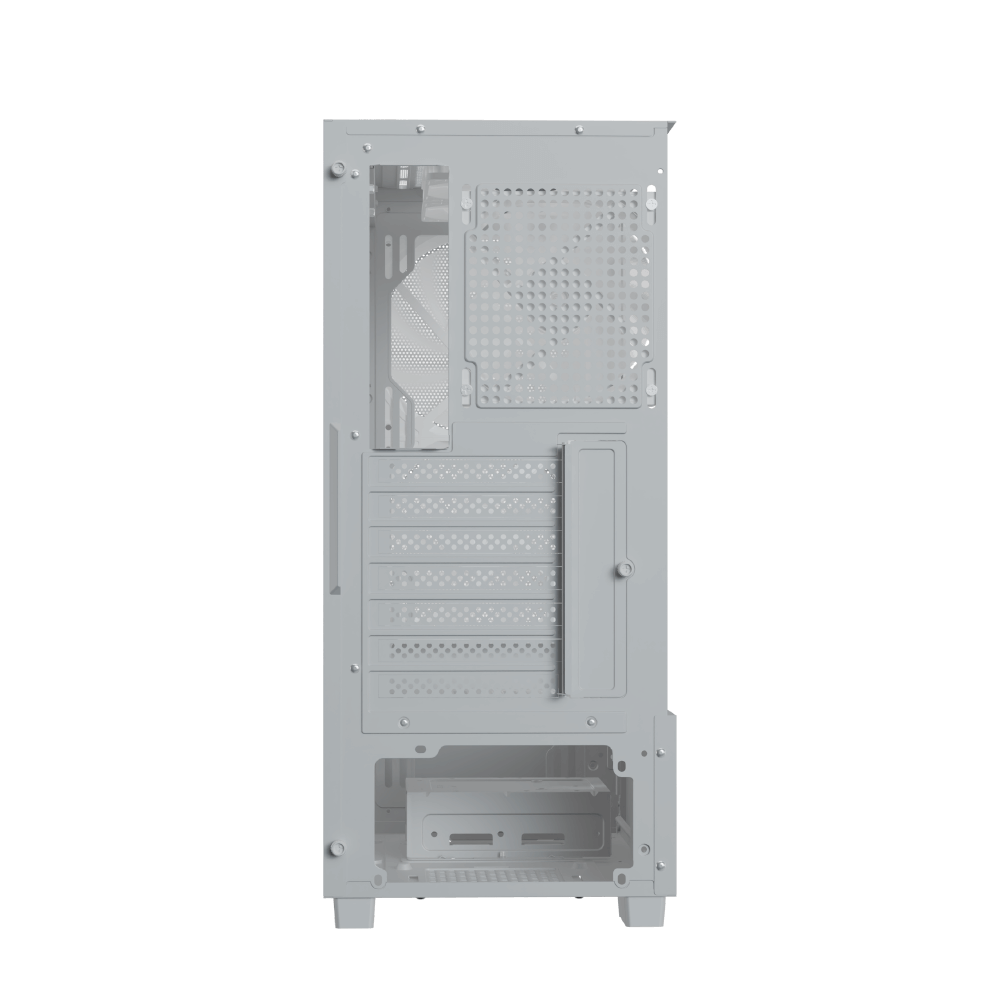

Expansion Slots 7
GPU Clearance Supports GPU up to 340mm
CPU Cooler Clearance Supports CPU cooler up to 158mm
Air Cooling Front: 120mm x 2 or 140mm x 2 (Max.)
Top: 120mm x 2 or 140mm x 2 (Max.)
Rear: 120mm x 1 (Max.)
Liquid Cooling Front: 120/240/280mm Radiator (Optional)
Rear: 120mm Radiator (Optional)
I/O Ports USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic.
Internal Cable Management Depth 21mm
Power Supply ATX PSU (Including cables, up to 185mm) (Optional)
  • Mid-tower case compatible with ATX, m-ATX, and mini-ITX motherboards
  • Stylish front panel design with air ventilation for better circulation
  • Accommodates GPUs up to 340mm and CPU coolers up to 158mm
  • 5 total fan slots fit up to four 140mm fans for even greater cooling potential
  • Includes top (magnetic) and bottom dust filters
  • Tempered glass side panel to show components

Download your user manual here.

Download
