Forge

PWM Fan

  • Copper ring design improves fan blade balance and heat dissipation while reducing bearing temperature.
  • Copper Ring Design and Fluid Dynamic Bearing combines for longer lifespan and reliability.
  • Forge A120 – High air flow at 70.71 CFM and air pressure at 2.15mmH2O for impressive cooling performance.
  • Forge A140 – High air flow at 89.56 CFM and air pressure at 1.83mmH2O for impressive cooling performance.
  • 5-year warranty guarantees a long period of usefulness.
  • Daisy Chain Ready – Connect multiple fans via 4-pin PWM for streamlined setup and cleaner cable management.

Where To Buy
Forge
Overview
Gallery
Specs

Overview

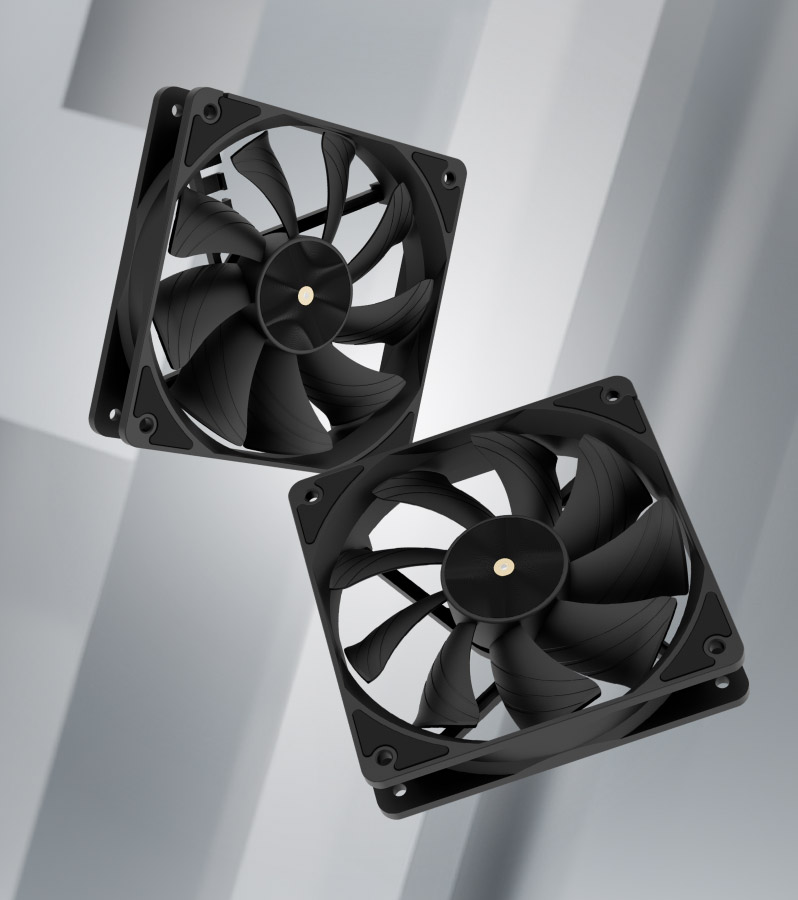

The AeroCool Forge is a performance fan with a 4-pin PWM connector, featuring a copper ring design that enhances fan blade balance, improves heat dissipation, and reduces bearing temperature for optimized cooling efficiency. Equipped with Fluid Dynamic Bearing technology, it delivers impressive cooling performance and long-lasting durability. Backed by a 5-year warranty, the Forge is built for dependable long-term performance.

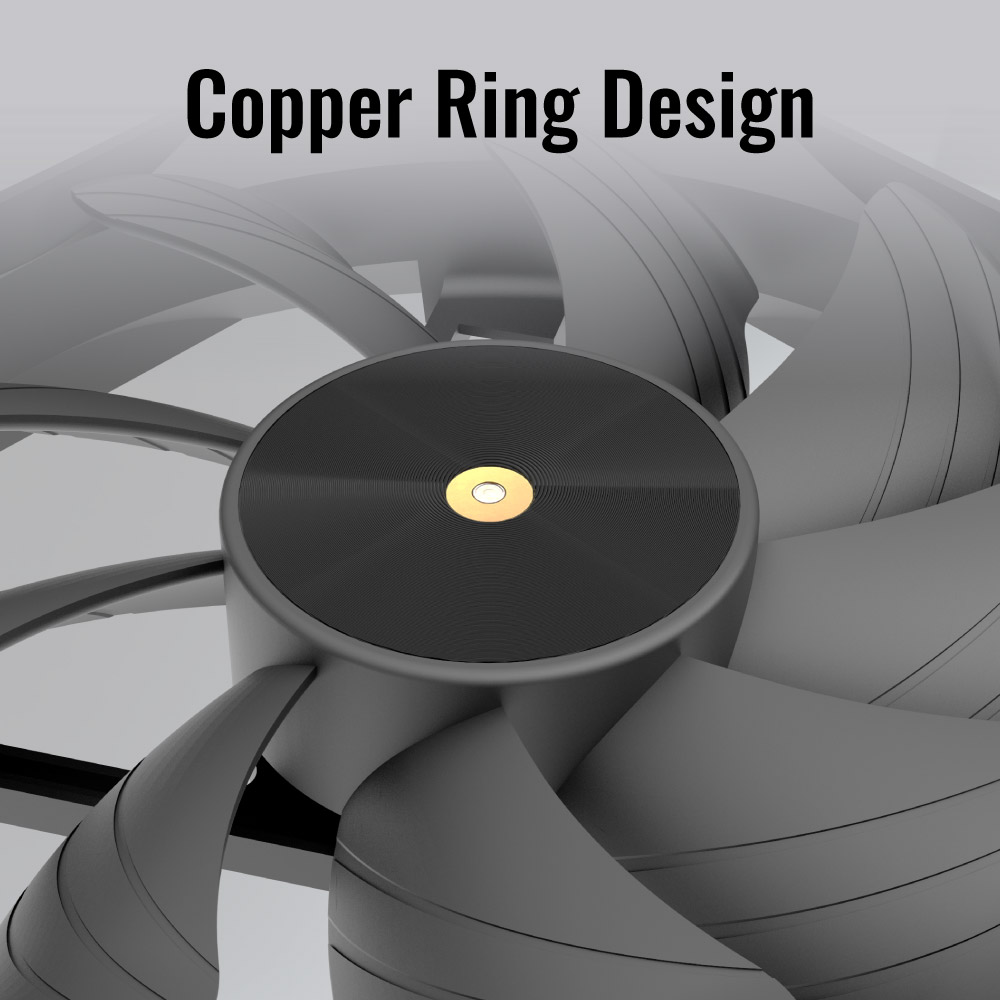

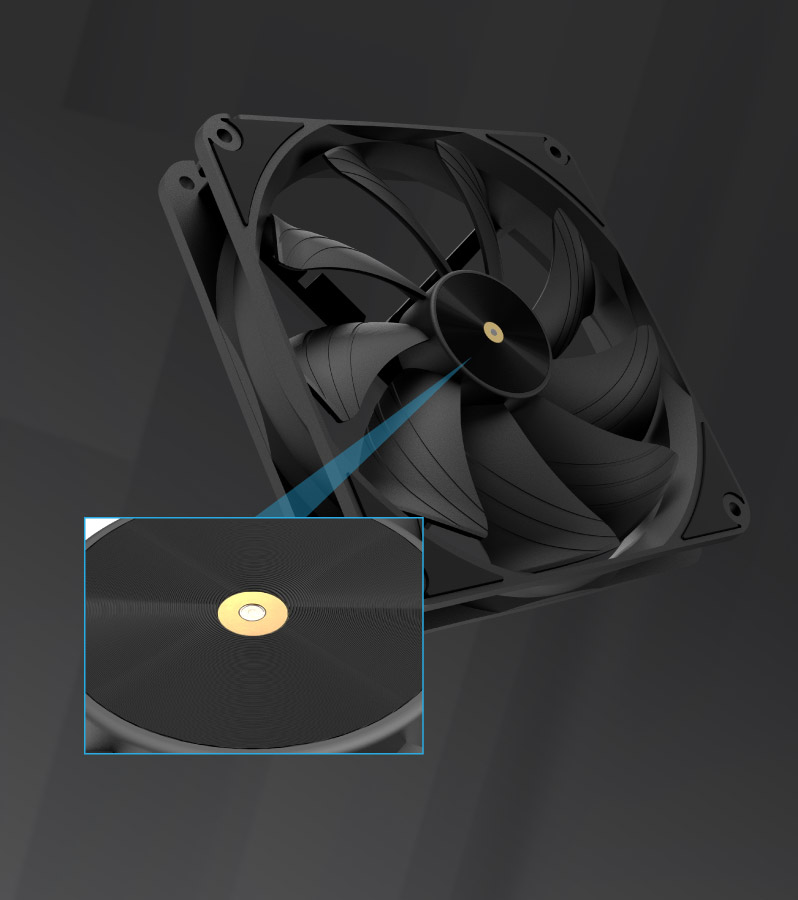

Precision Copper Engineering

The copper ring design improves fan blade balance and enhances heat dissipation, helping maintain lower bearing temperatures even under heavy loads.

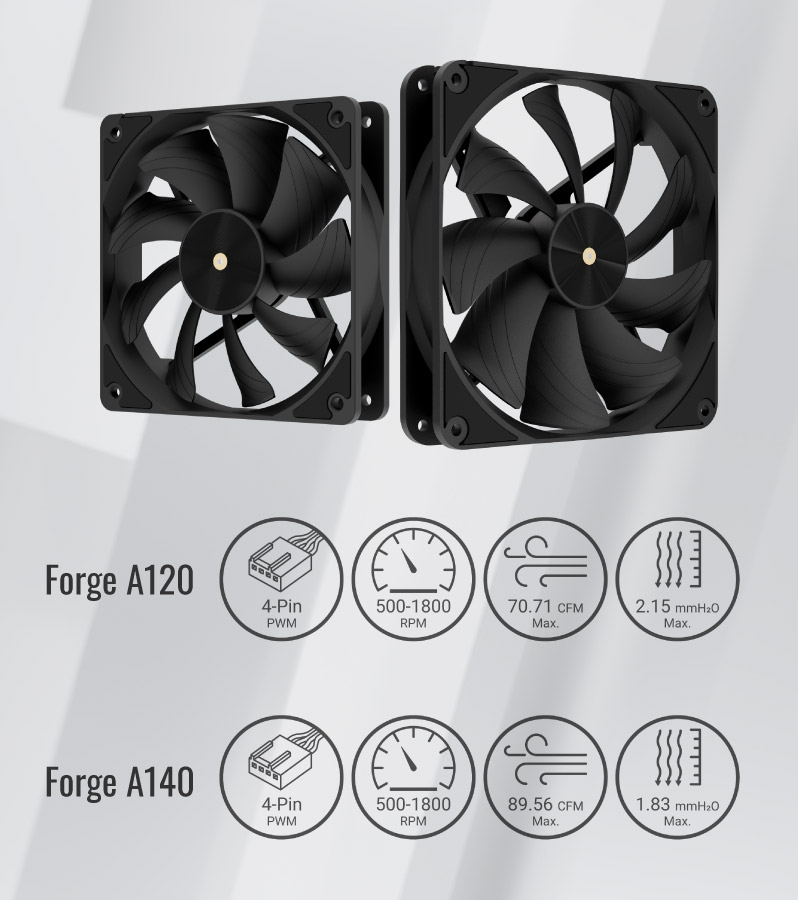

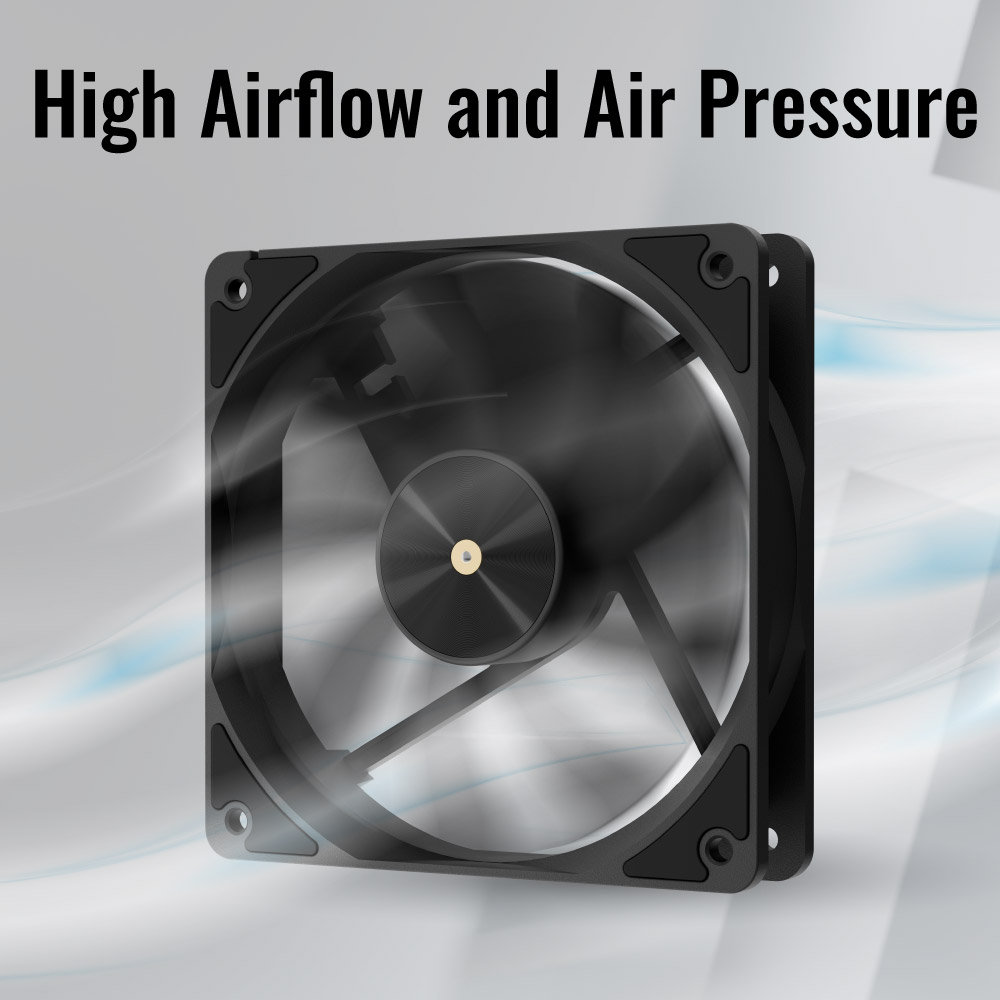

Unmatched Cooling Power

With its included 4-pin PWM connector, the fan speed can be adjusted from 500 to 1800 RPM, delivering strong airflow and air pressure for superior cooling performance.

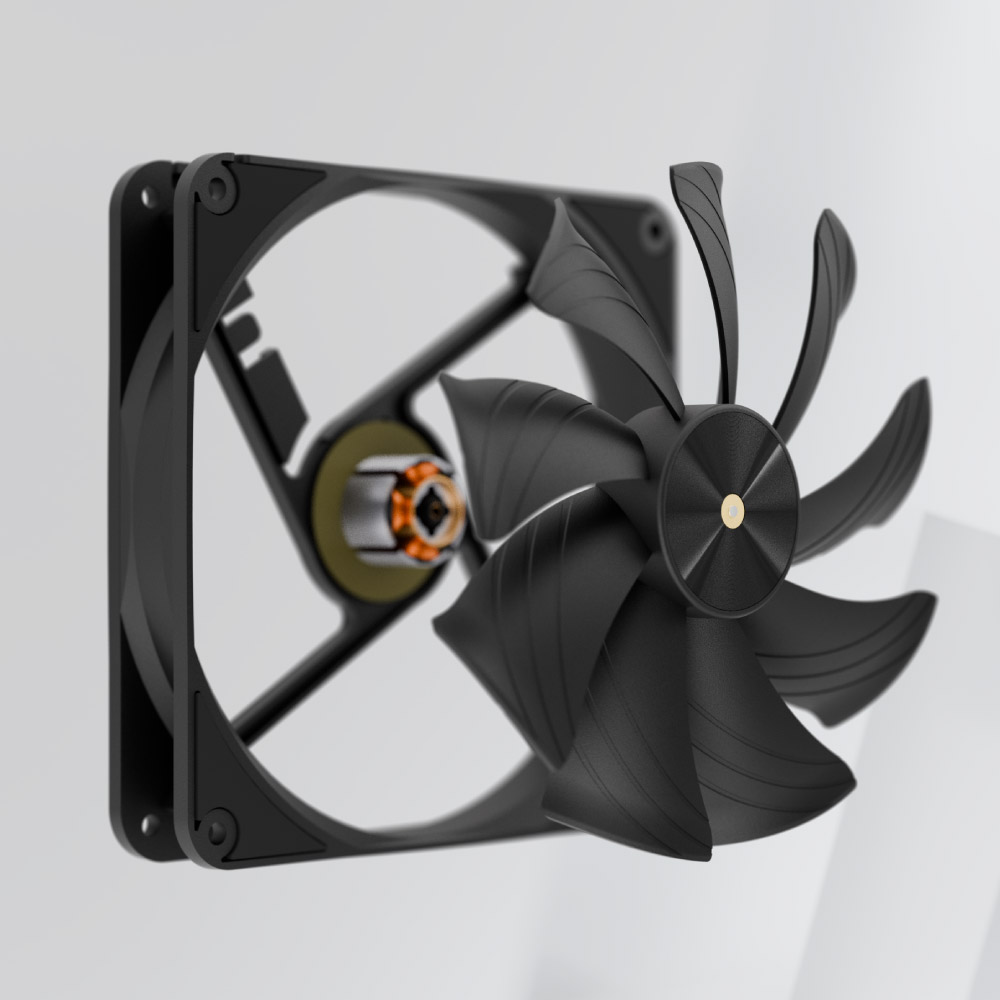

Built for the Long Haul

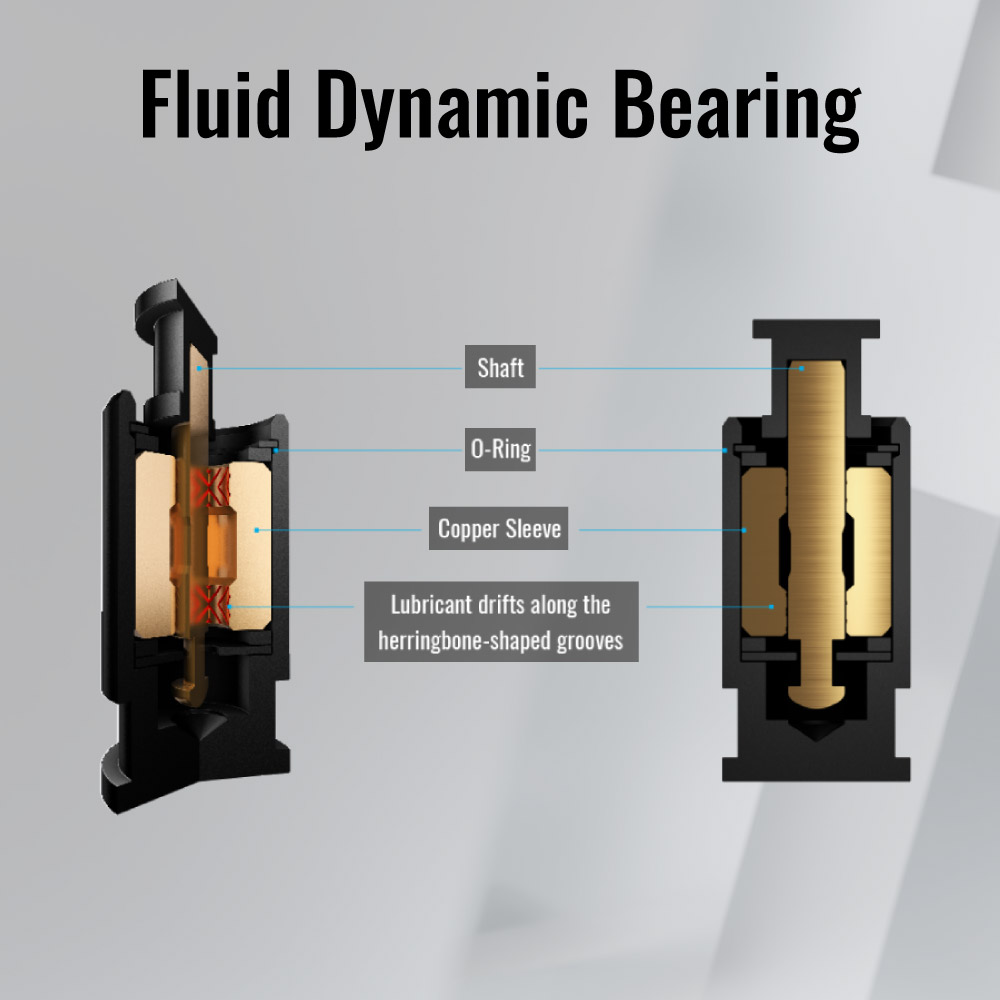

Experience exceptional durability with the Fluid Dynamic Bearing and copper ring combo, ensuring your system runs smoothly for years.

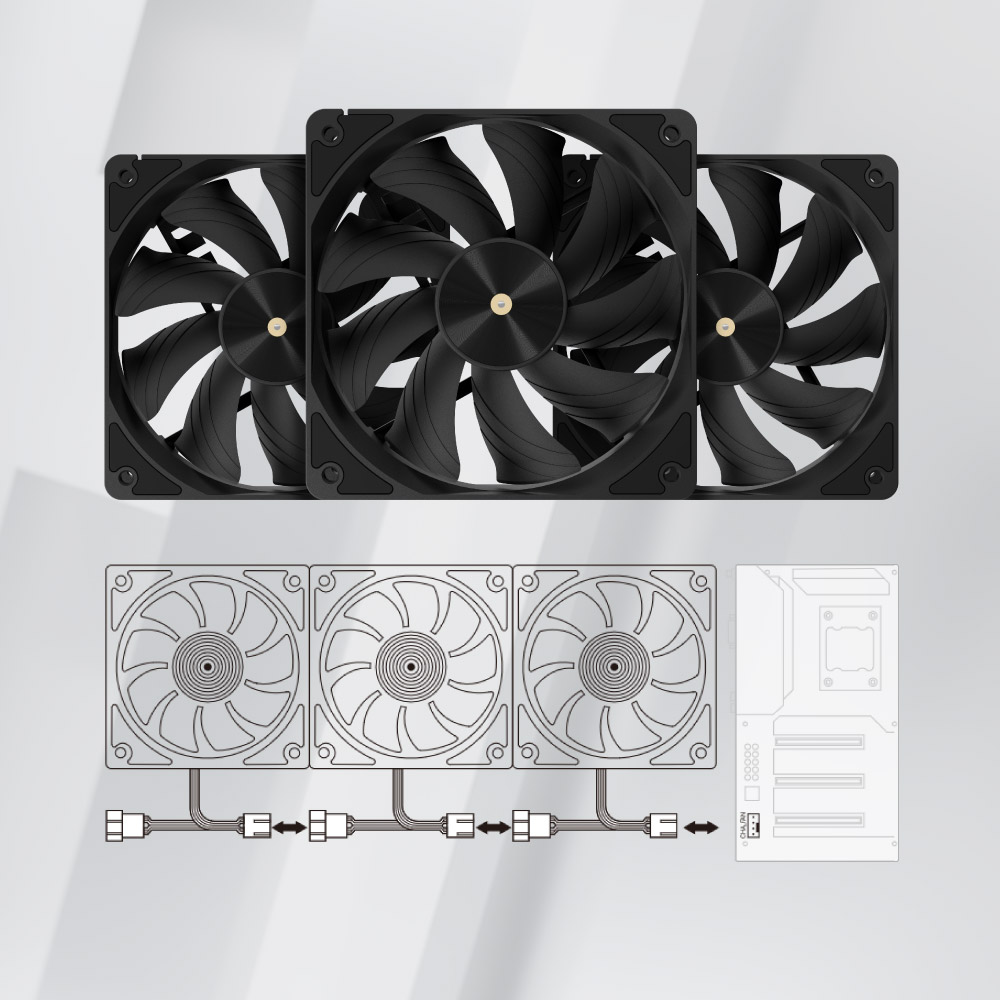

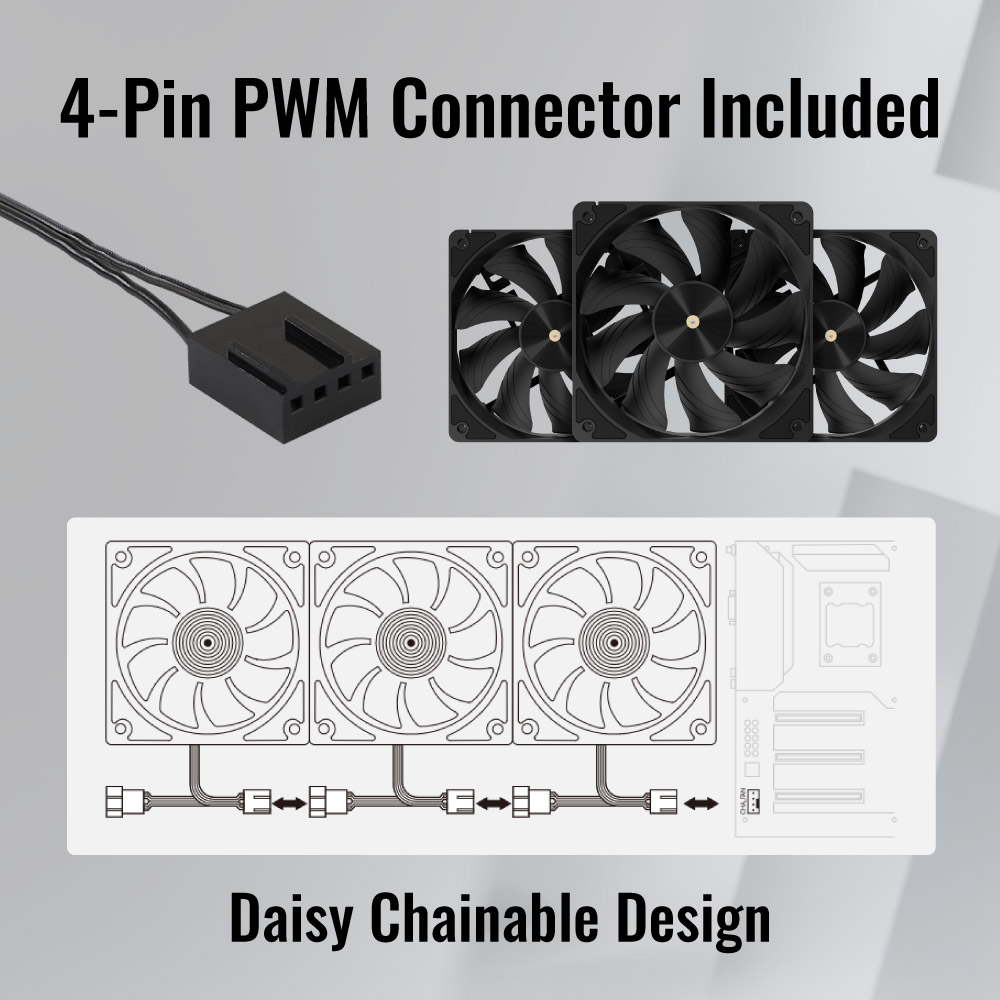

Daisy Chain Your Fans

Easily connect multiple Forge fans in series using the 4-pin fan-to-fan PWM connector. Create a streamlined daisy chain setup with an unlimited number of fans for cleaner cable management and simplified installation.

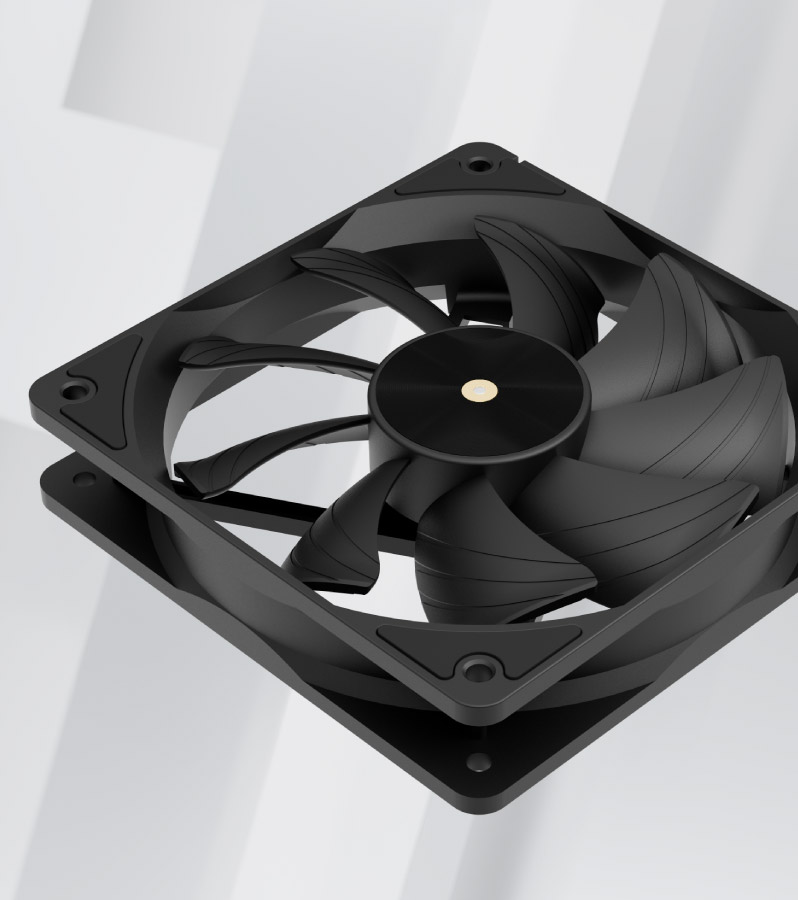

Silent Performance with Full Fan Stop

Enjoy whisper-quiet operation when your system is idle or under low load. With 0% PWM duty cycle support, the fan can completely stop at 0 RPM for true silence.

0 dB(A)

0 RPM

Reliability You Can Trust

Enjoy peace of mind with a 5-year warranty that guarantees extended and reliable use.

SPECS

Model Name Forge A120 BK/WH
Fan Dimensions (L x W x H) 120*120*25mm
Fan Speed 0 rpm, 500~1800rpm ± 200rpm
Connector Type PWM 4pin (daisy chaining)
Fan Starting Voltage 7V
Fan Rated Voltage 12V
Fan Rated Current 0.25A
Fan Power Consumption 3.00W
Fan Air Pressure (Max) 2.15mm-H2O
Fan Air Flow (Max) 70.71CFM
Fan Noise Level (Max) 36.5 dB(A)
Fan Bearing Type Fluid Dynamic Bearing
MTBF 50,000hrs/40°C

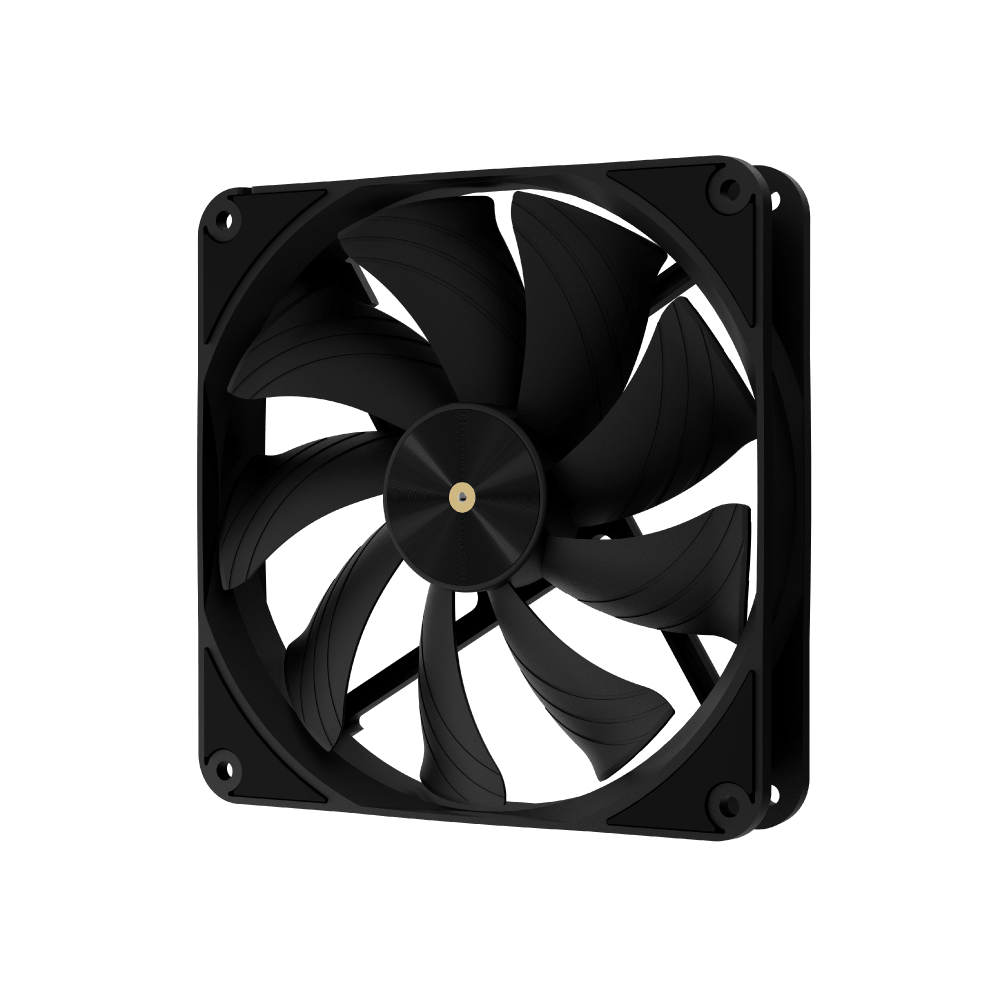

Model Name Forge A140 BK/WH
Fan Dimensions (L x W x H) 140*140*25mm
Fan Speed 0 rpm, 500~1500rpm ± 200rpm
Connector Type PWM 4pin (daisy chaining)
Fan Starting Voltage 7V
Fan Rated Voltage 12V
Fan Rated Current 0.27A
Fan Power Consumption 3.24W
Fan Air Pressure (Max) 1.83 mm-H2O
Fan Air Flow (Max) 89.56CFM
Fan Noise Level (Max) 34.8dB(A)
Fan Bearing Type Fluid Dynamic Bearing
MTBF 50,000hrs/40°C
