Icicle AL40F-Digi

Air Cooler
Where to Buy ▼

  • Built-In Digital Display for Real-Time System Monitoring
  • TDP (Thermal Design Power) rating up to 220W
  • Single-tower thermal structure with four direct-contact heat pipes
  • Equipped with a 120 mm high performance PWM fan
  • High-density fin stack optimized for enhanced efficiency
  • Covered by a 3-year manufacturer warranty

Overview

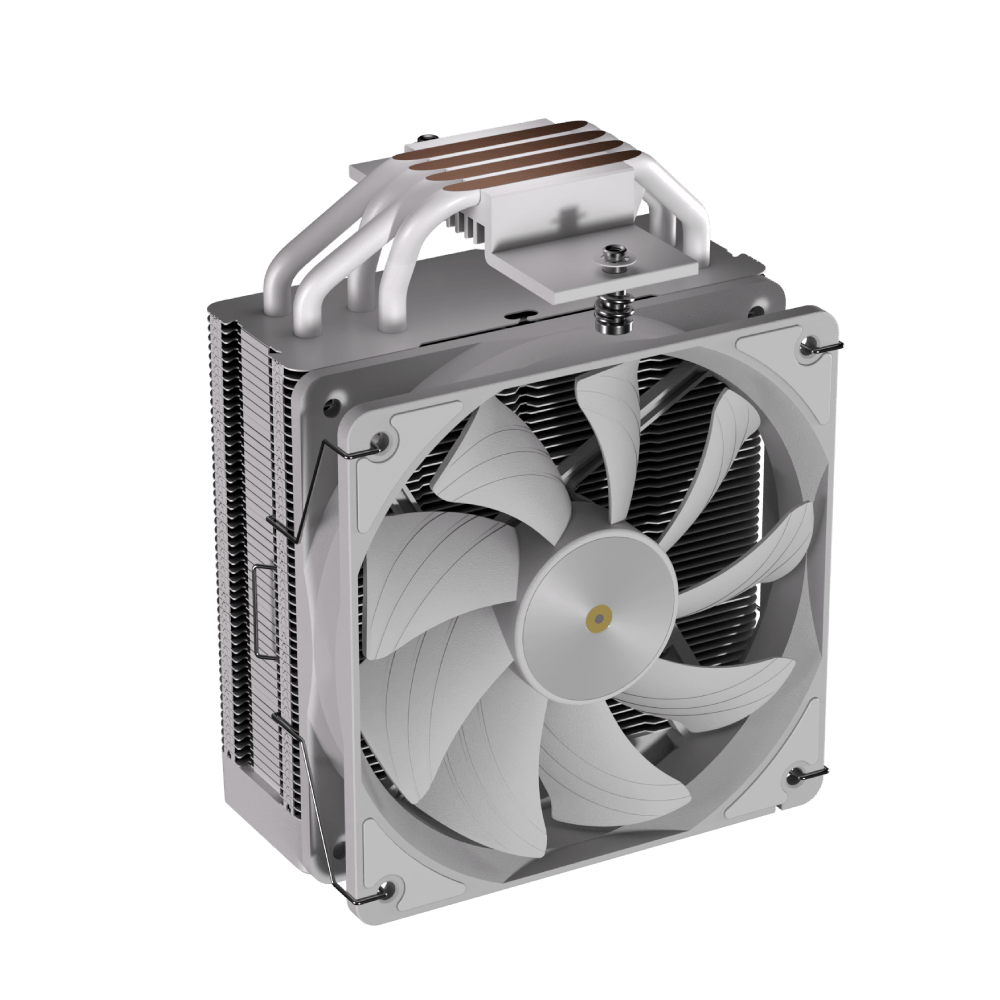

Icicle AL40F-Digi is a high-performance PWM air cooling solution built for powerful yet space-efficient systems, featuring a single-tower heatsink and four direct-touch heat pipes for fast and efficient heat dissipation. The 120 mm high performance fan delivers strong, focused airflow to maximize cooling performance while maintaining stable and quiet operation. An integrated digital display on top of the heatsink provides real-time readouts of CPU temperature, usage, and fan speed, allowing users to monitor critical system data at a glance. Rated for up to 220W TDP and backed by a 3-year warranty, Icicle AL40F-Digi delivers reliable, long-term cooling performance for high-performance PC builds.

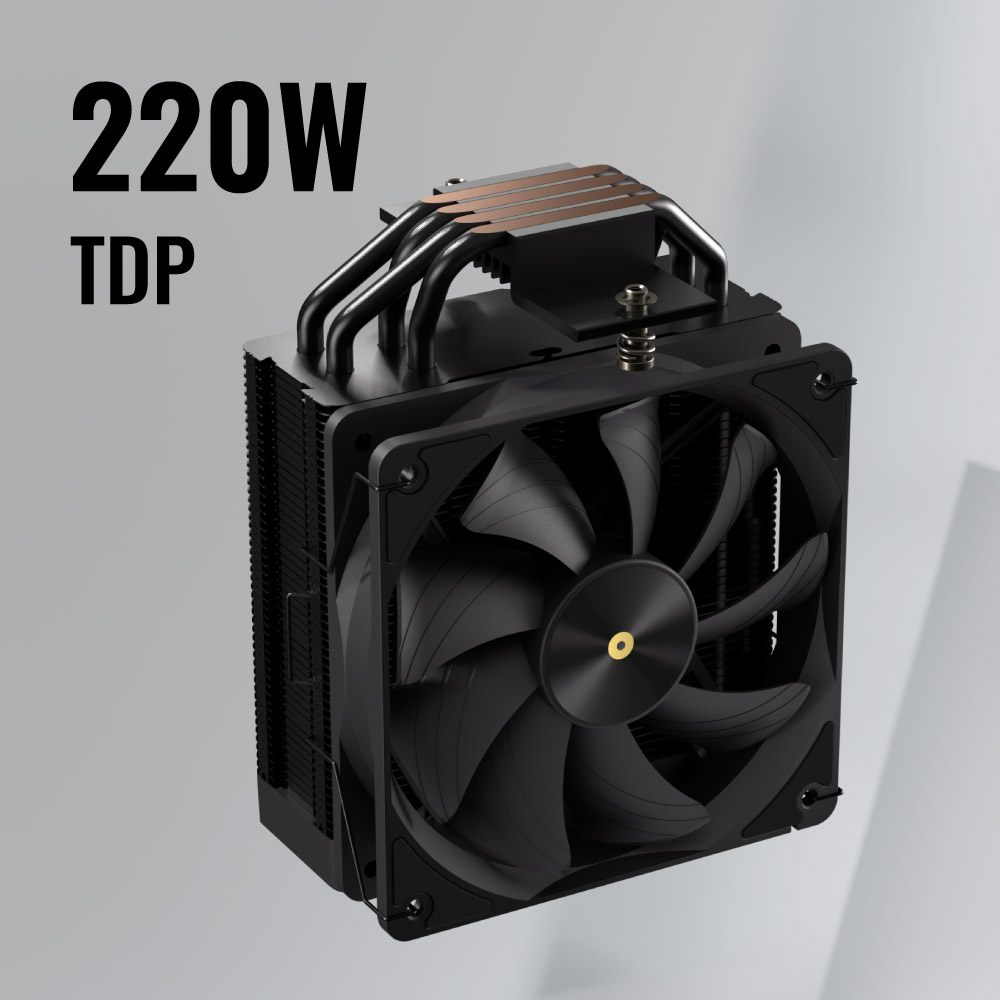

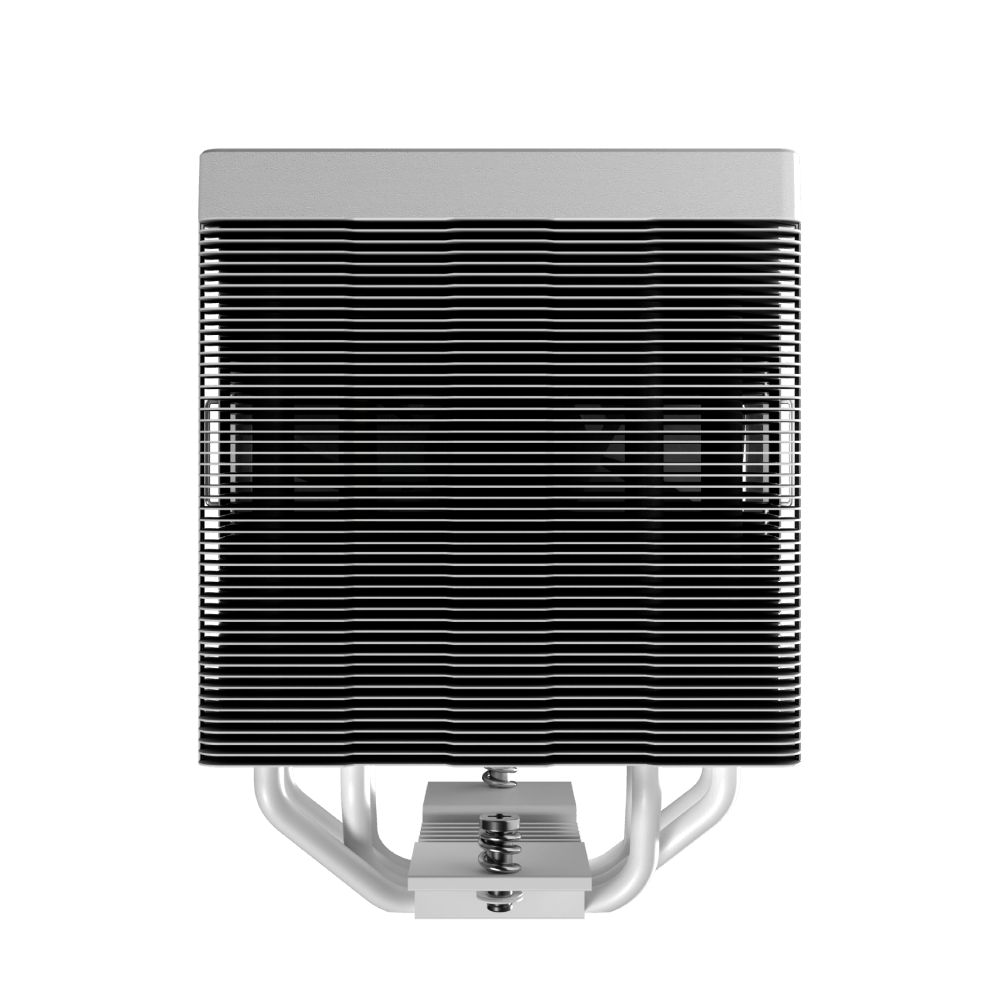

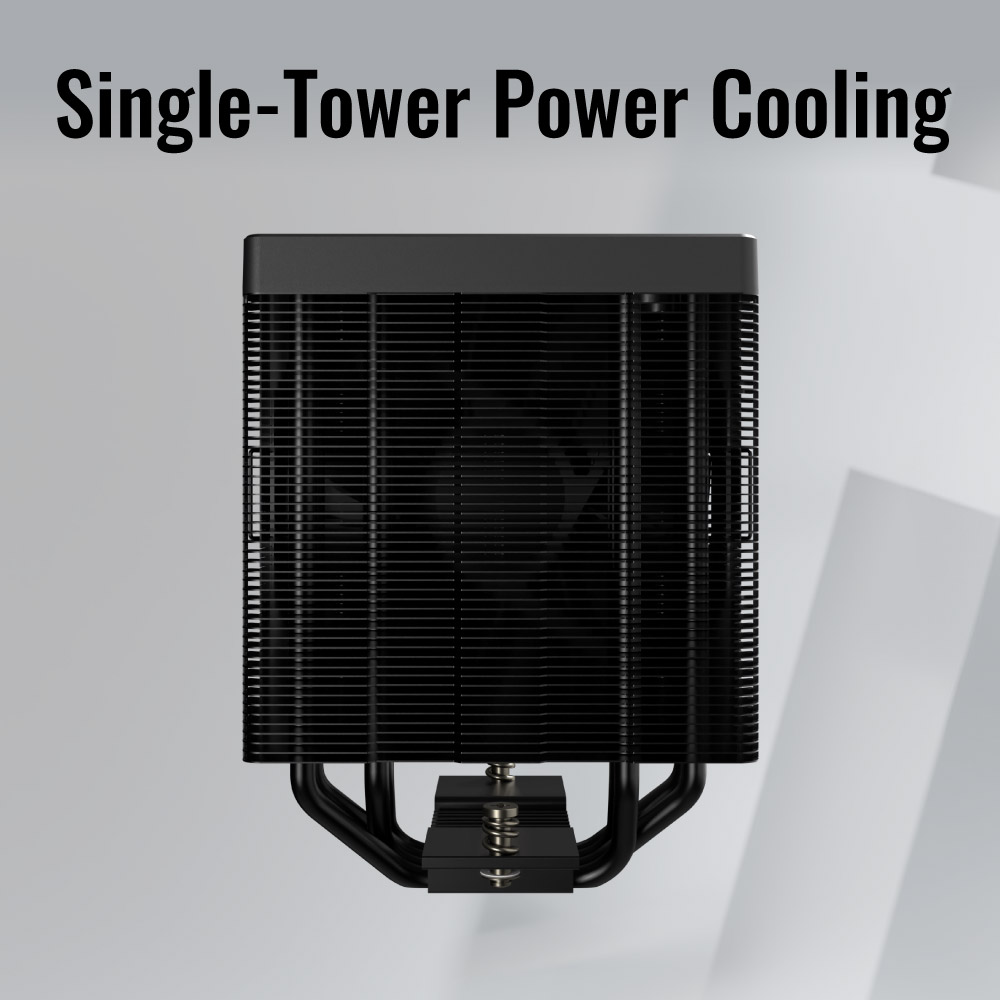

220W TDP Single-Tower Cooling Performance

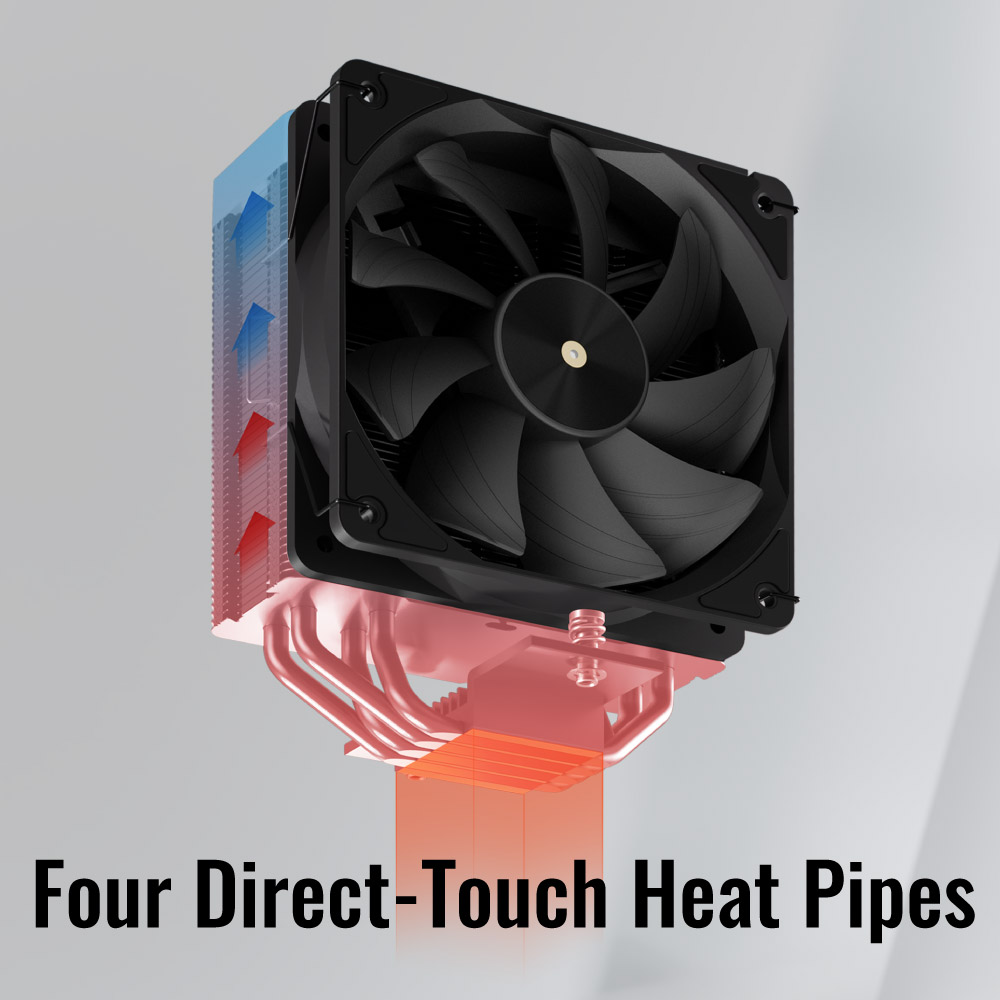

Engineered to handle up to 220W TDP, this tower cooler with four direct-touch heat pipes rapidly transfer heat away from the CPU, delivering reliable cooling for high-power processors.

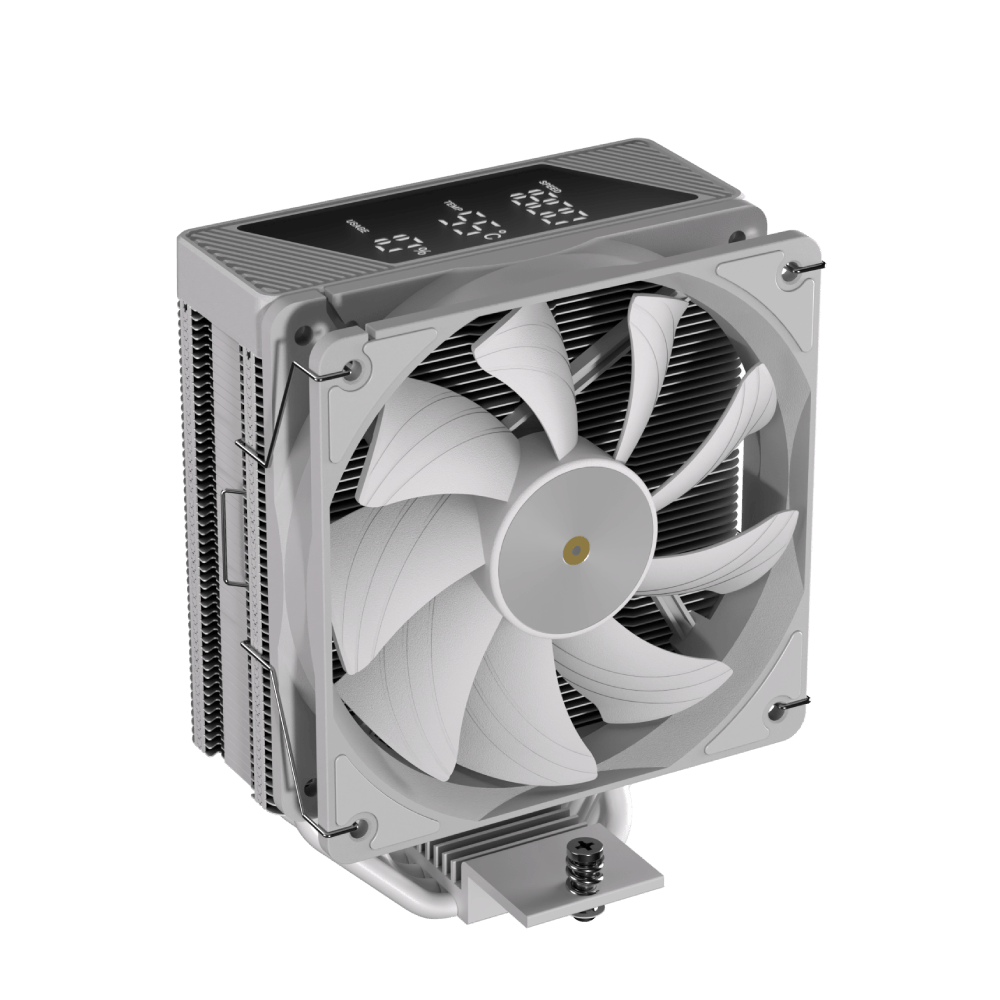

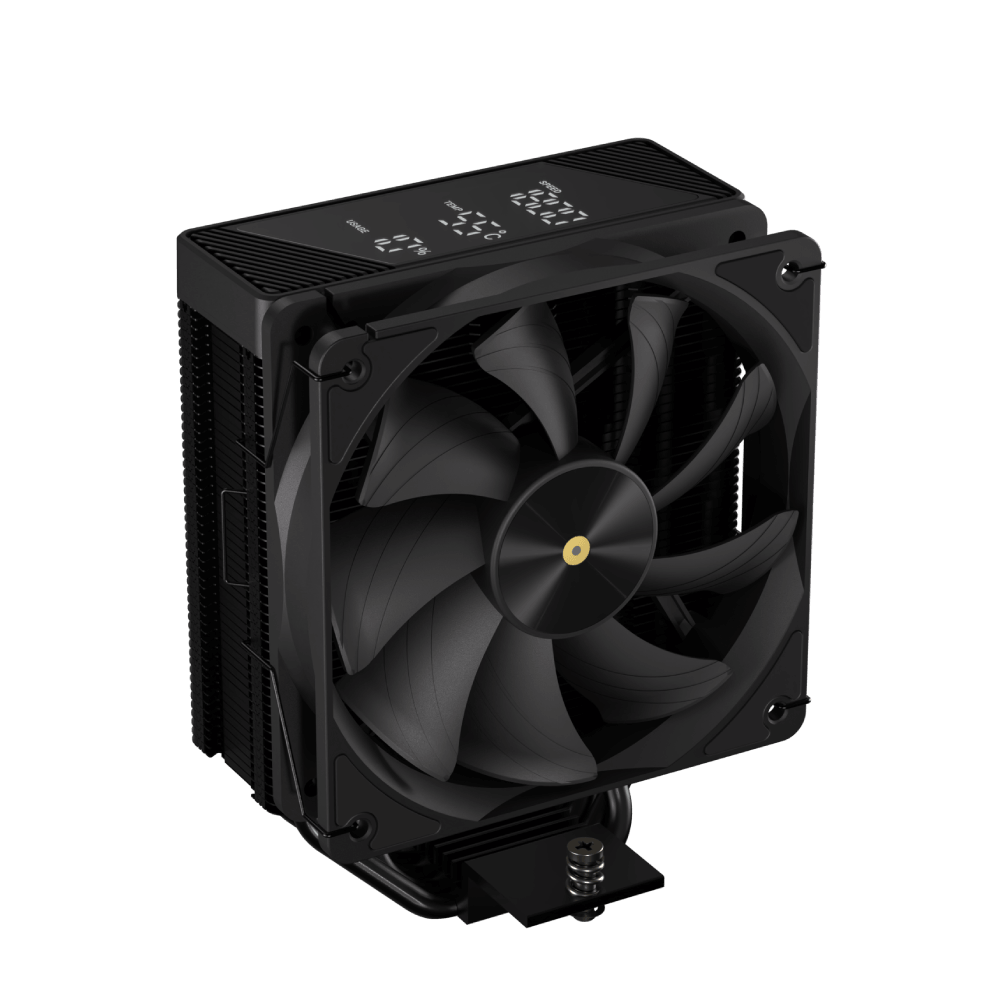

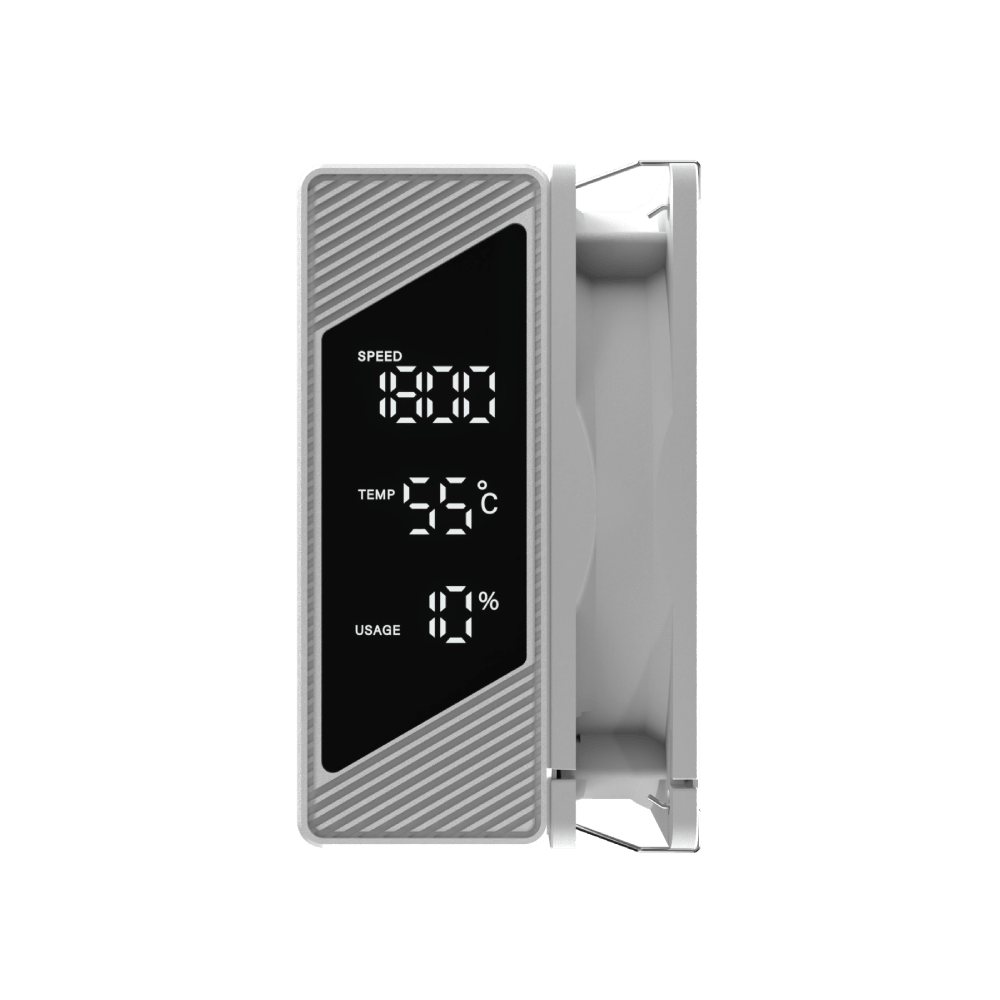

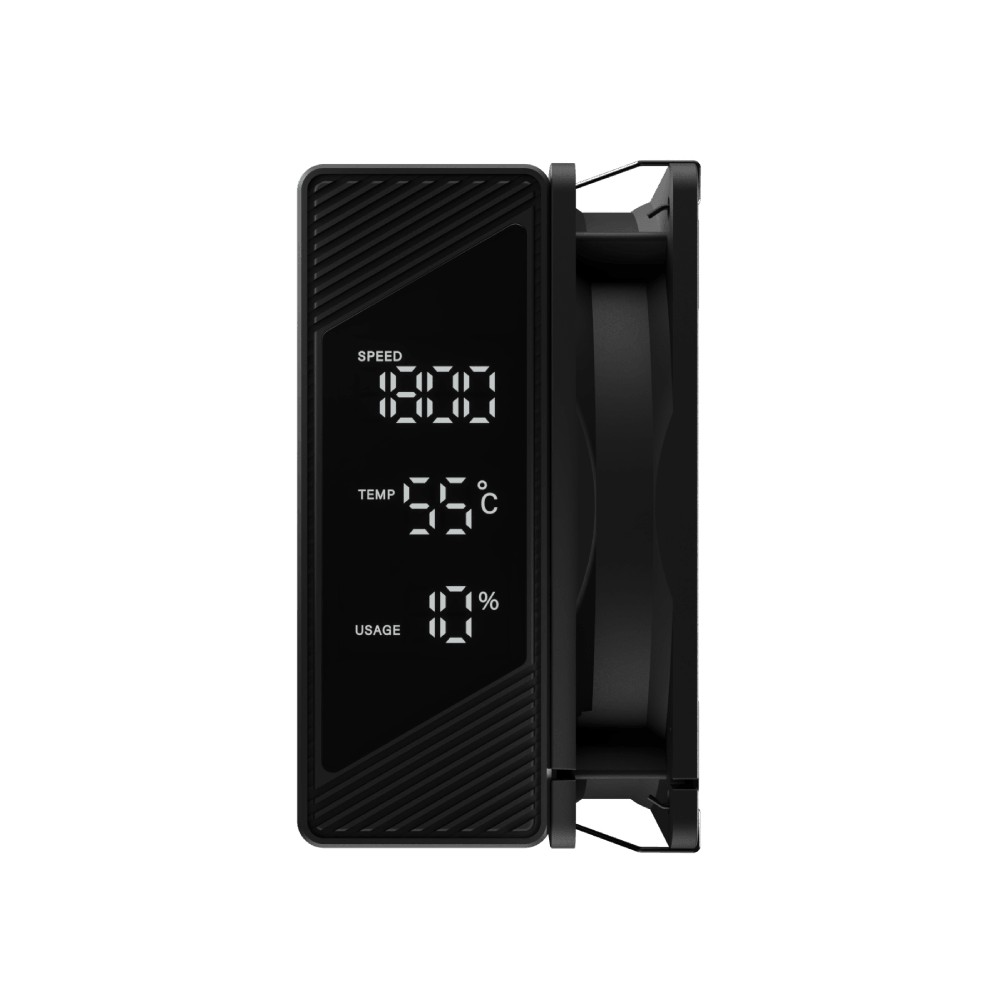

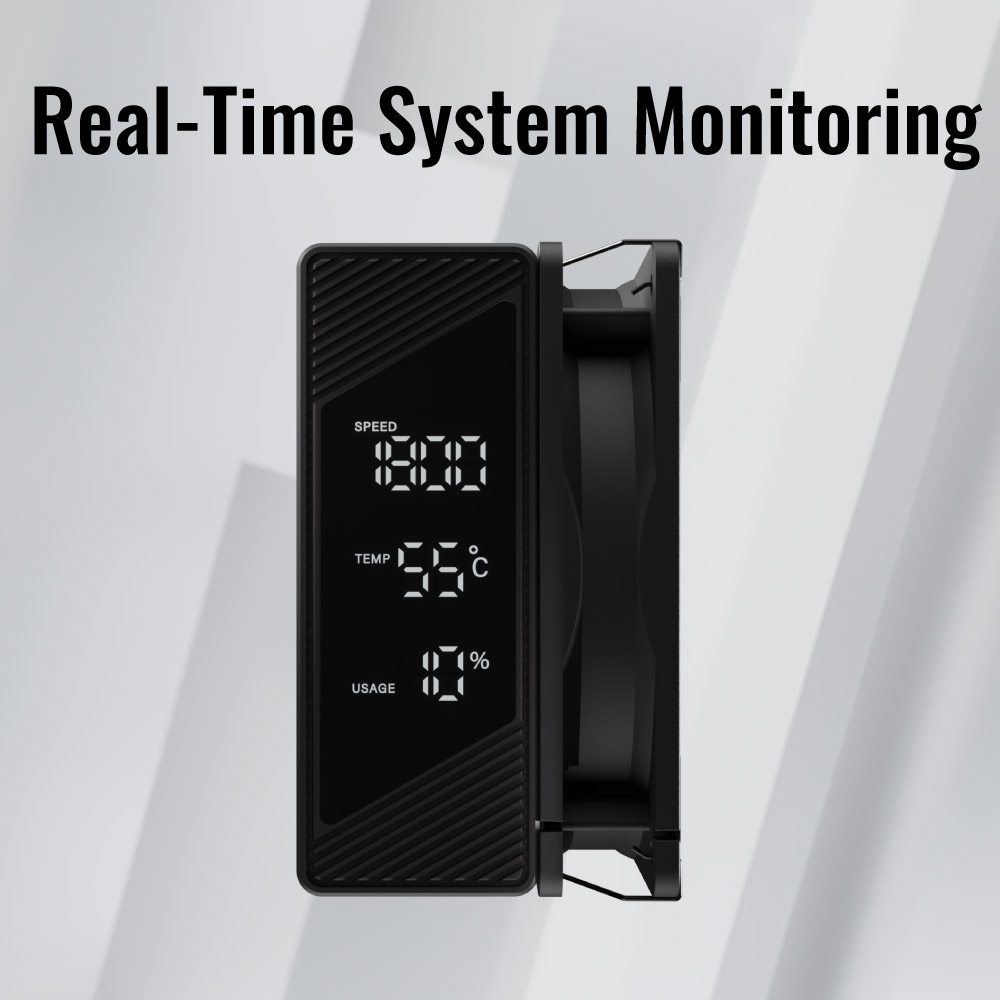

Real-Time System Data, Built Into the Cooler

AL40F-Digi features an integrated digital display on top of the heatsink, providing live readouts of CPU temperature, CPU usage, and fan speed. This allows users to monitor critical system performance directly from their hardware, without needing to switch screens or run additional monitoring software.

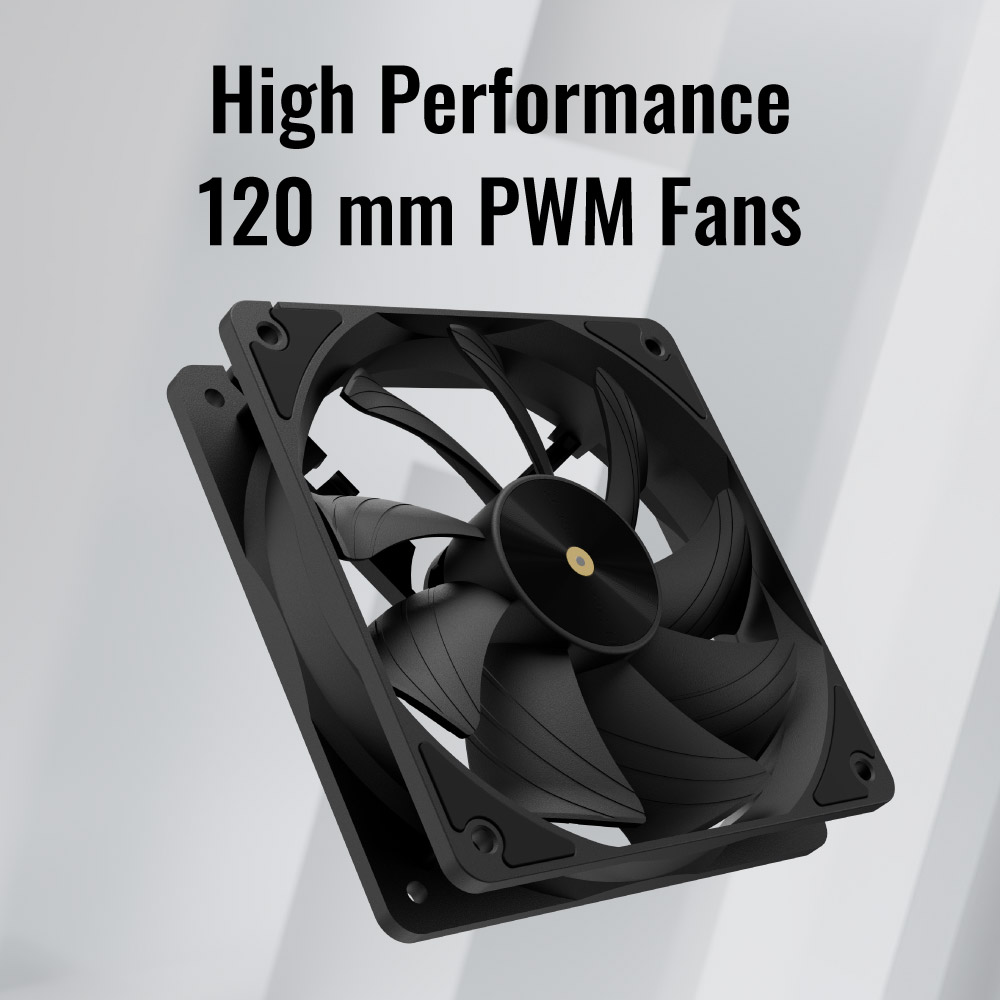

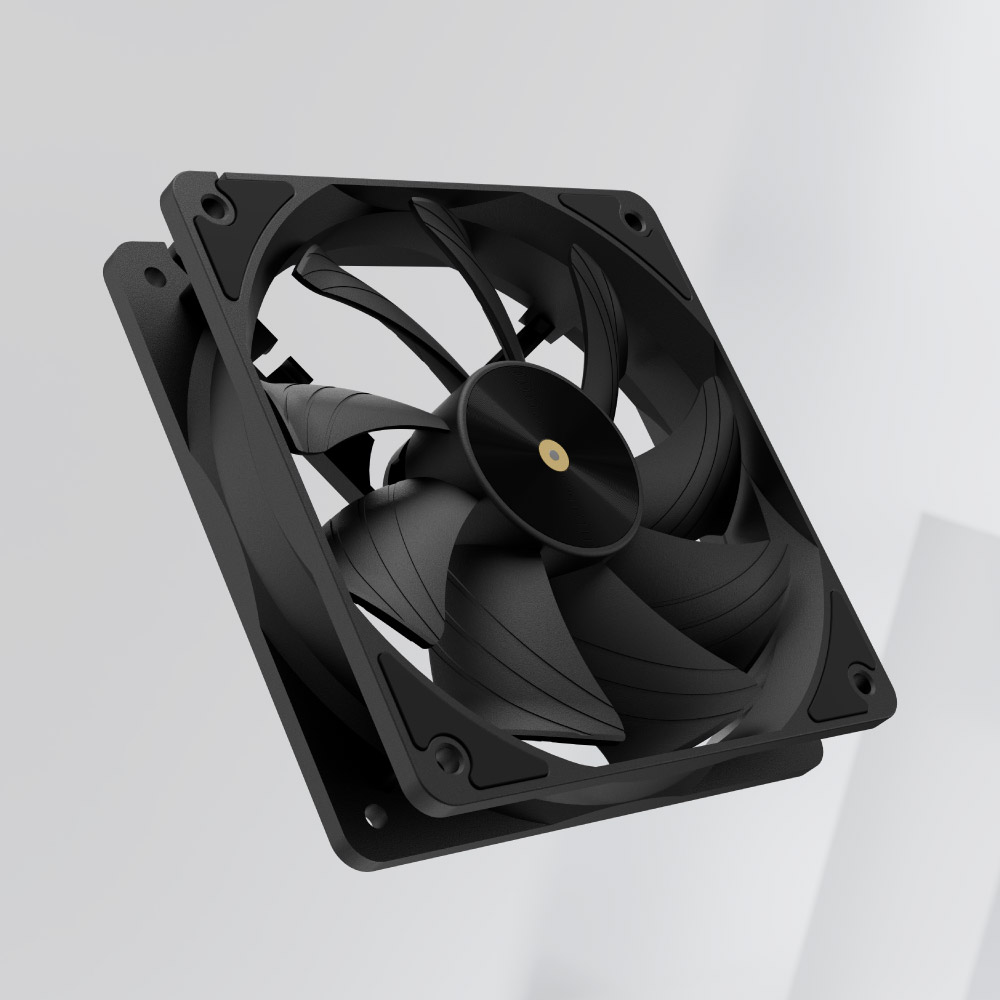

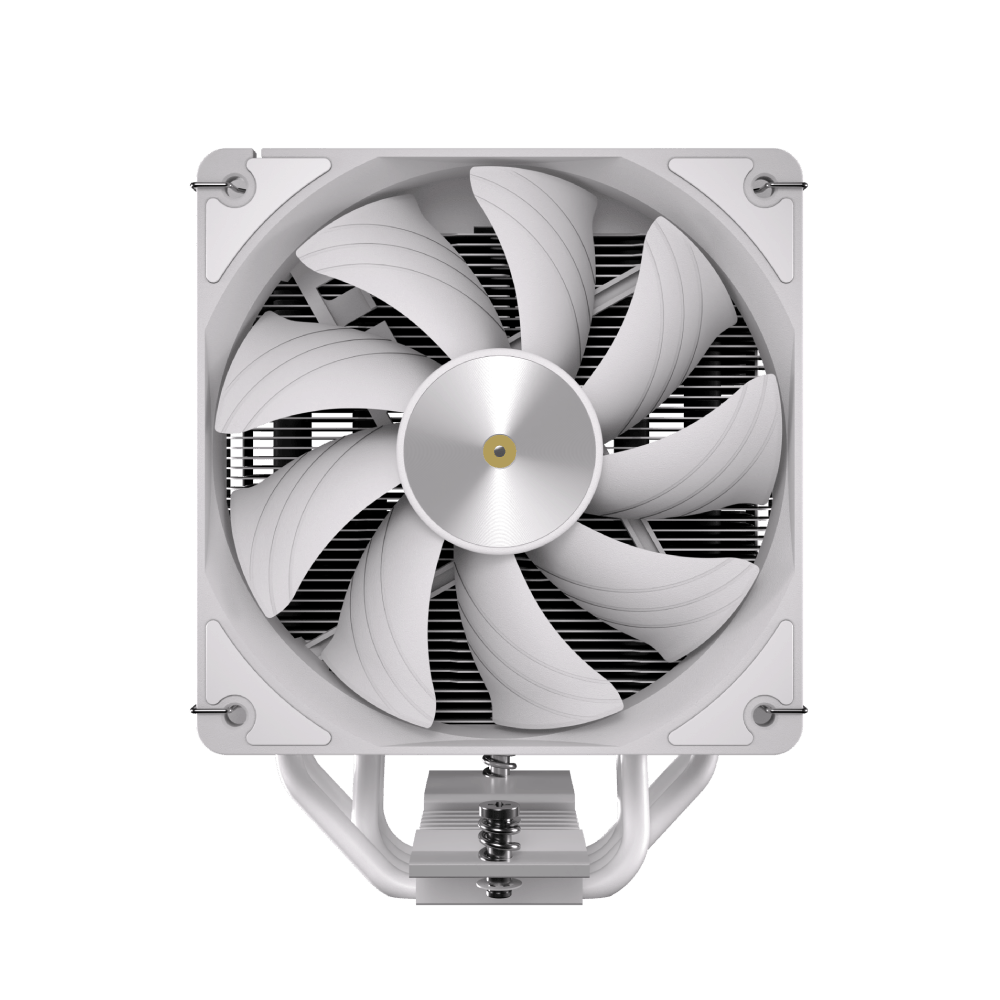

Powerful 120mm PWM Forge Fan

High-performance 120mm PWM fan push concentrated airflow through dense fin stacks, ensuring efficient heat removal with stable and quiet operation under load.

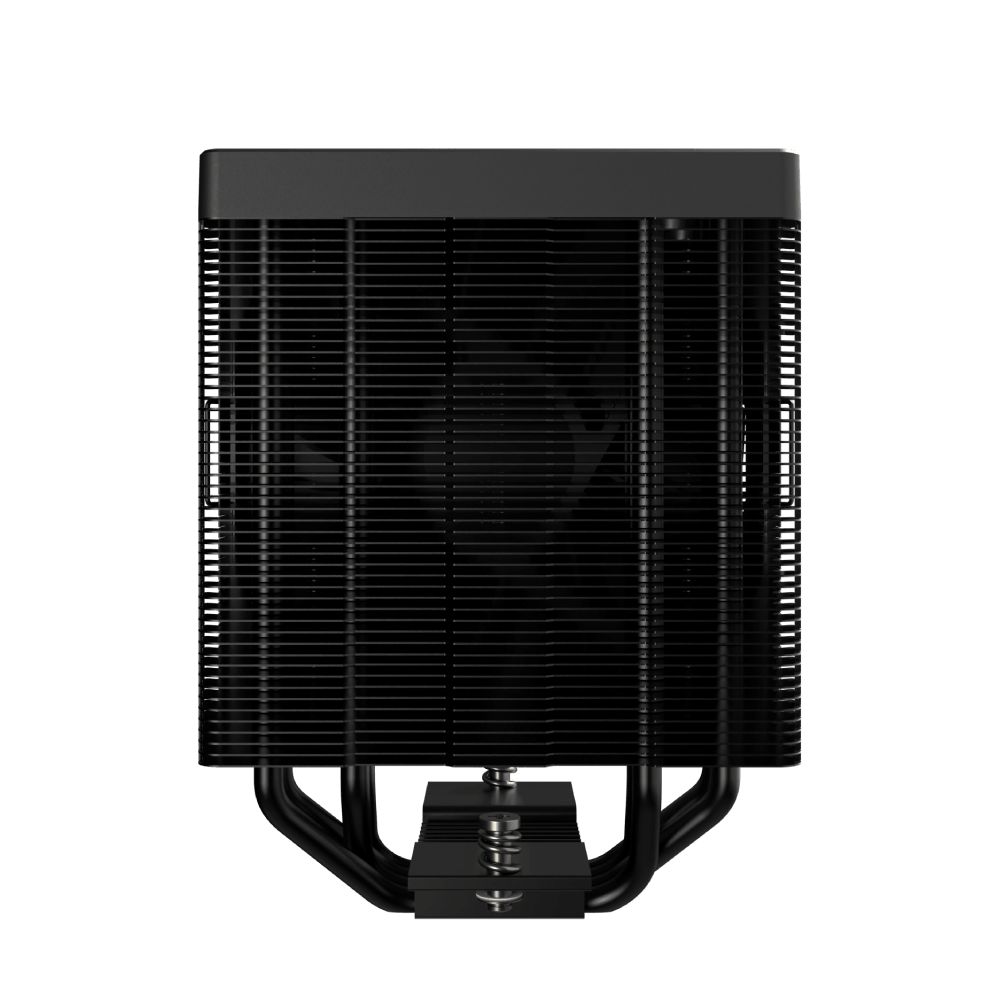

High-Density Fin Stack for Faster Heat Dissipation

High-density aluminum fins are engineered to maximize surface area and airflow efficiency, improving overall thermal performance across both cooling towers.

Built for High-End Systems, Backed by 3-Year Warranty

Designed for demanding gaming and workstation builds, Icicle AL40F-Digi delivers long-term reliability and is covered by a 3-year manufacturer warranty.



SPECS

Model Icicle AL40F-Digi BK/WH
Base Material Aluminum block with HCTT Heat Core Touch Technology
Fin Material Aluminum
Heat pipe Dia. 6mm x 4
Dimension 135x127x158
TDP(Thermal Design Power) 220
Fan Speed 0 rpm, 500~1800rpm ± 200rpm
Connector PWM 4-Pin
Dimension 120 x 120 x 25mm
Bearing Type Fluid Dynamic Bearing
Started Voltage 7V
Rated Voltage 12V
Rated Current 0.25 A
Power Consumption 3.00 W
Air Pressure 2.15 mm-H2O
Air Flow 70.71 CFM
Noise 36.5 dB(A)
MTBF (Mean Time Between Failure) 50,000 hrs@40°C
Socket Intel LGA 1851 / 1700 / 1200 / 115X
AMD AM5 / AM4
  • Built-In Digital Display for Real-Time System Monitoring
  • TDP (Thermal Design Power) rating up to 220W, supporting high-performance CPU platforms
  • Single-tower thermal structure with four direct-contact heat pipes for rapid heat dissipation
  • Equipped with a 120 mm high performance PWM fan providing high airflow and dynamic lighting control
  • High-density fin stack optimized for enhanced airflow and heat exchange efficiency
  • Covered by a 3-year manufacturer warranty for stable and dependable operation
