• Mesh panels increase air flow and ventilation
• Supports liquid cooling in the front and rear of the case
• Supports air cooling in the front, top, and rear of the case
• Supports high-end graphics cards up to 320mm (without front fan)
• Supports CPU coolers up to 160mm
Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.
Large front mesh design allows big volume of air to be drawn into the case for fast cooling.
Easy to clean PSU dust filter.
Accommodates an internal 120 / 240mm radiator at the front plate.
Supports internal 2 x 3.5″HDD and 3 x 2.5″HDD/SSD.

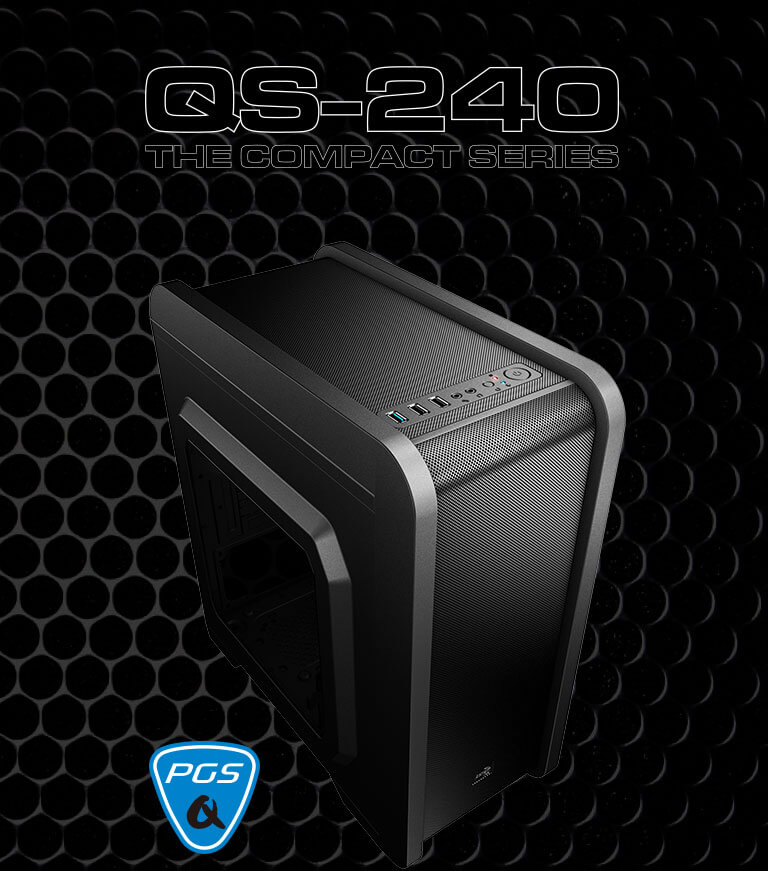

| Model | QS-240 |
| Case Type | Micro ATX Case |
| Steel Thickness | 0.5mm |
| Motherboards | Micro ATX / Mini ITX |
| Case Dimensions (Overall) | 209 x 419 x 372.2mm (W x H x D Overall) |
| Hard Disk Drive Bays | 2 x 3.5″ |
| 2.5” Drive Bays | 3 |
| Expansion Slots | 4 |
| GPU Clearance | 320mm (without front fan) |
| PSU Clearance | 170mm |
| CPU Clearance | Support Max. Height Of 160mm For CPU Cooler |
| I/O Ports | 1 x USB3.0, 2 x USB2.0, HD Audio + MIC |
| Air Cooling | Front : 120mm fan x2 (Optional)
Top: 120mm fan x2 (Optional) Rear : 120mm fan x1 (1 x 120mm Black fan Included ) |
| Radiator Support | Front : 120 / 240 mm Radiator
Rear : 120mm Radiator |
| Net Weight | 2.95 Kg |
| Power Supply | ATX PSU (Optional) |
| EAN Code | 4713105958102 |
Download your user manual here.
