BAS

CPU AIR COOLER

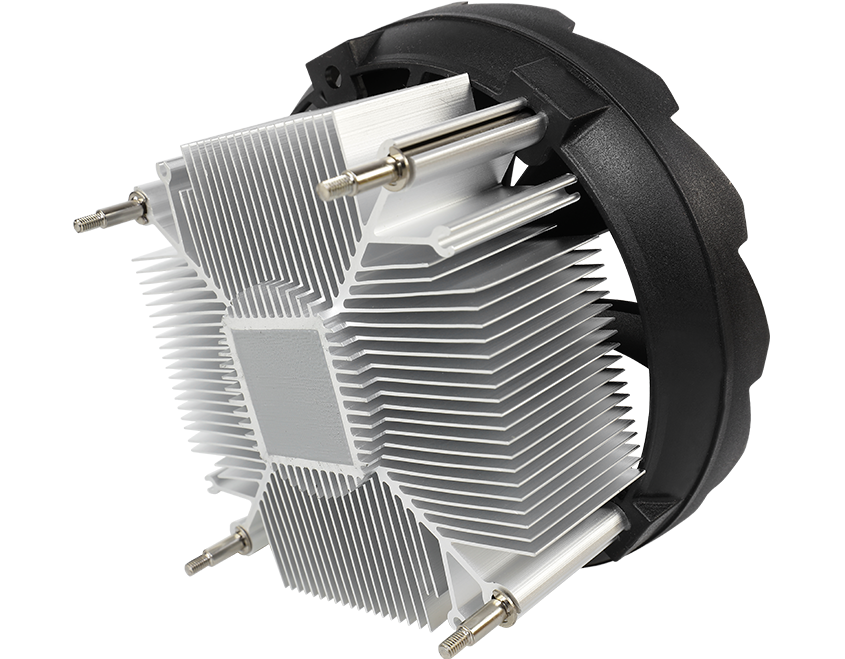

Air cooling solution equipped with a 12cm high efficiency fan and upgraded fins for maximum thermal performance. With ready-to-go thermal grease at the center of this air cooler, it takes less than a minute to install the BAS onto your motherboard. Compatible with 115X Intel motherboard designs.

Upgraded high efficiency fins for maximum thermal performance
Thermal Design Power (TDP) up to 100W
Equipped with 12cm high efficiency fan
Compatible with 115X Intel motherboard designs
Ready-to-go thermal grease allows for easy installation

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

EASY TO INSTALL

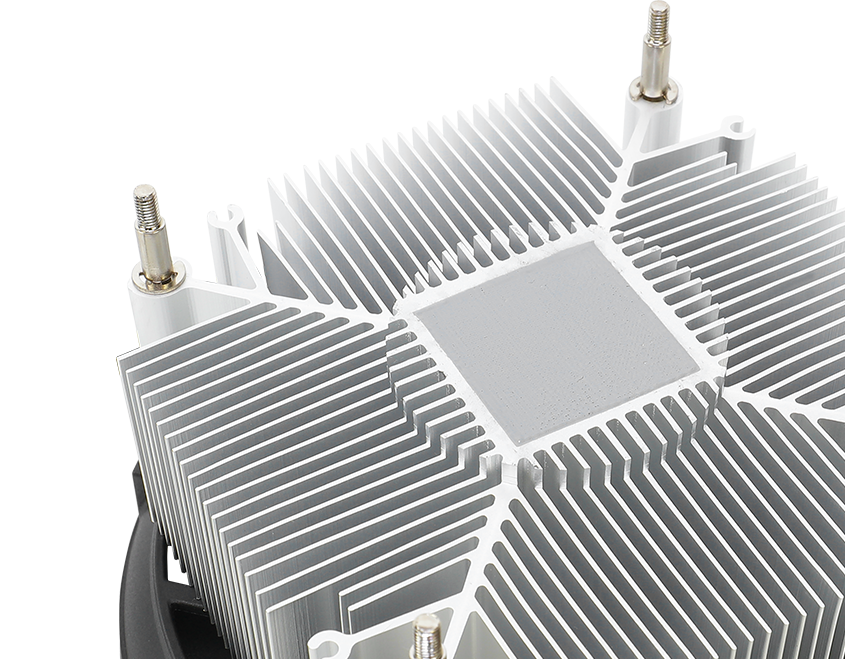

Do away with applying thermal grease. With the ready-to-go thermal grease at the center of the BAS and with the attached screws, it takes less than a minute to align and install the BAS on your motherboard.

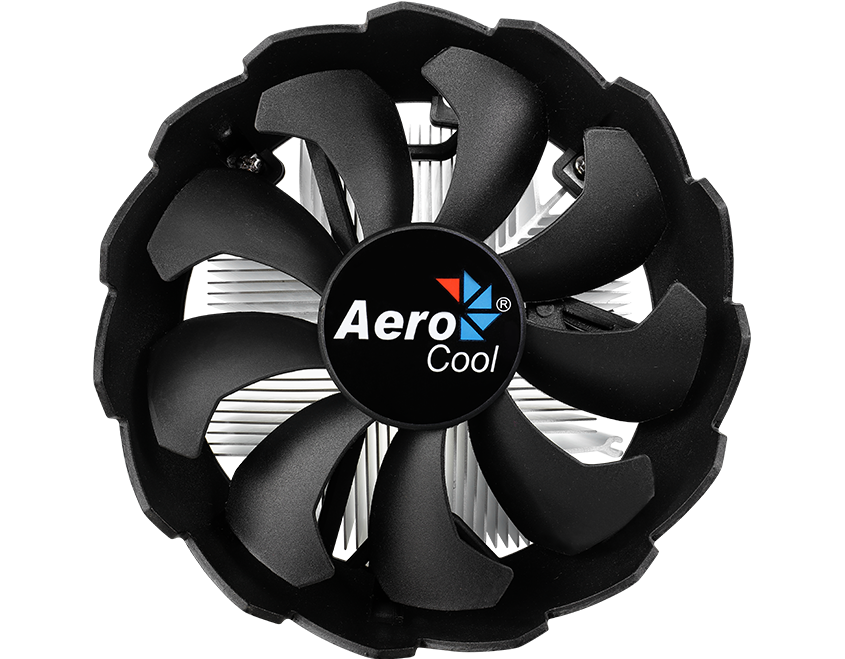

120mm HIGH-EFFICIENT FAN

Our highly efficient fan minimizes the noise level while dissipating heat away from the CPU.

120mm HIGH-EFFICIENT FAN

Our highly efficient fan minimizes the noise level while dissipating heat away from the CPU.

COMPATIBILITY

With higher heatsinks, BAS is compatible with all Intel LGA 115X CPU.

DIMENSIONS

PRODUCT GALLERY

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

[/vc_column]

SPECS

Model BAS
Base Material Aluminum
Dimensions (L x W x H) 122 x 122 x 63
TDP (Thermal Design Power) 100w
Fan Speed 1200 RPM
Fan Connector 3pin
Fan Dimension 120 x 25 mm
Bearing System Hydraulic
Rated Voltage 12V
Starting voltage 5V
Rated current 0.21A
Power Consumption 2.5W
Fan Air Pressure 0.78-1.24 mm-H2O
Fan Air Flow 55.6 CFM
Fan Noise 24 dBA
MTBF 60000 hrs.
Socket LGA 1156/1155/1150/1151
