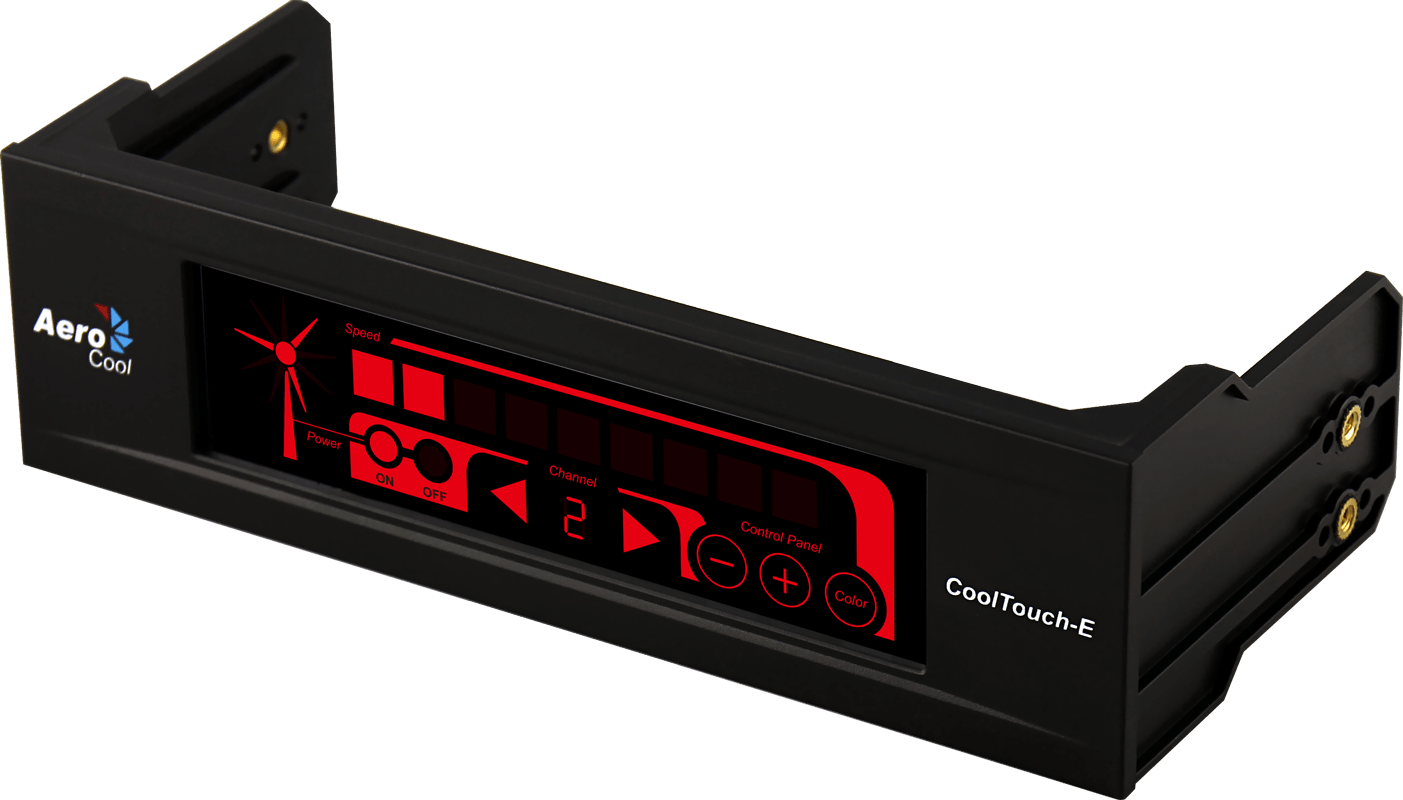

Cooltouch-E

FEATURES

TOUCH TECHNOLOGY

– Innovative “Touch LCD” technology.
– 4 fan channels.
– Supports 20W per channel.
– 3 adjustable speeds. (Low/Medium/High)

BACKLIGHT COLORS

7-Color LED including light off function.

FUNCTIONS

CABLE CONNECTION

PRODUCT GALLERY

SPECS

Model COOLTOUCH-E
Product Dimension 148.6(W) x 42.5(H) x 65(D) mm
Net Weight 125g
Gross Weight 250g (Retail box included)
LCD viewable area 100(W) x 25 (H) mm
Material ABS Plastic
Speed Range 0>50%>75%>100%
Max.wattage per fan channel 20W
Accessories Screw x 4 (M3x5)
Connectors For Power Supply -4-pin Molex connector x 1

For 3-pin fans/PWM fans – mini 4-pin connector x 4

For 4-pin fan – 4-pin Molex connector x 4

EAN Code 4713105951547

DOWNLOAD

Download your user manual here.
