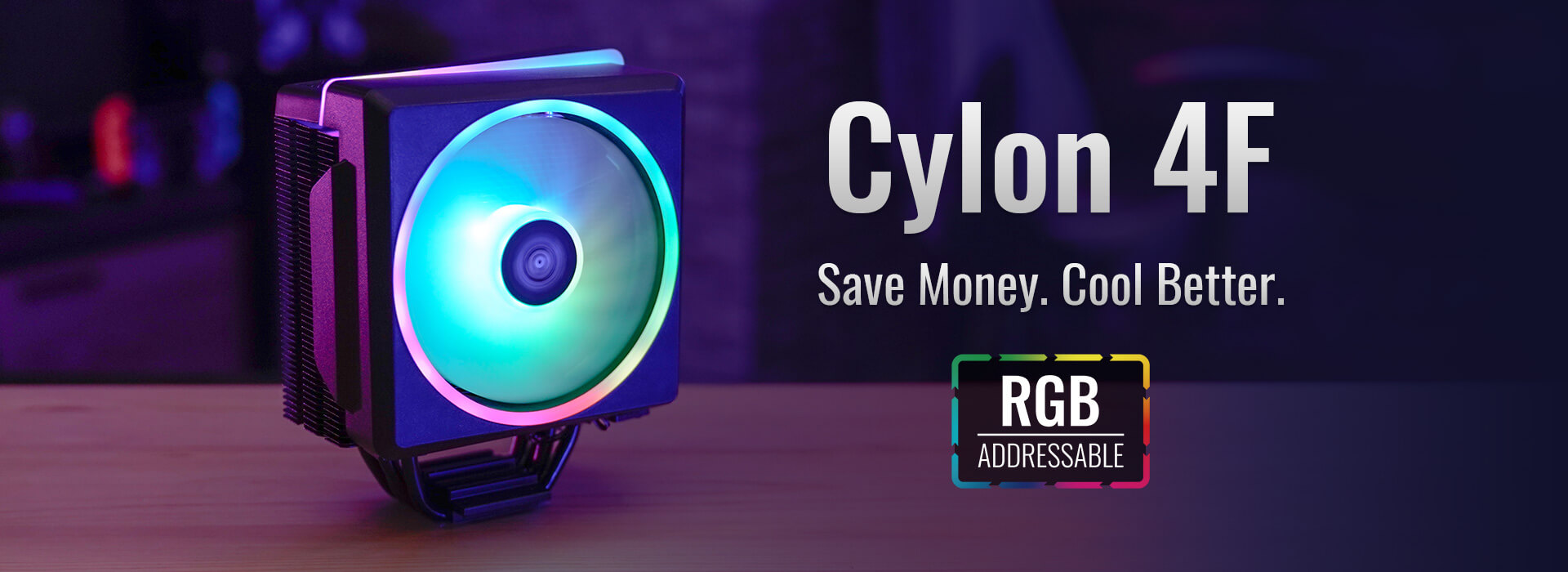

Cylon 4F

ARGB CPU AIR COOLER

PWM air cooling solution with stylish Addressable RGB LED on the front and side of the air cooler. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increase heat dissipation area and improves efficiency of dissipation. Cover on the side of the air cooler achieves a unidirectional air flow, improving heat dissipation.

Comes equipped with 12cm Addressable RGB fan with translucent fan blades that can be controlled using Addressable RGB motherboard or LED control button.

  • RGB LED design on the front and side of the air cooler adds a stylish flair to your rig
  • Comes equipped with 12cm Addressable RGB fan with translucent fan blades
  • Comes with built-in RGB lighting effects and compatibility with Addressable RGB motherboards or hubs
  • Heat Core Touch Technology with 4 ultra-efficient thermal heat pipes
  • Cover on the side of the air cooler achieves a unidirectional air flow, improving heat dissipation
  • Upgraded high efficiency fins for optimal thermal performance
  • Black coating on fins improves efficiency of heat dissipation
  • TDP (Thermal Design Power) up to 145W

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

DYNAMIC RGB LED DESIGN

Featuring an RGB LED Ring on the front of the air cooler and a 12cm Addressable RGB fan with translucent fan blades, this cooler adds a stylish and dynamic effect to your rig.

EQUIPPED WITH 12 CM ADDRESSABLE RGB FAN

Comes equipped with 12cm Addressable RGB fan that can be controlled using Addressable RGB motherboard or LED control button.

Translucent fan blades allow you to fully appreciate this fan’s beautiful RGB lighting.

ADDRESSABLE RGB COMPATIBLE

Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync and MSI Mystic Light Sync as well as Gigabyte RGB Fusion motherboards using 3-Pin XWD connector.

TOP COVER FOR IMPROVED AIR FLOW

Cover on the top of the air cooler with an RGB LED Slash design achieves a unidirectional air flow, allowing heat to dissipate more quickly and efficiently while delivering stylish flair.

HEAT CORE TOUCH TECHNOLOGY (HCTT)

4 Heatpipes provide a perfectly flat and smooth surface to maximize contact surface area.

This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation.

PWM HIGH-PRESSURE FAN

120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.

HIGH EFFICIENCY FINS

Upgraded high efficiency fins for maximum thermal performance.

Black coating on fins allows for faster heat absorption, improving the efficiency of heat dissipation.

COMPATIBILITY

Compatible with most current motherboard designs.

Socket compatibility: LGA 2066/2011/115X/775
AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

COMES WITH PWM 4-PIN CONNECTOR

PRODUCT GALLERY

SPECS

Specifications
Download
Specifications
Model Cylon 4F
Base Material Aluminum block with HCTT Heat Core Touch Technology
Fin Material Aluminum
Heat pipe Dia. 6mm x 4
Dimension 126.5 x 76 x 155mm
TDP(Thermal Design Power) 145
Fan
Speed 800-1800 rpm
Connector PWM 4-Pin
Dimension 120 x 120 x 25mm
Bearing Type Hydraulic Bearing
Started Voltage 5V
Rated Voltage 12V
Rated Current 0.6 A
Power Consumption 7.2 Watts
Air Flow 26.1-52.5 CFM
Noise 14-26 dBA
MTBF (Mean Time Before Failure) 60000 hrs.
Socket LGA 2066 / 2011 / 1156 / 1155 / 1151 / 1150 / 775
AM4 / AM3 +/ AM3 / AM2 + / AM2 / FM2 / FM1
EAN Code 4710562752724
Download

Download your user manual here.
