D302A

Mini Tower Case

The AeroCool D302A mini tower case combines a stylish mesh front panel design with robust SPCC construction for longevity. It supports ASUS and MSI m-ATX motherboards with backwards-facing connectors, liquid coolers up to 360mm, and GPUs up to 410mm, offering powerful PC build potential in a compact form. With 11 fan slots for optimal cooling, versatile storage options, and convenient I/O ports including USB Type C and USB3.0, this case is designed for high-performance and ease of use.

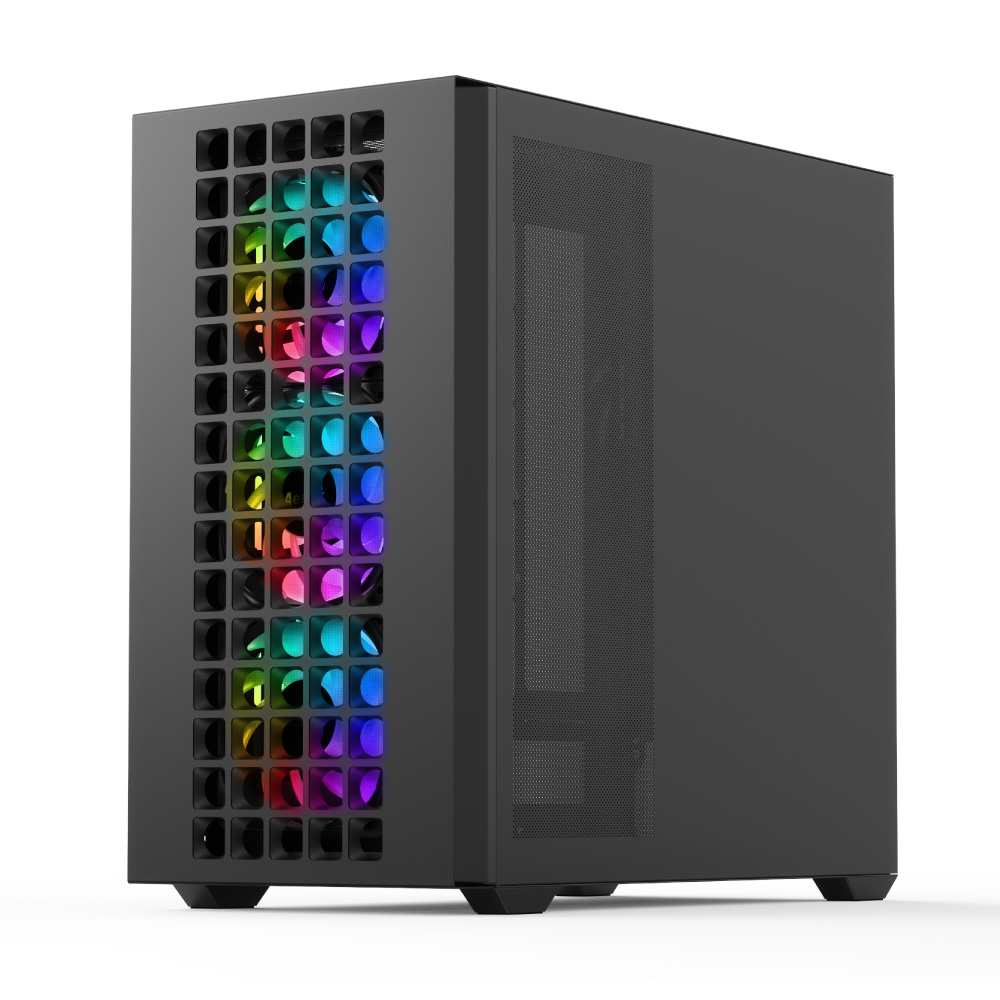

  • Stylish mesh front panel design exhibits trendy appeal and air ventilation for better circulation.
  • Mini tower case that allows for a powerful PC build.
  • Support liquid coolers up to 360mm on the top or front.
  • 11 total fan slots for greater cooling potential.
  • Supports ASUS & MSI m-ATX motherboards with backward-facing connectors to keep cables out of sight.

Where To Buy
D302A
Overview
Gallery
Specs

Elevate Your Life Experience

Experience superior airflow with our stylish mesh front panel design. This mini-tower case supports powerful builds, accommodating liquid coolers up to 360mm and offering 11 fan slots for maximum cooling potential.

Sleek & Powerful

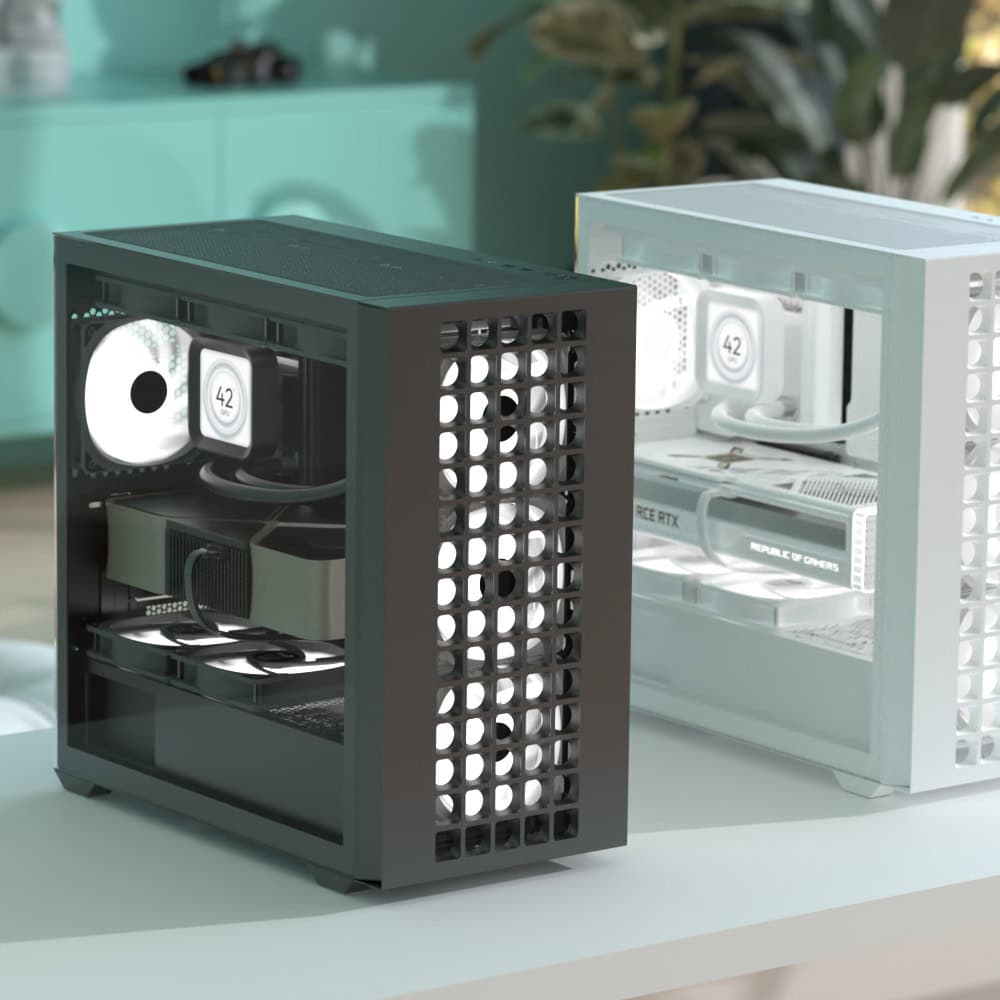

The sleek design can be seen from inside and out while accommodating your high-end components for gaming or other needs.

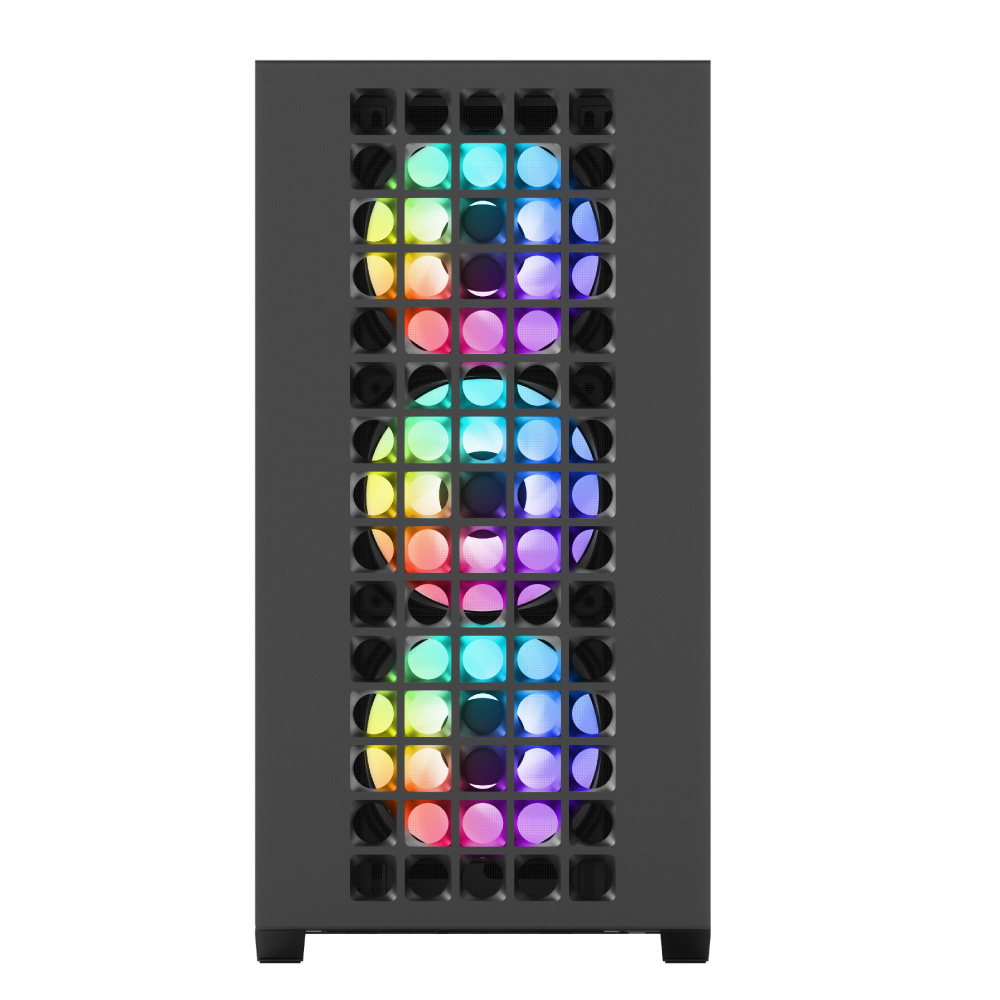

Trendy & Breezy Design

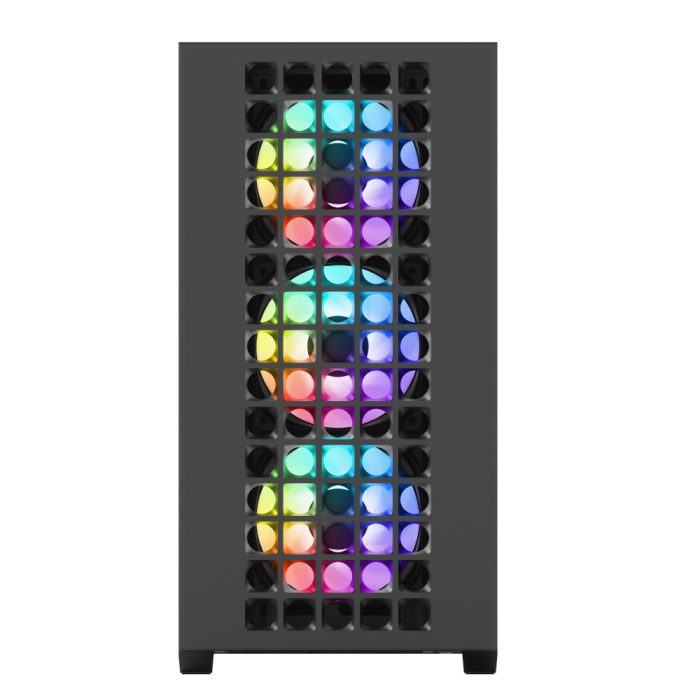

The mesh front panel not only adds a stylish touch but also ensures optimal air ventilation for better cooling efficiency.

Large Area Air Intake

The air intake has been specially designed with large ventilation holes to keep your components cool.

Superior Cooling Support

With 360mm liquid cooling support on the top and front, the D302A gives you the freedom to push your cooling setup to its full potential for optimal performance.

Spacious and Expandable Support

Accommodating GPUs up to 410mm and CPU coolers up to 166mm, the D302A provides ample space for your high-performance components.

166 mm
CPU Cooler Clearance

410 mm
Graphics Card Clearance

Out-of-the-Box Performance

Easily manage your four pre-installed ARGB fans with the 5-port PWM ARGB control hub, giving you full control over your system’s visual aesthetics.

Easy Maintenance Filters

Keep your system clean and efficient with the magnetic top filter and removable bottom filter, designed for effortless cleaning and effective dust prevention.

Keep Cables Out of Sightt

Supports ASUS & MSI m-ATX motherboards with backward-facing connectors to keep your cables hidden and your build looking sleek.

Type-C Ready

I/O Ports: USB Type C, USB3.0, HD Audio & Mic: Easy access to essential connections.

Find Your Vibe

Black and white are available according to your style choice, and you can look forward to more color combinations in the future.

SPECS

Model D302A-G-BK-v1, D302A-G-WT-v1
Case Type Mini Tower
Color Black, White
Body Material SPCC
Front Panel Material ABS, SPCC
Steel Thickness 0.5mm
Motherboards Micro ATX/Mini-ITX
Case Dimensions (Internal) 225 x 430 x 415mm (W x H x D)
Case Dimensions (Overall) 225 x 444 x 463.8mm (W x H x D)
3.5” Drive Bays 3 Max. (1 x 3.5” and 2 x 3.5”/2.5″)
2.5” Drive Bays 3 Max. (1 x 2.5” and 2 x 2.5”/3.5”)
Expansion Slots 5
GPU Clearance Supports GPU up to 410mm (W/O front radiator)
CPU Cooler Clearance Supports CPU cooler up to 166mm

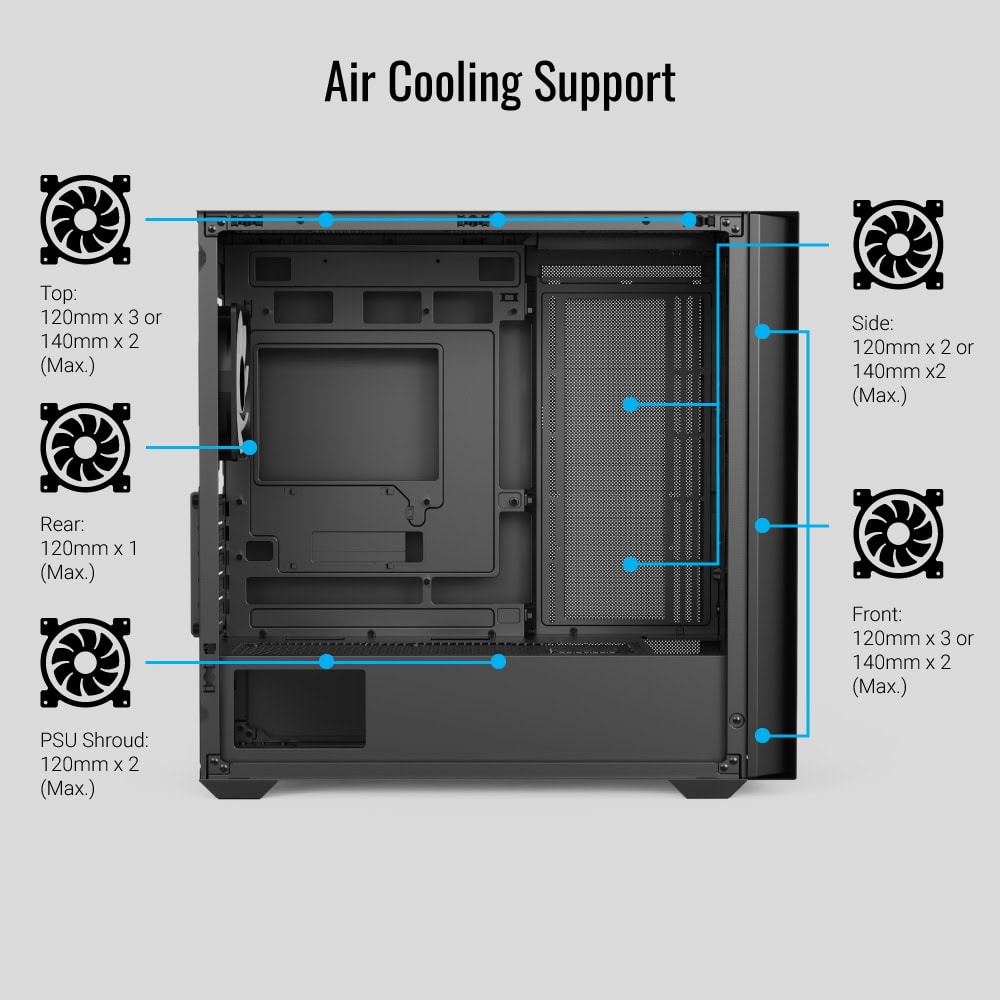

Air Cooling Front: 120mm x 3 or 140mm x 2 (Max.) (120mm ARGB fan x 3 included)
Top: 120mm x 3 or 140mm x 2 (Max.)
Side: 120mm x 2 or 140mm x 2(Max.)
PSU Shroud: 120mm x 2 (Max.)
Rear: 120mm x 1 (Max.) (120mm ARGB fan x 1 included)

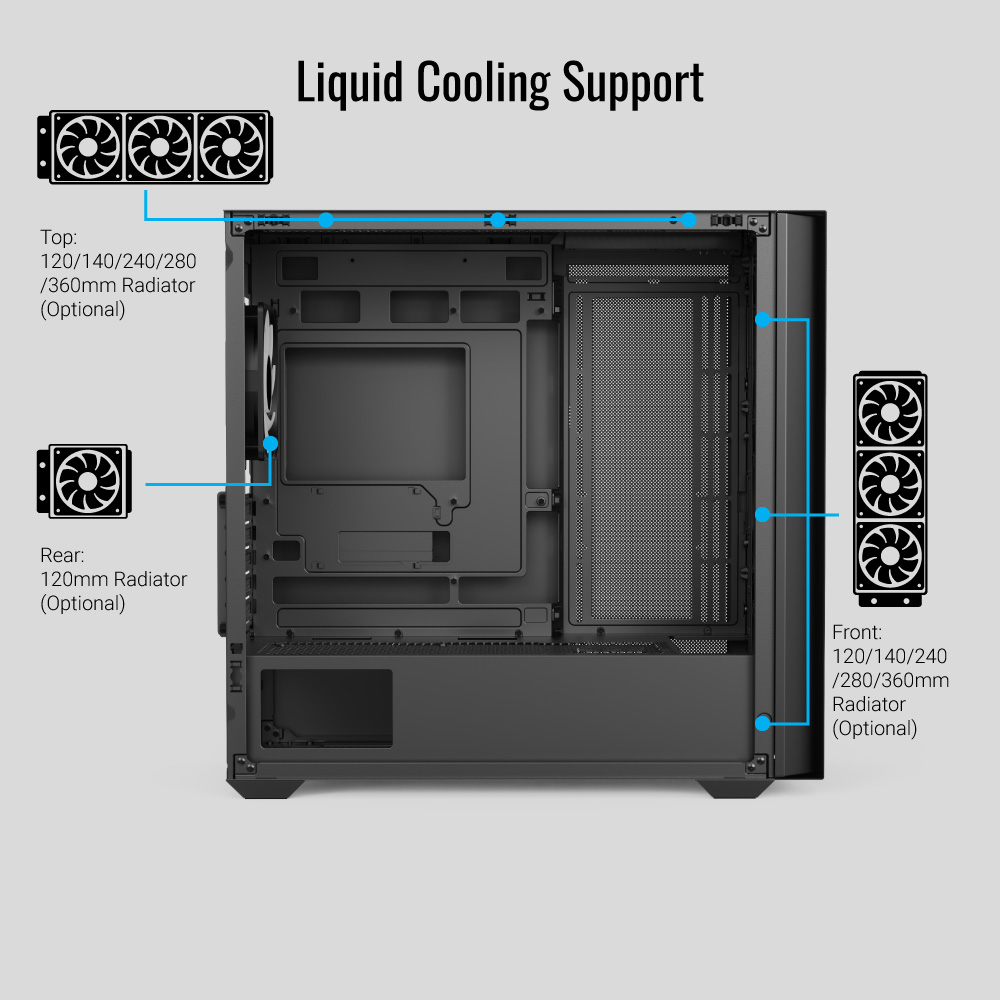

Liquid Cooling Front:120/140/240/280/360mm Radiator (Optional)
Top: 120/140/240/280/360mm Radiator (Optional)
Rear: 120mm Radiator (Optional)
I/O Ports Type C x 1 | USB3.0 x 2 | HD Audio & Mic.
Internal Cable Management Depth 36mm
Power Supply ATX PSU (Including cables, up to 230mm) (Optional)
  • Stylish mesh front panel design exhibits trendy appeal and air ventilation for better circulation.
  • Mini tower case that allows for a powerful PC build.
  • Support liquid coolers up to 360mm on the top or front.
  • 11 total fan slots for greater cooling potential.
  • Supports ASUS & MSI m-ATX motherboards with backward-facing connectors to keep cables out of sight.
  • Supports GPUs up to 410mm (without front radiator installed) and CPU coolers up to 166mm.
  • The magnetic dust filter on the top and the removable filter on the bottom make maintenance a breeze.
  • SPCC body material: Durable and robust construction for longevity.
  • Micro ATX/mini-ITX motherboard compatibility: Supports popular, compact motherboard formats.
  • Versatile storage options for HDDs/SSDs.
  • I/O Ports: USB Type C, USB3.0, HD Audio & Mic – Easy access to essential connections.

Download your user manual here.
