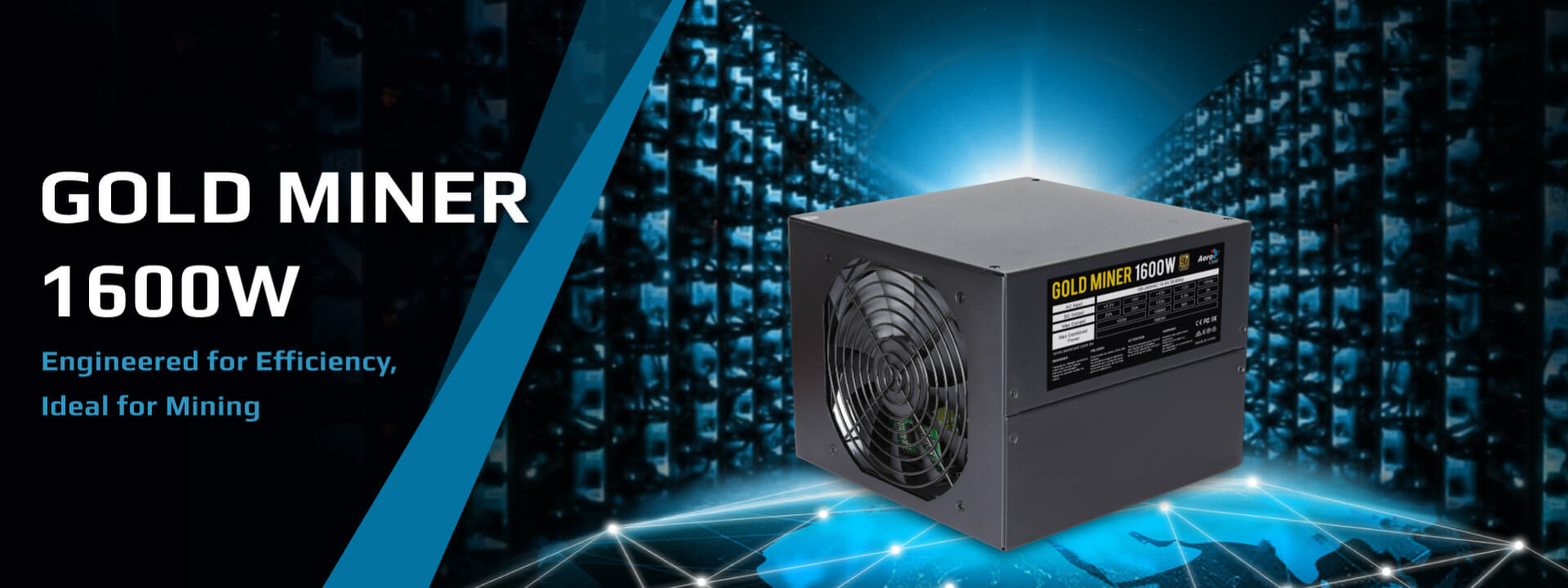

Gold Miner 1600W

MINING POWER SUPPLY

• Specially designed for full load, 24/7 cryptocurrency mining
• AWG#16 cables ensure safe heavy-duty operation

• Dual 14cm push-pull fans generate greater air flow
• 2-Ball bearing allows for longer fan lifespan
• High efficiency up to 90% for your cryptocurrency mining

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Category:

FEATURES

MINE WITH EFFICIENCY

Your hashing runs 24 hours a day 7 days a week. Gold Miner 1600W is designed to provide you up to 90% efficiency for your cryptocurrency mining. With Gold Miner you get more watts for your buck.

DUAL FAN CONFIGURATION

Gold Miner 1600W comes with double 140mm fan configuration,intake, and exhaustion. This fan configuration induces a straight-in, straight-out constant airflow that keeps the unit at the ideal temperature.

To keep the unit cool, the Gold Miner 1600W fans constantly run at their maximum speed of 2400 RPM. The fans are designed with 2-ball bearings to ensure high durability under this heavy usage.

DUAL FAN CONFIGURATION

Gold Miner 1600W comes with double 140mm fan configuration,intake, and exhaustion. This fan configuration induces a straight-in, straight-out constant airflow that keeps the unit at the ideal temperature.

To keep the unit cool, the Gold Miner 1600W fans constantly run at their maximum speed of 2400 RPM. The fans are designed with 2-ball bearings to ensure high durability under this heavy usage.

HEAVY DUTY CABLES

Standard power supply units come with AWG#18* cables, according to Intel’s Power Supply Design Guide. Mining usage scenarios might cause this type of cables to overheat burning the sheath and damaging the unit.
Gold Miner 1600W comes equipped with AWG#16 cables, these cables ensure safe heavy-duty operation.

*American Wire Gauge –AWG is the standardized gauge system used in the US. The smaller the AWG number the larger the sectional area of the wire.

HEAVY DUTY CABLES

Standard power supply units come with AWG#18* cables, according to Intel’s Power Supply Design Guide. Mining usage scenarios might cause this type of cables to overheat burning the sheath and damaging the unit.
Gold Miner 1600W comes equipped with AWG#16 cables, these cables ensure safe heavy-duty operation.

*American Wire Gauge –AWG is the standardized gauge system used in the US. The smaller the AWG number the larger the sectional area of the wire.

Connectors Optimized for Mining Systems

Gold Miner 1600W comes with 12 PCIe connectors, and 11 Molex 4 pin connectors.
This number of connectors is optimal for 6 VGA cards system configurations with their corresponding widget adapters.

PRODUCT GALLERY

SPECS

SPECIFICATIONS



AC Input 100-240VAC 15-8A 50-60Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 133A 0.5A 3A
Max.Combined Power0 100W 1596W 6W 15W
1600W
EAN CODE 4713105968064

CABLES

DOWNLOAD

Cables and Connectors Usage Guidelines
