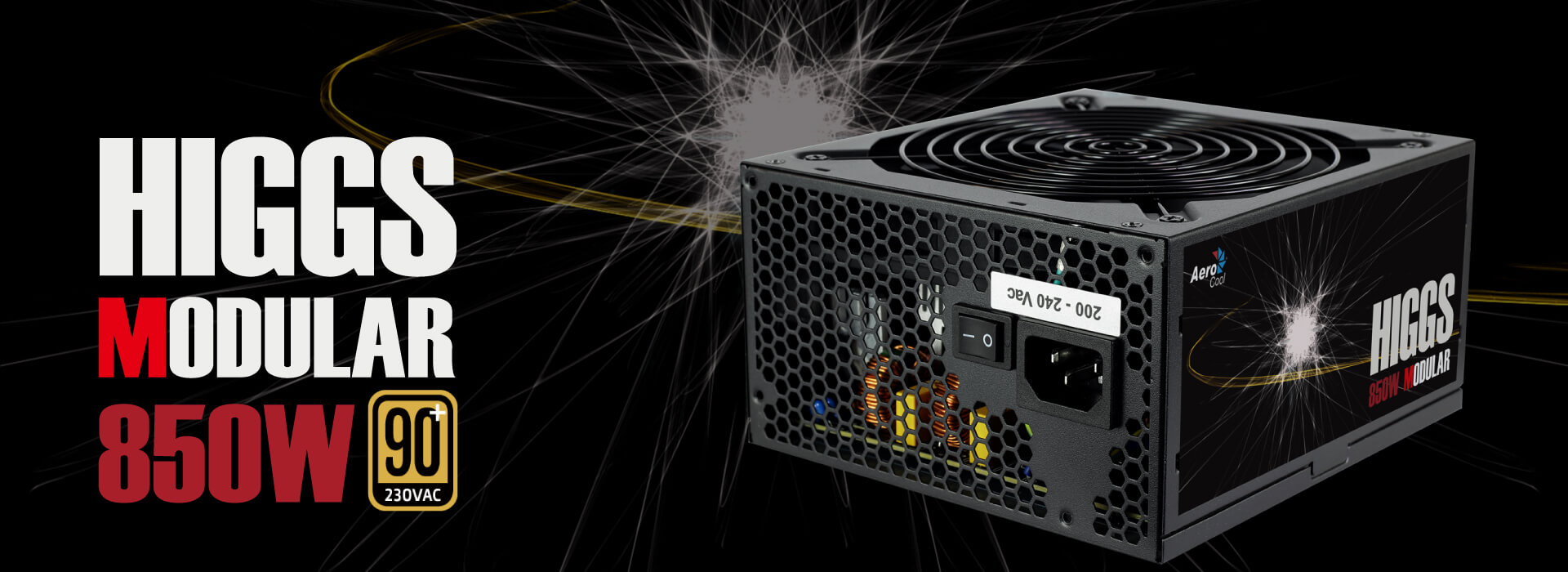

HIGGS 850W

SEMI-MODULAR POWER SUPPLY

• Built-in APFC (Active Power Factor Correction) rates > 0.9
• Smart semi-modular design offers easier cable management
• Up to 90%+ efficiency with 230VAC compliance

• Mesh sleeves reduce the blockage of system air flow
• Silent 14cm fan with optimized thermal fan speed control
• Powerful single +12V rail offers compatible DC output

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

UP TO 90% EFFICIENCY

Average 89%~91% efficiency during major load range.

14CM COOLING FAN

Super silent 14cm high performance cooling fan with smart control circuit.

SMART MODULAR CABLES

Mesh-sleeved modular cables reduce the cable mess inside chassis
and optimize airflow of your system.

Smart modular offer easier cable management.

SILENCE APPROACH

Upgraded to 9 blades fan with more airflow.

Bigger thermal dissipating area with L-Shaped heatsink design.

Less heat produced by the choke from thicker copper wires.

Advanced TO-247 packaged MOSFET induce lower thermal resistance than TO-220 MOS.

PRODUCT GALLERY

SPECS

SPECIFICATIONS



AC Input230VAC 6A 50-60HZ
DC Output+3.3V+5V+12V-12V+5VSB
Max Current20A20A70A0.5A3A
Max.Combined Power0120W840W6W15W
850W
EAN CODE4713105957341



EFFICIENCY



CABLES

DOWNLOAD

Cables and Connectors Usage Guidelines
