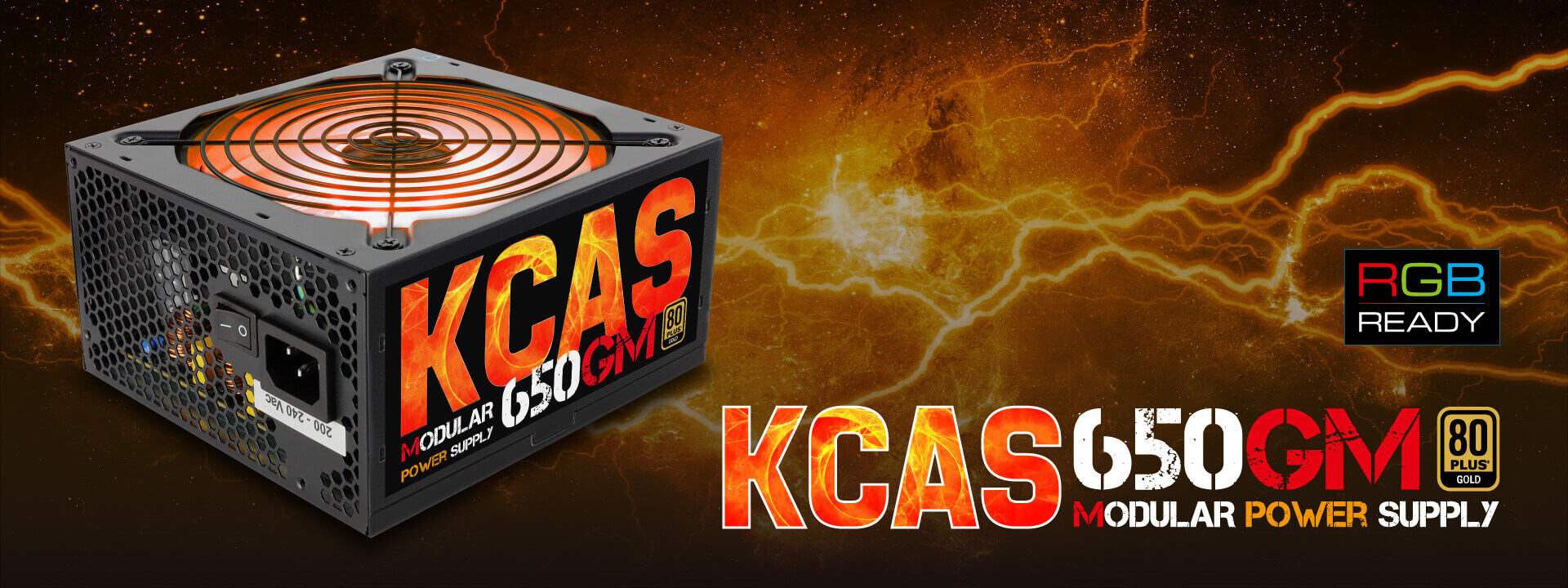

KCAS 650GM

SEMI-MODULAR RGB POWER SUPPLY

• Built-in APFC (Active Power Factor Correction) rates > 0.9
• RGB Lighting – Control up to 16.8 million colors and 3 LED lighting modes
• Smart semi-modular design offers easier cable management
• Up to 90%+ efficiency with official 80Plus Gold certificate

• Mesh sleeves reduce the blockage of system air flow
• Silent 14cm fan with optimized thermal fan speed control
• Powerful single +12V rail offers compatible DC output

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

RGB LIGHTING

Access 16.8 million colors and three LED modes with P7-S1 (Project 7-Software 1) available with our P7-Hub (P7-H1).
RGB functions can also be controlled through motherboards with 4-pin configurations.





Product by itself will not light up.
Requires Hub or RGB motherboard to enable lighting and RGB function.

RGB SOFTWARE

16.8 million colors with three LED lighting modes including solid color, breathing, and pulsating. Set your color by entering RGB color code or HTML code.

MONITOR FAN RPM

Monitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)

UP TO 90% EFFICIENCY

Average 89%~91% efficiency during major load range.

14CM COOLING FAN

Super silent 14cm high performance cooling fan with smart control circuit.

SMART MODULAR CABLES

Mesh-sleeved modular cables reduce the cable mess inside chassis and optimize airflow of your system.

PRODUCT GALLERY

SPECS

SPECIFICATIONS



AC Input 200-240VAC 6A 47-63HZ
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 54A 0.3A 2.5A
Max.Combined Power0 120W 648W 3.6W 12.5W
650W
EAN CODE 4713105957631



EFFICIENCY

CABLES

DOWNLOAD

Learn more about P7-S1 (Project7-Software1)

Cables and Connectors Usage Guidelines
