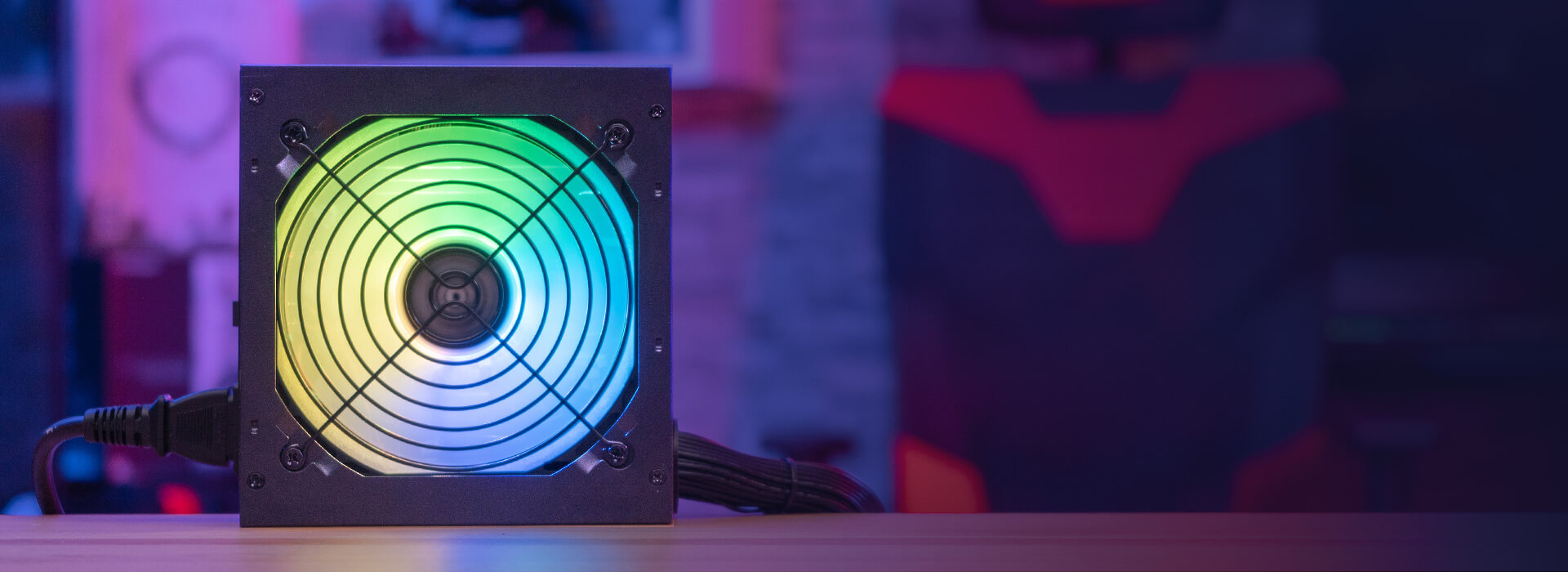

KCAS PLUS GOLD 650W

80PLUS GOLD ARGB POWER SUPPLY

Featuring a stylish design with a built-in 12cm ARGB fan, the KCAS PLUS GOLD enhances the look and feel of your gaming setup while efficiently powering your system. Bring your system to life with 13 preset lighting effects that can be controlled via LED control button. Compatible with Addressable RGB motherboards using ARGB connector.

The KCAS PLUS GOLD is 80Plus Gold Certified for up to 92%+ efficiency, delivering maximum efficiency performance.

  • 80Plus Gold Certified for up to 92%+ efficiency
  • Compatible with Addressable RGB motherboards using ARGB connector
  • DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions
  • Built-in 105°C Japanese main capacitors provide low ripple and higher durability
  • Dual CPU power connectors allows for compatibility with high-end AMD Ryzen CPUs
  • 12cm high-pressure fan with optimized fan speed allows for near inaudible fan noise and silent PSU operation
  • Built-in APFC (Active Power Factor Correction) rates > 0.9

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Where To Buy
FEATURES SPECS VIDEOS

UP TO 92%+ EFFICIENCY

80Plus Gold Certified for up to 92%+ efficiency, delivering maximum efficiency performance.

ADDRESSABLE RGB COMPATIBLE

Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.

To switch between motherboard and button control:

  1. Make sure PSU is connected to motherboard’s ARGB header
  2. Hold button on PSU for 3 seconds
  3. Control will switch from PSU to motherboard.

DC-TO-DC CONVERSION CIRCUIT

Built-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.

ACTIVE POWER FACTOR CORRECTION

Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9.

BUILT-IN 105°C JAPANESE CAPACITORS

Built-in 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.

HIGH-END SOLID STATE CAPACITORS

High-end solid state capacitors provide great DC output quality for improved noise filtering and low ripple

OPTIMIZED THERMAL FAN SPEED CONTROL

Optimized fan speed allows for near inaudible fan noise and silent PSU operation.

Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.

DUAL CPU POWER CONNECTORS

Dual CPU power connectors allows for compatibility with high-end AMD Ryzen CPUs.

PRODUCT GALLERY

SPECS

AC Input 100-240Vac 10-5A 47-63Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 54A 0.3A 2.5A
Max.Combined Power 120W 648W 3.6W 12.5W
650W
EAN CODE 4710562759204
AC Input
100-240Vac 10-5A 47-63Hz
DC Output
+3.3V / +5V +12V -12V / +5VSB
Max Current
20A / 20A 54A 0.3A / 2.5A
Max.Combined Power
120W 648W 3.6W / 12.5W
650W
EAN CODE
4710562759204
  • Compatible with Addressable RGB motherboards using ARGB connector
  • Control up to 13 lighting effects via LED control button
  • Built-in 105°C Japanese main capacitors provide low ripples and higher durability
  • High-end solid state capacitors provide great DC output quality for improved noise filtering and low ripple
  • Used DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading condition
  • Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9)
  • Equipped with 12cm high-pressure fan with optimized thermal fan speed control. Fan speed from 800 RPM to 1800 RPM allows for silent operation or high cooling productivity
  • Dual CPU power connectors allows for compatibility with high-end AMD Ryzen CPUs
  • Comes with black flat cables for neat and convenient cable management, and allows for unhindered airflow
  • Compatible with all Intel form factors up to ATX12V Ver.2.52
  • Delivers real output wattage at ambient temperatures of 40°
  • Fully EMC Compliant
  • Compliant with ErP 2013 Lot 6 for high energy efficiency
  • ROHS (Restriction of Hazardous Substances) certified
