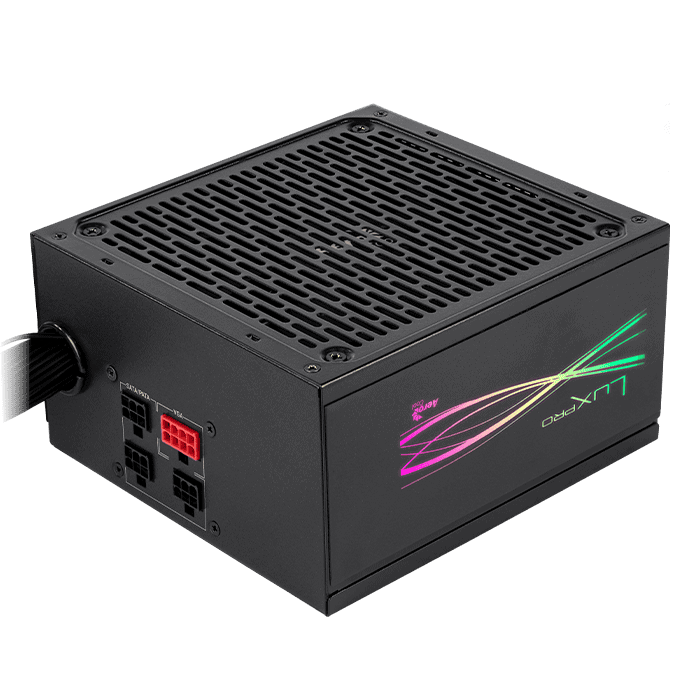

LUX PRO RGB Modular Series

Introducing our LUX PRO RGB PSU series – spanning from 550M to 1000M models. LUX PRO RGB is enhanced with a 105°C Japanese primary capacitor and a 14cm FDB fan, boosting airflow and lifespan for superior thermal reliability. Additionally, you can illuminate your system with 13 unique lighting effects, controllable via an LED switch. Its smart semi-modular design facilitates easy installation and streamlined cable management. The 550M to 850M models hold 80Plus 230V EU Bronze certification, while the 1000M model achieves 80Plus Gold efficiency. Both 850M and 1000M models comply with ATX3.0 and PCIe 5.0 standards for modern RTX 40 VGA cards. Elevate your computing experience with LUX PRO RGB – the definition of power and luxury.

  • High efficiency performance:
    • 550M-850M: 80Plus 230V EU Standard Certified
    • 1000M: 80Plus Gold Standard Certified
  • Compliance:
    • 550M-750M: INTEL ATX2.52 and compatible with RTX 40 VGA cards via PCIe 5.0 adapter (adapter is not included)
    • 850M, 1000M: INTEL ATX3.0 and PCIe 5.0 for modern RTX 40 VGA cards
  • Built-in APFC (Active Power Factor Correction) rates > 0.9
  • Built with highly reliable Toshin Kyogo Japanese brand 105°C primary capacito

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

HIGH EFFICIENCY PERFORMANCE

550W | 650W | 750W | 850W
Up to 88%+ efficiency and 80plus 230V EU Bronze Certified

1000W
Up to 90%+ efficiency and 80plus Gold Certified

FDB

Fluid Dynamic Bearing (FDB) offers superior durability and reduced noise through its smooth operation based on fluid dynamics, enabling overall performance and extending its lifespan.

JAPANESE BRAND PRIMARY CAPACITOR

Built by more relaible Toshin Kyogo Japanese brand 105°C primary capacitor.

850M and 1000M models are ready to be compatible with hgih end system

DUAL CPU CONNECTORS

PCIe5.0 CONNECTOR for RTX 40 graphic card

OPTIMIZED AIRFLOW

14cm silent FDB fan with optimized thermal fan speed control. Fan runs at startup speed (less than 700RPM) before reaching 40% load at 25°C ambient temperatures.

ARGB COMPATIBLE

Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.

To switch between motherboard and button control:

  • Make sure PSU is connected to motherboard’s ARGB header.
  • Hold button on PSU for 3 seconds.
  • Control will switch from PSU to motherboard.

STYLISH RGB FLOW

Enjoy a vivid stream of colors: LUX PRO RGB comes equipped with RGB LED Lighting and 13 unique lighting effects that can be controlled via LED control button.

PRODUCT GALLERY

550M
650M
750M
850M
1000M

SPECS

  • High efficiency performance:
    • 550M-850M: 80Plus 230V EU Standard Certified
    • 1000M: 80Plus Gold Standard Certified
  • Compliance:
    • 550M-750M: INTEL ATX2.52 and compatible with RTX 40 VGA cards via PCIe 5.0 adapter (adapter is not included)
    • 850M, 1000M: INTEL ATX3.0 and PCIe 5.0 for modern RTX 40 VGA cards
  • Built-in APFC (Active Power Factor Correction) rates > 0.9
  • Built with highly reliable Toshin Kyogo Japanese brand 105°C primary capacito
  • Smart semi-modular design offers easier cable management and installation
  • Silent 14cm fan with optimized thermal fan speed control. Fan runs at startup speed (under 700RPM) before reaching 40% load at 25℃ ambient temperatures
  • Upgraded Fluid Dynamic Bearing (FDB) for smooth operation and long lifespan
  • Soft, black, flat cables allow for more convenient cable management and easier installation

Download your user manual here.
