LUX RGB 750W

RGB POWER SUPPLY UNIT

Featuring a stylish and elegant RGB LED design, the LUX RGB enhances the look and feel of your gaming setup while efficiently powering your system. Bring your system to life with 13 preset lighting effects that can be controlled via LED control button. Compatible with Addressable RGB motherboards using Addressable +5V RGB connector.

Built with 30% increased ventilation area in the body of the PSU, the LUX RGB is designed for increased air flow and circulation.

  • Control up to 13 lighting effects via LED control button
  • Compatible with Addressable RGB using +5V Addressable RGB connector
  • 30% Increased ventilation area in the body of the PSU allows for increased air flow
  • 80Plus 230V EU Bronze Certified for up to 88%+ efficiency
  • OPP/OVP/UVP/SCP electrical protection included
  • Silent 12cm black fan with optimized thermal fan speed control
  • Soft, black, flat cables allow for more convenient cable management

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

UP TO 88%+ EFFICIENCY

80Plus 230V EU Bronze Certified for high efficiency performance.

ADDRESSABLE RGB COMPATIBLE

Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.

To switch between motherboard and button control:

  1. Make sure PSU is connected to motherboard’s ARGB header
  2. Hold button on PSU for 3 seconds
  3. Control will switch from PSU to motherboard.

ADDRESSABLE RGB COMPATIBLE

Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.

To switch between motherboard and button control:

  1. Make sure PSU is connected to motherboard’s ARGB header
  2. Hold button on PSU for 3 seconds
  3. Control will switch from PSU to motherboard.

STYLISH RGB FLOW

The LUX RGB comes equipped with RGB LED Lighting to power your system while delivering a vivid stream of colors.

Bring your rig to life with 13 unique lighting effects that can be controlled via LED control button.

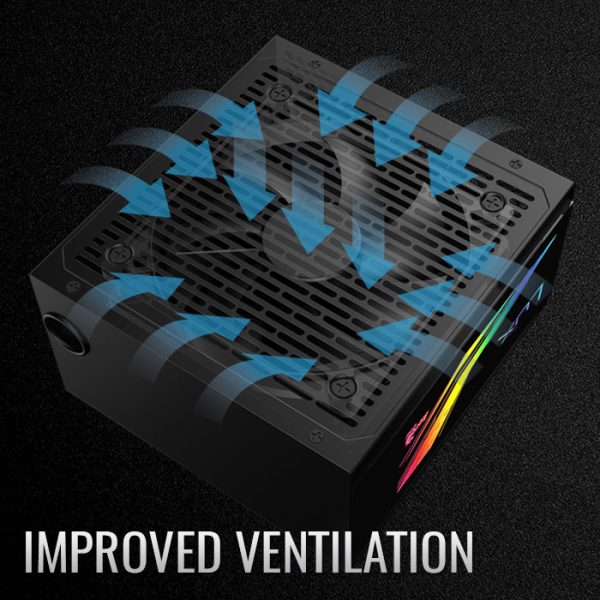

IMPROVED AIR VENTILATION

30% Increased ventilation area in the body of the PSU allows for increased air flow and circulation, preventing your system from overheating.

OPTIMIZED FAN RPM

12cm silent black fan with optimized thermal fan speed control. Fan runs at startup speed (less than 800RPM) before reaching 60% load at 25℃ ambient temperatures

CONVENIENT CABLE MANAGEMENT

Soft, black, flat cables allow for more convenient cable management and easier installation.

CONVENIENT CABLE MANAGEMENT

Soft, black, flat cables allow for more convenient cable management and easier installation.

PRODUCT GALLERY

SPECS

SPECIFICATIONS



AC Input 200-240VAC 4A 50-60Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 58A 0.3A 2.5A
Max.Combined Power 120W 696W 3.6W 12.5W
750W
EAN CODE 4718009153882
