Mirage Gold 850W

High-performance 80Plus Gold power supply with an Infinity Mirror RGB design that delivers a truly unique and mesmerizing lighting experience. Addressable RGB can be controlled using one of two ways: RGB LED control button or Addressable RGB motherboard. The new Mirage PSU series is perfect for DIY PC builders who want a top-class power supply without breaking the bank.

  • 80Plus Gold Certified for up to 90%+ efficiency
  • Infinity Mirror RGB design delivers a mesmerizing look and feel to your gaming setup
  • Addressable RGB can be controlled using LED control button or compatible ARGB motherboard
  • Built-in 105°C Japanese main capacitors provides low ripples and higher durability for PSU and all PC systems
  • DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions
  • Equipped with 12cm high-pressure fan with optimized thermal fan speed control
  • Black, flat cables allow for more convenient cable management and better airflow
  • Dual CPU power connectors allows for compatibility with high-end Intel and AMD Ryzen CPUs

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

UP TO 90%+ EFFICIENCY

80Plus Gold Certified for up to 90%+ efficiency, delivering maximum efficiency performance.

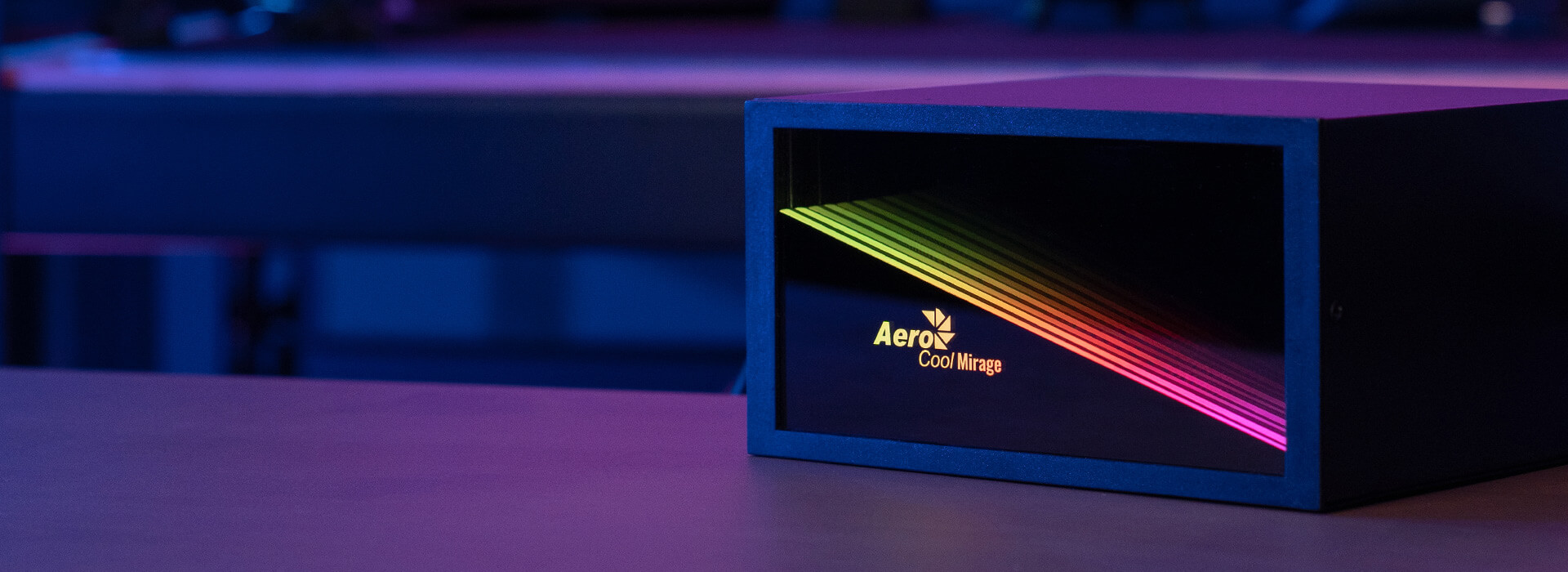

INFINITY MIRROR RGB DESIGN

Featuring a glass mirror design with a single RGB LED strip, the Mirage Gold achieves an infinity effect with what seems like endless RGB strips to deliver a truly unique and mesmerizing lighting experience.

ADDRESSABLE RGB COMPATIBLE

Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.

To switch between motherboard and button control:

  1. Make sure PSU is connected to motherboard’s ARGB header
  2. Hold button on PSU for 3 seconds
  3. Control will switch from PSU to motherboard.

BUILT-IN 105°C JAPANESE CAPACITORS

Built-in 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.

DC-TO-DC CONVERSION CIRCUIT

Built-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.

OPTIMIZED THERMAL FAN SPEED CONTROL

Optimized fan speed allows for near inaudible fan noise and silent PSU operation.

Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.

TESTED FOR RELIABILITY AND PERFORMANCE

Having undergone test after test under strict conditions and the highest standards of quality, the Mirage Gold ensures premium reliability, durability, and performance.

ACTIVE POWER FACTOR CORRECTION

Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9.

CONVENIENT CABLE MANAGEMENT

Soft, black, flat cables allow for more convenient cable management and easier installation.

DUAL CPU POWER CONNECTORS

Dual CPU power connectors allows for compatibility with high-end Intel and AMD Ryzen CPUs.

PRODUCT GALLERY

SPECS

AC Input 100-240Vac 11-5.5A 47-63Hz
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 70A 0.3A 2.5A
Max.Combined Power 130W 840W 3.6W 12.5W
850W
EAN CODE 4711099472574
AC Input
100-240Vac 11-5.5A 47-63Hz
DC Output
+3.3V / +5V +12V -12V / +5VSB
Max Current
20A / 20A 70A 0.3A / 2.5A
Max.Combined Power
130W 840W 3.6W / 12.5W
850W
EAN CODE
4711099472574
  • Infinity Mirror RGB design delivers a mesmerizing look and feel to your gaming setup.
  • Compatible with all Intel form factors up to ATX12V Ver.2.52.
  • Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9).
  • Built-in 105°C Japanese main capacitors provides low ripples and higher durability for PSU and all PC systems.
  • DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.
  • Equipped with 12cm high-pressure fan with optimized thermal fan speed control. Fan speed from 900 RPM to 1800 RPM allows adjusting from silent operation to high cooling productivity.
  • Black, flat cables allow for more convenient cable management and better airflow.
  • OVP, UVP OPP, SCP, OCP, Input Surge & Inrush Protection.
  • Fully EMC Compliant.
  • Compliant with ErP 2014 for high energy efficiency.
  • ROHS (Restriction of Hazardous Substances) certified.

Download your User Manual.
