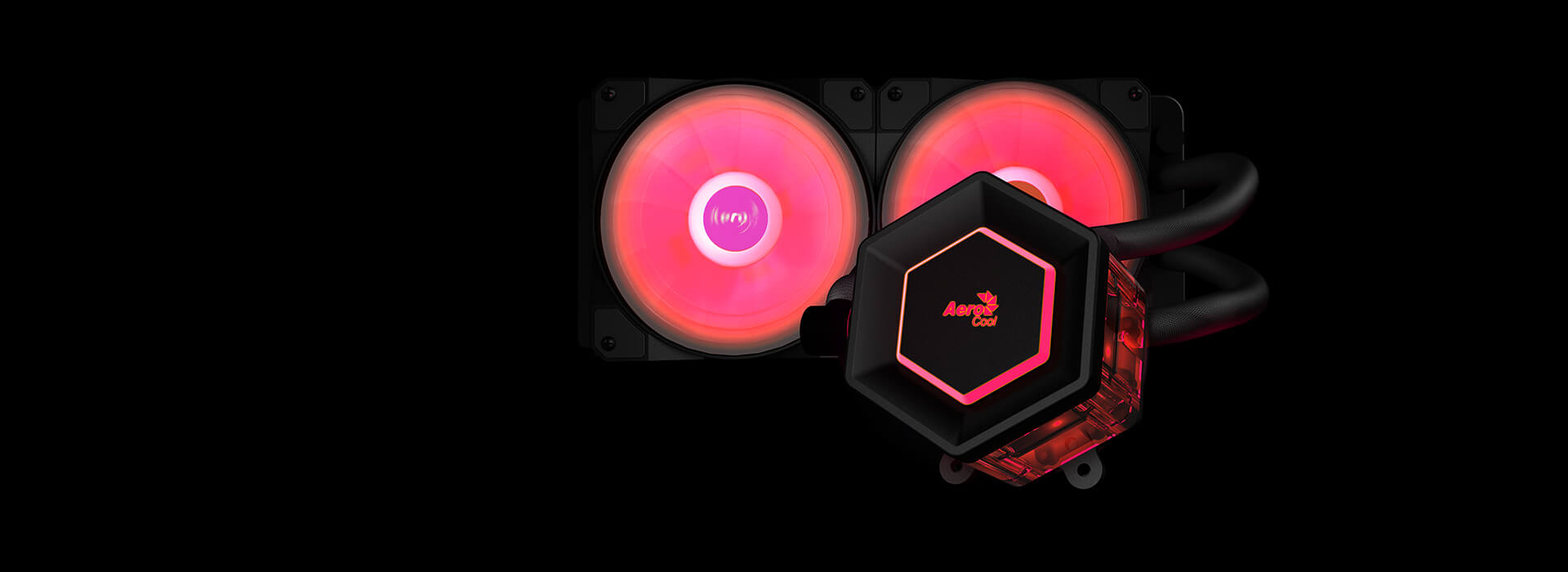

P7-L240

RGB CPU LIQUID COOLER

Featuring a closed loop liquid cooling system, the P7-L240 delivers top-of-the-line, high-performance cooling. RGB LED Lighting gives you access to 16.8 million colors and delivers a vivid stream of colors to your gaming setup. With translucent fans and a transparent pump casing, you’ll be able to fully appreciate all your stylish RGB effects.

RGB LED Lighting with 16.8 million colors
Pure copper water block with micro channel design that
Balanced impeller and high-quality bearings
Dual chamber casing minimizes noise
Extra refillable water chamber adds 100ml capacity
Low-density fins per inch radiator (LFPI)
High quality tubing and fittings made of soft material

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FETURES

RGB FUNCTIONS

The P7-L240 is Project 7’s RGB ready closed loop liquid cooling system. The unit comes with translucent fans and transparent pump casing, allowing to fully appreciate the 16.8 million colors and effects that will make your system stand out.

RGB FUNCTIONS

The P7-L240 is Project 7’s RGB ready closed loop liquid cooling system. The unit comes with translucent fans and transparent pump casing, allowing to fully appreciate the 16.8 million colors and effects that will make your system stand out.

RGB LIGHTING

Access 16.8 million colors and three LED modes with P7-S1 (Project7-Software1), available with our P7-Hub (P7-H1).
RGB functions can also be controlled through motherboards with 4-Pin RGB configuration.



RGB LIGHTING

Access 16.8 million colors and three LED modes with P7-S1 (Project7-Software1), available with our P7-Hub (P7-H1).
RGB functions can also be controlled through motherboards with 4-Pin RGB configuration.



RGB SOFTWARE

Take complete control of 16.8 million colors. Choose from different lighting modes or set your color by entering HTML color code.

MONITOR FAN RPM

Monitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)

WATER BLOCK

P7-L240’s water block is built with pure copper for a superior heat conductivity. The block’s micro channel design allows for faster heat dissipation keeping your CPU at the ideal temperature under standard and overclocking performance scenarios.

WATER BLOCK

P7-L240’s water block is built with pure copper for a superior heat conductivity. The block’s micro channel design allows for faster heat dissipation keeping your CPU at the ideal temperature under standard and overclocking performance scenarios.

MOTOR

The motor of the P7-L240 is built with a balanced impeller and high-quality bearings that allow for a near-silent performance.

DUAL SOUND-PROOF CHAMBER

The pump features a dual chamber casing which reduces the noise emitted by the impeller and provides extra fluid capacity.


Note: The motor might emit some noise the first time of operation, this is due to the air expelled when the impeller fills the chamber with liquid for the first time.

RESERVOIR

Commonly available liquid cooling systems that feature a water pump with integrated reservoir, trade-off capacity in exchange of occupying less casing space. This is not the case with Aerocool’s P7-L240, since its integrated reservoir includes an extra liquid chamber that occupies practically no extra casing space.

The easy refillable extra water chamber adds 100ml capacity to the unit allowing a more efficient heat dissipation.

COVER

The unit’s cover can be positioned in two different orientations, this makes installation more convenient no matter the user’s current system configuration.


Note: P7-L240 is not compatible with the socket layout of the motherboards mentioned in the following list.

TUBES

P7-L240 is built with the highest quality tubing and fittings. Soft material tubing facilitates installation, and the mesh finishing in the sleeves gives the cooling set a modern aesthetic consistent with Project 7’s design guidelines.

RADIATOR

P7-L240 low-density fins per inch radiator (LFPI) allows the air generated by the fans to pass almost unobstructed, while providing just the right heat dissipation surface needed for the system. This achieves a perfect balance between cooling performance and noise reduction.

Low density radiators provide higher airflow at lower noise levels compared to equivalent size high density radiators.

FAN BLADES

Fan blade fins direct airflow to increase air pressure for maximum cooling performance and reduce air resistance and minimize noise.

ANTI-VIBRATION PADS

Anti-Vibration pads absorb and dampen vibrations caused by fan rotation.

ANTI-VIBRATION PADS

Anti-vibration pads absorb and dampen vibrations caused by fan rotation.

PRODUCT GALLERY

SPECS

ModelP7-L240
Socket Intel : LGA 2066 / 2011-V3 / 115X / 1366 / 775
AMD : FM2 / FM1 / AM4 / AM3+ / AM3 / AM2+ / AM2
Block Material Copper
Radiator Material Aluminum
Radiator Dimension 280mm x 120mm x 53mm
TDP (Thermal Design Power) 380 Watt
Pump
Speed 2500 rpm
Rated Voltage 12 V
Power Consumption 8.4 Watts
Noise < 25dBA
Bearing Type Ceramics Bearing
MTBF80000 hrs.
Fan
Speed 600-1800 rpm
Connector PWM 4-Pin
Dimension 120mm x 120mm x 25mm
Bearing Type Hydraulic Bearing
Started Voltage 9 V
Rated Voltage 12 V
Rated Current 0.16 A (One Fan)
Power Consumption 1.92 Watts (One Fan)
Air Pressure 0.59 – 1.34 mm-H2O
Air Flow 29.84 – 71.65 CFM
Noise 10.5 – 31.8 dBA
Bearing Type Hydraulic Bearing
MTBF 60000 hrs.

REVIEWS

DOWNLOAD

Download P7-S1 (Project7-Software1)

Download your user manual here.

Installation compatibility.
