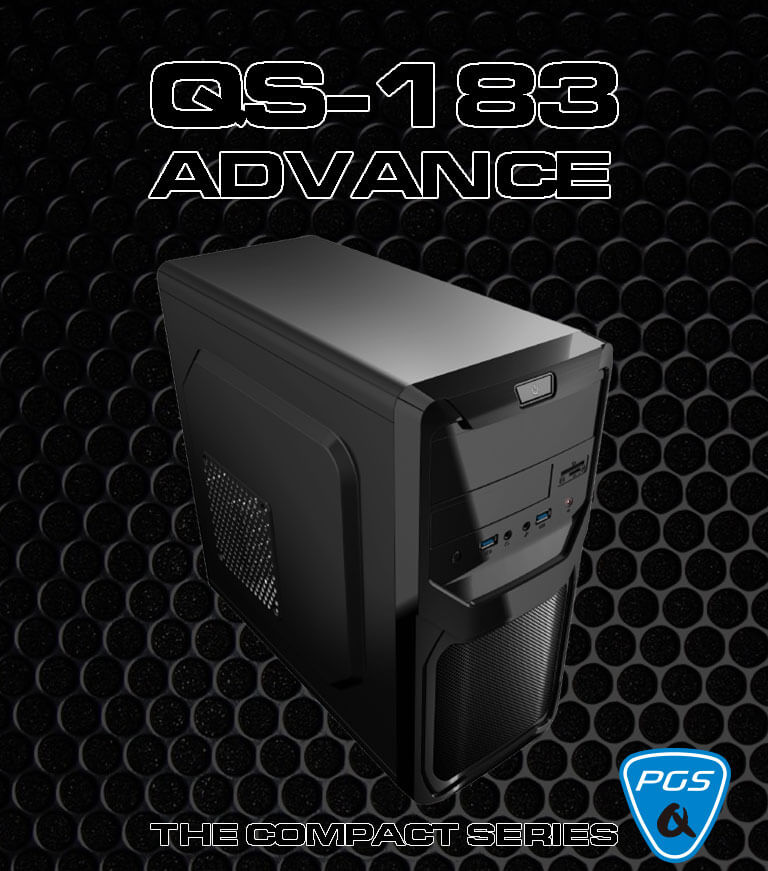

QS-183 Advance

MINI TOWER CASE

• Mesh covering increases air flow and ventilation
• Comes equipped with memory card reader on the front panel
• Supports air cooling in the front, side, and rear of the case

Supports CPU coolers up to 150mm
Available in 3 color options: Black, Blue, and Red

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

AVAILABLE IN 3 COLOR COMBINATIONS

CASE OVERVIEW

Supports : SD / micro SD(T-Flash) / SDHC
/ micro SDHC up to 32GB / SDXC / micro SDXC up to 2TB.

2 x USB3.0 / HD Audio + MIC / USB 2.0 High-Speed Card Reader.

CHASSIS INTERNAL

Accessible : 1 x 5.25” / 1 x 3.5” / Internal : 2 x 2.5” or 1 x 3.5” + 1 x 2.5”

4 PCI slots for dual high-end VGA cards as SLI™ or Crossfire™. (Max. 320mm)

Support High-End CPU cooler max. height up to 150mm.

PRODUCT GALLERY

SPECS

Model Qs-183
Case Type Micro ATX Case
Steel Thickness 0.5mm
Motherboards Micro ATX / Mini ITX
Case Dimensions (Overall) 355 x 335 x 170mm (W x H x D, overall)
5.25″ Drive Bays 1 (Exposed)
3.5″ Drive Bays 1 (Hidden For 3.5″ HDD)
Hard Disk Drive Bays 2 x 2.5″ or 1 x 3.5″ + 1 x 2.5″ (Side Mount)
2.5” Drive Bays 1 (Bottom)
Expansion Slots 4
GPU Clearance 320mm
CPU Clearance Support Max. Height Of 150mm For CPU Cooler
I/O Ports 2 x USB2.0 , HD Audio + MIC
Air Cooling Front : 120mm fan x1 (Optional)

Left: 120mm fan x1 (Optional)

Rear : 80mm fan x1 (1 x 80mm Black Fan Included )

Net Weight 2.7Kg
Power Supply Standard ATX PS2 (Optional)
EAN Code 4713105955439 – Black Edition

4713105955453 – Blue Edition

4713105955446 – Red Edition

Model Qs-183 Advance
Case Type Micro ATX Case
Steel Thickness 0.5mm
Motherboards Micro ATX / Mini ITX
Case Dimensions (Overall) 355 x 335 x 170mm (W x H x D, overall)
5.25″ Drive Bays 1 (Exposed)
3.5″ Drive Bays 1 (Hidden For 3.5″ HDD)
Hard Disk Drive Bays 2 x 2.5″ or 1 x 3.5″ + 1 x 2.5″ (Side Mount)
2.5” Drive Bays 1 (Bottom)
Expansion Slots 4
GPU Clearance 320mm
CPU Clearance Support Max. Height Of 150mm For CPU Cooler
I/O Ports 2 x USB3.0 , HD Audio + MIC
Air Cooling Front : 120mm fan x1 (Optional)

Left: 120mm fan x1 (Optional)

Rear : 80mm fan x1 (1 x 80mm Black Fan Included )

Net Weight 2.7Kg
Power Supply Standard ATX PS2 (Optional)
EAN Code 4713105955460 – Black Edition

4713105955484 – Blue Edition

4713105955477 – Red Edition
