Quartz RGB

MID TOWER CASE

Premium mid tower case with a full tempered glass side panel and front panel to showcase the inside of your rig. Comes equipped with three 12cm RGB LED fans (P7-F12) in the front panel. Take complete control of 16.8 million colors and 4 LED lighting modes with our Project 7 RGB Software. Comes equipped with a P7-H1 Hub that allows you to control and monitor up to 5 fans.

  • Full tempered glass front side and front panels to showcase the inside of your rig
  • Comes equipped with three 12cm RGB LED fans (P7-F12) in the front panel
  • Take complete control of 16.8 million colors and 4 LED lighting modes
  • P7-H1 Hub allows you to connect and monitor up to 5 fans
  • Supports liquid cooling in the front and top of the case
  • Fully adjustable HDD cage allows you to install 60mm thick radiator or longer PSU

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

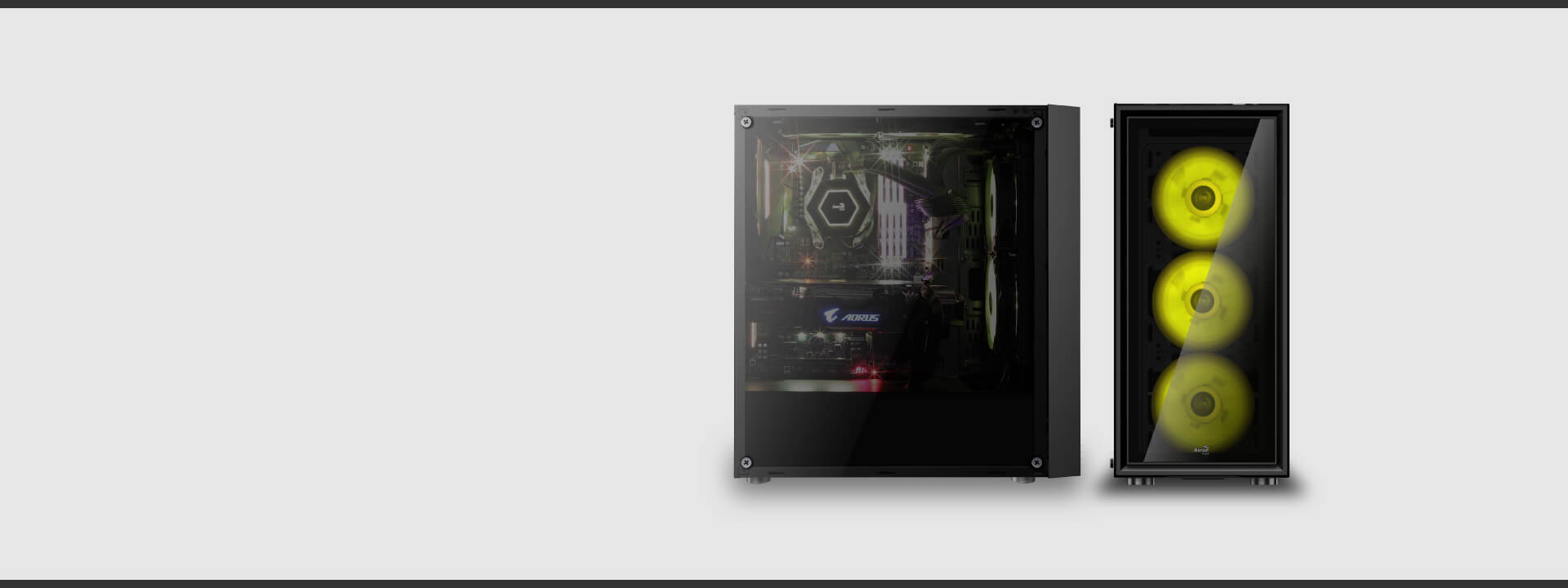

BEAUTIFULLY CRAFTED

Showcase your rig as this mid tower comes with tempered glass in the front and side panels.
The Quartz supports ATX motherboards and includes three LED Fans.

BEAUTIFULLY CRAFTED

Showcase your rig as this mid tower comes with tempered glass in the front and side panels.
The Quartz supports ATX motherboards and includes three LED Fans.

RGB LIGHTING

Access 16.8 million colors and three LED modes with P7-S1 (Project 7-Software 1) available with our P7-Hub (P7-H1).*

*RGB functions can also be controlled through motherboards with 4-pin configurations.

RGB SOFTWARE

16.8 million colors with three LED lighting modes including solid color, breathing, and pulsating. Set your color by entering RGB color code or HTML code.

MONITOR FAN RPM

Monitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)

LIQUID COOLING SUPPORT

Front: Supports 240mm or 360mm radiator x 1 (Optional)
Top: Supports 240mm radiator x 1 (Optional)

LIQUID COOLING SUPPORT

Front: Supports 240mm or 360mm radiator x 1 (Optional)
Top: Supports 240mm radiator x 1 (Optional)

AIR COOLING

Front: Supports 120mm LED Blue fan x 3 (Included)
Top: Supports 120mm fan x 2 (Optional)
Rear: Supports 120mm fan x 1 (120mm Black Fan included)

AIR COOLING

Front: Supports 120mm LED Blue fan x 3 (Included)
Top: Supports 120mm fan x 2 (Optional)
Rear: Supports 120mm fan x 1 (120mm Black Fan included)

STORAGE CAPACITY

2.5″ Drive Bays x 4, 3.5″ Drive Bays x 2

ADJUSTABLE HDD CAGES

Customize your build the way you want it. Add the required hard drives or remove the cage to make space to install up to 60mm thick radiator.

ADJUSTABLE HDD CAGES

Customize your build the way you want it. Add the required hard drives or remove the cage to make space to install up to 60mm thick radiator.

I/O PANEL

The I/O panel also includes 1 x USB 3.0 and 2 X USB 2.0, mic / headphone jack, power & reset buttons.

I/O PANEL

The I/O panel also includes 1 x USB 3.0 and 2 X USB 2.0, mic / headphone jack, power & reset buttons.

EASY MAINTENANCE

Removable dust filters for easy cleaning. Dust filters are located below the PSU chamber, and at the top.

EASY MAINTENANCE

Removable dust filters for easy cleaning. Dust filters are located below the PSU chamber, and at the top.

PRODUCT GALLERY

SPECS

Model Quartz RGB
Case Type Mini Tower
Color Black
Steel Thickness 0.5mm
Motherboards ATX/micro ATX/mini-ITX
Case Dimensions (Overall) 206.1 x 455 x 408mm (W x H x D)
3.5” Drive Bay 2
2.5” Drive Bays 4
Expansion Slots 7
GPU Clearance Supports GPU up to 341mm/366mm(without front fan)
CPU Clearance Supports CPU up to 152mm

I/O Ports USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic.
Air Cooling

Front : 120mm RGB Fan x 3

Top: 120mm x 2 (Optional)

Rear: 120mm x 1 (Includes 120mm Fan)

Liquid Cooling

Front: 240/360mm Radiator (Optional)

Top : 240mm Radiator (Optional)

Net Weight/Gross Weight 5.9kg (13 lbs.)/6.6kg (14.55 lbs.)
Power Supply ATX PSU (Up to 180mm, Optional)
EAN Code

4713105968958

USER MANUAL

Download your user manual here.

P7-S1(RGB software)

Download P7-H1 user manual here.
