Trinity Mini Pink

MINI TOWER CASE

Designed with ventilation in mind, this case delivers superior air flow while allowing for viewing of your front LED fans. This high-performance mini tower case comes equipped with a full tempered glass side panel to showcase the inside of your rig. Supports liquid cooling in the front and rear of the case for maximum cooling efficiency.

  • Front panel with air vents delivers superior air flow and ventilation while allowing for viewing of your front LED fans
  • Comes equipped with a full tempered side panel to showcase the inside of your rig
  • Fan mounts on the PSU shroud support up to two 12cm fans for improved VGA cooling
  • Supports liquid cooling in the front and rear of the case
  • Supports air cooling in the front, top, and rear of the case
  • Dual chamber design for improved ventilation

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

AVAILABLE IN THREE VERSIONS

Trinity Mini-G-BK-V1

Fans Included
12cm Black Fan x 1
_______

Lighting Modes
N/A

Trinity Mini-G-BK-V2

Fans Included
14cm FRGB Fan x 2
12cm FRGB Fan x 1

Lighting Modes
N/A

Trinity Mini-G-BK-V3

Fans Included
14cm RGB Fan x 2
12cm RGB Fan x 1

Lighting Modes
Yes

IMPROVED AIR VENTILATION

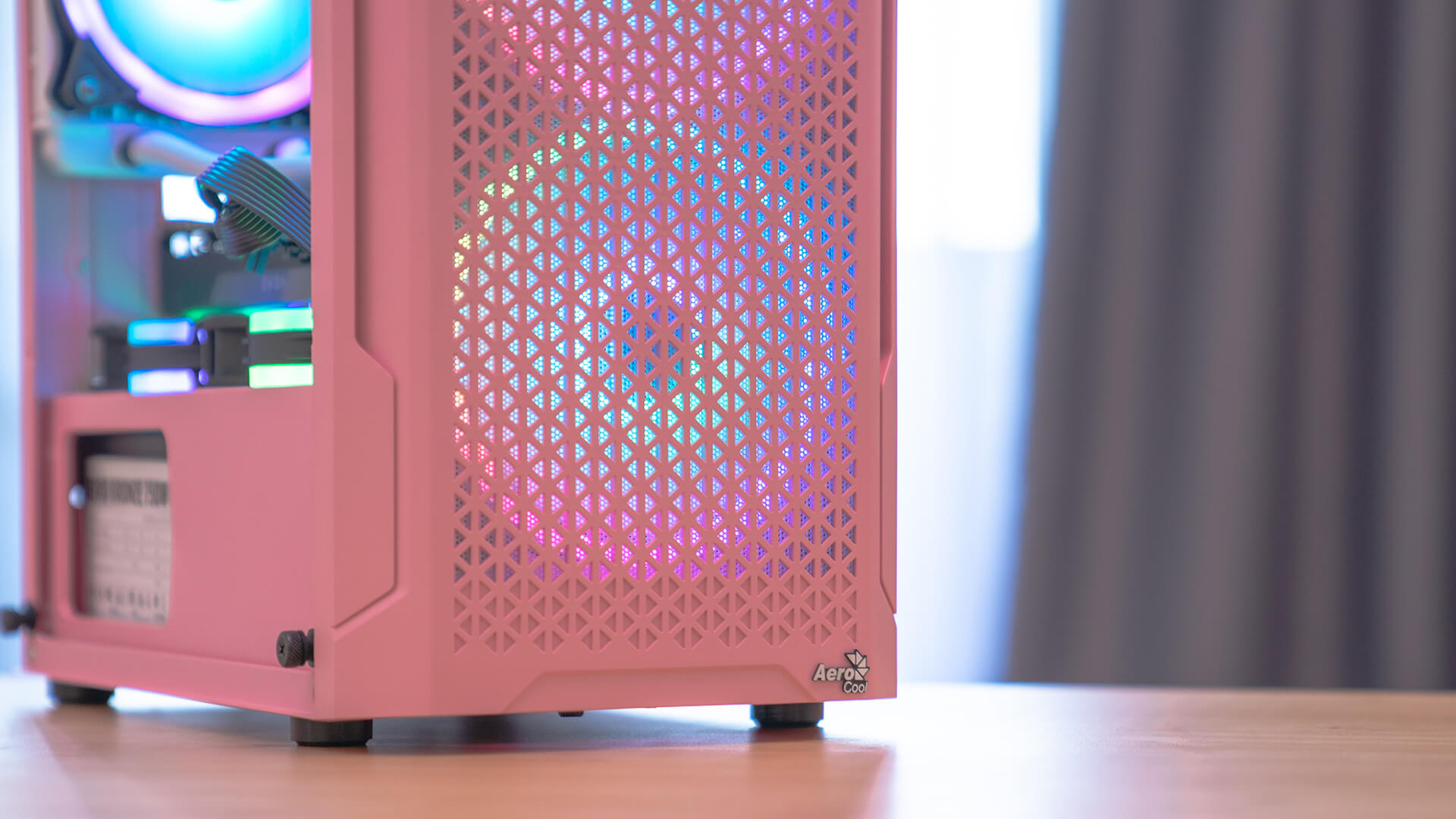

Stylish front panel design with built-in air vents delivers increased air flow and ventilation while allowing for viewing of your front LED fans.

FULL TEMPERED GLASS SIDE PANEL

Comes equipped with a full tempered glass side panel to showcase the inside of your rig and put your components on display.

COOLING FOR YOUR GRAPHICS CARD

Fan mounts on the PSU shroud support graphics card cooling :
2 x 120mm fans for superior VGA cooling.

AIR COOLING

Supports air cooling in the front, top, and rear of the case to enhance cooling performance.

  • Front: 120mm x 2 or 140mm x 2 (Max.)
  • Top: 120mm x 2 (Max.)
  • Rear: 120mm x 1 (Max.)
  • PSU Shroud: 120mm x 2 (Max.)

LIQUID COOLING

Supports liquid cooling in the front and rear of the case for maximum cooling efficiency.

  • Front: 120/240mm Radiator (Optional)
    (for 240mm, supports max length of 240mm and max thickness of 28mm)
  • Rear: 120mm Radiator (Optional)

DUAL CHAMBER DESIGN

Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.

BUILT FOR HIGH PERFORMANCE

  • Supports Micro-ATX and mini-ITX motherboards
  • Supports CPU coolers up to 158mm
  • Supports high-end graphics cards up to 297mm (without front radiator)

CONVENIENT ACCESS TO YOUR MEDIA

Quick and easy access to USB 3.0 x 2, USB 2.0 x 1, HD audio and mic ports, and power & reset button.

STORAGE CAPABILITY

Supports up to 2 x 3.5” HDDs (2 x 3.5”/2.5″) and 3 x 2.5” SSDs (1 x 2.5” and 2 x 2.5”/3.5”).

PRODUCT GALLERY

Trinity Mini-G-BK-V1
Trinity Mini-G-BK-V2
Trinity Mini-G-BK-V3

SPECS

Model Trinity Mini
Case Type Mini Tower
Color Pink
Body Material SPCC
Front Panel Material ABS
Steel Thickness 0.5mm
Motherboards Micro ATX/mini-ITX
Case Dimensions (Internal) 200 x 375 x 300mm (W x H x D)
Case Dimensions (Overall) 206.5 x 385 x 353.4mm (W x H x D)
3.5” Drive Bays 2 Max. (2 x 3.5”/2.5″)
2.5” Drive Bays 3 Max. (1 x 2.5” and 2 x 2.5”/3.5”)
Expansion Slots 4
GPU Clearance Supports GPU up to 297mm (without front radiator)
CPU Cooler Clearance Supports CPU cooler up to 158mm
Air Cooling Front: 120mm x 2 or 140mm x 2 (Max.)
Top: 120mm x 2 (Max.)
Rear: 120mm x 1 (Max.)
PSU Shroud: 120mm x 2 (Max.)
Liquid Cooling Front: 120/240mm Radiator (Optional)
(for 240mm, supports max thickness of 28mm)
Rear: 120mm Radiator (Optional)
I/O Ports USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic.
Internal Cable Management Depth 20.5mm
Power Supply ATX PSU (Including cables, up to 159mm) (Optional)
EAN Code Trinity Mini-G-PK-v1: 4711099470778 (includes: 12cm black fan x 1)
Trinity Mini-G-PK-v2: 4711099470785 (includes: 14cm FRGB fan x 2, 12cm FRGB fan x 1)
Trinity Mini-G-PK-v3: 4711099470792 (includes: 14cm RGB fan x 2, 12cm RGB fan x 1)

Trinity Mini User Manual
