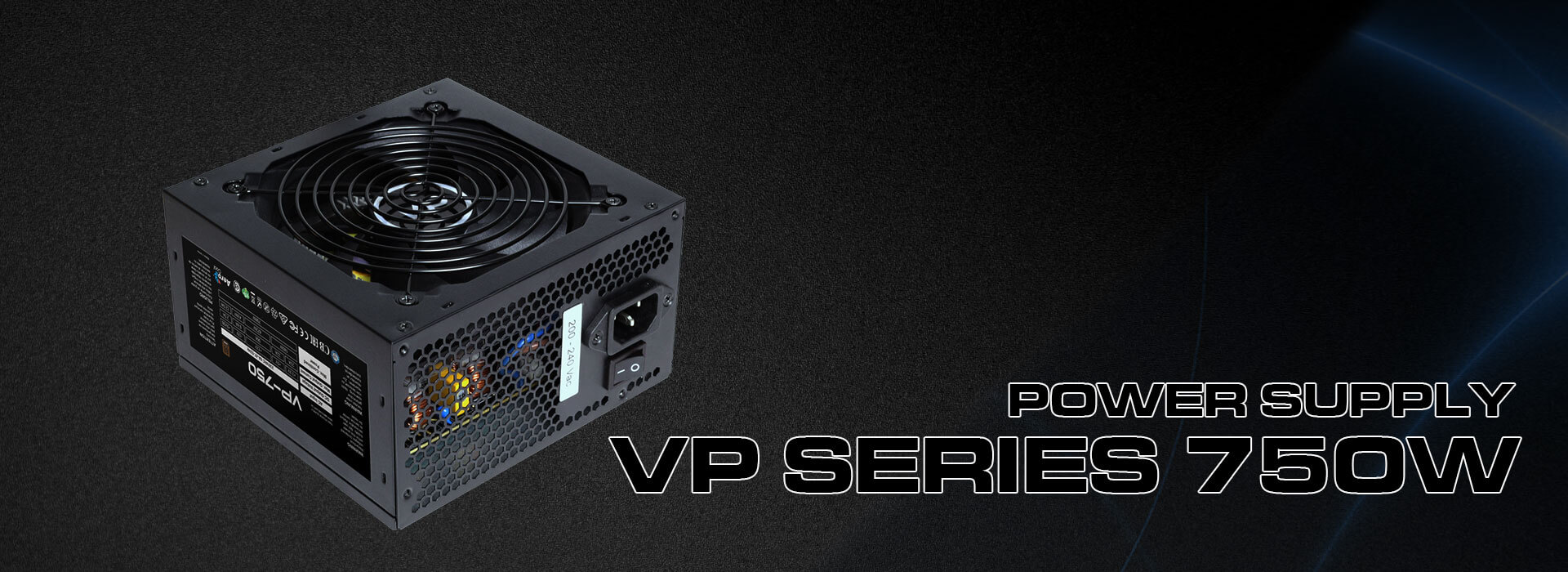

VP-750W

POWER SUPPLY UNIT

• Built-in APFC (Active Power Factor Correction) rates > 0.9
• Up to 85%+ efficiency with official 80Plus Bronze certificate

• Mesh sleeves reduce the blockage of system air flow
• Silent 12cm fan with optimized thermal fan speed control
• Powerful single +12V rail offers compatible DC output

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

SILENT BRONZE

Certified with official 80PLUS Bronze ,this classic VP series was
upgradedby Aerocool aiming at keeping the fanrunning at low speed during regular loading in order to achieve SILENCE and at the same time preserving high efficiency.

ALL-TIME FAVORITE

As its predecessor , the new silent and efficient VP
series maintains the classic black outlook with reliable and stable componets used that have high compatibility and performance.

SILENCE APPROACH

Upgraded to 9 blades fan with more airflow.

Bigger thermal dissipating area with L-Shaped heatsink design.

Less heat produced by the choke from thicker copper wires.

Advanced TO-247 packaged MOSFET induce lower thermal resistance than TO-220 MOS.

PRODUCT GALLERY

SPECS

SPECIFICATIONS



AC Input 230VAC 6A 47-53HZ
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 56A 0.4A 2.5A
Max.Combined Power0 140W 672W 4.8W 12.5W
750W



EFFICIENCY



CABLES

DOWNLOAD

Cables and Connectors Usage Guidelines
