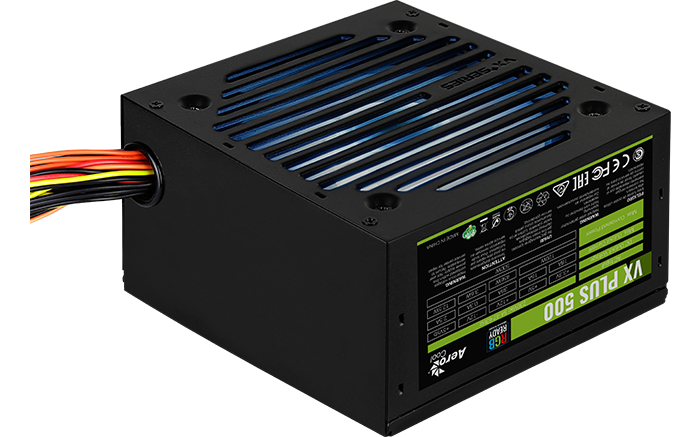

VX PLUS 500 RGB

RGB POWER SUPPLY UNIT

Now with RGB LED Lighting, the VX PLUS RGB powers your system while delivering stylish lighting effects. Focused on delivering the best value power supply unit, the VX PLUS allows for easy installation while delivering reliable quality and excellent performance, making this the perfect PSU for entry-level system builders. Comes equipped with an upgraded transformer and a 12cm fan with optimized thermal fan speed control.

RGB Lighting – Control up to 16.8 million colors and 3 LED lighting modes
Best value power supply for entry-level system builders
Compatible with ATX 12V 2.3
Upgraded transformer allows for heavy 12V loading system support
Powerful single +12V rail offers compatible DC output
Silent 12cm fan with optimized thermal fan speed control
OPP/OVP/UVP/SCP/SIP electrical protection included

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES


The VX PLUS RGB comes equipped with RGB Lighting.
Take control of 16.8 million colors and stylize your gaming experience

RGB LIGHTING

Access 16.8 million colors and three LED modes using compatible RGB motherboard with 4-Pin configuration.

Product by itself will not light up. Requires Hub or RGB motherboard to enable RGB lighting and functions.

UNBEATABLE VALUE

VX PLUS RGB offers the best value you could ask for in a power supply with easy installation and top-notch performance, making this the perfect starting PSU for entry-level system builders.

IMPROVED DESIGN

Equipped with a unique, top cover design, the VX PLUS RGB looks better than ever and enhances the entire look and feel of any gaming setup.

UPGRADED TRANSFORMER

Upgraded transformer improves balance between 12V, 3.3V, and 5V voltage regulations and enhances the stability, allowing for heavy 12V loading system support.

UPGRADED TRANSFORMER

Upgraded transformer improves balance between 12V, 3.3V, and 5V voltage regulations and enhances the stability, allowing for heavy 12V loading system support.

OPTIMIZED FAN RPM

Silent 12cm fan with optimized smart fan speed control. Fan runs in startup speed before reaching 50% load at 25℃ ambient temperatures.

OPTIMIZED FAN RPM

Silent 12cm fan with optimized smart fan speed control. Fan runs in startup speed before reaching 50% load at 25℃ ambient temperatures.

PRODUCT GALLERY

SPECS

SPECIFICATIONS

AC Input 230VAC 5A 47-63HZ
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 18A 16A 38A 0.3A 2.5A
Max.Combined Power 120W 456W 3.6W 12.5W
500W
EAN CODE 4718009152687

CABLES

DOWNLOAD

User Manual

Learn more about P7-S1 (Project7-Software1)

COMPARISON

Comparison
VX RGB (discontinued)
VX PLUS RGB
Benefits of VX PLUS RGB

Fan Curve
Smart Thermal Fan Speed Control
Optimized Fan Speed Curve
Maintains silent fan operation before reaching 60% load
Transformer
Standard Transformer
Upgraded Transformer
Provides more voltage stability while gaming
Top Cover
Standard Top Cover
Unique VX Top Cover
Stylish and newly designed VX top cover
