Astro 12

12CM ARGB PC FAN

120mm fan with 6-Pin connector featuring a unique and stylish Omni RGB LED Lighting design. Carbon fiber style finishing adds a futuristic flair to your rig. Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion. Requires Addressable RGB motherboard or hubs (H66F / H106C). Comes with a 6-Pin adapter cable to connect your fan with compatible Addressable RGB motherboards.

  • Access 16.8 million colors using compatible Addressable RGB motherboards
  • Comes with a 6-Pin Addressable RGB adapter cable
  • Omni RGB LED Lighting design adds extra flair to your rig
  • Carbon fiber style finishing delivers a futuristic look and feel
  • Curved fan blades for maximum cooling performance
  • Anti-vibration pads absorb and dampen vibrations caused by fan rotation
  • 18 LEDs ensure complete evenness and uniformity in color and brightness

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Categories: , , , , ,

FEATURES

OMNI RGB LED LIGHTING DESIGN

Equipped with RGB LED Lighting on the front, sides, and back of the fan, the Astro allows for clear viewing of your RGB from any angle while providing superior cooling performance.

CARBON FIBER STYLE FINISHING

Featuring a stylish carbon fiber style finishing, this fan delivers a futuristic flair to your rig.

ADDRESSABLE RGB COMPATIBLE

Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

Requires Addressable RGB motherboard or hub (H66F / H106C).

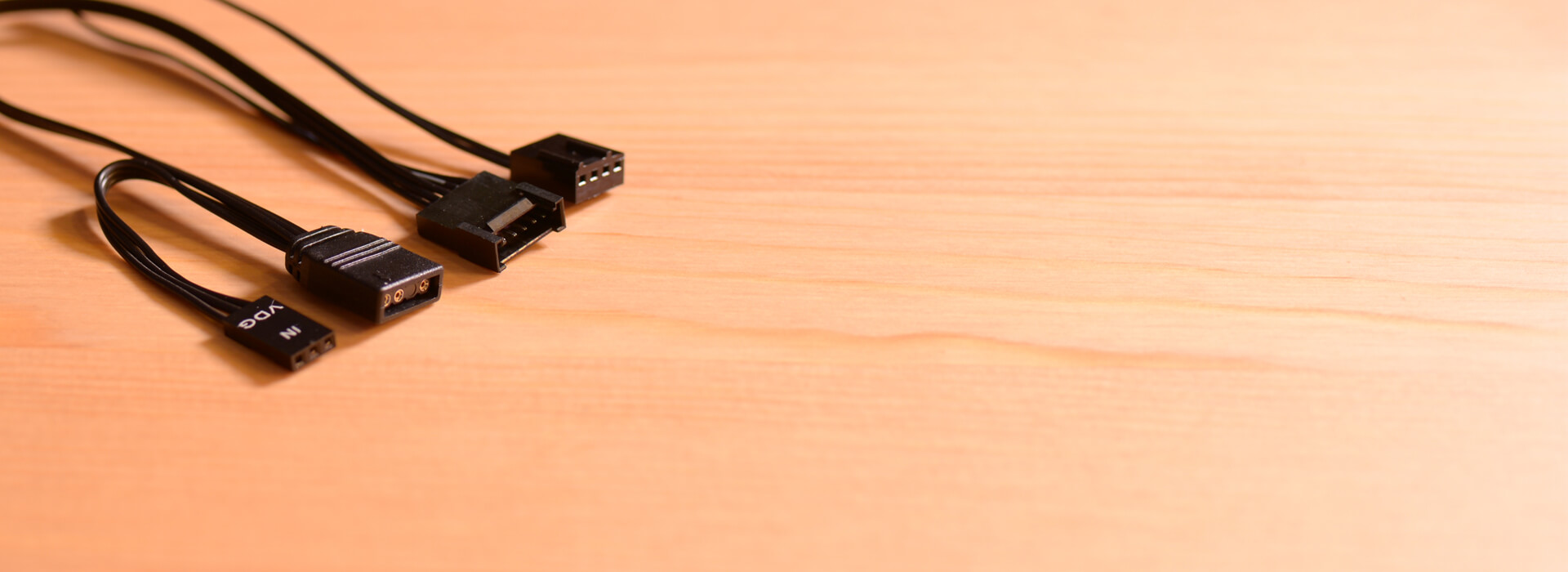

ADDRESSABLE RGB ADAPTER CABLE INCLUDED

Comes with a 6-Pin adapter cable to connect your fan with compatible Addressable RGB motherboards.

H66F HUB FOR PWM CONTROL FUNCTIONS

Compatible with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.

(Requires H66F Hub – sold separately)

For more information, refer to our PWM Compatibility Guide.

4-Pin Connector

6-Pin Fan Connector

ARGB MB Connector
(For all other ARGB MBs such as ASUS, MSI, etc.)

ARGB MB Connector
(Gigabyte RGB Fusion)

CURVED FAN BLADES

Curved fan blades effectively direct airflow to increase air pressure and reduce air resistance for maximum cooling performance.

ANTI-VIBRATION PADS

Anti-vibration pads absorb and dampen vibrations caused by fan rotation.

COMES WITH 6-PIN CONNECTOR

PRODUCT GALLERY

VIDEOS

SPECS

Model Astro 12
Fan Dimensions (L x W x H) 120 x 120 x 25mm
Fan Speed 1000 rpm
Connector Type Fan: 6-Pin

Adapter Cable: 6-Pin

Fan Starting Voltage 7V
Fan Rated Voltage 12 V
Fan Rated Current 0.61 A
Power Consumption 7.32 W
Air Pressure 1.68 mmH2O
Air Flow 42.1 CFM
Fan Noise Level 17.5 dBA
Bearing Type Hydraulic Bearing
MTBF 60000 hrs.
EAN Code 4710562750157
