Core Plus

ARGB CPU AIR COOLER

PWM air cooling solution with a stylish Addressable RGB LED design. Top Down Cooling design allows for more efficient heat dissipation. Compatible with Addressable RGB motherboards or hubs (H66F). Compatible with most current motherboard designs. Not compatible with Intel 2011 and 2066.

  • Built-in RGB LED lighting adds a stylish flair to your rig
  • Compatible with Addressable RGB motherboards or hubs
  • Top Down Cooling design allows for more efficient heat dissipation and higher compatibility with cases
  • TDP (Thermal Design Power) up to 110W
  • Black coating on fins increases heat dissipation area and improves efficiency of dissipation
  • Upgraded high efficiency fins for maximum thermal performance
  • Works with most current AMD and Intel motherboard designs. Not compatible with Intel 2011 and 2066

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Categories: , , , , , ,

FEATURES

STYLISH RGB LED RING DESIGN

Comes equipped with an RGB LED Ring around the fan of the cooler and translucent fan blades, adding a stylish and dynamic touch to your rig.

ADDRESSABLE RGB COMPATIBLE

Access 16.8 million colors using compatible Addressable RGB motherboards (ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion) or hubs (H66F).

TOP DOWN COOLING DESIGN

Top Down Cooling design allows for more efficient heat dissipation and higher compatibility with cases.

PWM HIGH-PRESSURE FAN

120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.

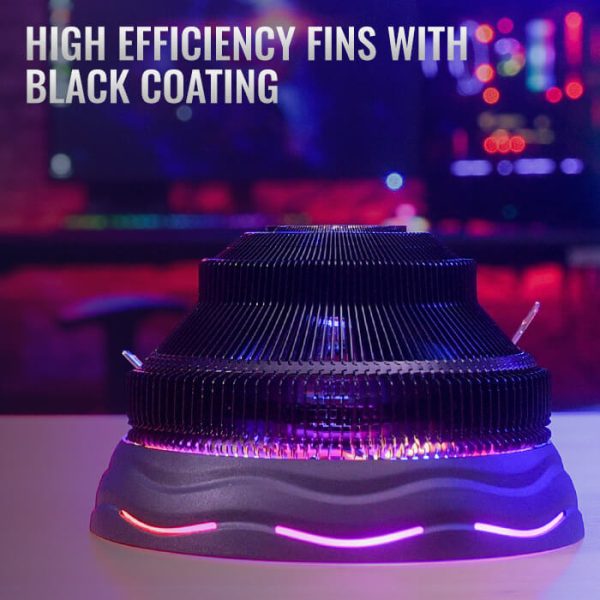

HIGH EFFICIENCY FINS

Upgraded high efficiency fins for maximum thermal performance.

Black coating on fins allows for faster heat absorption, improving the efficiency of heat dissipation.

COMPATIBILITY

Works with most current AMD and Intel motherboard designs. Not compatible with Intel 2011 and 2066

PRODUCT GALLERY

VIDEOS

SPECS

Model Core Plus
Base Material Aluminum
Dimensions 136 x 136 x 83mm
TDP (Thermal Design Power) 110
Fan
Speed 600-1800 rpm
Connector PWM 4-Pin
Dimensions 120 x 120 x 25mm
Started Voltage 7V

Rated Voltage 12V
Rated Current 0.55 A
Power Consumption 6.6 Watts
Air Pressure 0.53-1.41 mm-H2O
Air Flow 21.8-51.3 CFM
Noise 14.5-25.4dBA
MTBF (Mean Time Before Failure) 60000 hrs.
Socket LGA 1700 / 1200 / 115X / 775
AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
For compatibility, check that LGA1700/AM5 is listed as a supported bracket on the packaging.
EAN Code 4710562750218

User Manual

Download your user manual here.
