Eclipse 12 Pro

12CM ARGB FANS x 3 | H66F HUB x 1 | REMOTE CONTROL x 1

120mm fan with 6-Pin connector featuring a stylish RGB LED Dual Slim Ring Lighting design. Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

Comes equipped with three Eclipse 12 Addressable RGB fans, H66F RGB Control Hub, and Remote Control.

  • Comes with 3 x Eclipse 12 fans, 1 x H66F RGB Control Hub, and 1 x Remote Control
  • RGB LED Dual Slim Ring Lighting design adds extra flair to your rig
  • Access 16.8 million colors using compatible Addressable RGB motherboards
  • H66F hub allows you to connect up to six 6-Pin ARGB fans and up to two ARGB accessories with +5V ARGB connector
  • H66F hub comes with PWM control functions for optimized fan RPM

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

ADDRESSABLE RGB COMPATIBLE

Take full control of your Eclipse 12 Addressable RGB fans using any one of three ways:

ADDRESSABLE
RGB MOTHERBOARD

LED CONTROL
BUTTON

RGB REMOTE
CONTROL

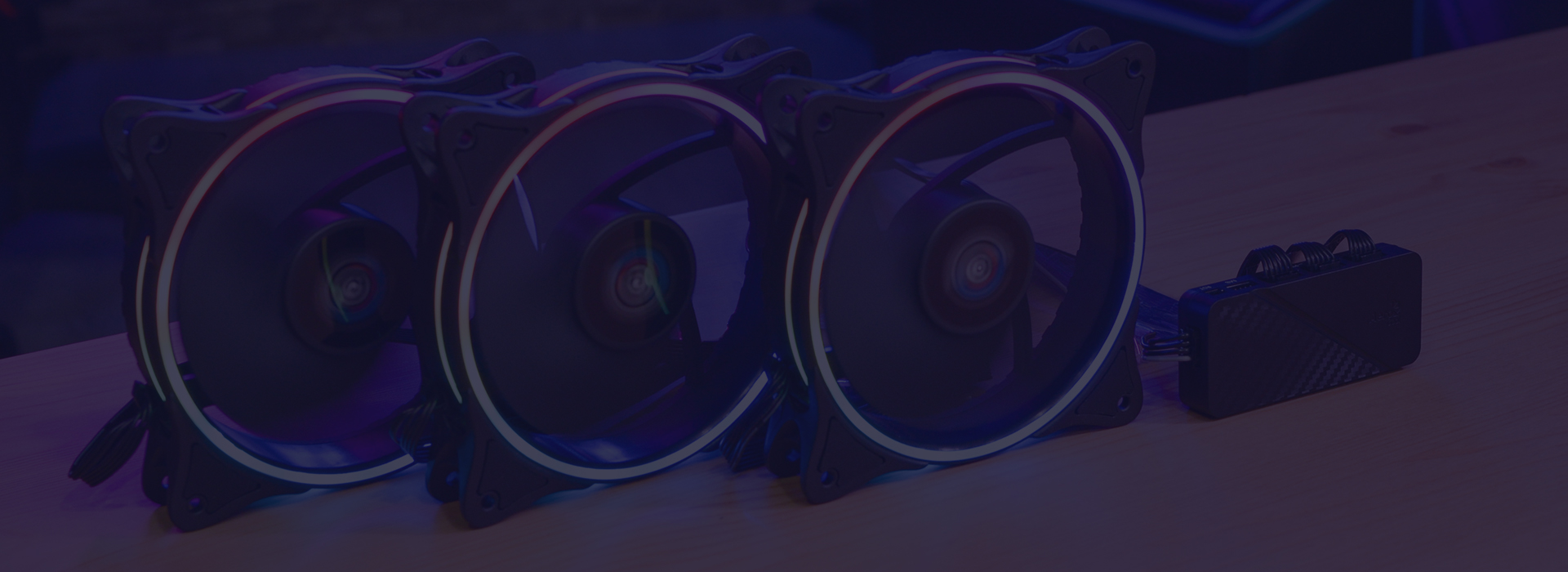

H66F RGB CONTROL HUB

Features a 6-port hub with PWM control functions that allows you to connect up to six 6-Pin Addressable RGB fans and up to two Addressable RGB accessories with 5V ARGB connector.

Motherboard connector supports Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).

PWM CONTROL FUNCTIONS

H66F hub comes with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.

Please check if the 4-Pin fan header on your motherboard is PWM compatible.

PWM based – PWM compatible
Voltage basednot PWM compatible

For more information, refer to our PWM Compatibility Guide

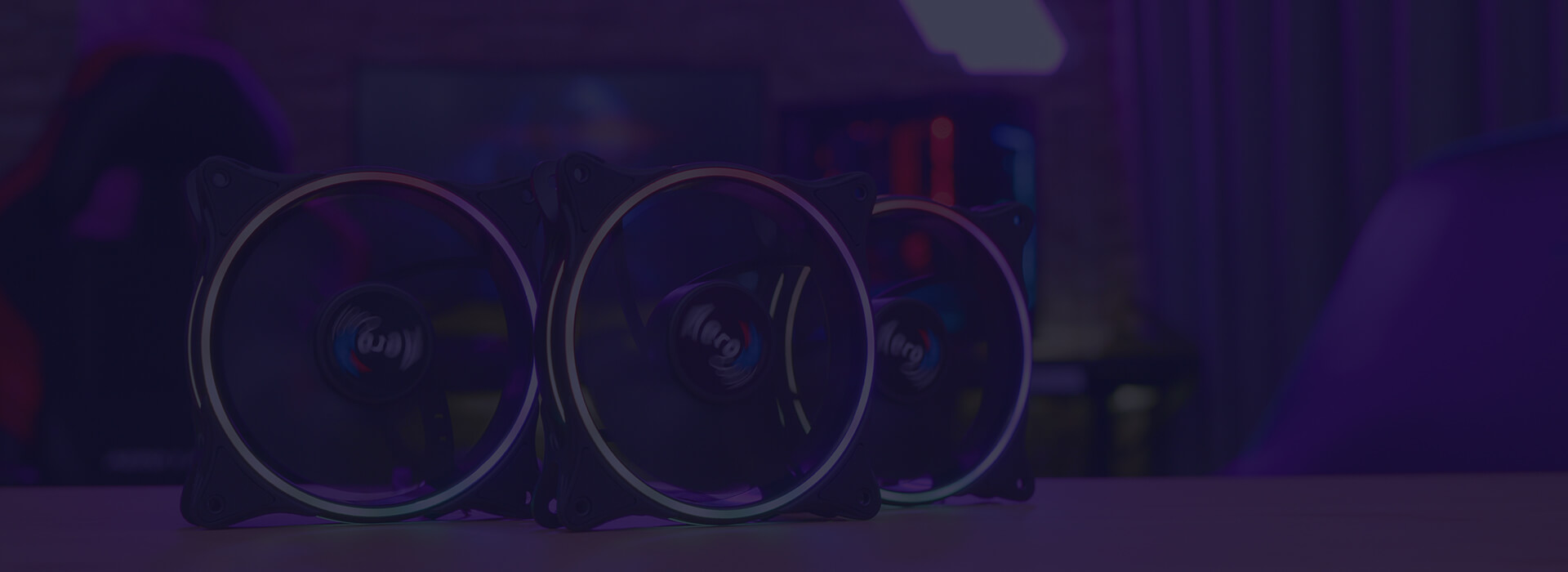

ADDRESSABLE RGB RECEPTOR CABLE INCLUDED

Comes with a receptor cable to connect your hub with compatible Addressable RGB motherboards.

  1. ARGB MB Connector (For all other ARGB MBs such as ASUS, MSI, etc.)
  2. ARGB MB Connector (Gigabyte RGB Fusion)
  3. 4-Pin Hub Connector
  4. PWM 4-Pin Connector

POWER CABLE INCLUDED

Comes with a cable to power the hub.

  1. SATA Power Connector
  2. 4-Pin Hub Power Connector

RGB LED DUAL SLIM RING LIGHTING

Equipped with RGB LED Lighting to give your rig stylish flair while providing superior cooling capabilities to improve performance.

Dual Slim Ring Lighting Design with LED rings as thin as 2mm delivers a truly unique way to keep your system cool, in more ways than one.

CURVED FAN BLADES

Curved fan blades effectively direct airflow to increase air pressure and reduce air resistance for maximum cooling performance.

ANTI-VIBRATION PADS

Anti-vibration pads absorb and dampen vibrations caused by fan rotation.

COMES WITH 6-PIN CONNECTOR

Connects to H66F RGB Control Hub. Compatible with Tor, Tor Pro, and Klaw cases.



PRODUCT GALLERY

VIDEOS

SPECS

Model Eclipse 12 Pro
Included Eclipse 12 fans x 3 | H66F Hub x 1 | Remote Control x 1
Eclipse 12
Fan Dimensions (L x W x H) 120mm x 120mm x 25mm
Fan Speed 1000 rpm
Connector Type 6-Pin
Fan Starting Voltage 6 V
Fan Rated Voltage 12 V
Fan Rated Current 0.38 A
Power Consumption 4.56 W
Air Pressure 1.27 mmH2O
Air Flow 32.1 CFM
Fan Noise Level 19.8 dBA
Bearing Type Hydraulic Bearing
MTBF 60000 hrs.

Hub & Remote Control
Type RF wireless
Connector SATA
Rated Voltage 12 V/5 V
Rated Current 3 A
Frequency 433.92 MHz
Receive range 10m
Port for fan 6
Port for 5V ARGB connector 2
Accessories Velcro Strap x 1

Screw x 12

Black Zip Tie x 2

ARGB Receptor Cable x 1

EAN Code 4718009158139

DOWNLAOD

H66F RGB Hub – Remote Control Function Guide
