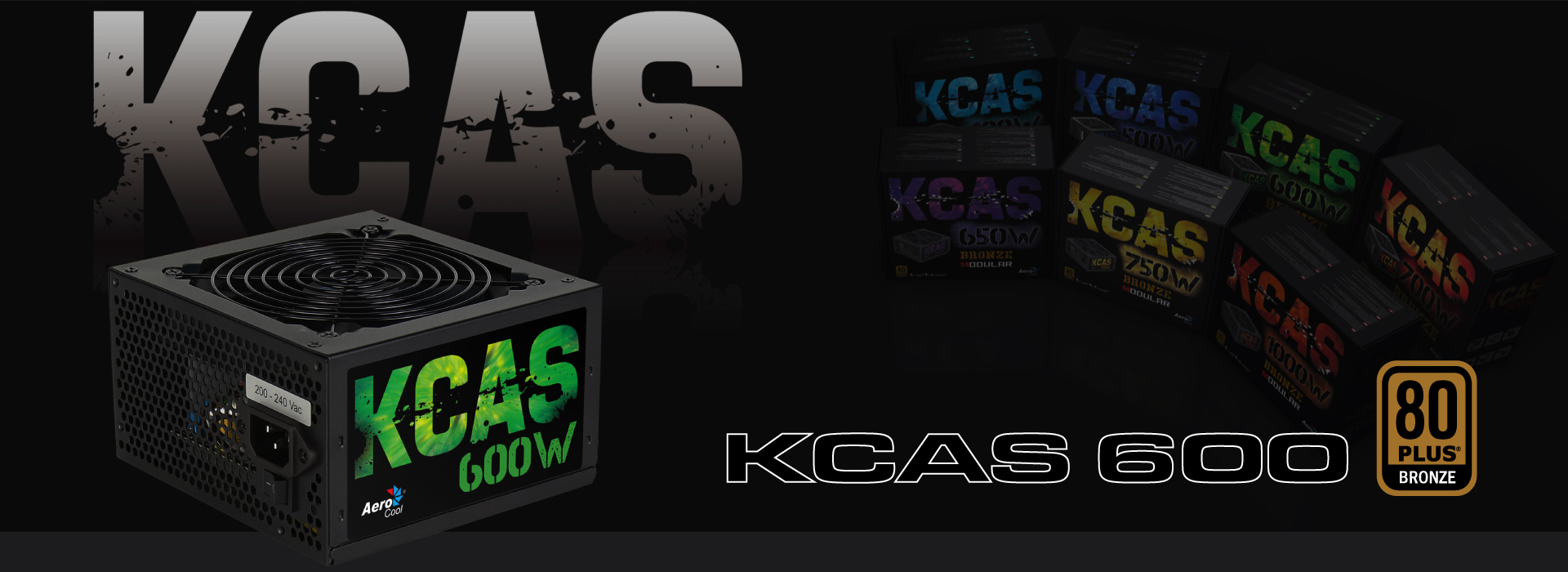

KCAS 600W

POWER SUPPLY UNIT

• Built-in APFC (Active Power Factor Correction) rates > 0.9
• Up to 85%+ efficiency with official 80Plus Bronze certificate

• Mesh sleeves reduce the blockage of system air flow
• Silent 12cm fan with optimized thermal fan speed control
• Powerful single +12V rail offers compatible DC output

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

80PLUS BRONZE

80Plus Bronze certified efficiency.

MOST AFFORDABLE

The most affordable, low noise, high efficiency, and
stable output PSU.

12CM COOLING FAN

Super silent 12cm high performance cooling fan with smart thermal speed control circuit.

12cm silent black fan with smart thermal fan speed control circuit.

PRODUCT GALLERY

SPECS

SPECIFICATIONS

AC Input 230VAC 4.5A 47-53HZ
DC Output +3.3V +5V +12V -12V +5VSB
Max Current 20A 20A 45A 0.4A 2.5A
Max.Combined Power0 130W 540W 4.8W 12.5W
600W
EAN CODE 4713105953299
AC Input
230VAC 4.5A 47-53HZ
DC Output
+3.3V / +5V +12V -12V / +5VSB
Max Current
20A / 20A 45A 0.4A / 2.5A
Max.Combined Power
130W 540W 4.8W / 12.5W
600W
EAN CODE
4713105953299

EFFICIENCY

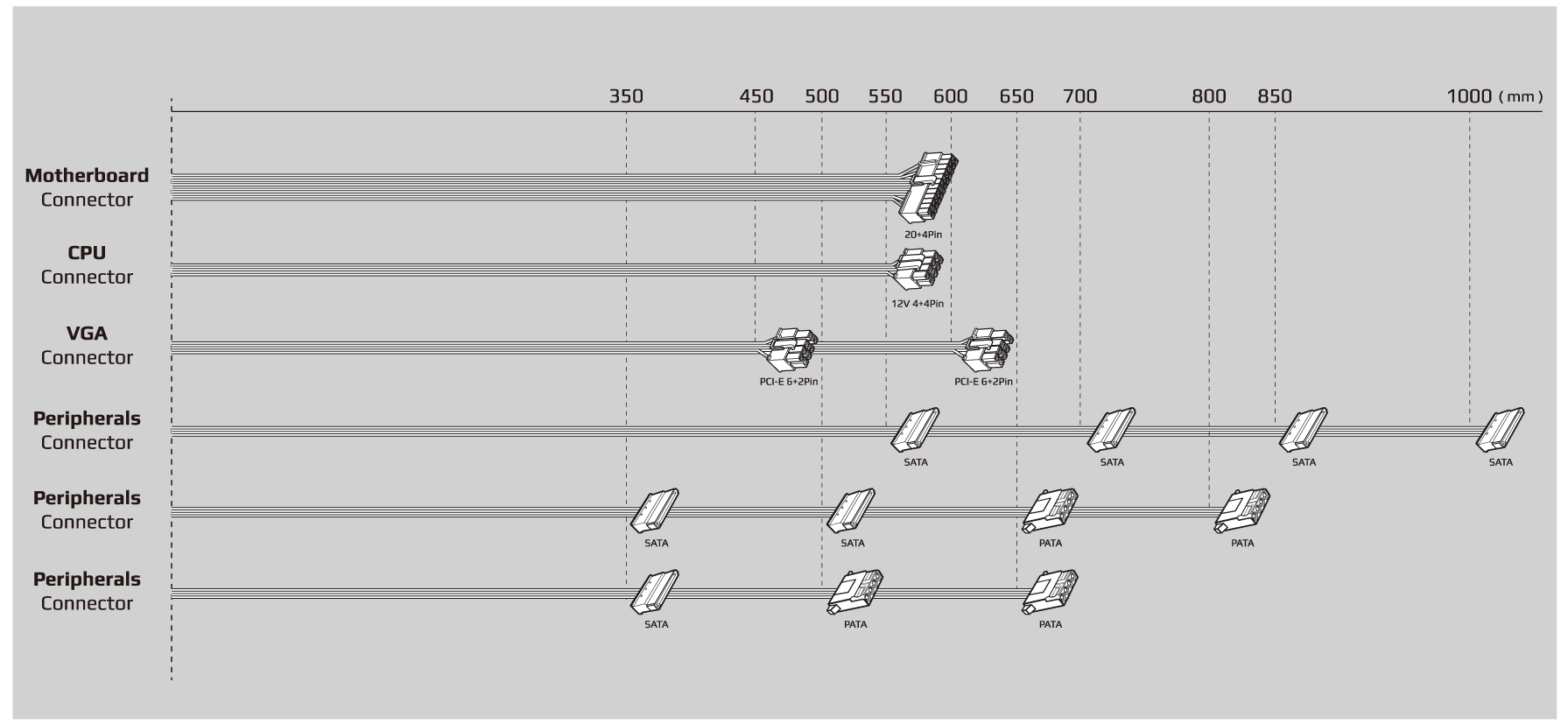

CABLES

DOWNLOAD

Cables and Connectors Usage Guidelines
