Quartz Blue

MID TOWER CASE

Premium mid tower case with a full tempered glass side panel and front panel to showcase the inside of your rig. Comes equipped with three 12cm Blue LED fans in the front panel. Fully adjustable HDD cage allows you to install 60mm thick radiator or longer PSU. Supports liquid cooling in the front and top of the case for maximum efficiency cooling.

  • Full tempered glass front side and front panels to showcase the inside of your rig
  • Comes equipped with three 12cm Blue LED fans in the front panel
  • Supports liquid cooling in the front and top of the case
  • Supports air cooling in the front, top, and rear of the case
  • Fully adjustable HDD cage allows you to install 60mm thick radiator or longer PSU
  • Dual chamber design for improved ventilation

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

FEATURES

Beautifully Crafted

Showcase your rig as this mid tower comes with tempered glass in the front and side panels.
The Quartz supports ATX motherboards and includes three LED Fans.

Beautifully Crafted

Showcase your rig as this mid tower comes with tempered glass in the front and side panels.
The Quartz supports ATX motherboards and includes three LED Fans.

Liquid Cooling Support

Front: Supports 240mm or 360mm radiator x 1 (Optional)
Top: Supports 240mm radiator x 1 (Optional)

Liquid Cooling Support

Front: Supports 240mm or 360mm radiator x 1 (Optional)
Top: Supports 240mm radiator x 1 (Optional)

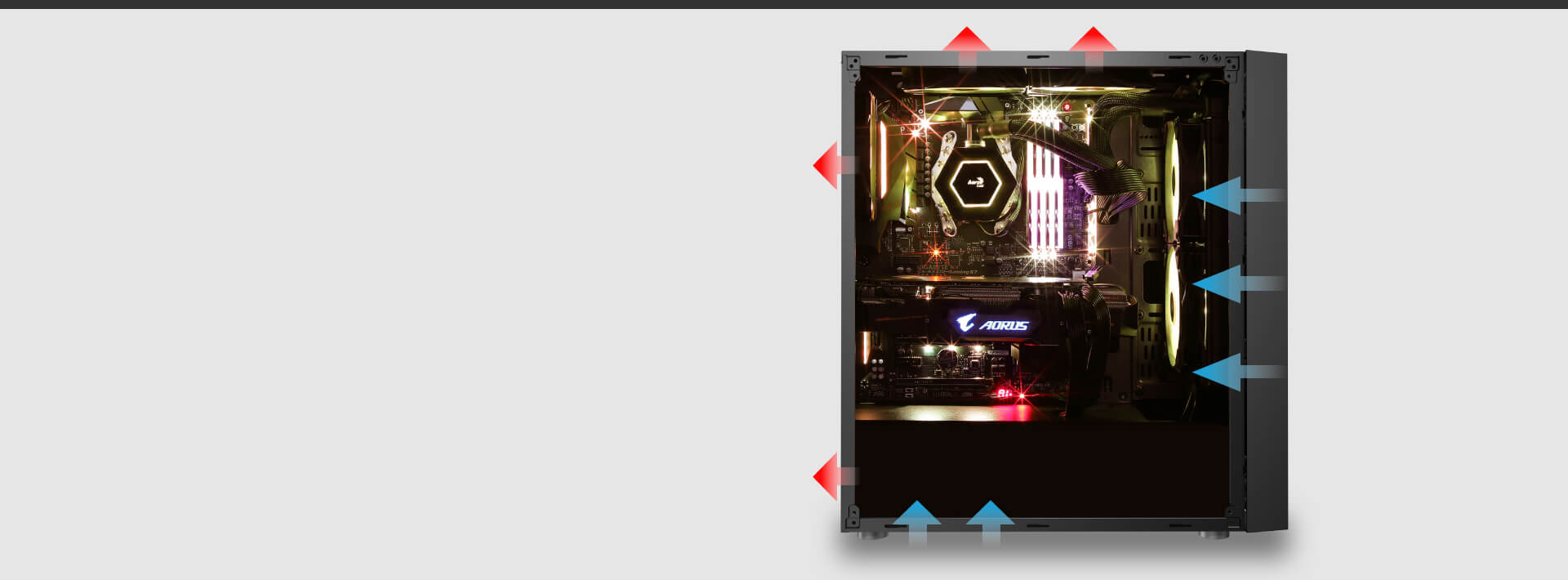

Air Cooling

Front: Supports 120mm LED Blue fan x 3 (Included)
Top: Supports 120mm fan x 2 (Optional)
Rear: Supports 120mm fan x 1 (120mm Black Fan included)

Air Cooling

Front: Supports 120mm LED Blue fan x 3 (Included)
Top: Supports 120mm fan x 2 (Optional)
Rear: Supports 120mm fan x 1 (120mm Black Fan included)

Storage Capacity

2.5″ Drive Bays x 4, 3.5″ Drive Bays x 2

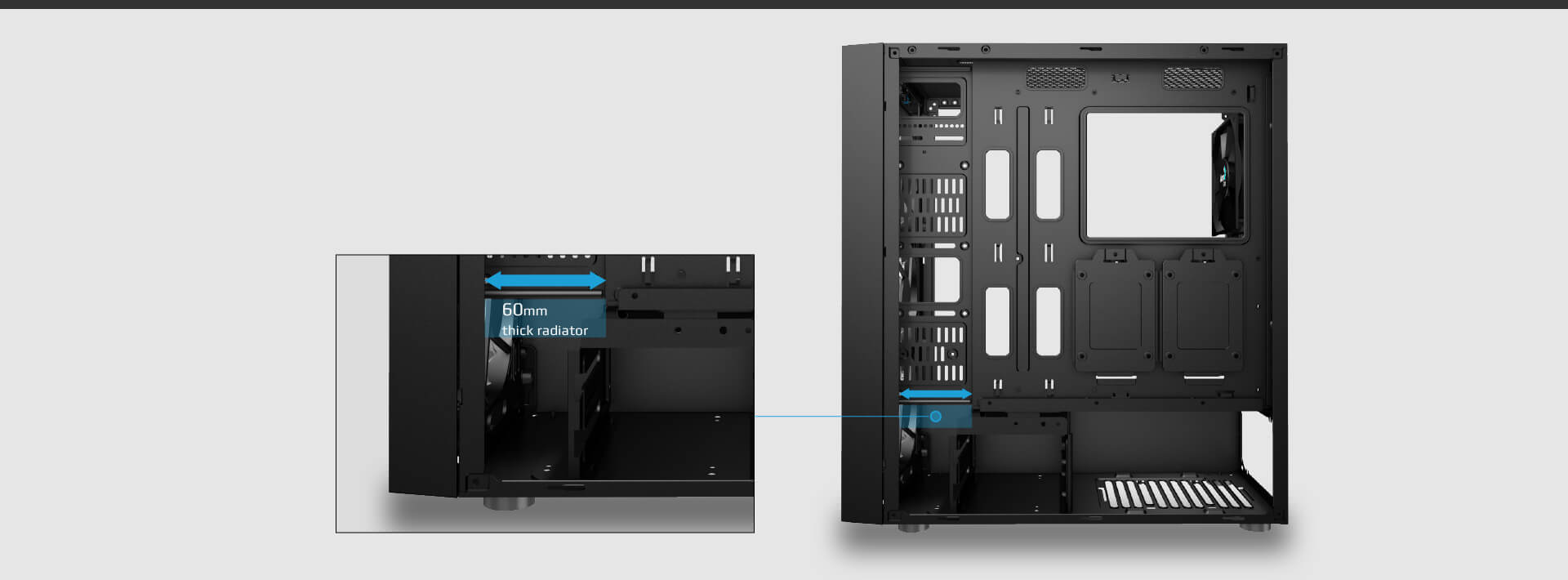

Adjustable HDD Cages

Customize your build the way you want it. Add the required hard drives or remove the cage to make space to install up to 60mm thick radiator.

Adjustable HDD Cages

Customize your build the way you want it. Add the required hard drives or remove the cage to make space to install up to 60mm thick radiator.

I/O Panel

The I/O panel also includes 1 x USB 3.0 and 2 X USB 2.0, mic / headphone jack, power & reset buttons.

I/O Panel

The I/O panel also includes 1 x USB 3.0 and 2 X USB 2.0, mic / headphone jack, power & reset buttons.

Easy Maintenance

Removable dust filters for easy cleaning. Dust filters are located below the PSU chamber, and at the top.

Easy Maintenance

Removable dust filters for easy cleaning. Dust filters are located below the PSU chamber, and at the top.

PRODUCT GALLERY

SPECS

Model Quartz Blue
Case Type Mid Tower
Color Black
Body Material SPCC
Front Panel Material ABC + Acrylic
Steel Thickness 0.5mm
Motherboards Micro ATX/mini-ITX
Case Dimensions (Overall) 206.1 x 455 x 408mm (W x H x D)
3.5” Drive Bay 2
2.5” Drive Bay 4
Expansion Slots 7

GPU Clearance Supports GPU up to 341mm/366mm(without front fan)
CPU Cooler Clearance Supports CPU up to 152mm
I/O Ports USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic.
Liquid Cooling Front: 240/360mm Radiator (Optional)

Top : 240mm Radiator (Optional)

Air Cooling Front: 120mm LED Fan x 3

Top: 120mm x 2 (Optional)

Rear: 120mm x 1 (Includes 120mm Fan)

Net Weight/Gross Weight 5.9kg (13 lbs.)/6.6kg (14.55 lbs.)
Internal Cable Management Depth 29mm
Power Supply ATX PSU (Up to 180mm, Optional)

DOWNLOAD

Download your user manual here.
