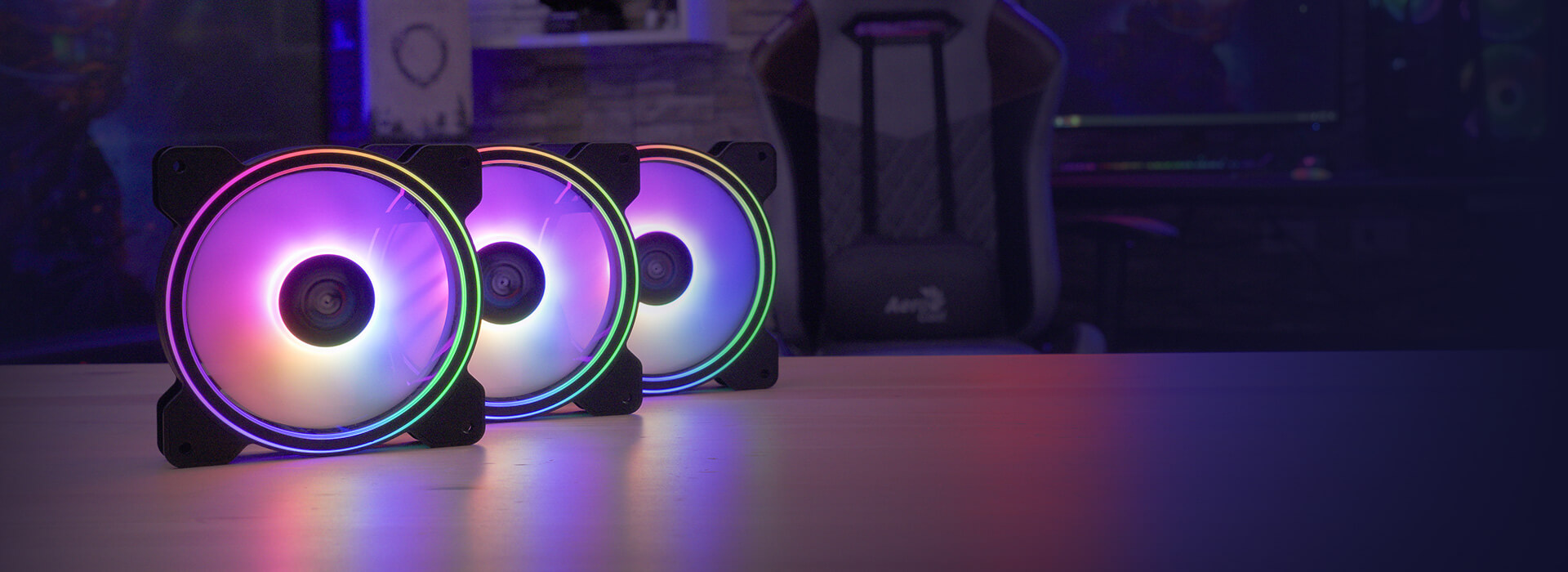

Saturn 12F ARGB Pro

12CM ARGB FANS x 3 | H66F HUB x 1 | REMOTE CONTROL x 1

120mm fan with 6-Pin connector featuring Multi-Ring RGB LED Lighting design. Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion. Comes equipped with three Saturn 12F ARGB fans, one H66F RGB Control Hub, and a remote control.

  • Comes with 3 x Saturn 12F ARGB fans, 1 x H66F RGB Control Hub, and 1 x Remote Control
  • Multi-Ring RGB LED Lighting – Featuring multiple RGB LED rings circling the sides and front of the fan, the Saturn achieves a planetary ring effect to deliver a stylish yet otherworldly lighting experience
  • Translucent fan blades allow you to fully appreciate this fan’s beautiful RGB lighting
  • Access 16.8 million colors using compatible Addressable RGB motherboards
  • H66F hub allows you to connect up to six 6-Pin ARGB fans and up to two ARGB accessories with +5V ARGB connector
  • H66F hub comes with PWM control functions for optimized fan RPM

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.

Where To Buy
FEATURES SPECS VIDEOS

ADDRESSABLE RGB COMPATIBLE

Take full control of your Saturn 12F ARGB Addressable RGB fans using any one of three ways:

ADDRESSABLE RGB MOTHERBOARD

LED CONTROL BUTTON

RGB REMOTE CONTROL

H66F RGB CONTROL HUB

Features a 6-port hub with PWM control functions that allows you to connect up to six 6-Pin Addressable RGB fans and up to two Addressable RGB accessories with 5V ARGB connector.

Motherboard connector supports Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).

PWM CONTROL FUNCTIONS

H66F hub comes with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.

Please check if the 4-Pin fan header on your motherboard is PWM compatible.

• PWM based – PWM compatible
• Voltage based – not PWM compatible

For more information, refer to our PWM Compatibility Guide.

ADDRESSABLE RGB RECEPTOR CABLE INCLUDED

Comes with a receptor cable to connect your hub with compatible Addressable RGB motherboards.

  1. ARGB MB Connector (For all other ARGB MBs such as ASUS, MSI, etc.)
  2. ARGB MB Connector (Gigabyte RGB Fusion)
  3. 4-Pin Hub Connector
  4. PWM 4-Pin Connector

POWER CABLE INCLUDED

Comes with a cable to power the hub.

  1. SATA Power Connector
  2. 4-Pin Hub Power Connector

MULTI-RING RGB LED LIGHTING

Featuring multiple RGB LED rings circling the sides and front of the fan, the Saturn achieves a planetary ring effect to deliver a stylish yet otherworldly lighting experience.

CURVED FAN BLADES

Curved fan blades effectively direct airflow to increase air pressure and reduce air resistance for maximum cooling performance.

TRANSLUCENT FAN BLADES

Translucent fan blades allow you to fully appreciate this fan’s beautiful RGB lighting.

ANTI-VIBRATION PADS

Anti-vibration pads absorb and dampen vibrations caused by fan rotation.

COMES WITH 6-PIN CONNECTOR

Connects to H66F RGB Control Hub. Compatible with Tor, Tor Pro, and Klaw cases.

PRODUCT GALLERY

SPECS

Model Saturn 12F ARGB Pro
Included Saturn 12F ARGB x 3 | Hub x 1 | Remote Control x 1
Saturn 12F ARGB
Fan Dimensions (L x W x H) 120 x 120 x 25mm
Fan Speed 1000 rpm
Fan Starting Voltage 6V
Rated Voltage 12 V
Rated Current 0.15 A
Power Consumption 1.8 W
Air Pressure 1.31mmH2O
Air Flow 35.8CFM
Fan Noise Level 19.6dBA
Bearing Type Hydraulic Bearing
MTBF (Mean Time Before Failure) 60000 hrs.
Hub & Remote Control
Type RF wireless
Connector SATA
Rated Voltage 12 V/5V
Rated Current 3 A
Frequency 433.92 MHZ
Receive range 10m
Port for fan 6
Port for 5V ARGB connector 2
Accessories Velcro Strap x 1
Screw x 12
Black Zip Tie x 2
EAN Code 4710562754117

H66F RGB Hub – Remote Control Function Guide
